How to Power a Homestead Off the Grid: Solar, Batteries, and Inverters Explained

An off-grid power system is four parts doing four jobs: solar panels make power, a charge controller feeds it into the batteries, a LiFePO4 battery bank stores it, and an inverter turns it into the AC your house uses, with a generator behind it all for long sunless stretches. Size them in order, starting from your daily kilowatt-hours, build on a 48-volt architecture for a whole home, and you own your power outright.

Powering a homestead off the grid sounds like an engineering degree waiting to happen. It is not. An off-grid power system is really just four parts doing four simple jobs: panels make power, a charge controller manages it, batteries store it, and an inverter turns it into the electricity your house actually uses. Understand those four and how they connect, and how to set up off grid solar stops being a mystery and becomes a shopping list.

This explains each part in plain terms, how they fit together, how to size the whole thing to your home, and how to build it on a budget without cutting the corners that matter.

The Four Parts of an Off-Grid Power System

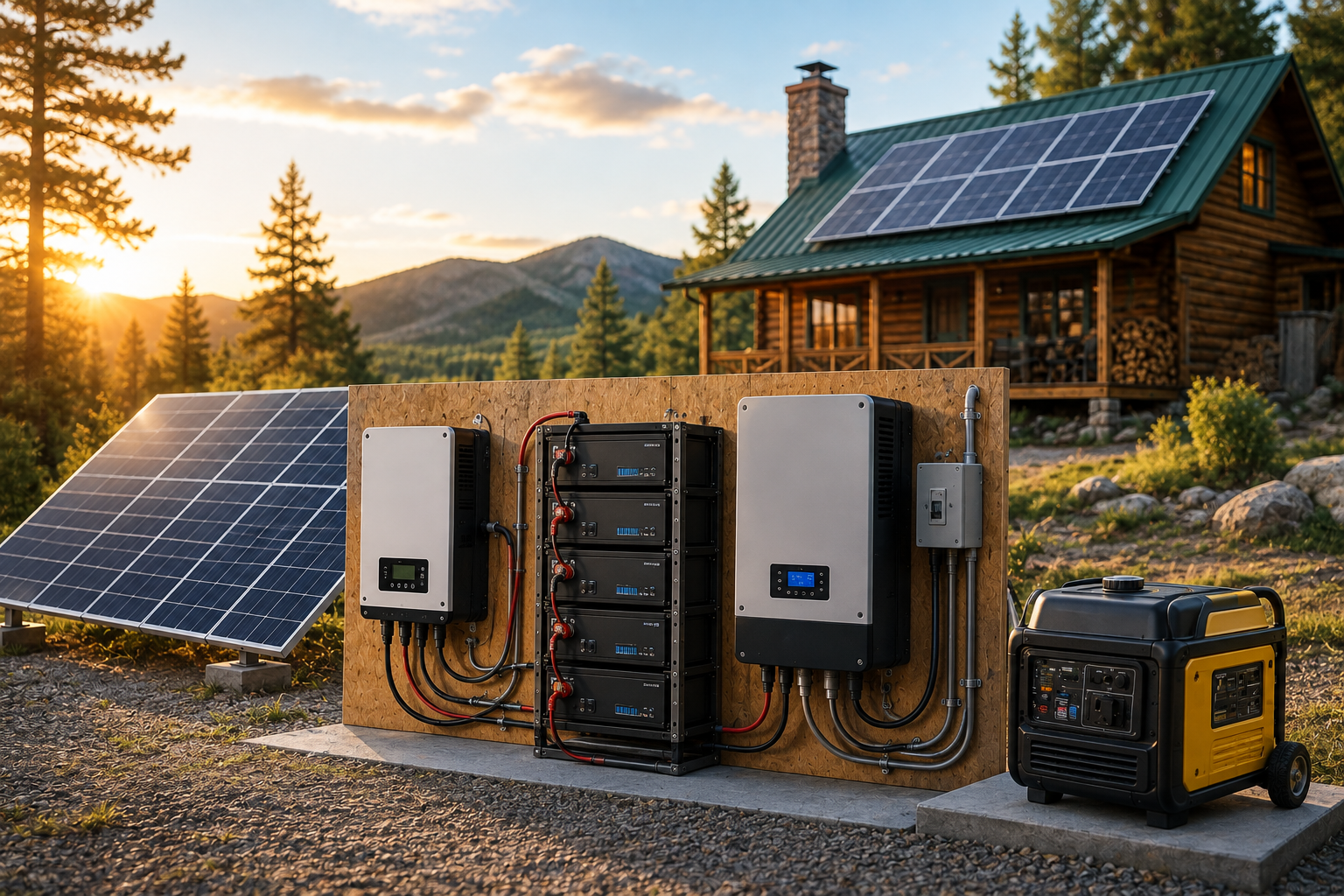

Electricity flows through the system in one direction: sunlight hits the panels, the charge controller feeds that power into the batteries, and the inverter pulls from the batteries to run your home. A generator sits behind it all for the days the sun cannot keep up. Here is what each part does.

Modern systems often combine the charge controller and inverter into a single hybrid all-in-one unit, which simplifies the wiring and adds a built-in input for a generator. At homestead scale that is what the EG4 12000XP does: 12,000W of split-phase 120/240V output, up to 24kW of PV across two MPPTs, a generator input with two-wire auto start, and a 100A bypass, all in one box instead of four.

How Do I Power a Home Completely Off the Grid With Solar?

To power a home completely off the grid with solar, you size a solar array and a LiFePO4 battery bank to your daily electricity use and the days of autonomy you want, connect them through a charge controller and an inverter, and add a generator for backup. The trick is doing it in the right order, because each number depends on the one before it.

Find your daily use. Add up the kilowatt-hours your home uses in a day. This is the number everything else is built on. The EIA puts the average US household at 863 kWh a month, which is about 29 kWh a day, so 30 kWh is a fair round figure to plan against. Yours may be far less if you are careful, and cutting that number is cheaper than buying capacity to cover it.

Size the battery bank. Multiply your daily use by how many days you want to run without sun. A home using 30 kWh a day that wants three days of autonomy needs roughly 90 kWh of usable storage. Nameplate capacity has to be higher, because you do not run a bank to empty: at the 80 percent depth of discharge LiFePO4 manufacturers recommend, 90 kWh usable means about 112 kWh on the label, or seven 16.1kWh EG4 WallMount units. That number is why most homesteads shave their daily load first and buy autonomy second.

Size the solar array. Add enough panels to both run the house and refill the batteries on an average, not perfect, day of sun. Oversize for winter and cloudy climates. Working from 30 kWh a day and four peak sun hours, you are looking at roughly 10kW of array, which is around fourteen 705W panels.

Size the inverter. Match its continuous and surge ratings to your peak load, the moment when the well pump, fridge, and everything else run at once. A whole-home system needs a 120/240V inverter.

Add a generator. Solar and batteries do the daily work; the generator carries you through multi-day storms and deep winter. Almost no off-grid home skips it.

For whole-home coverage including 240-volt loads like a well pump or dryer, you want a split-phase hybrid inverter and a 48V bank behind it. Start with the Off-Grid Living and Homestead collection and Backup Power.

How Do I Build a DIY Off-Grid Solar System on a Budget?

Build a DIY off-grid solar system on a budget by starting with a matched kit or an all-in-one hybrid inverter paired with a 48-volt LiFePO4 bank and panels, then phasing in capacity over time. Buying matched components avoids the compatibility mistakes that cost beginners money, and building in stages spreads the spend. Do the low-voltage work yourself, and bring in a licensed electrician for anything that ties into your home's panel.

Start with a kit or all-in-one. A matched kit or a hybrid inverter puts the tricky electronics in one place and ships with a wiring diagram. The EG4 12000XP with a single 314Ah WallMount battery runs $5,455 for 12kW of output and 16.1kWh of storage, and the same bundle with a second battery is $9,455 for 32.2kWh. That is the anchor most homestead builds start from.

Add panels by the watt, not by the piece. At $259.29 for a 705W Canadian Solar bifacial panel, you are paying about 37 cents a watt, and fewer, bigger panels mean less racking, less wire, and fewer connections to fail.

Phase the build. Add panels and batteries as budget allows. WallMount units parallel without external busbars, so the second battery is a bolt-on rather than a rebuild. The system does not have to be finished to be useful.

DIY the safe parts. Low-voltage wiring, racking, and battery connections are DIY-friendly. Panel tie-ins and anything at 240V need a professional and usually a permit.

If you would rather start smaller and grow into it, our best off-grid solar kits for beginners guide covers the entry tiers, and the off-grid solar system cost breakdown puts real numbers on each stage.

What Is the Best Off-Grid Power System for a Rural Home?

The best off-grid power system for a rural home is a 48-volt LiFePO4 battery bank paired with a hybrid inverter and a solar array sized to your daily use, with a generator for backup. For most homes that means a modular, expandable system rather than a single fixed unit, so you can add storage and panels as your needs grow. The 48-volt architecture is what makes it efficient at whole-home scale.

You have two honest paths to that system. The component route is a 48V bank plus a split-phase hybrid inverter, and the EG4 12000XP with WallMount batteries is the version of that we stock, which gives the most capacity per dollar and lets you scale to 16 paralleled inverters if the property grows. The plug-and-play route is an expandable power station that packs the battery, inverter, and controller into one sealed unit: less capacity per dollar, no wiring, and a real ceiling on 240V loads. If you are still choosing hardware, our EcoFlow vs Jackery vs Bluetti vs Anker comparison walks through the sealed-unit options.

12V vs 24V vs 48V: Why System Voltage Matters

The voltage of your battery bank is a decision people skip and later regret. Higher voltage moves the same power at lower current, which means thinner, cheaper wire, less heat, and better efficiency. The rough guide is simple.

12 volts: for the smallest systems, an RV, a van, or a tiny cabin with a few lights and a phone charger.

24 volts: a middle ground for a small cabin or a modest weekend setup.

48 volts: the standard for a whole home or homestead. If you are powering a real house, start here, because 12V and 24V systems get expensive and inefficient at that scale.

The Mistakes That Wreck Off-Grid Builds

Undersizing the battery. Plenty of panels but not enough storage for a multi-day cloudy stretch is the classic off-grid failure.

Sizing to nameplate instead of usable capacity. A 100kWh label is not 100kWh you can spend. Plan at 80 percent depth of discharge and you will not be surprised at 3am in February.

Forgetting winter. Solar output drops sharply in winter and heavy cloud. Size for your worst season, not your best.

The wrong voltage. Building a whole-home system at 12V or 24V wastes money on heavy wire and loses efficiency. Use 48V for a house.

An inverter too small for surge. If it cannot handle the moment the well pump and everything else kick on together, the system trips. Size to peak.

No generator. A battery with no way to recharge in a long storm is not a backup. The generator is the insurance.

Cheap batteries. Lead-acid or low-quality cells look cheaper and die far sooner. A LiFePO4 bank rated for 8,000 cycles at 80 percent depth of discharge is the value choice over the system's life, and cold-climate builds want cells with integrated self-heating so winter charging does not quietly damage them.

An off-grid power system is not magic and it is not beyond you. It is four parts, sized in order, built to the way your homestead actually uses power. Get the battery and the voltage right, size for your worst season, keep a generator behind it, and you own your power outright, quietly and reliably, long before anything goes wrong.

FAQ

How do I power a home completely off the grid with solar?

Size a solar array and a LiFePO4 battery bank to your daily electricity use and the days of autonomy you want, connect them through a charge controller and an inverter, and add a generator for backup. Work in order: find your daily kilowatt-hours, size the battery bank to that times your desired days without sun, size the array to run the house and refill the batteries, size the inverter to your peak load, then add the generator. Whole-home coverage with 240-volt loads needs a 120/240V inverter.

How do I build a DIY off-grid solar system on a budget?

Start with a matched kit or an all-in-one hybrid inverter paired with a 48-volt LiFePO4 bank and panels, then phase in capacity over time. A 12kW EG4 12000XP with one 16.1kWh WallMount battery runs $5,455, and adding a second battery to reach 32.2kWh brings it to $9,455, so you can start at the lower tier and expand without replacing anything. Matched components avoid costly compatibility mistakes. Do the low-voltage wiring yourself, but use a licensed electrician for anything that ties into your home's panel or runs at 240 volts.

What is the best off-grid power system for a rural home?

A 48-volt LiFePO4 battery bank paired with a hybrid inverter and a solar array sized to your daily use, with a generator for backup. For most rural homes that means a modular, expandable system rather than a single fixed unit, so you can add storage and panels as your needs grow. The 48-volt architecture keeps it efficient at whole-home scale, and the generator covers the multi-day storms and deep winter that solar alone cannot.

Do I need batteries for an off-grid solar system?

Yes. Off-grid means there is no utility grid to draw from at night or in bad weather, so a battery bank stores the power your panels make during the day for use when the sun is down. Lithium (LiFePO4) batteries are the standard for off-grid homes because of their long cycle life and safety. Without storage, a solar array only produces power while the sun is shining.

How many solar panels and batteries do I need to go off-grid?

It depends on your daily use and desired days of autonomy. As a guide, a home using about 30 kilowatt-hours a day that wants three days without sun needs roughly 90 kilowatt-hours of usable storage, which is about 112 kilowatt-hours of nameplate capacity at an 80 percent depth of discharge, or seven 16.1kWh WallMount units. On the panel side, 30 kWh a day at four peak sun hours works out to roughly 10kW of array, about fourteen 705W panels. Smaller, careful homes need far less. Size the battery to your daily use times your autonomy, then size the array to keep it charged through your worst season.
