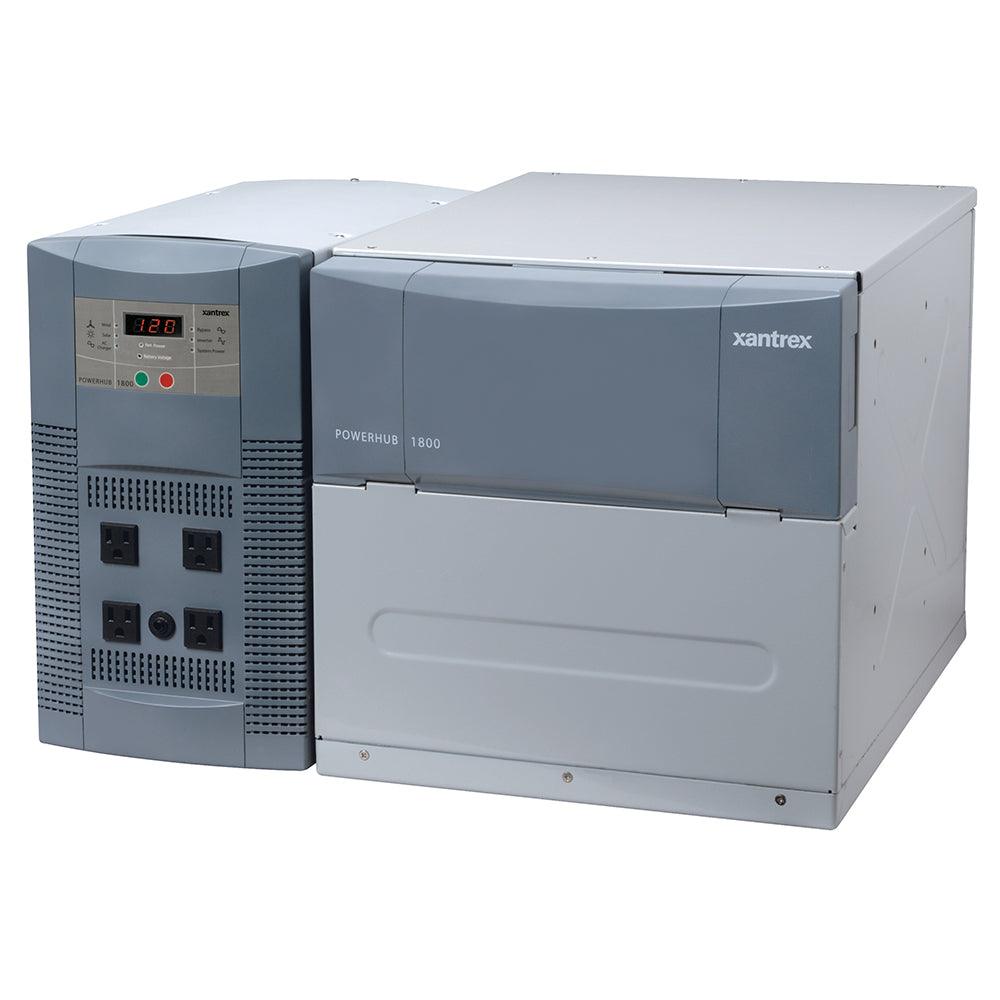

Xantrex PowerHub 1800 [PH1800-GFP] (SC)

PowerHub 1800

A Clean, Green, Backup Power Solution

The Xantrex PowerHub is a combination of an inverter/charger module capable of delivering up to 1800 watts of household power. It is the first backup power solution to operate with solar and wind inputs. Power from a generator or the utility grid can also be used with the PowerHub system to recharge its batteries. The PowerHub provides an affordable, high-output, primary power solution for an off-grid cottage or cabin, as well as backup power for grid-connected homes when the power goes out. It is scalable up to 400 amp-hours of energy, allowing customers to build their system based on their power requirements.

Features:

• Never worry about running out of power – renewable power sources, solar and wind, sustain the PowerHub’s battery charge indefinitely
• An excellent alternative to a generator – designed for indoor use, with no fuel, fumes or noise
• Add it to a grid-tie solar energy system for backup power
• Modified sine wave inverter/charger with battery box
• The battery box stores up to 200 amp-hours of battery power (single battery box included; batteries purchased separately)
• A second battery may be connected to double the battery capacity (additional battery box and batteries sold separately)
• Designed to include a generator as part of the system; generator power can pass through the unit to the AC outlets, and recharge the batteries
• Integrated transfer switch
• 40-amp three-stage charger
• Four AC outlets with hardwire option
• Two DC inputs for solar and/or wind connections
• Full-feature LED display for system monitoring

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 1440w
• Charger Input - Voltage: 120v
• Charging Banks: 1
• Charger Output - Amps: 40a
• AC Connection Type: GFCI Outlet
• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 2 Duplex GFCI
• Inverter Surge Rating: 2880w
• Inverter Input Voltage: 12v
• Inverter Output Voltage: 120v
• Waveform: Modified Sine Wave
• Charger Output Voltage: 12v
• Box Dimensions: 17"H x 19"W x 24"L WT: 66.45 lbs
• UPC: 715535114626
