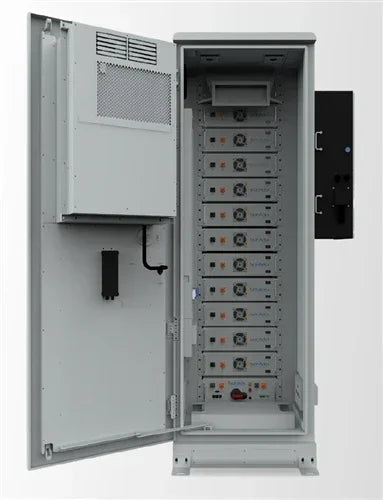

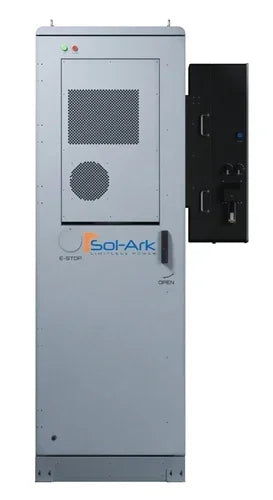

Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System
Sol-Ark L3-HVR-60KWH 61.44 kWh High Voltage Outdoor Commercial Battery System | IP55 Outdoor Commercial Enclosure
60kWh Outdoor Energy Storage System for either the Sol-Ark 30K or Sol-Ark 60K Commercial Inverter
| Model | L 3-HVR-60KWH |
| Series | Sol-Ark L3 Series Batteries |
| Manufacturer | Sol-Ark |
Specifications
| System Data | |
|---|---|
| Compatible Inverters | • Sol-Ark 30K-3P-208V-N Sol-Ark Sol-Ark 30K-3P-208V-N inverter sold separately. • Sol-Ark 60K-3P-480V-N Sol-Ark Sol-Ark 60K-3P-480V-N inverter sold separately. |
| Environmental Rating | Outdoor |
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Battery Cabinet Capacity | 61.44kWh |
| System Usable Energy* | 55.30kWh * DC usable energy, test conditions: 90% DOD, 0.3C charge and discharge at 25ºC. System usable energy may vary due to system configuration parameters. |
| Built-In DC Disconnect Rating | 200A |
| Built-In DC Disconnect Rating | 160A |
| Backup Capability Per Inverter | 60 kWac |
| Max DC-Coupled Solar Per Inverter | 78 kWac |
| Max AC-Coupled Solar Per Inverter | 125 kWac |
| Max Battery Cabinets Per Inverter | 6 |
| Inverter Stacks in Parallel | 6 |
| Recommend Depth of Discharge | 90% |
| System Nominal Voltage | 616.4V |
| System Operating Voltage | 588V–672V |
| Charge/Discharge Current* • Recommend • Nominal/Continuous • Peak Discharge (2 mins, 25ºC) |
50A : Recommended 100A : Nominal/Continuous 125A : Peak Discharge (2 mins, 25ºC) * The current is affected by temperature and SOC. |
| Combined Battery + Inverter Efficiency | 90% (25C, 0.5C) |
| Dimension (feet) | 30 x 42 x 89 in |
| Weight | 2095 lbs. |
| Operating Temperature* | -10°C — 50°C (14°F — 122°F) |
| Humidity | 5%~85%RH |
| Altitude | 3000m (9,843 ft) |
| Storage Temperature | -4ºF — 95ºF Up to 85% RH (non-condensing) State of Charge (SOC) 30% |
| Ingress Rating | IP55 (NEMA 3R) |
| Seismic Zone | 4 |
| Communication Port | CAN2.0/RS485 |
| Battery Module Specifications | |
| Battery Modules in Series Per Cabinet | 12 |
| Battery Module Energy | 5.12kWh |
| Battery Module Nominal Voltage | 51.2V |
| Battery Module Nominal Capacity | 100AH |
| Warranty and Certification | |
| Performance Warranty | 10 years or 196MWh Throughput |
| Product Warranty | 10 Years |
| Certification | UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65 |
Features
- Fully integrated energy storage solution – Hybrid Inverter, battery and fleet management
- Built-in dual fire suppression including cabinet and packs
- Integrated air conditioner for temperature control
- Intelligent EMS, BMS and hybrid inverter technology
- Supports up to 6 battery cabinets per Inverter
- 10-Year Warranty
About the Sol-Ark L3 Series
The Sol-Ark L3 Series Limitless Lithium™ Battery Energy Storage System with Native 208V and 480V options offers scalable energy storage from 40Wh to 11.5 MWh.
L3 Series Indoor & Outdoor Commercial Battery Features
• Reduce energy costs
• Ensure uninterrupted operations
• Protect data and essential loads
• Capacity to easily deploy EV charging stations
Documentation
| Datasheet | Sol-Ark L3 Series IP20 Indoor & IP55 Outdoor Commercial Batteries - 480V |
| Brochure | Sol-Ark L3 Series Commercial Energy Solutions |
| Reference Guide | Nema Enclosure IP Rating |
