Separett Tiny Urine Diverting Toilet w/ Urine Container (SC)

Separett Tiny Urine Diverting Toilet w/ Urine Container

Self contained waterless compost toilet for mobile installations!

Tiny is the latest addition to the Separett family of compost toilets. The smaller design and lessons learned from several decades have led to a modern urine separation toilet that is especially suitable for installations where space is limited. This version of Tiny' has a container for both solids and liquid making it self contained. This gives an opportunity for installation in vans, boats and other mobile solutions where no external handling for any waste is available.' The toilet can be operated with 110-230V or with 12V solar cell / battery power. The fan has very low energy consumption (0.04 kWh / 24 h) and is therefore suitable for battery or solar cell operation.' The battery and batterycables are not included.

Unlike a traditional composting toilet there is no cranking or additives needed. The ADA compliant 17.5-inch seat height makes Tiny as comfortable as a household toilet. Separett Tiny is the best toilet solution for vans, tiny houses, RVs, boats, and off-grid properties.

The worlds most advanced toilet for camper vans and tiny homes is now available at Nomadic Supply Company, the Separett Tiny Urine Diverting Toilet w/ Urine Container! Separett Tiny is a urine diverting toilet that is custom developed for camper vans, tiny homes and other small spaces such as boats and cabins. All that is needed for installation of the Separett Tiny is 12V or 110'“240V electricity for the fan and a 50mm pipe for ventilating the toilet. The Separett Tiny is equipped with a fan that draws out moisture and air, which makes it completely odorless in the space where the toilet is located. Separett Tiny w/ Urine Container has an internal collection of both solid waste and urine where the solid waste ends up in a compostable and biodegradable bag made of corn starch and the urine collects in an internal urine tank.

If the Separett Tiny Urine Diverting Toilet w/ Urine Container is used in permanent housing by 2 people, the container for the solid waste needs to be emptied about once per week and the urine tank needs to be emptied 2-3 times per week. The urine tank is equipped with a sensor where the Separett logo on the toilet lights up red when it is time to empty!

The best small toilet for small spaces:

The Separett Tiny is the latest addition to the Separate family of urine-separating toilets. The smaller design and lessons learned from several decades have led to a modern urine separation toilet that is especially suitable for those installations where space is limited.

Completely Closed system:

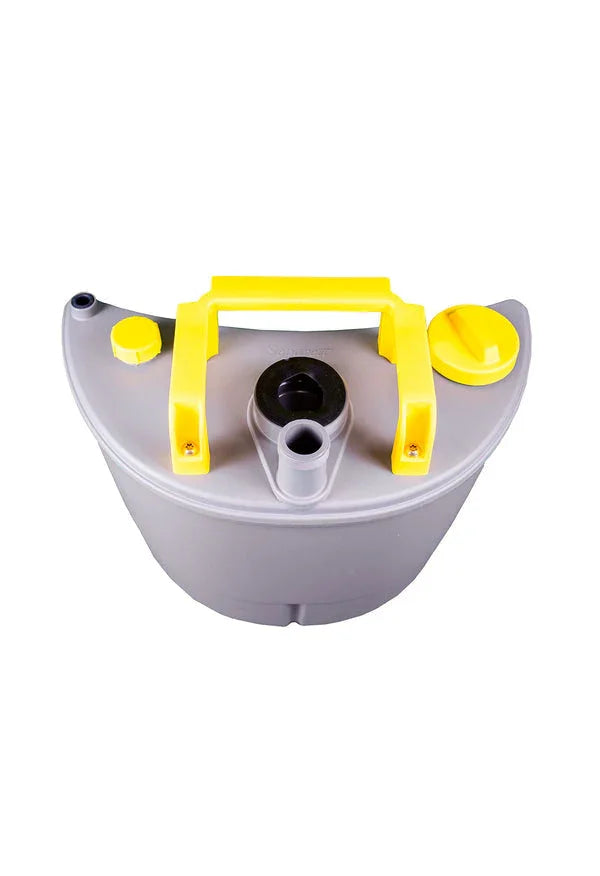

This model of Separett Tiny Urine Diverting Toilet with Urine Container contains both the liquid and solid waste inside of the toilet with two containers, one for urine and one for the solid waste. If the toilet is being used in a permanent home of 2 people, the solid waste container needs to be emptied once per week. The urine container needs to be emptied 2-3 times per week. The urine container has a sensor that gives a signal to the Separett logo that lights up in a red color when it is time to empty the container.

Hygienic and odorless:

The operational reliability of the Separett Tiny Urine Diverting Toilet with Urine Container is high and the installation of the toilet is easy. The fan exhales the small odor that is formed, despite urine separation, and also contributes to a better indoor climate by constantly keeping the air in the space in motion. The fan is effective and silent and most effective during continuous usage.

View screen:

The view screen hides the solid waste in the container and is pushed to the side when you sit down to use the toilet. This results in that you only see the toilet waste when it is time to empty the solid waste.

Separett Tiny Urine Diverting Toilet Includes:

• Tiny toilet
• Instructions for use
• Installation manual
• Battery cables for 12 V use
• Universal power adapter for 110-240 V use
• 1 x latrine container with lid
• 1 x urine tank
• Ø 50 mm ventilation pipe 40 cm
• Adapter Ø 50 mm 1 '½ '
• Ventilation grille with insect net
• Ventilation cowl
• Holder for drain cleaning tablet
• Silicone for sealing
• Installation sketch
• Screws for wall / floor
• Sample of' Compostable Waste Bags for Separett Tiny Urine Diverting Toilet
• Sample of' Separett Bio-Drain Cleaner for Separett Tiny Urine Diverting Toilet
• Sample of' Separett Absorb Compostable Moisture Absorbing Pads
• Filter for ventilation pipes

Separett Tiny Urine Diverting Toilet Maintenance Info:

Separett Tiny should be cleaned with an environmentally friendly non-abrasive cleaner. This toilet is made of a strong, high-gloss polypropylene material that risks being scratched if an abrasive cleaner or scrubbing plate is used.

The fan must run continuously to avoid odors in the bathroom. Regularly rinse the filter in the fan duct with water to maintain good ventilation.

Separett Tiny Urine Diverting Toilet User Instructions:

1.' Always' sit down (who doesn't anyway?!). Sit a little further back than usual so that urine and solid waste are separated.

2. The view screens will slide away when you sit down.

3. Toilet paper can be thrown in the same bin as the solid waste.

Emptying of solid waste

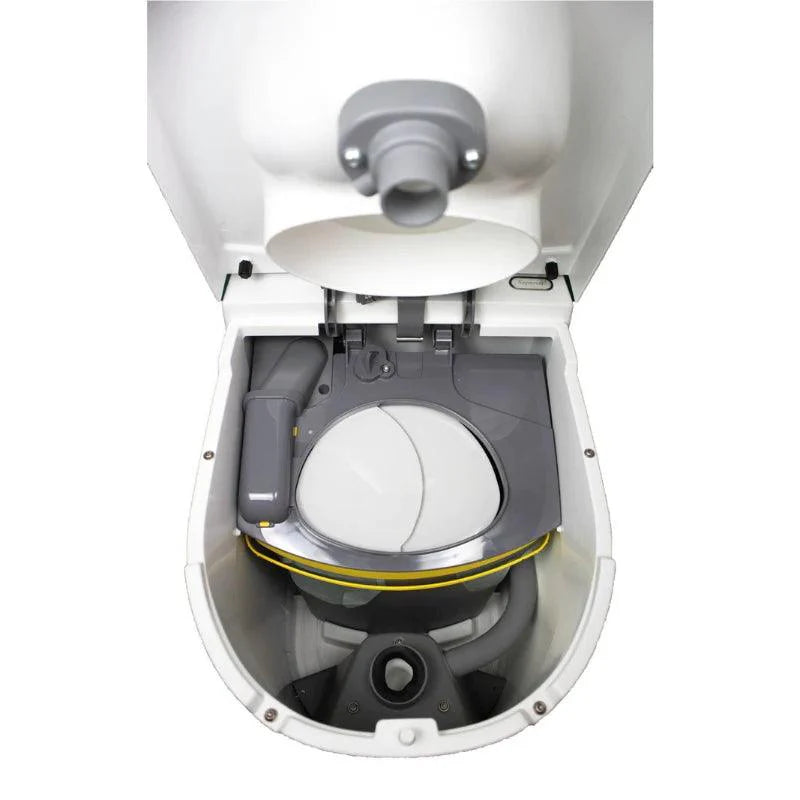

The solid waste is collected in the waste container which is fitted with a compostable waste bag. For full-time use in a household of 2 people, the solid waste should be emptied approximately after 2 weeks of use. Open the upper part of the toilet to empty the solid waste. Make sure that the top is locked in its opened position before releasing it. Then follow the steps below:

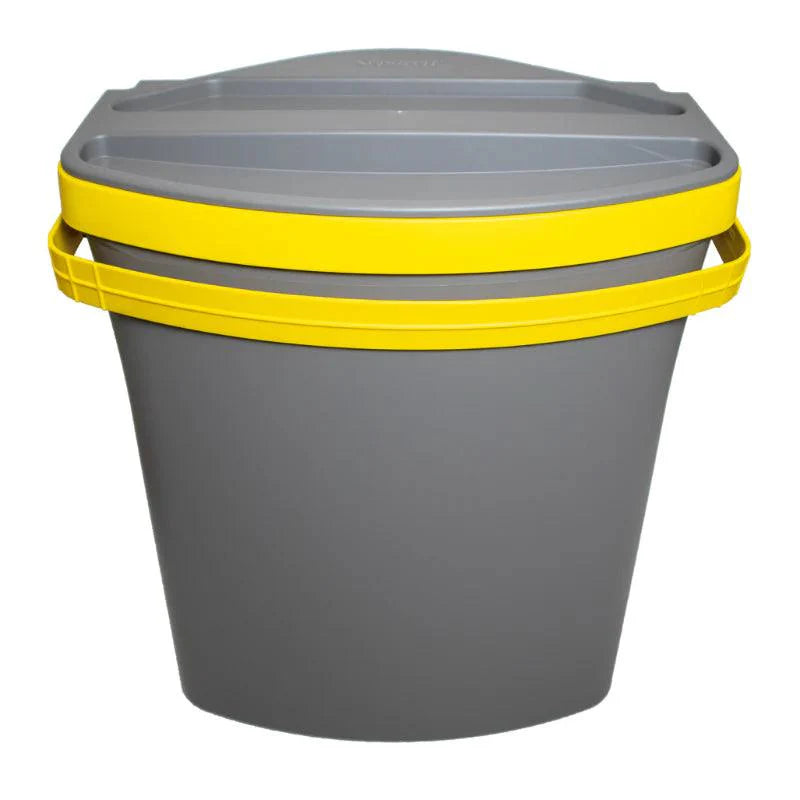

1. Place the included lid on the container.

2. Lift the container by its yellow handle and pull it up out of the toilet.

3. Carry the container to where the waste will be handled.

The solid waste can then be handled in one of the following ways:

Option 1:' To be composted directly in an approved compost

Option 2:' To be incinerated directly in an approved incinerator

Option 3:' Place it in a container and have it standing in 'œhibernation' for at least 12 months by following the steps below:

A) Place in an appropriate location outdoors in a suitable container with a solid bottom.

B) Fill the container with a layer of soil (approx. 2 cm (0,8')), make sure that the container is properly ventilated so that air circulates in the container.

C) Let sit for 12 months. The bacteria in the soil will break down the harmful organisms in the feces, rendering the waste harmless.

D) After the storage period, the contents can be composted in an ordinary compost, garden compost or buried along with the compostable bio bag.
