Rich Solar Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output (SC)

Regular price
$10,999.99
Sale price
$10,999.99
Regular price
$12,699.99
Shipping calculated at checkout.

Rich Solar Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output

Everything you need to go completely Off-Grid!

This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.

Best value on the market! Ships from California! Call us for any questions! Free technical support!

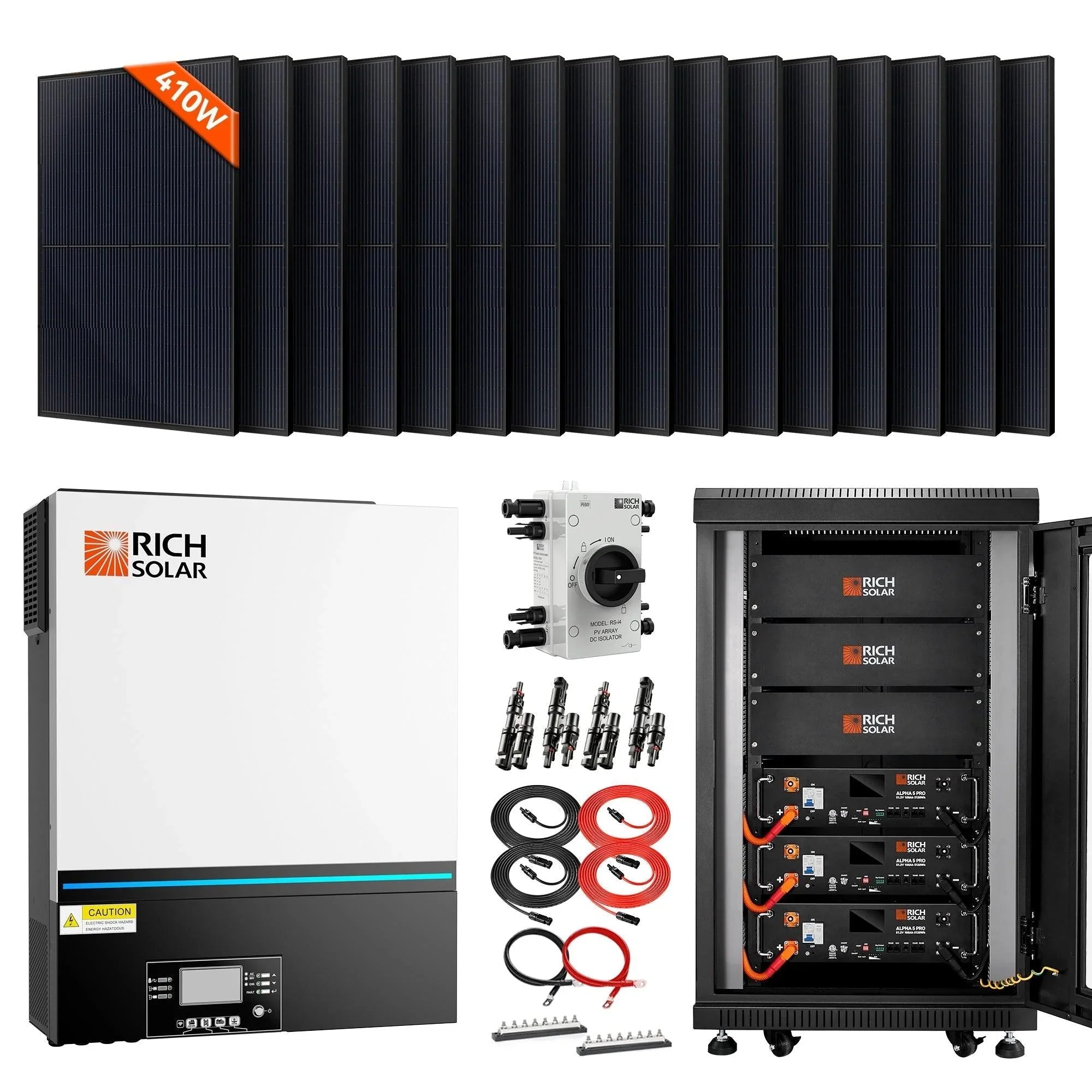

This kit includes:

Solar Panel Options:

🗹 16 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)

🗹 1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)

🗹 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)

🗹 1 x Free Battery Rack (RS-RK)

🗹 1 x Solar PV DC Quick Disconnect Switch (RS-i4)

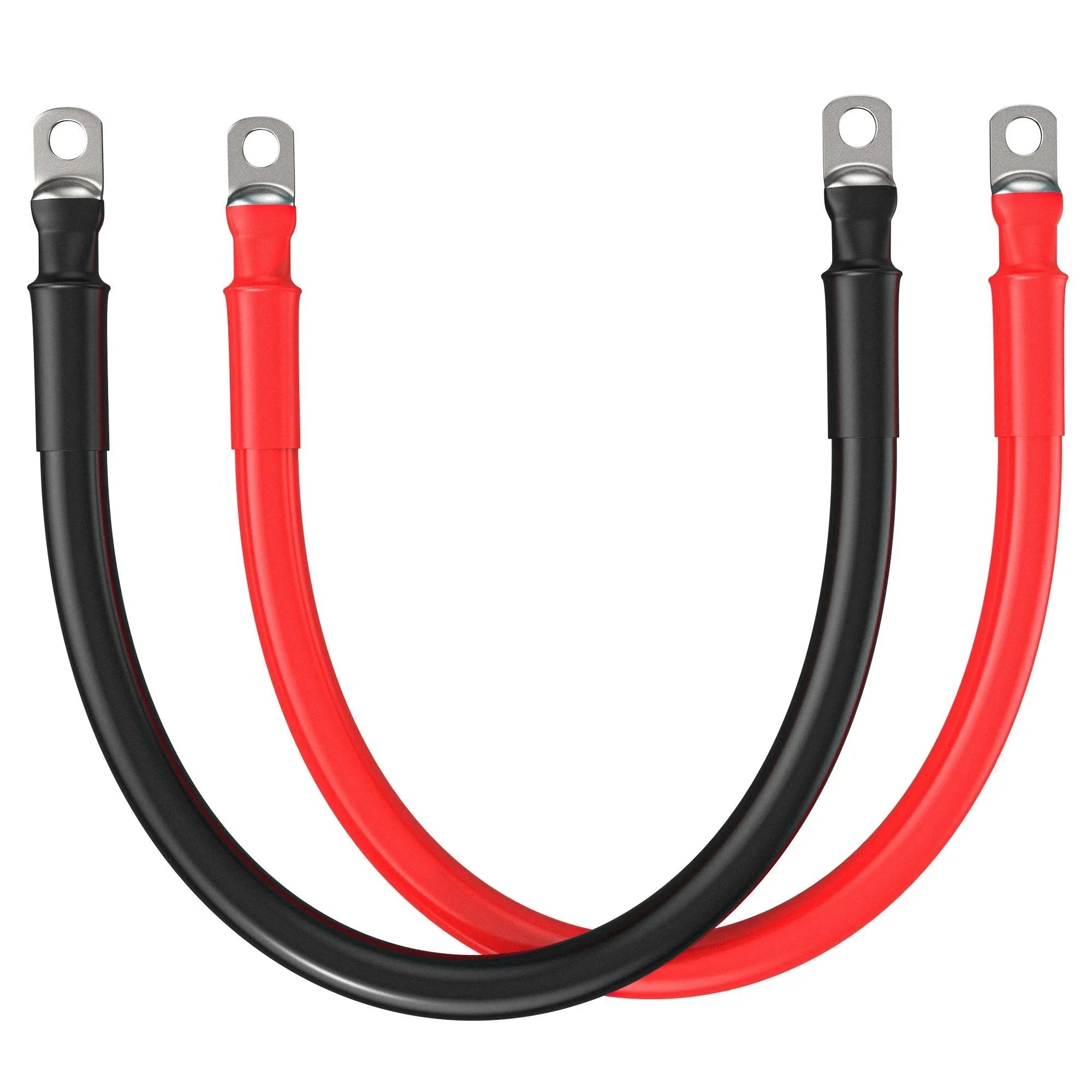

🗹 2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8" (RS-2/0A4F3)

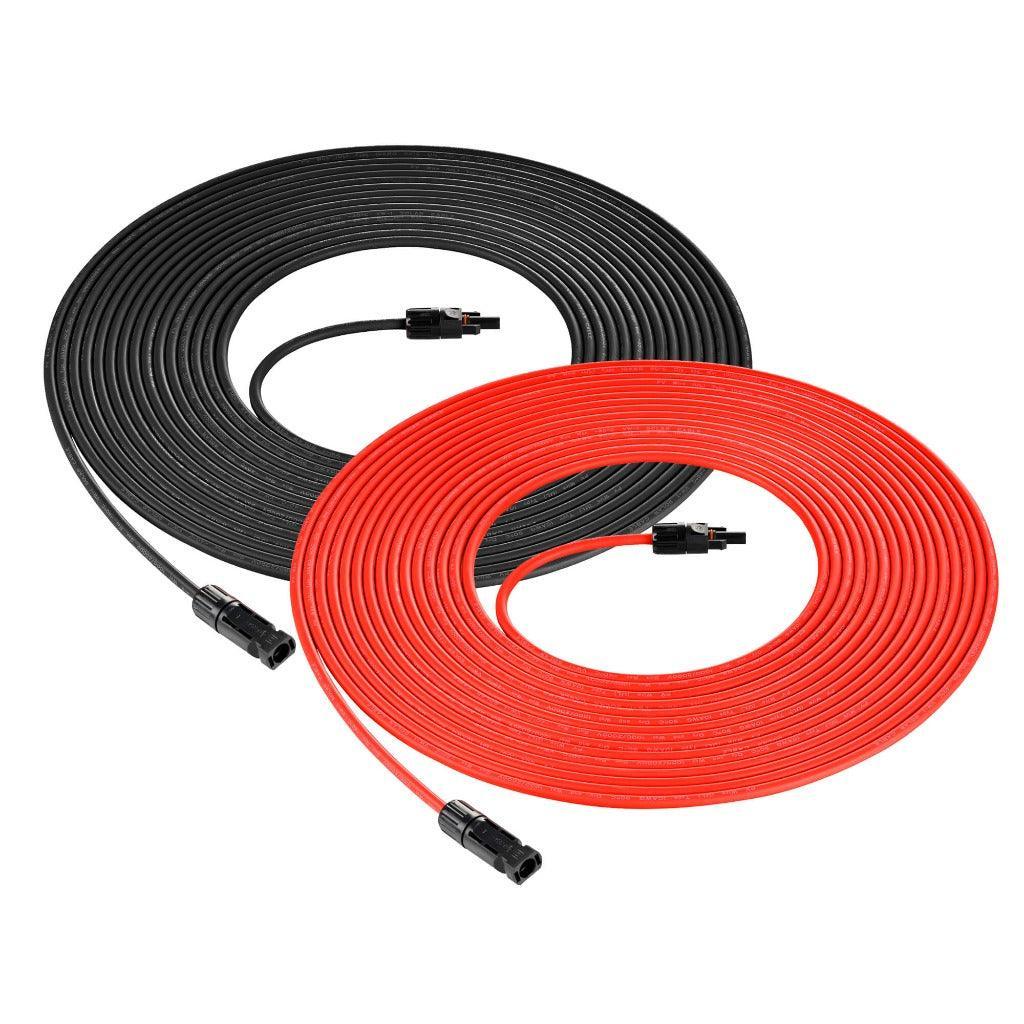

🗹 4 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)

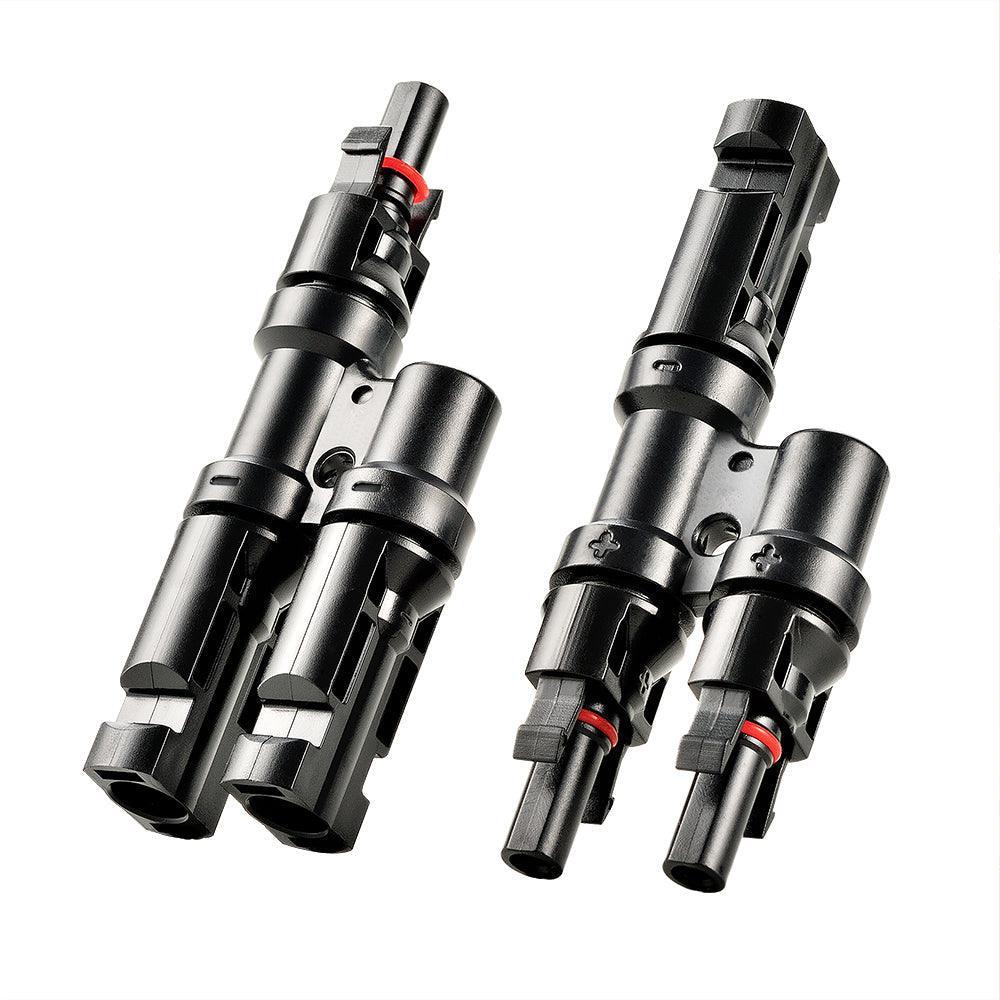

🗹 2 x Y Branch Parallel Connectors 2 to 1 (RS-T2)

🗹 2 x Busbar 600 AMP



How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations







When Not to Update the Firmware on the 6548 Hybrid Inverter







ALPHA 5 PRO | Overview, Unboxing, & Parallel Setup







Tech Specs

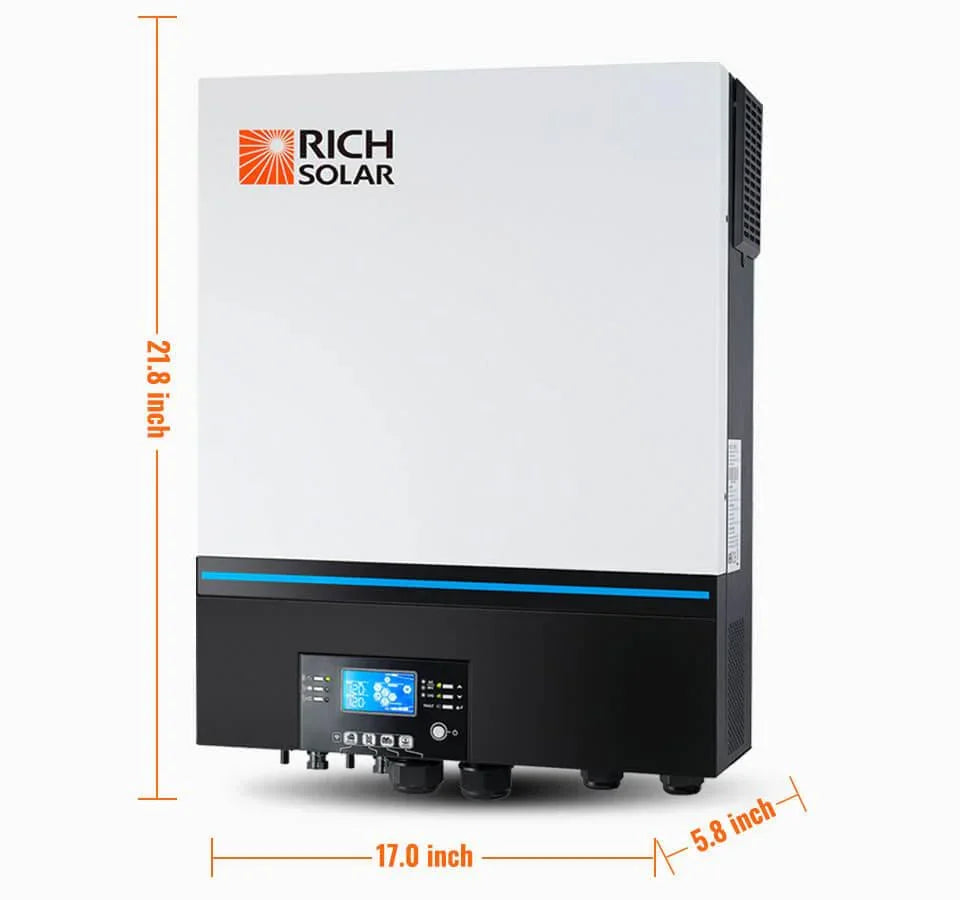

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

  • Rated Inverter Power: 6500VA/6500W
  • Parallel Capability: Yes, 6 Units
  • Input Voltage: 120 VAC
  • Frequency Range: 50 Hz/60 Hz (Auto Sensing)
  • Efficiency (Peak): 90% ~ 93%
  • Waveform: Pure Sine Wave
  • Battery Voltage: 48 VDC
  • Solar Charger Type: MPPT
  • Maximum PV Array Power: 8000W (4000W x 2)
  • MPPT Operating Voltage Range: 90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage: 250 VDC
  • Maximum Charge Current: 120A
  • Dimension (DxWxH): 5.8 x 17.0 x 21.8 in
  • Net Weight: 40.6 lb
  • Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
  • Compliance Safety: UL
  • Warranty: 5 Years

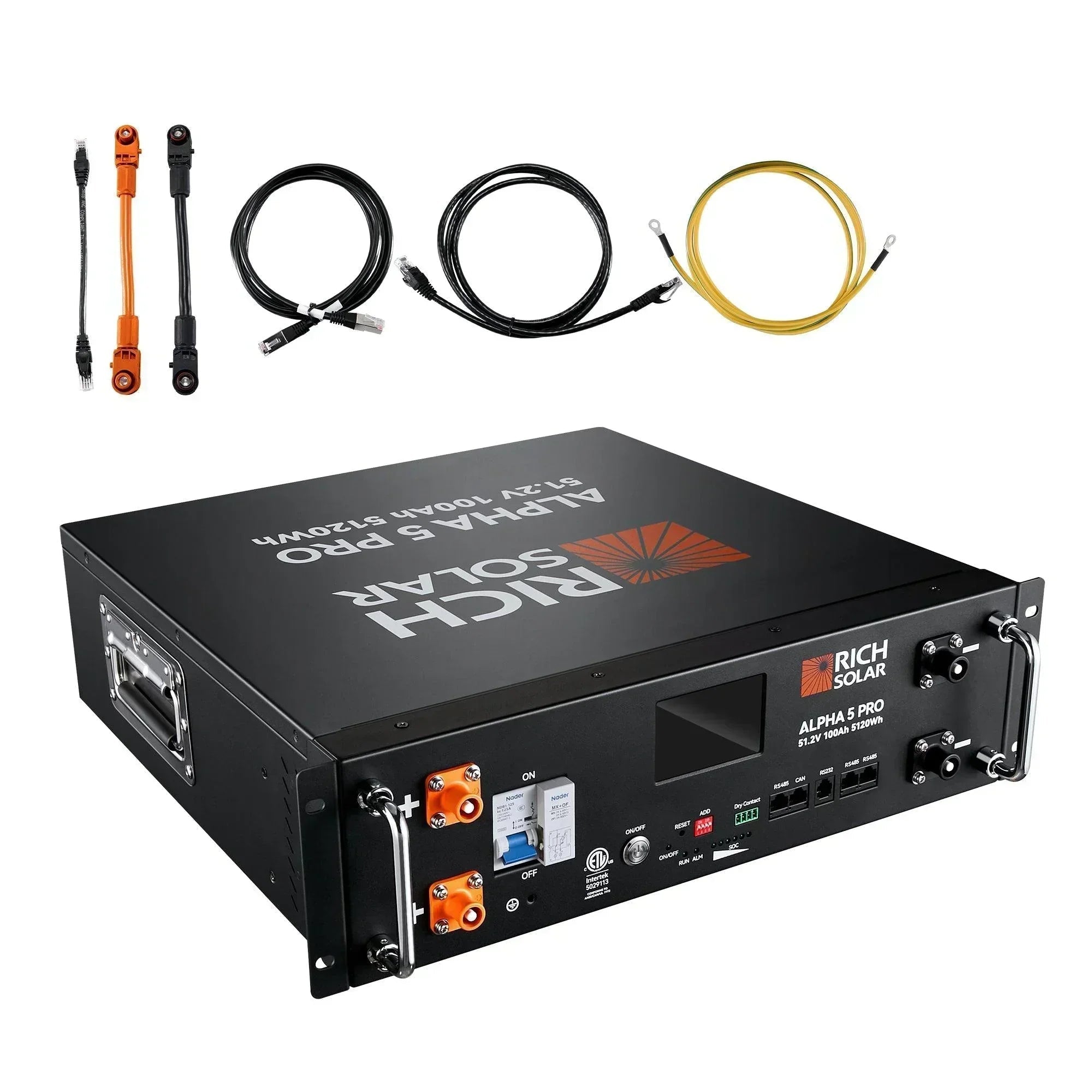

ALPHA 5 | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Expected Cycle Life: >7000 Cycles
  • Energy: 5.12kWh
  • Continuous Charge Current: 100A
  • Continuous Discharge Current: 100A
  • Waterproof: IP65
  • Dimensions: 17.7″L x 17.8″W x 5.2″H
  • Net Weight: 99.2 lb
  • Warranty: 10 Years Manufacturer Defect



MEGA 410 Watt  Monocrystalline Solar Panel (RS-M410)

  • Maximum Power(Pmax): 410W
  • Maximum Power Voltage(Vmp): 31.3V
  • Maximum Power Current(Imp): 13.1A
  • Maximum System Voltage(Vmax): 1500VDC
  • Module Efficiency: 20.97%
  • Net Weight: 45.2 lb
  • Dimensions: 67.9 x 44.6 x 1.2 in
  • Warranty: 25 Years

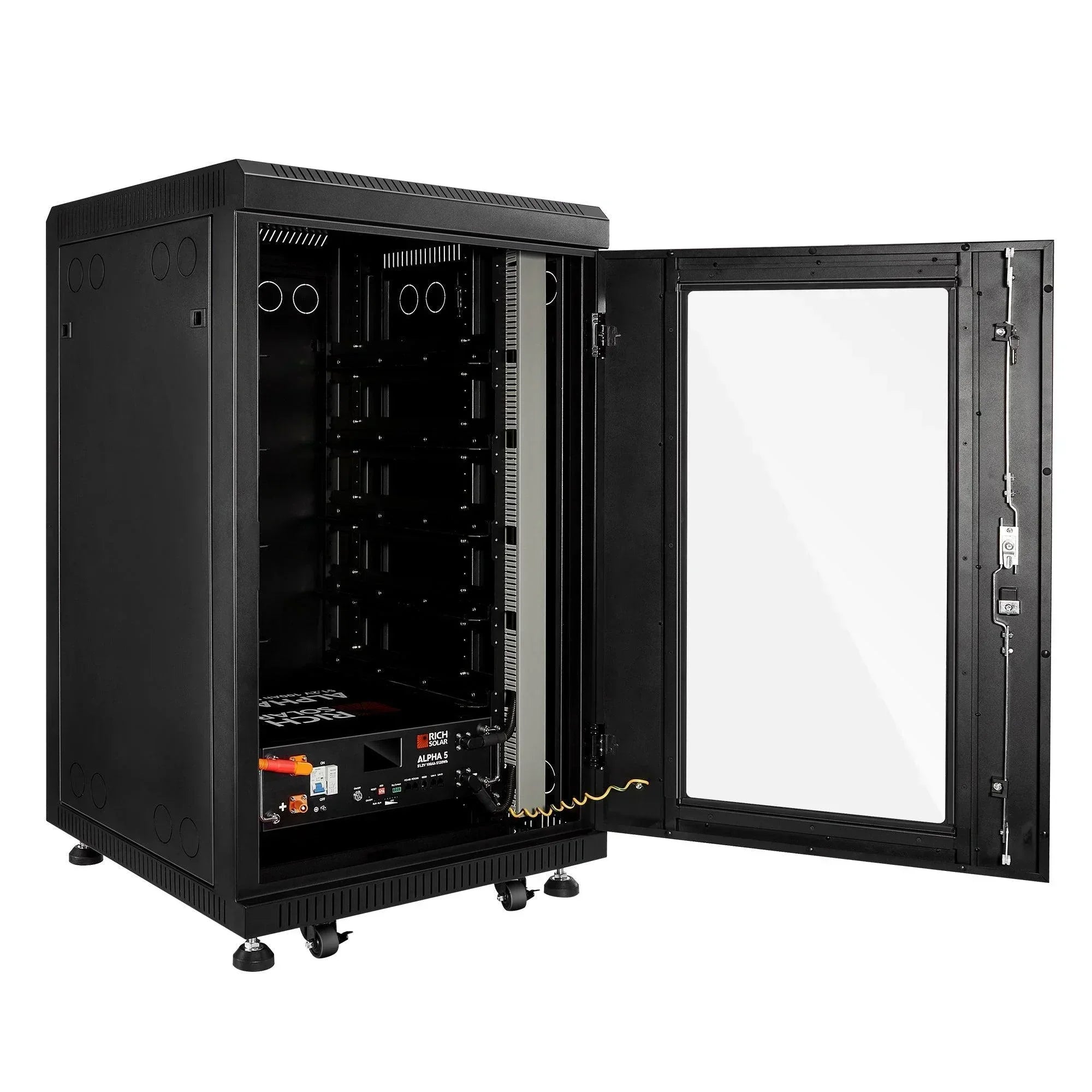

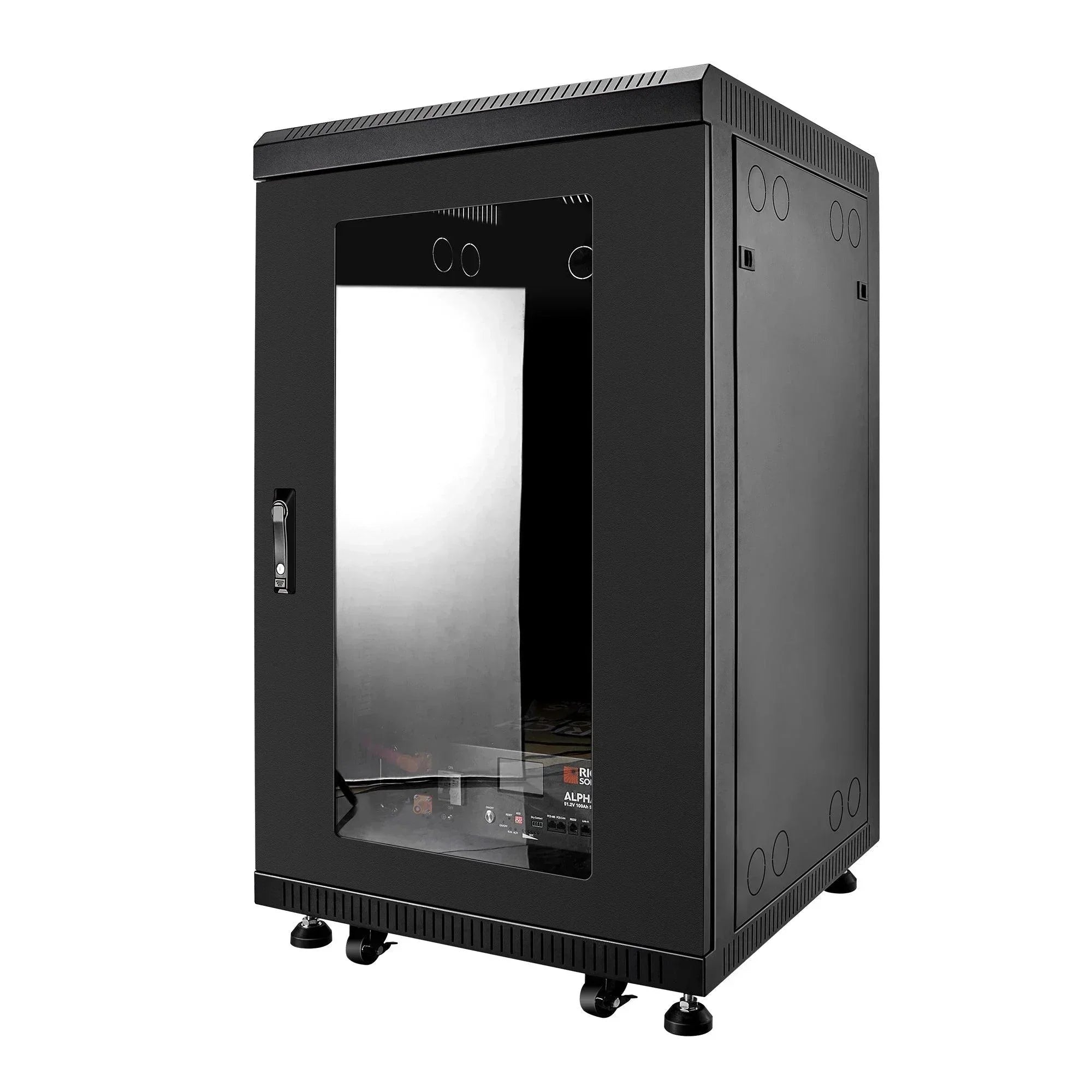

BATTERY SERVER RACK

  • Dimensions (LxWxH): 27.6 x 27.6 x 44 in
  • Net Weight: 196 lb

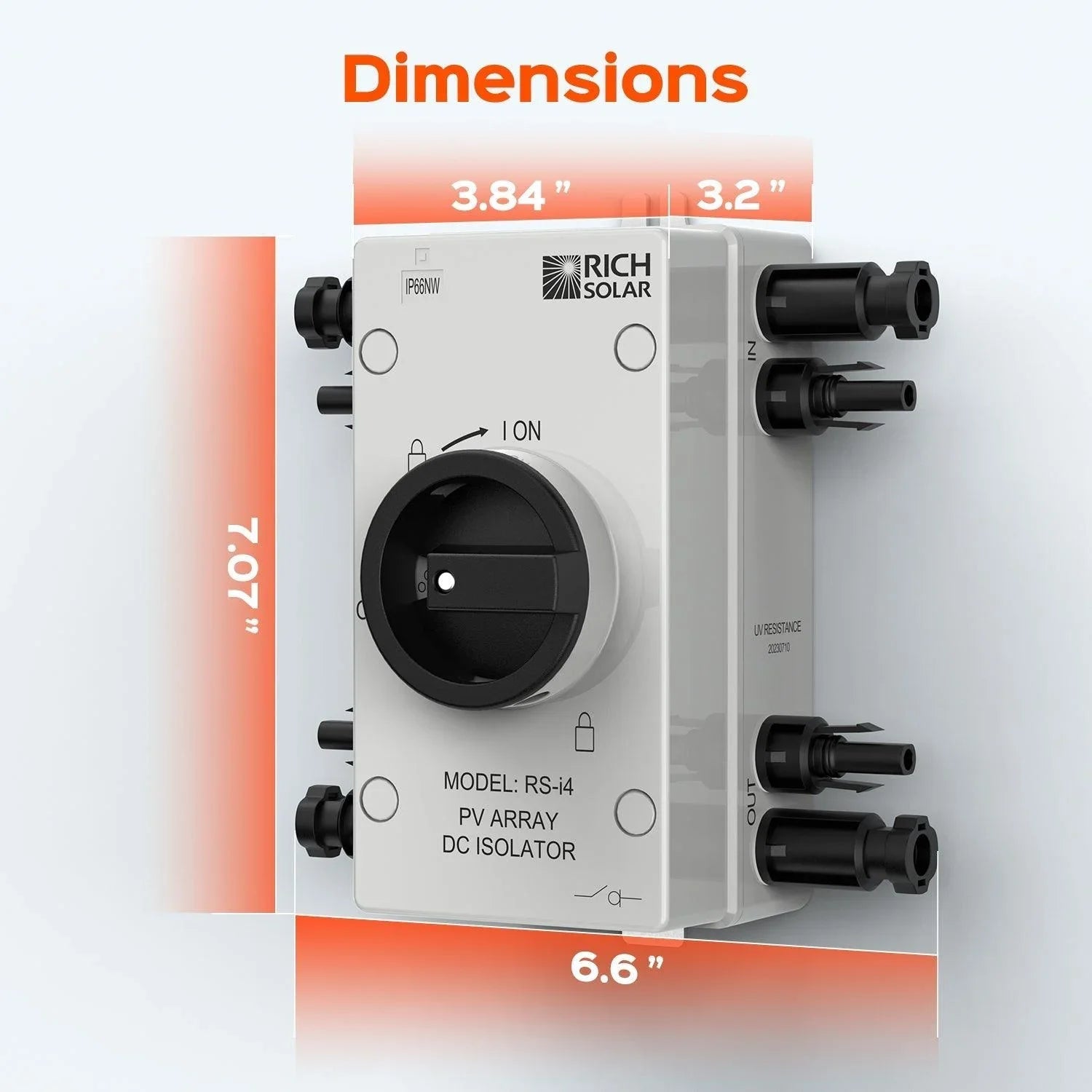

SOLAR PV DC Quick Disconnect Switch (RS-i4)

  • 1500 Volts @ 32 Amps
  • Waterproof: IP66NW
  • Dimensions (HxWxD): 7.1 x 6.8 x 4.3 in
  • Net Weight: 1.7lb
  • Warranty:  10 Years

User Manual & Specification

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)



ALPHA 5 PRO | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)



SOLAR PV DC Quick Disconnect Switch (RS-i4)
