Renogy Starter RV Kit N-Type 400W 12V Solar Kit with PWM Charge Controller (SC)
Description
Adding a solar power system to an RV can create added convenience and savings. Solar panels produce energy from sunlight, an abundant and renewable energy source. Adding solar panels can help you dock and park your recreational vehicle without a power hookup, resulting in cost savings and increased freedom. Unlike traditional gas generators, Renogy 400 Watt 12 Volt Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels allow you to run limited low-watt electrical equipment without a power hookup.

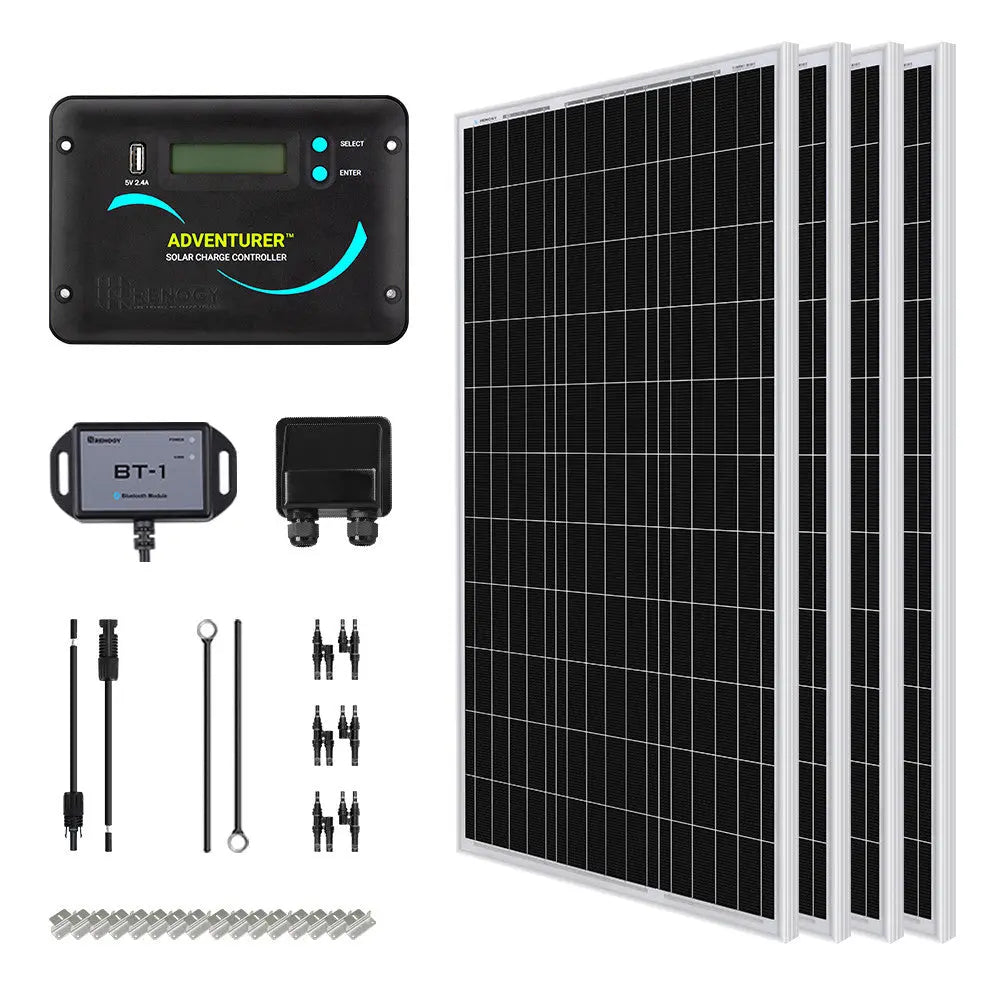

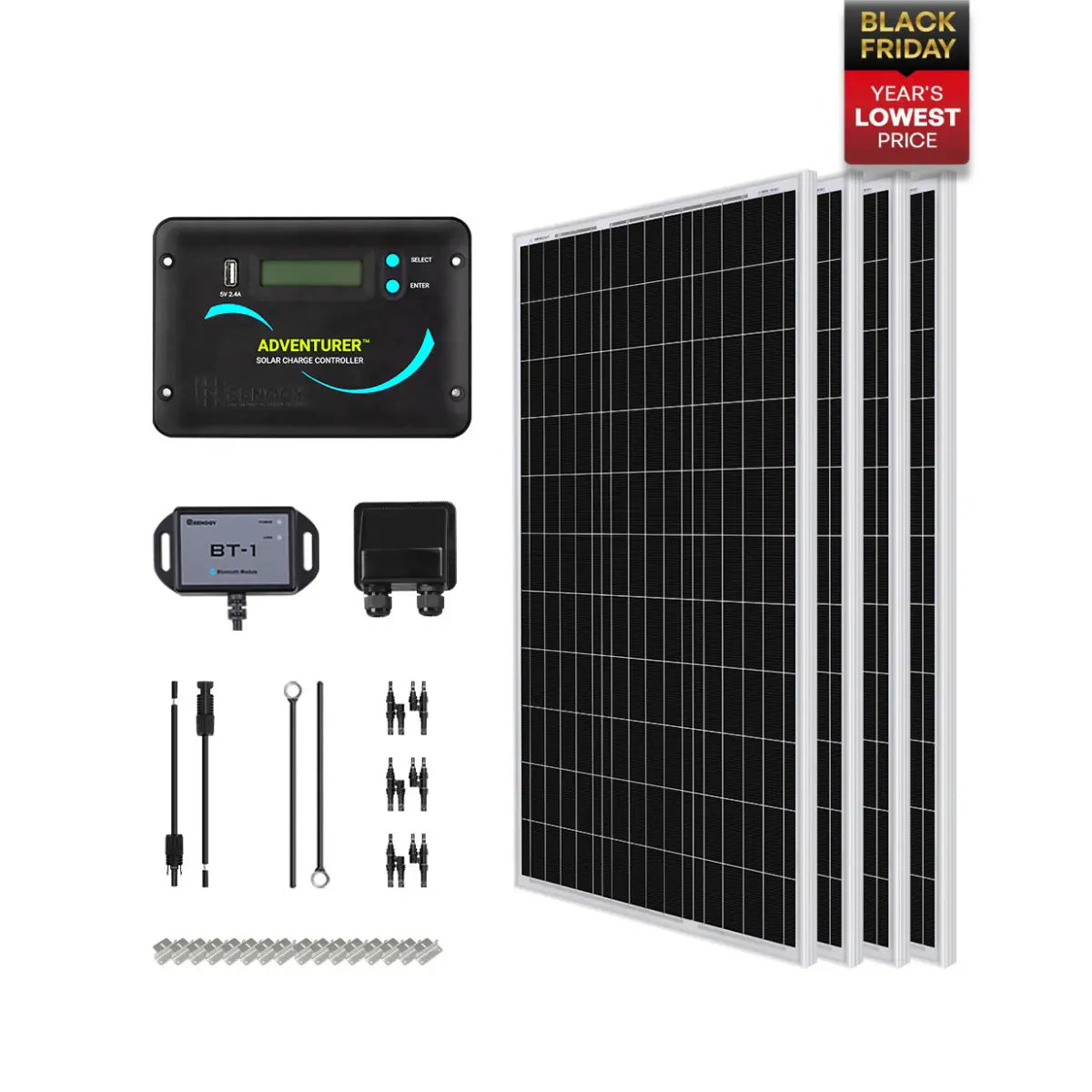

Renogy RV Kits are designed to meet your RV needs. This kit includes four 100W 16BB N-Type Solar Panels, one Adventurer 30A PWM Charge Controller, one 30ft 10AWG Solar Adaptor Kit, one 16ft 10AWG Tray Cable, three pairs of Branch Connectors, a BT-1 Bluetooth Module and one Renogy Cable Entry Housing.

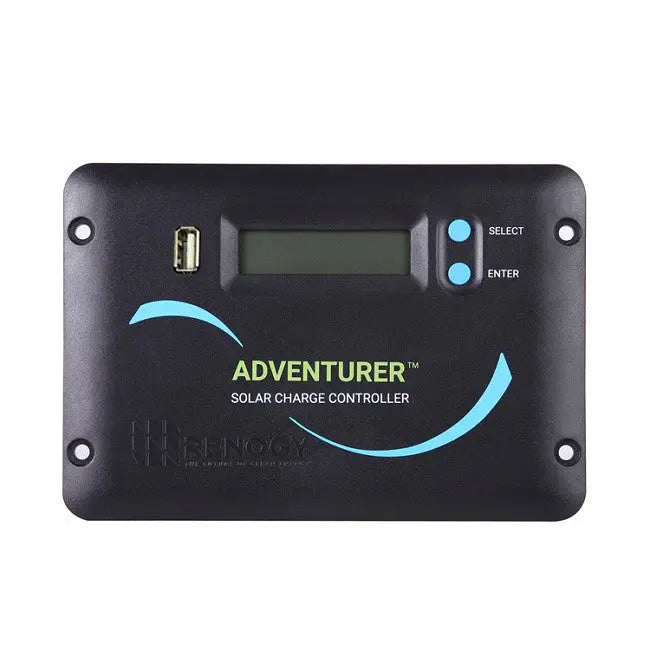

The Adventurer 30A PWM Charge Controller is specifically designed for RV applications as it allows for aesthetically clean flush mounting on walls and is negative-grounded for battery compatibility. It also features an LCD screen for displaying system operation information and data and allows for full control of parameter settings. The control is embedded with self-diagnostics and electronic protection functions that prevent damage from installation mistakes or system faults.

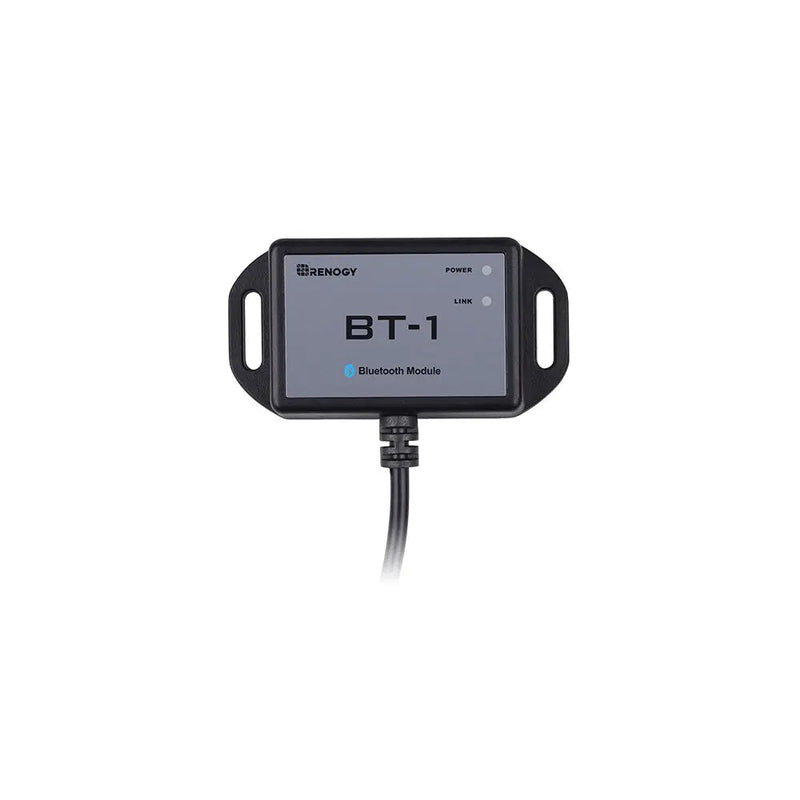

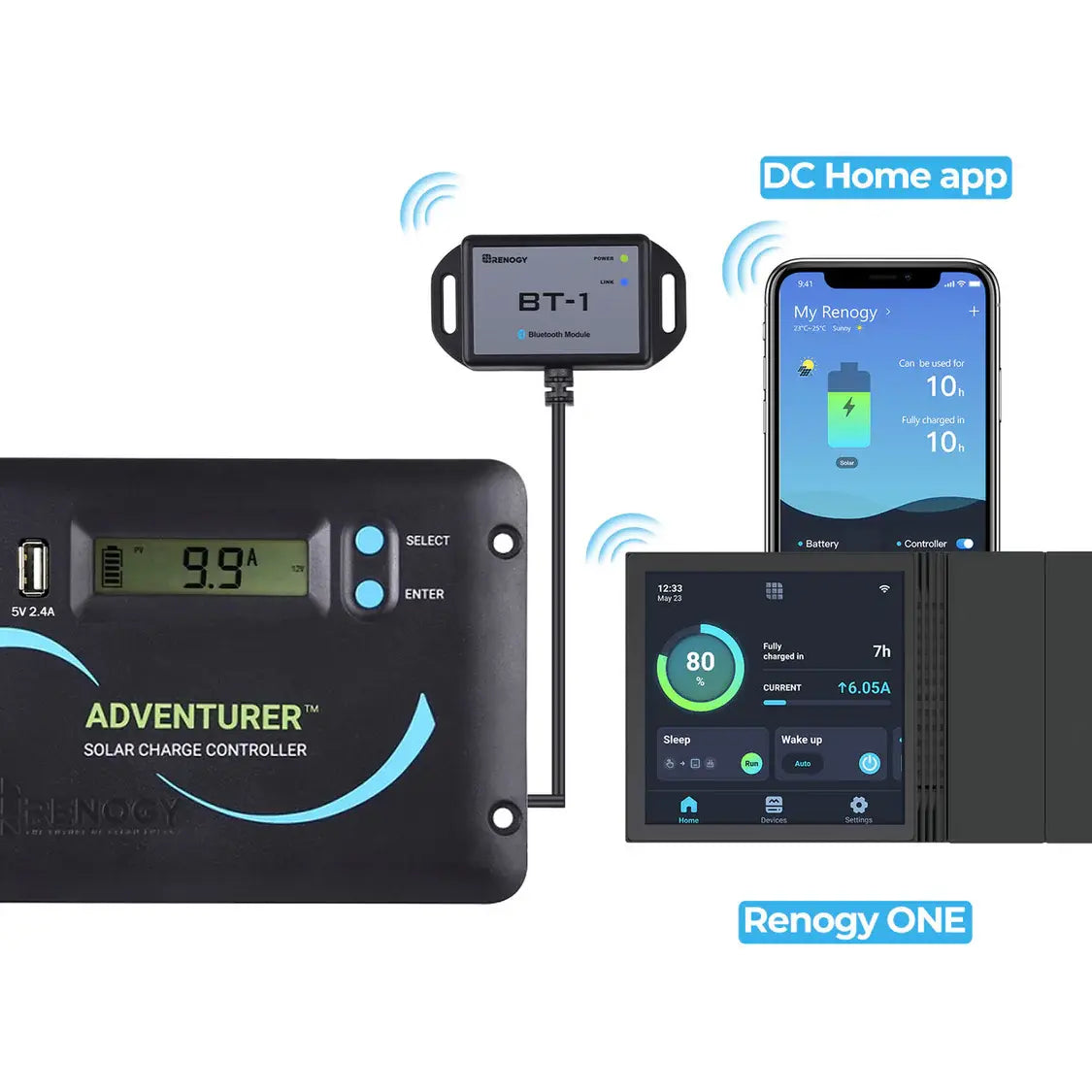

Newly added BT-1 Bluetooth Module enables user to pair the charge controller with our smartphone app DC Home. The APP allows you to view system performance in real time and make parameter changes right from your smartphone.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features
Efficient Solar Power- High solar cell efficiency : N-type 25% Cell Conversion Efficiency.
- Bypass diodes minimize power loss due to shade while ensuring optimal performance in low-light conditions.
- EL tested solar modules; hot-spot heating prevention guaranteed.
- Corrosion-resistant aluminum frame for long-term outdoor use.
- TPT back sheet dissipates excess heat to enhance output performance
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
- Sealed, Gel, Flooded and Lithium battery charging algorithm ready 4-Stage battery charging process for a rapid, efficient, and safe battery charging.
- Remote monitoring and control via Bluetooth.
- The Renogy Adventurer is equipped with multiple electronic protections: reverse current, reverse overcharging, short-circuit, and overload protection.
- Pre-drilled holes on the back frame allow for fast and secure mounting.
- The Renogy Adventurer 30A Charge Controller can expand your system power up to a maximum of 400W.
- The Renogy 100W Expansion Kit is ideal for adding more solar panels.
Package Includes
|
100W N-Type Solar Panel 4 x |
Renogy Adventurer-30A PWM Charge Controller 1 x |
|
Renogy Cable Entry Housing 1 x |
Renogy 30ft 10AWG Solar Adaptor Kit 1 x |
|
Renogy 16ft 10AWG Tray Cables 1 x |
Renogy Solar Y Branch Connectors 3 x |
|
Mounting Z Brackets
4 x |
Renogy BT-1 Bluetooth Module 1 x |
| RENOGY 100W 16BB SOLAR PANEL | |
|---|---|
|
Maximum Power: 100W |
Maximum System Voltage: 600V DC (UL) |
|
Open Circuit Voltage: 22.79V |
Optimum Operating Voltage: 19.97V |
|
Short-Circuit Current (Isc): 5.31A |
Operating Temperature: -40°F~194°F / -40℃~90℃ |
|
Dimensions: 865x578x30mm/34.1x22.8x1.2in |
Weight: 5.9kg/13.0lbs |
| RENOGY ADVENTURER - 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER WITH LCD DISPLAY | |
|---|---|
|
Nominal Voltage: 12V/24V Auto Recognition |
Rated Charging Current: 30A |
|
Battery Type(s): Sealed (AGM), Gel, Flooded, and Lithium |
Max. PV Input Power: 400W at 12VDC |
|
Max. PV Input Voltage: 50 VDC |
Operating Temperature: -13F to 131F |
|
Overall Dimension: 6.56 x 4.50 x 1.90 in |
Weight: 0.6 lb / 272g |
| RENOGY 16FT 10AWG TRAY CABLES (A PAIR) | |
|---|---|
|
Length: 16ft |
AWG: 10 |
|
Rating Voltage: 600V |
Temperature: -40°F to +185°F |
| RENOGY 30FT 10AWG SOLAR ADAPTOR KIT (A PAIR) | |
|---|---|
|
Length: 30ft |
AWG: 10 |
|
Rating Voltage: 600/1000V |
Temperature: -40°F to +185°F |

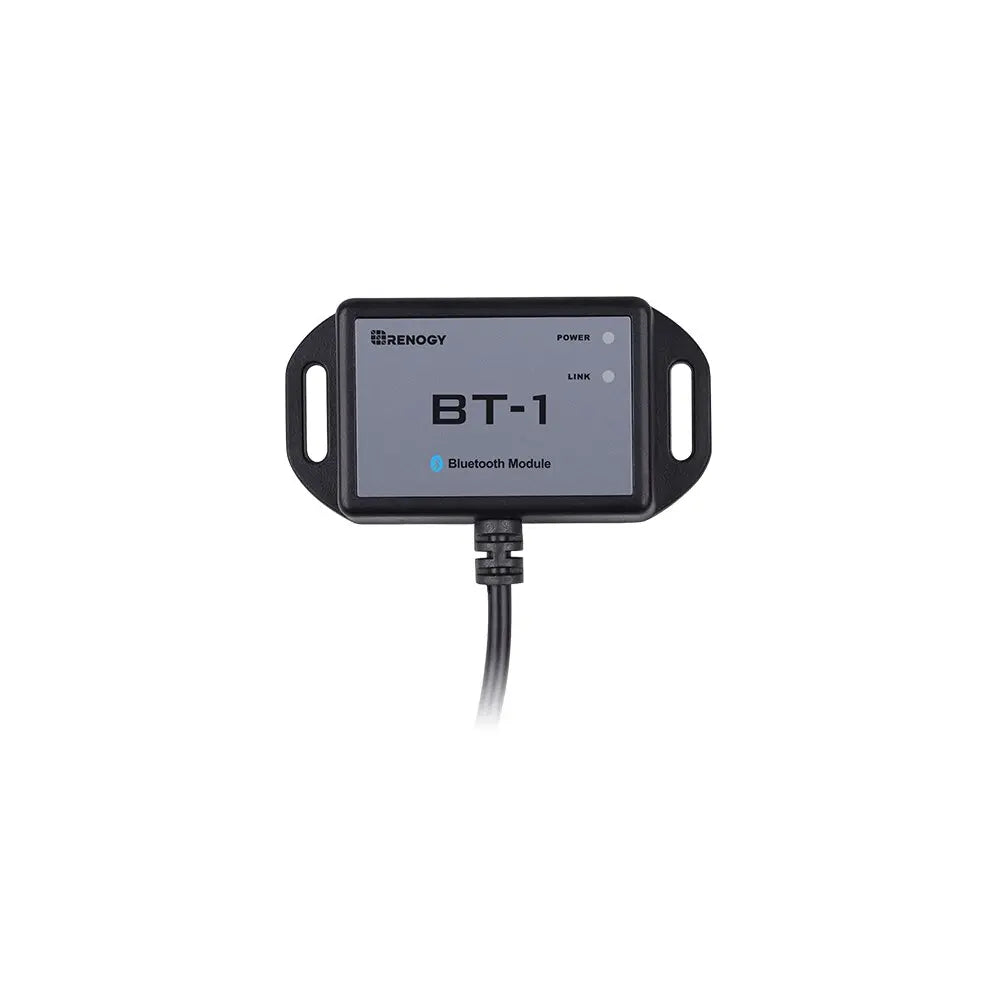

| RENOGY BT-1 BLUETOOTH MODULE | |
|---|---|
|
Standby Power Consumption: 0.04W |
Communication Range: ≤15m |
|
Dimensions: 2.6 X 2.01 X 0.61 In |
Max. PV Input Power: 400W (12V) |
| RENOGY SOLAR Y BRANCH CONNECTORS | |
|---|---|
|
Withstanding Voltage: 1000V DC(TUV), 600V(UL) |
Protection Degree: IP67, mated |
|
Wiring Size Range: 10, 12, 14 AWG |
Temperature: -40°F to +194°F |
| RENOGY CABLE ENTRY HOUSING | |
|---|---|
|
Material: UV-resistant ABS Plastic |
Weight (each component): 7.9 oz. |
|
Recommended Adhesive: Sikaflex 252 or alike |
Dimensions (L x W x H): 4.7 x 3.9 x 2.0 in |
| Cable Gland Diameter Range: 6mm – 12mm |

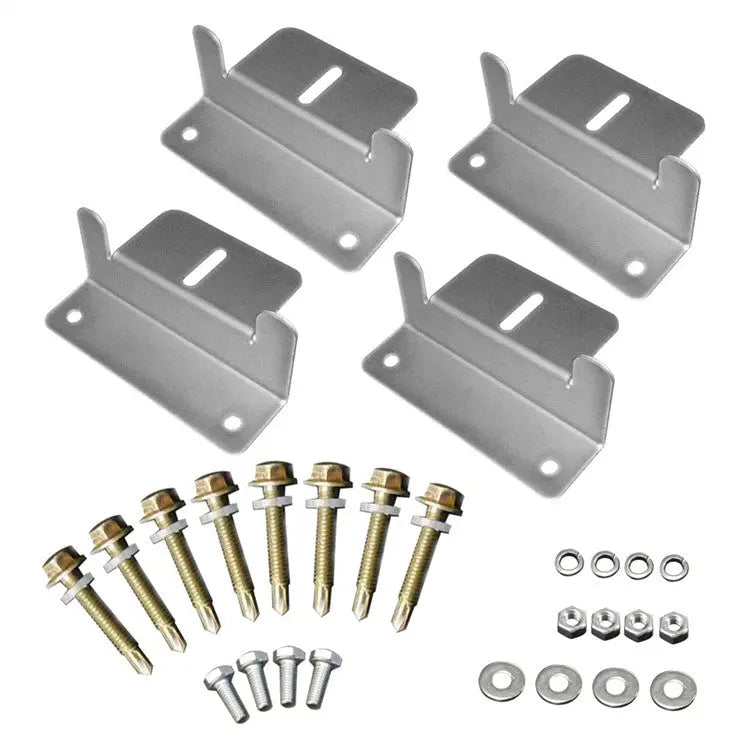

| MOUNTING Z BRACKETS (SET) | |
|---|---|
|
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers |
Four Z Shape Solar Panel Brackets: Four Nuts |
| WARRANTY INFORMATION | |
|---|---|
|
Panels: 10-year material and workmanship warranty |
Accessories: 1-year material and workmanship warranty |

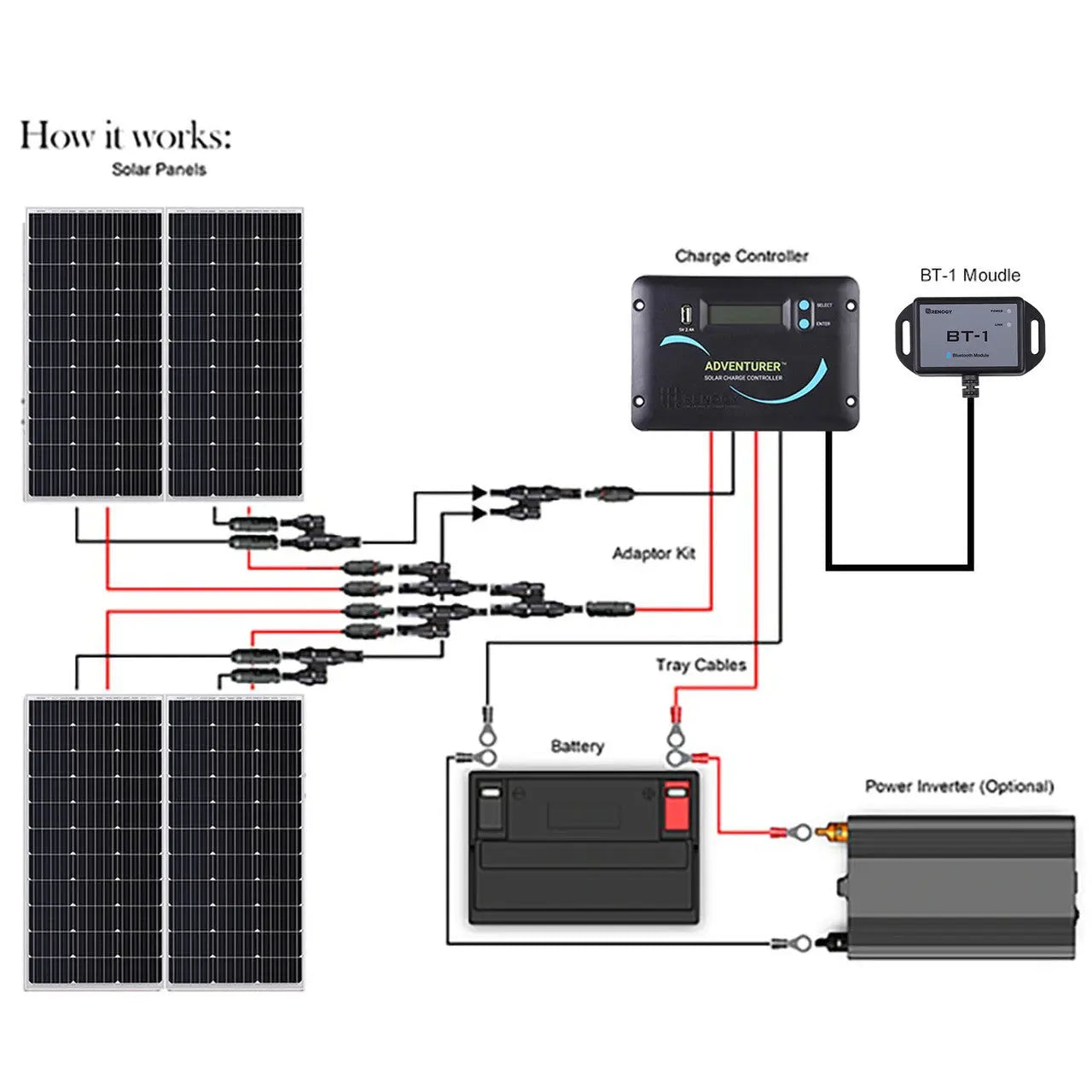

A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
| Please click the links below to download the manuals: | |||
| 30A PWM Adventurer Charge Controller | |||
| BT-1 Bluetooth Module | |||
| Mounting Z Brackets | |||
