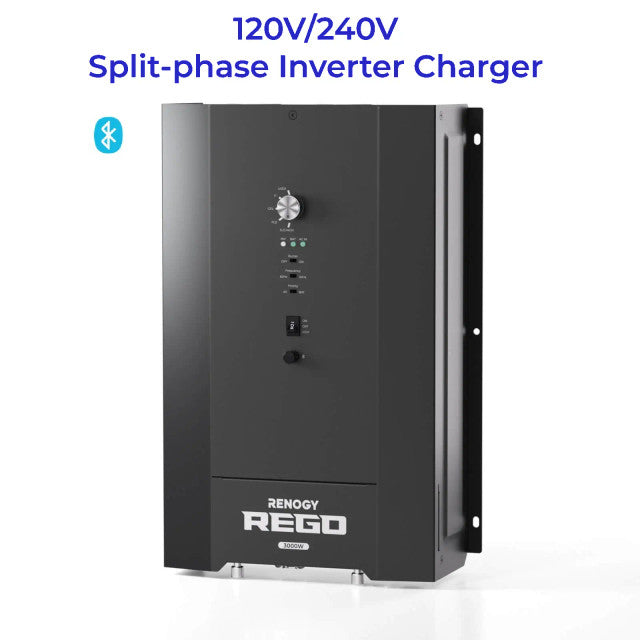

Renogy REGO 3000W 12V Pure Sine Wave HF Inverter Charger Split-phase Design (SC)

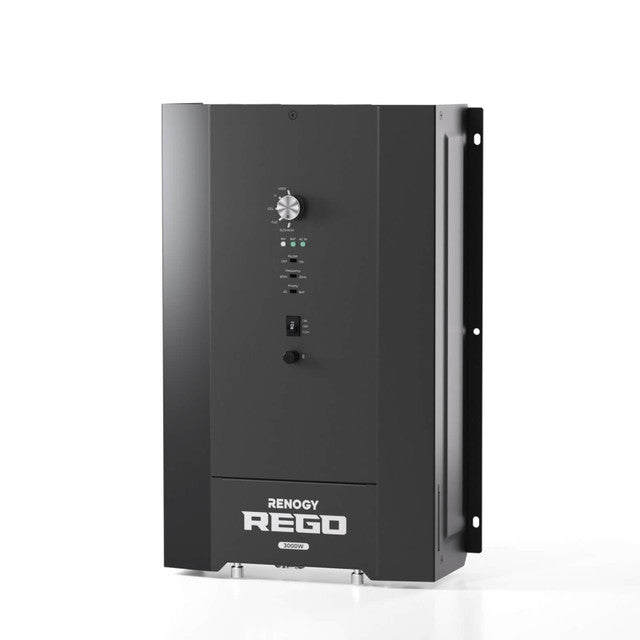

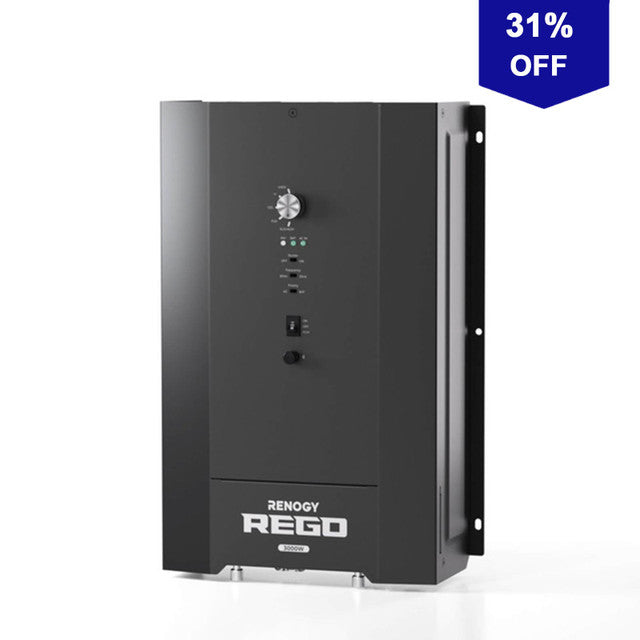

Renogy REGO-12V 3KW HF Inverter Charger

Embrace the future of home energy with the REGO-12V 3KW HF Inverter Charger- the perfect combination of power, efficiency, and convenience.

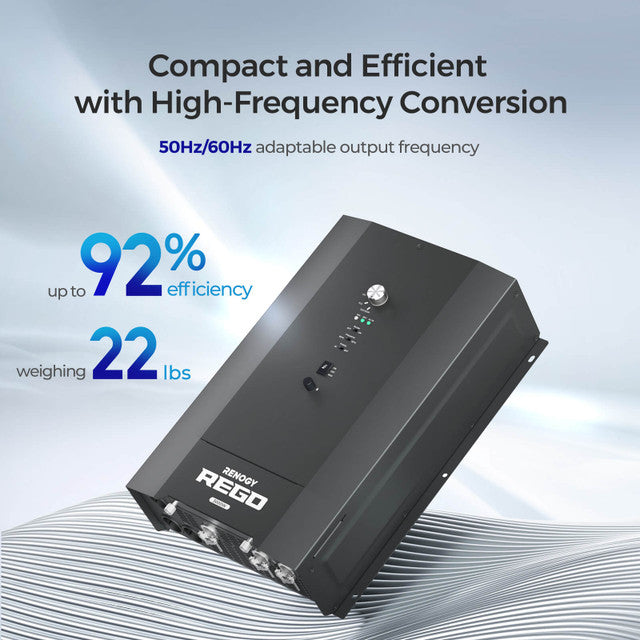

An excellent choice of inverter, the REGO 12V is a high-frequency inverter charger, with efficiency reaching up to 91%. It is compact and lightweight, easy to install, and occupies minimal space. With 3000W continuous output and 6000W surge output, the device delivers ample power to operate various appliances. The split-phase design provides balanced power distribution for efficient operation of heavy-duty appliances.

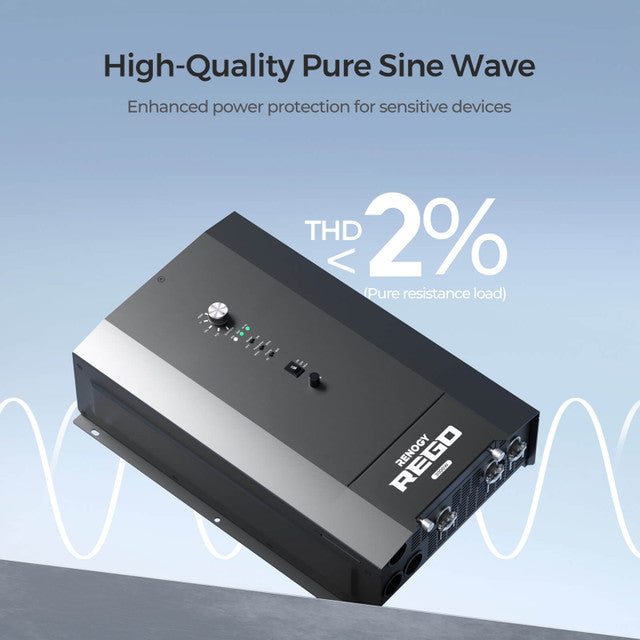

The Renogy REGO 3000W 12V Pure Sine Wave HF Inverter Charger operates quietly to generate clean and stable power, ensuring the safe and reliable operation of sensitive electronics. The Bluetooth connectivity makes it easy to monitor and configure your inverter settings conveniently through the Renogy BT app, while the RV-C communication enables integration with compatible RV systems for centralized control and monitoring.

Wait, there is more! The REGO 12V inverter has high environmental adaptability, enhanced lithium battery activation and heating functionality, battery temperature sensor, swift adaptation to load changes, superior safety, and clearer signals with higher frequency.

Whether you're on the road in your RV, out in the wilderness camping, or simply looking to power up your off-grid cabin, the Renogy REGO-12V 3KW HF Inverter Charger has got you covered. Order yours today for a power-changing life!

Highlights:
•    50/60 Hz Adaptable high-frequency output
•    Split phase design- 9000VA peak power
•    3000W 12V Pure sine wave inverter charger
•    Low noise operation
•    Space-saving design
•    High environmental adaptability
•    Enhanced lithium battery activation
•    Swift adaptation to load changes
•    Superior safety
•    Clearer signals with higher frequency

SPECIFICATIONS:

Inverter
Continuous Power: 3000W
Surge Power(100ms): 9000VA
Surge Power (5 seconds): 4500VA
Surge Power (10 seconds): 3600W
AC Output Voltage Range: 120V± 3%
Output Frequency (Nominal): 50/60 Hz ± 0.1%
Output Waveform: Pure Sine Wave
Efficiency: ＞92%
THD: ＜3%
DC Input Voltage: DC12V
DC Input Voltage Range: 9~17 Vdc (Full load 11V to 15.8V DC)
No Load Current Draw: Normal: <20W; Power Saving: <10W

Charger Specifications
Output Current: 150A @25°C, 5A to 150A adjustable, 5A intervals, default 150A
Optimal Efficiency: >90%
Nominal Input Voltage: Split phase: 180-280 VAC; Single phase: 90-140 VAC
Input Frequency Range: 50/60Hz，±5Hz
Input Wave Form: Sine Wave (Utility or Generator)

Transfer Switch Specifications
Transfer Time: ~ 10ms
Transfer Rating: 50A Maximum Bypass @120V AC

General Specifications
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
Noise: <47dB
Operating Temperature: Full load: -4°F to 113°F / -20°C to 45°C; Down load: 113°F to 140°F / 45°C to 60°C

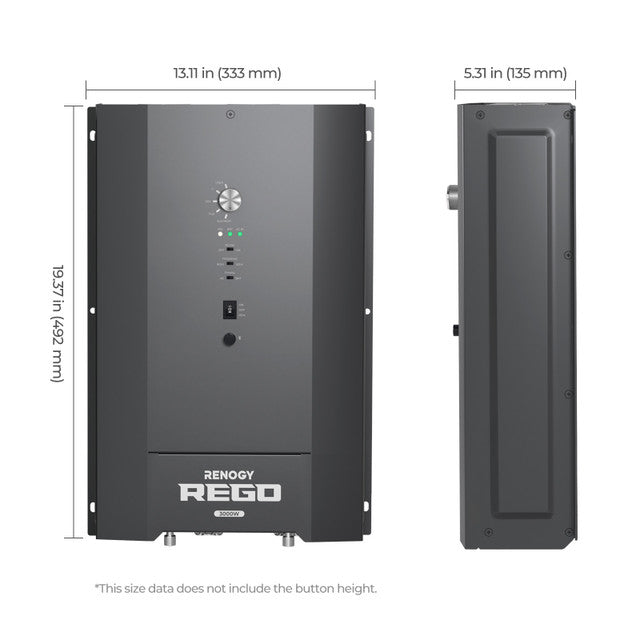

Dimensions: 19.37 x 13.11 x 5.31 in / 492 x 333 x 135 mm
Storage Temperature: -40 ~ 70°C / -40 ~ 158°F
Weight: 22.7lbs/10.3Kg
Humidity: 0% ~ 95%

Wired Remote Control
Dimensions: 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
Wire length: Approx 16.4ft
Warranty
Inverters: 5 years
Accessories: 1 Year

Certifications
EMC certification: FCC Prat15 Class B
Safety: UL 485 and CSA C22.2 No 107.1

WHAT’S IN THE BOX:

1 x 3000W Pure Sine Wave HF Inverter Charger

1 x Battery Temperature Sensor

1 x Voltage Detection Line

1 x Inverter Wired Remote Control
