Renogy Customizable RV Solar Kit 400W 12V | DC-DC Battery Charger with MPPT (SC)

$799.99
$799.99
$1,209.99
Shipping calculated at checkout.
●  Solar Power Customized Kit
●  Produces reliable energy even in partially shaded conditions.
●  Reliable and Environmentally Friendly Power Supply
●  Multiple Options and Free Combination
●  25-year performance warranty

Renogy Custom Kit is designed with your convenience in mind, specifically tailored for RV enthusiasts. Our comprehensive range of options ensures that you can create a solar power system that fits seamlessly into your RV lifestyle.

With our custom kits, you can easily power your RV and enjoy the benefits of solar energy on the go. Our kits include a variety of options, including UV-resistant housing, ensuring durability and longevity even in challenging outdoor conditions. Additionally, our kits are equipped with DC-DC assembly, allowing the solar panels not only to charge your RV's battery but also to charge the vehicle's starter battery.

No more hunting for compatible components from multiple sources – everything you need is conveniently packaged and ready to go.

*Based on an average of 5-6 peak sun hours.

100W 12V Solar Panel


200W 12V Solar Panel


NOTE
  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!

RV

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

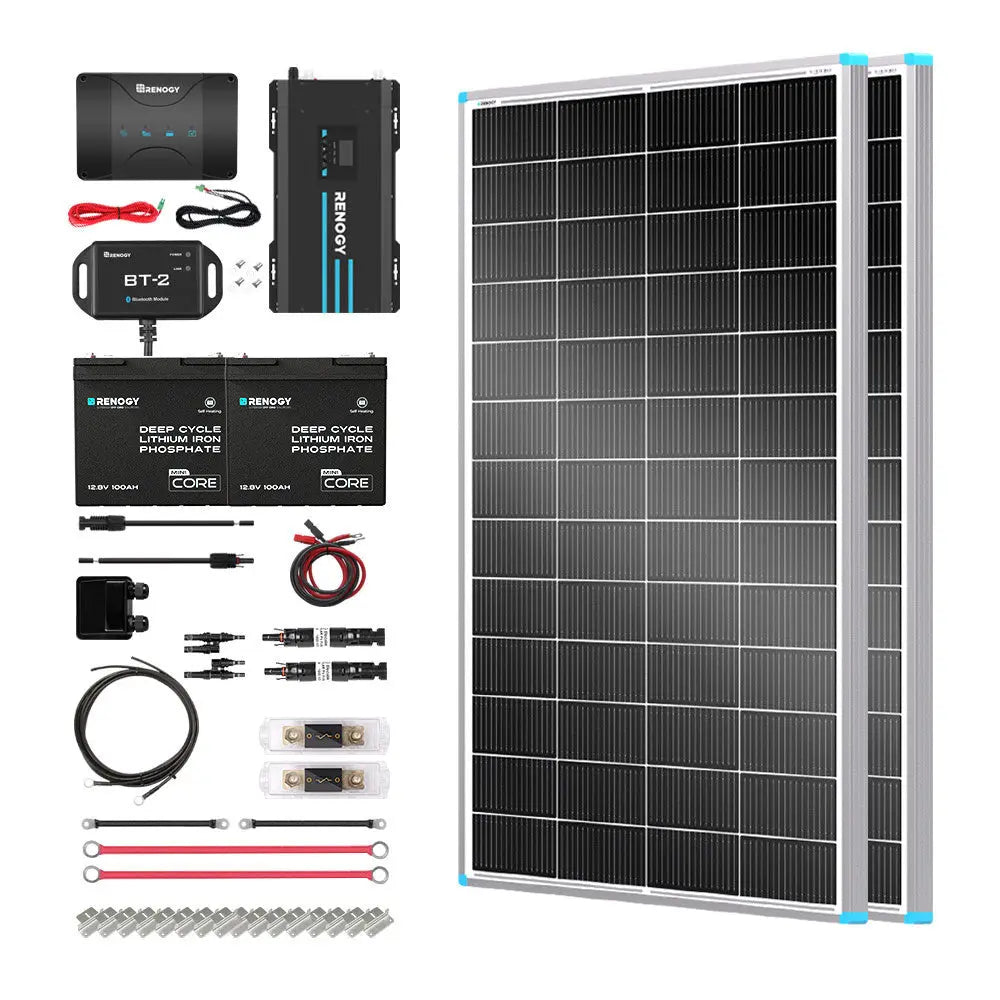

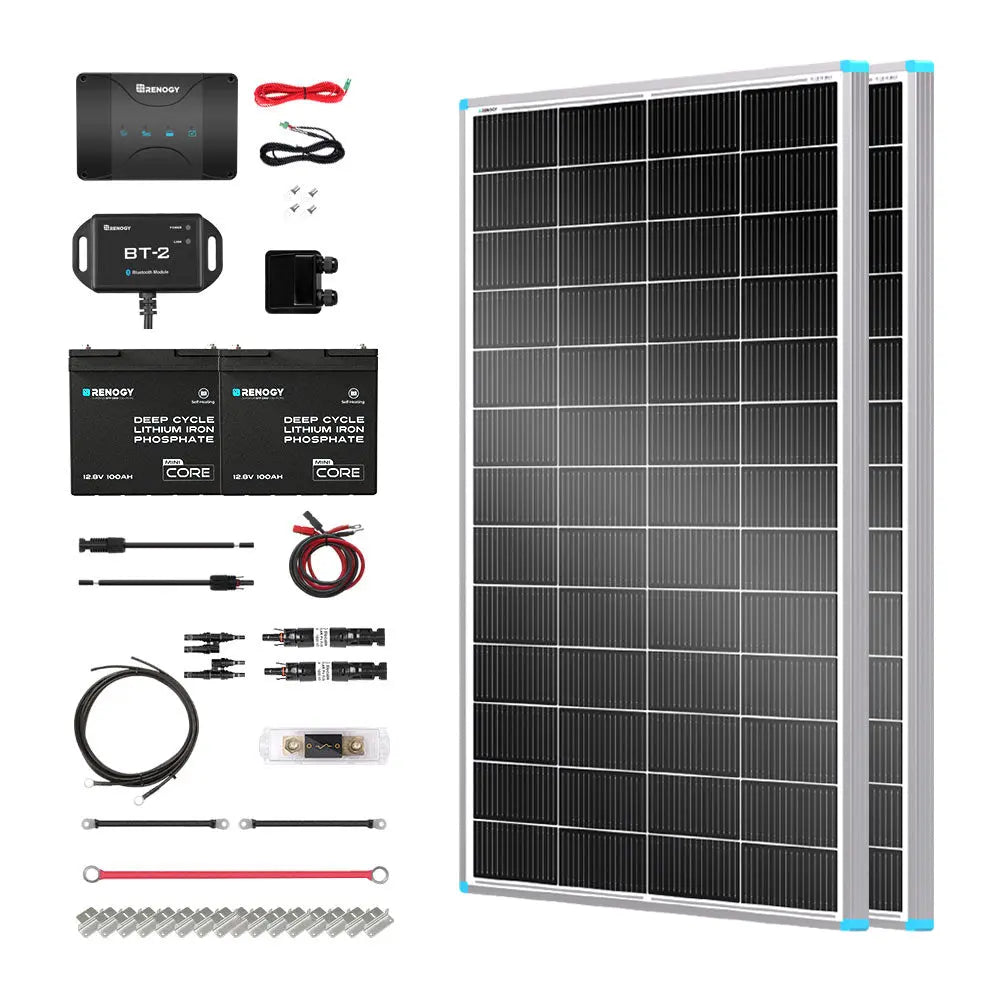

Package Includes

Solar Panel Quantity*Title

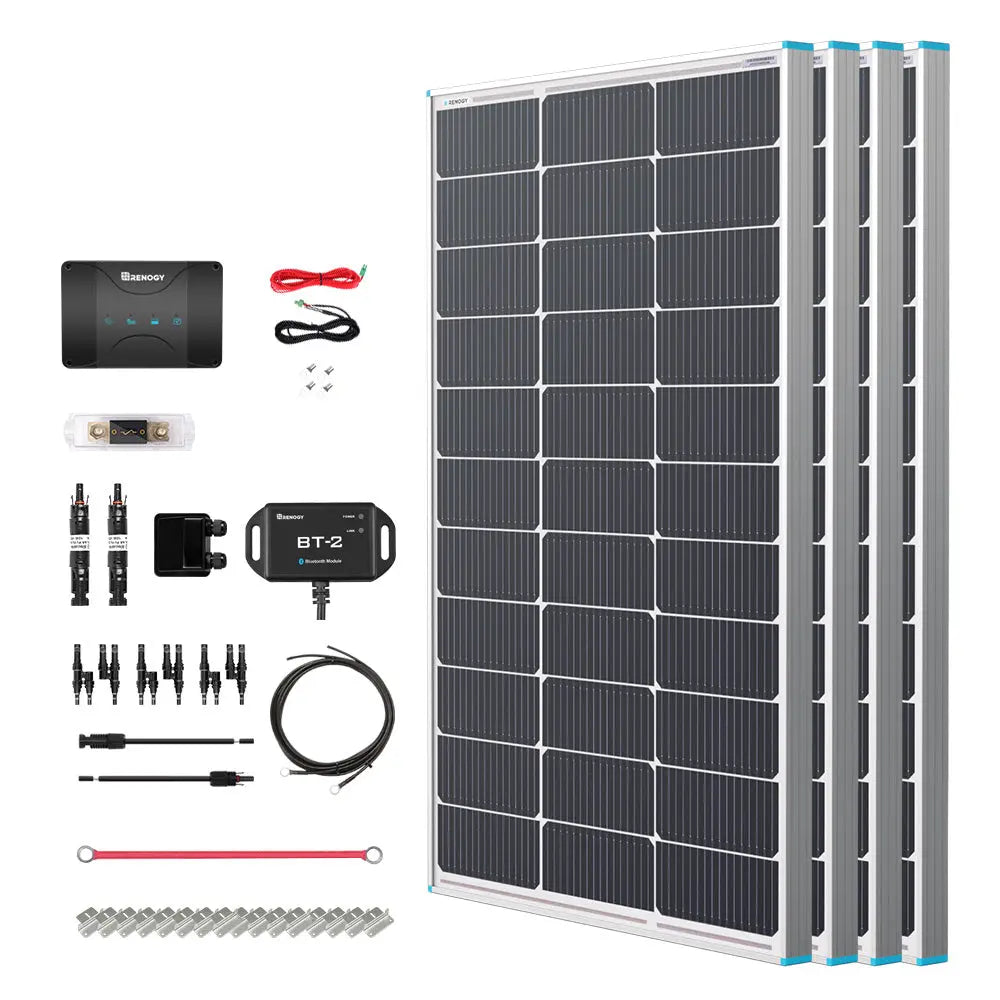

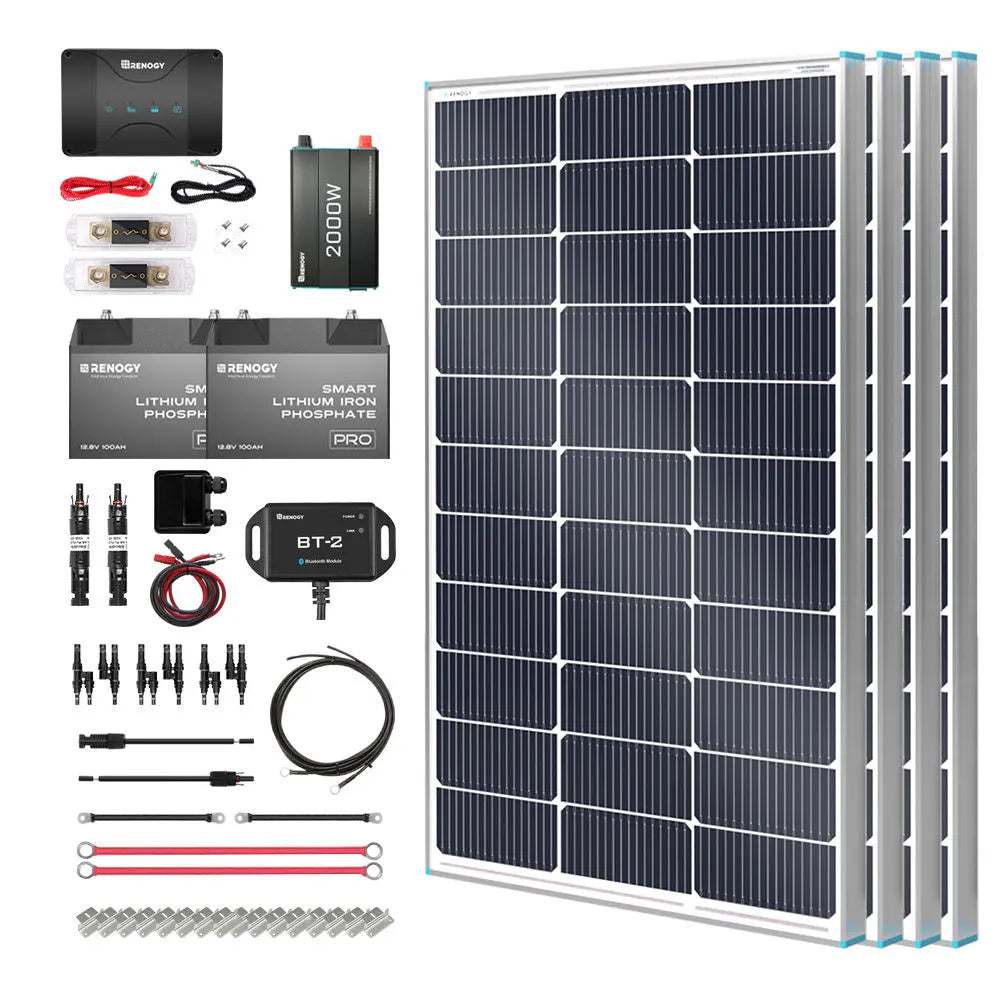

4*100W N-Type Rigid Solar Panel
4*100W 12V Flexible Solar Panel

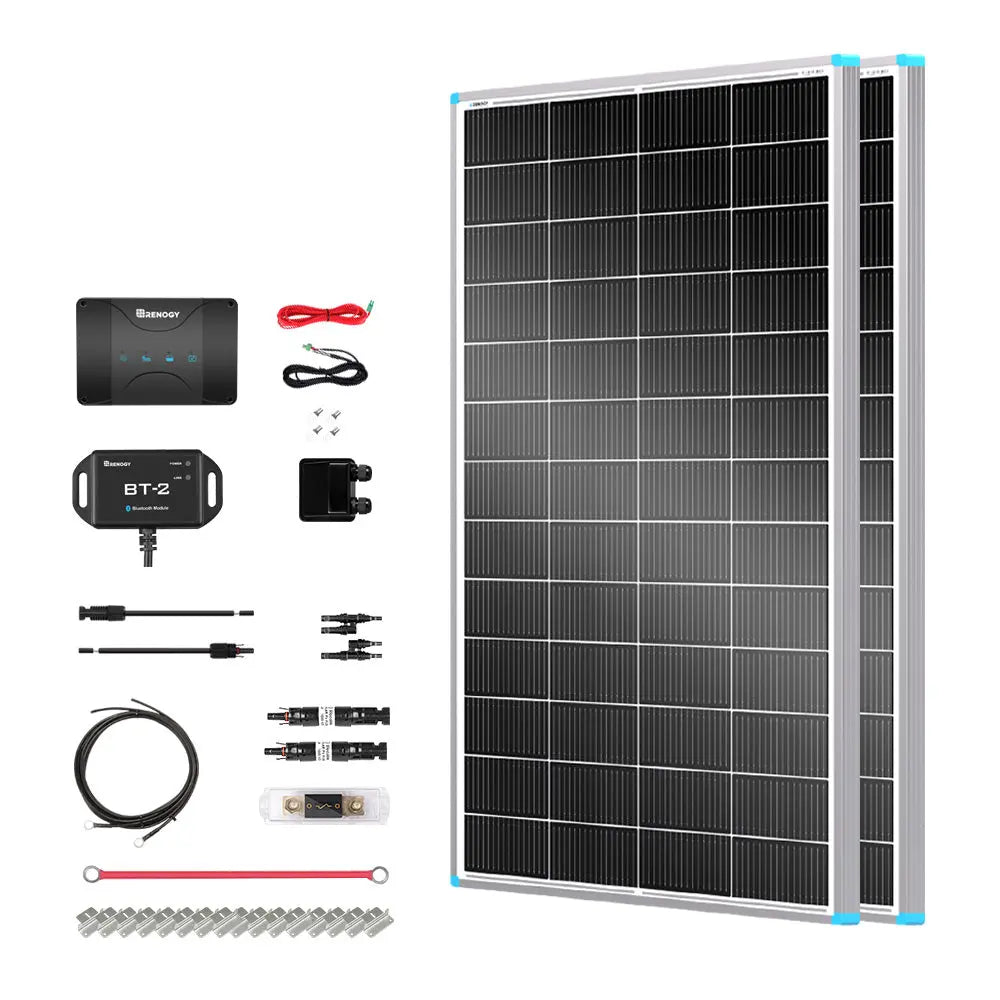

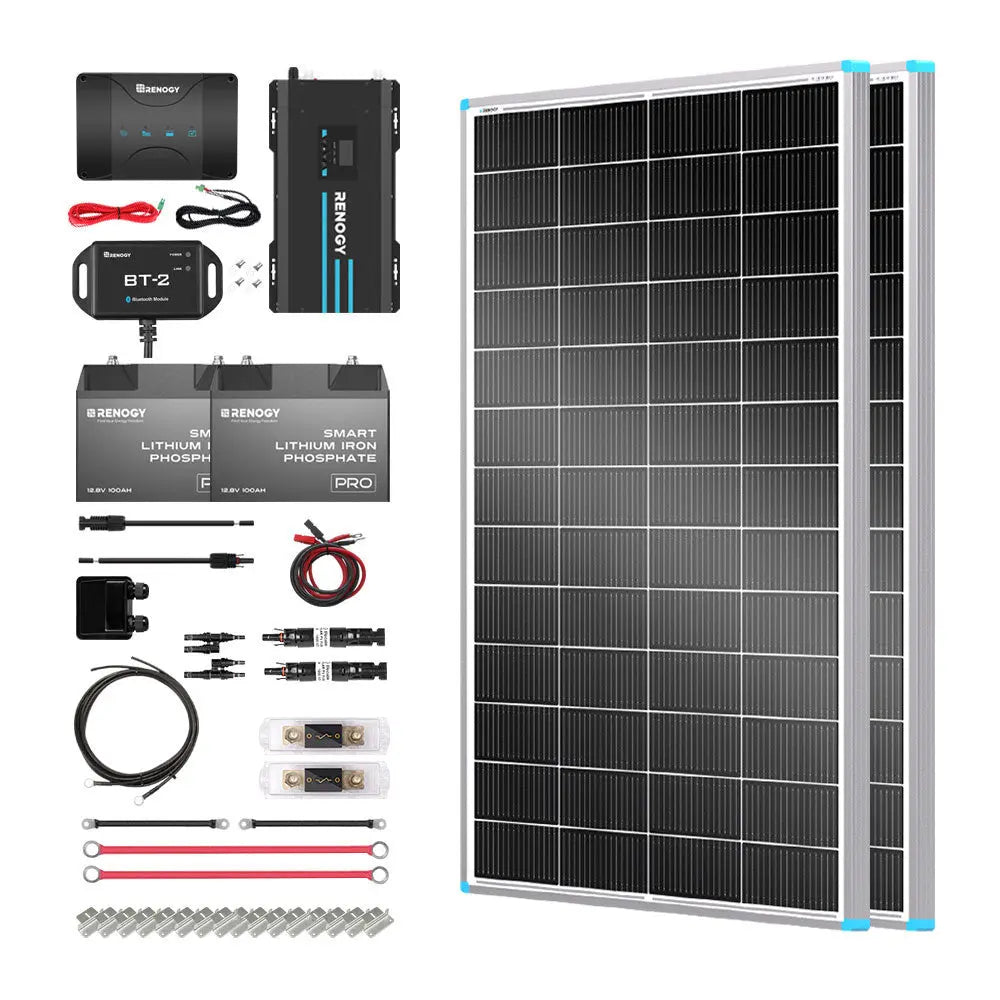

2*200 Watt 16BB N-Type 24V Solar Panel

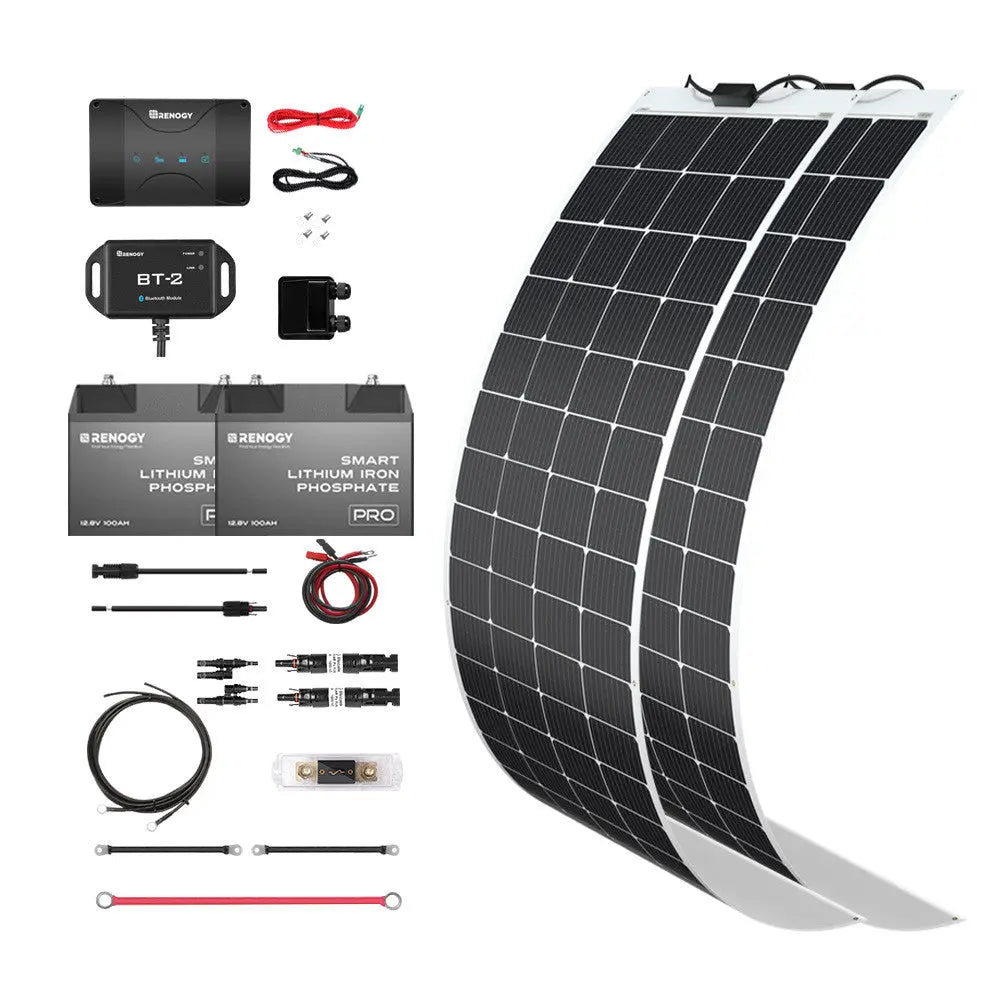

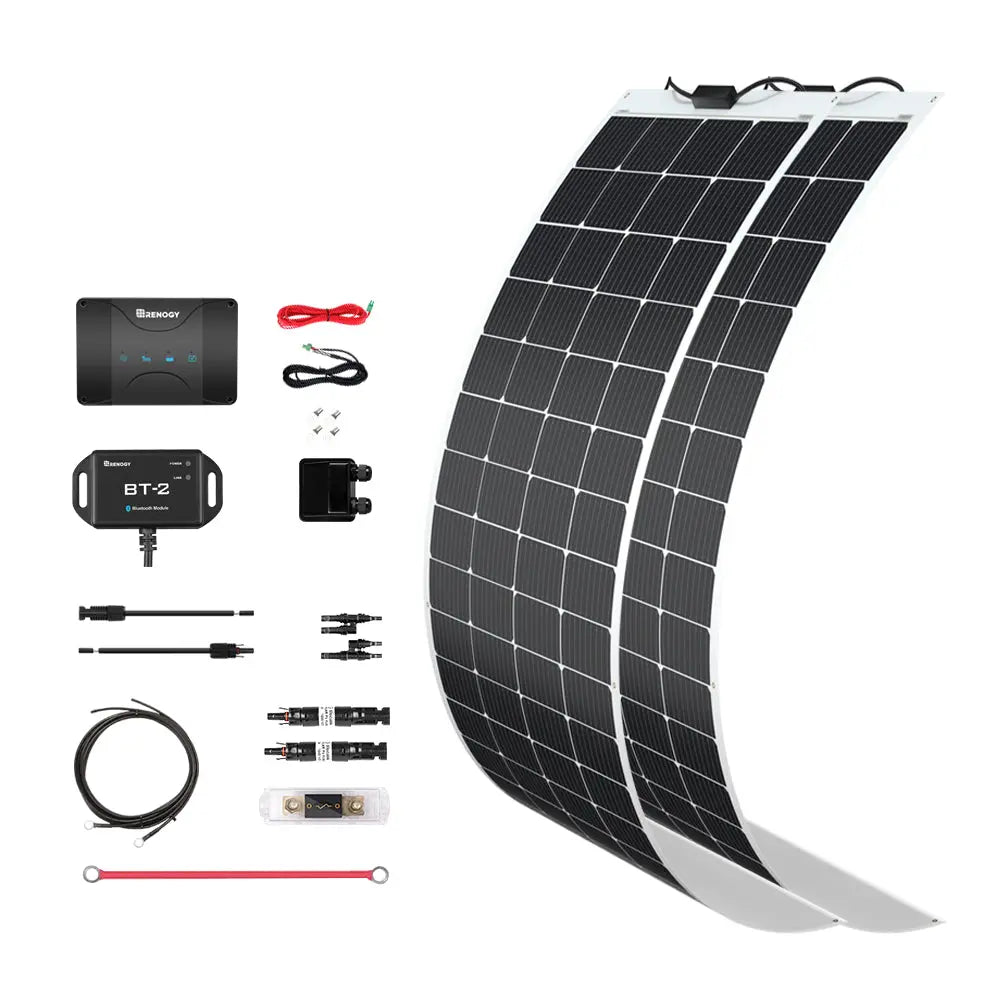

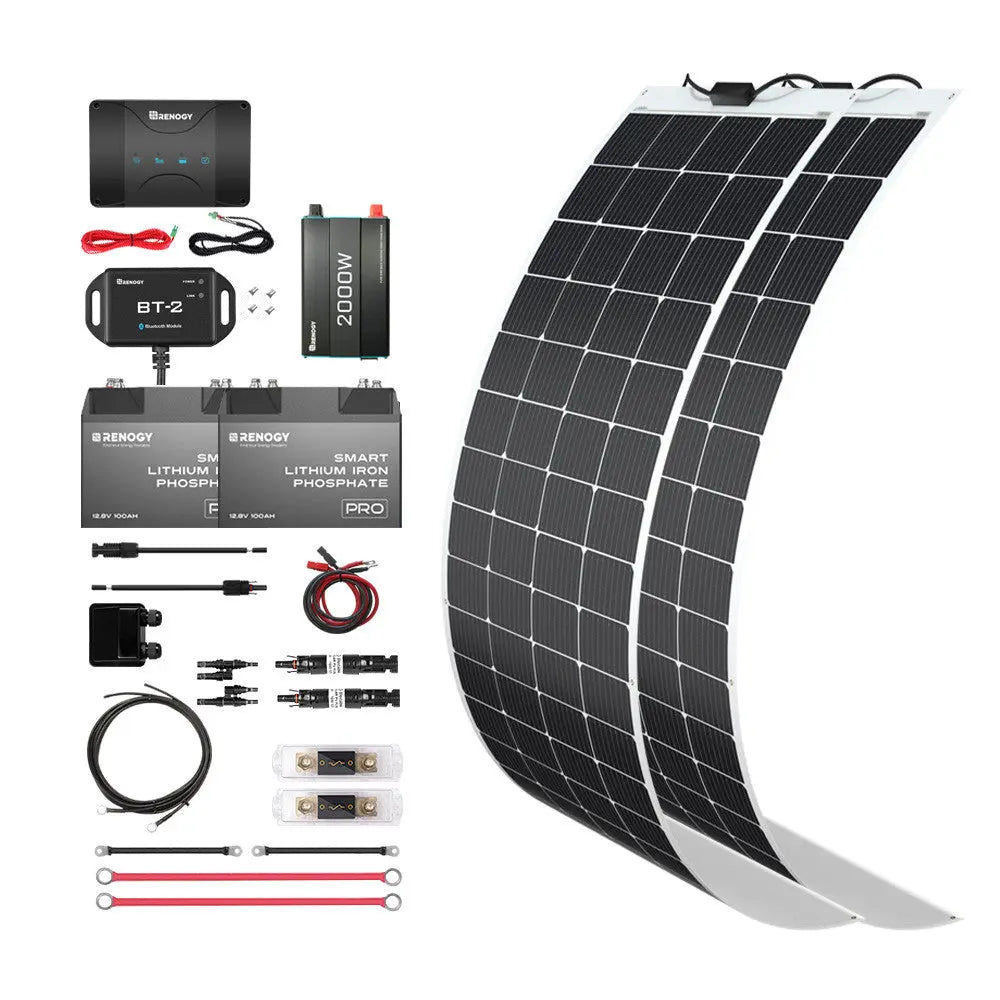

2*200W 12V Flexible Solar Panel
Charge Controller



 Quantity*Title
1*12V 50A DC-DC On-Board Battery Charger with MPPT
Battery



 Quantity*Title
2*12V 100Ah Pro Lithium Battery w/Bluetooth & Self-heating
2*12V 100Ah Core Mini Lithium Battery w/ Self-heating Function
Inverter Quantity*Title
1*2000W 12V Pure Sine Wave Inverter
1*2000W 12V Pure Sine Wave Inverter Charger & 1*Battery Inverter Cables for 3/8 in Lugs
1*300A ANL Fuse Set w/ Fuse
1*Fuse Cable
Accessory Set/Premium Quantity*Title
1*Solar Panel Mounting Z Bracket -- Set of 4(rigid solar panel)
1*Solar Y Branch Connectors MMF+FFM Pair
1*Solar Panel to Charge Controller Adaptor Kit
1*Battery to Charge Controller Tray Cables
1*Solar Double Cable Entry Gland
1*BT-2 Bluetooth Module
1*Holder w/ Fuse
1*ANL Fuse Set w/ Fuse
1*Terminals for 3/8 in Lugs

100W N-Type Rigid Solar Panel
Max Power at STC: 100W Open Circuit Voltage: 22.79V
Short Circuit Current: 5.31A Optimum Operating Voltage: 19.97V
Optimum Operating Current: 5.01A Operating Temperature: -40°F~194°F / -40℃~90℃
Maximum System Voltage: 600V DC (UL) Module Efficiency: 20%
Dimensions: 865x578x30mm/34.1x22.8x1.2in
 		Weight: 5.9kg/13.0lbs
100W 12V Flexible Solar Panel
Maximum Power at STC: 100W Optimum Operating Voltage (Vmp): 18.9V
Open-Circuit Voltage (Voc): 22.5V Optimum Operating Current (Imp): 5.29 A
Short-Circuit Current (Isc): 5.75 A Operating Temperature: -40°F to 185°F (-40ºC to +85ºC)
Maximum Series Fuse Rating: 15A Maximum System Voltage: 600V DC (UL)
Weight: 4.2 lbs (1.9 kg) Dimensions: 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm)

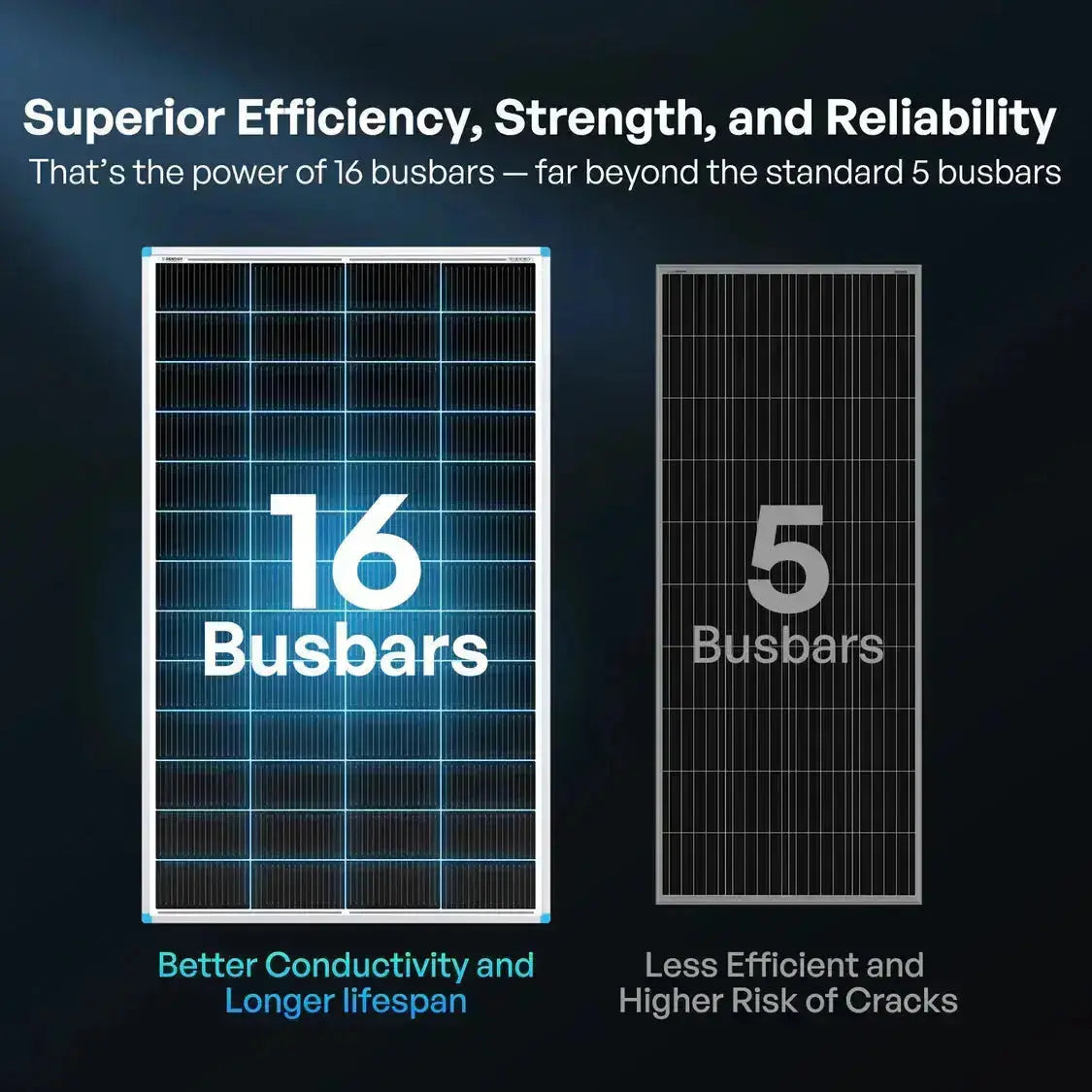

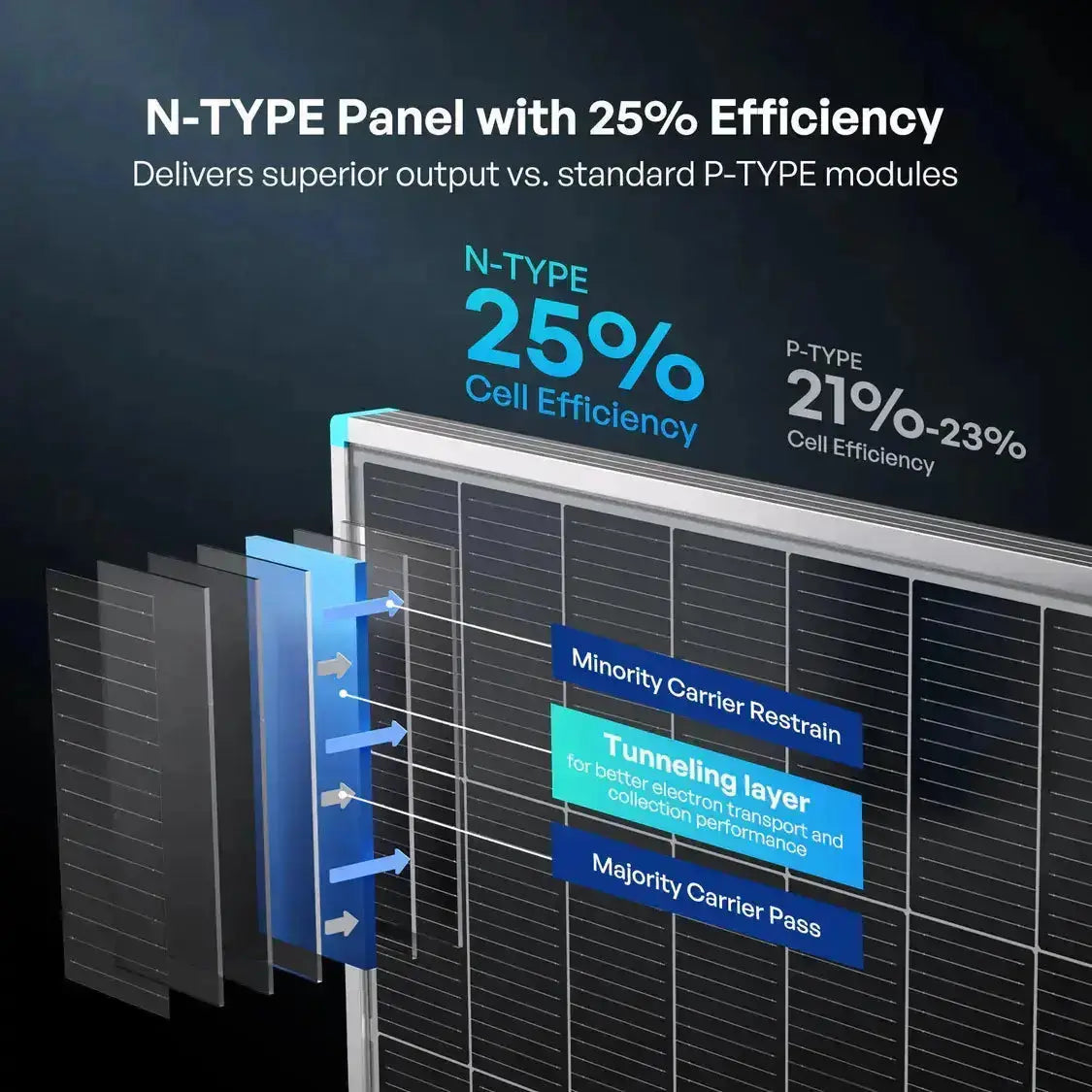

200 Watt 16BB N-Type 24V Solar Panel
Maximum Power at STC: 200W Optimum Operating Voltage (Vmp): 31.03V
Open-Circuit Voltage (Voc): 37.44V Short Circuit Current: 6.85A
Optimum Operating Current (Imp): 6.45A
 Maximum System Voltage: 600V DC
Maximum Series Fuse Rating: 15A
 Operating Temperature: -40°F~185°F / -40℃~85℃
Dimensions: 1262x764x30mm/49.7x30.1x1.2in
 Weight: 10.6kg/23.4lbs

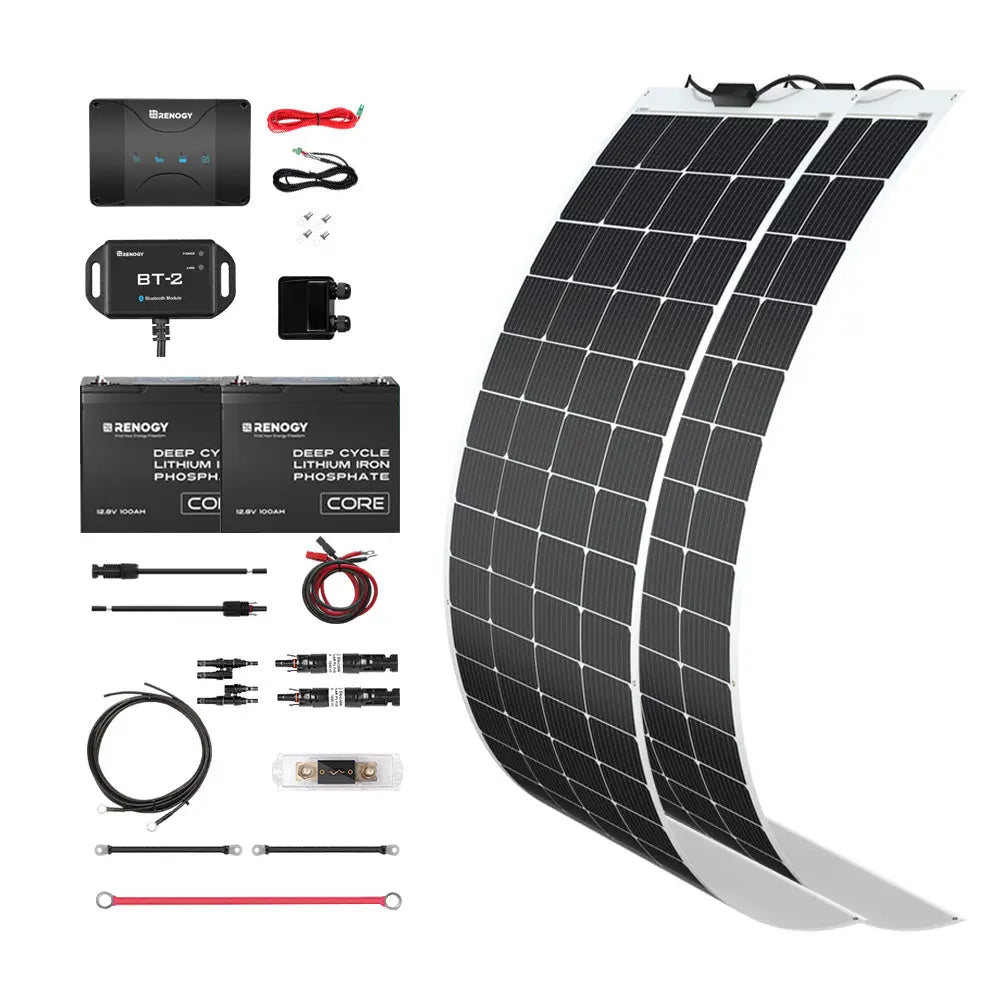

200W 12V Flexible Solar Panel
Maximum Power at STC: 200W Open-Circuit Voltage (Voc): 23.9V
Short Circuit Current: 10.74A Optimum Operating Current (Imp): 10.02A
Maximum System Voltage: 600V DC
 Maximum Series Fuse Rating: 15A
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)
 Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
Weight: 4.9 kg / 10.8 lbs
12V 50A DC-DC ON-BOARD BATTERY CHARGER WITH MPPT
System Voltage: 12VDC Maximum Charging Current: 50A
Battery Types: SLD, GEL, FLD, LI,USER Service Battery Charging Mode: MPPT
Charging Efficiency: Up to 97%
 Max. Solar Input Voltage: 25V
Max. Solar Input Power: 660W @ 50A
 Terminal Size: M8*1.25 - 10mm
Ground Type: Negative
 Operating Temperature Range: -31°F - 149°F
Storage Temperature Range: -40°F - 176°F
 Dimensions: 9.6*5.7*3.0in
Weight: 3.13Ibs
 Communication Protocol: RS485

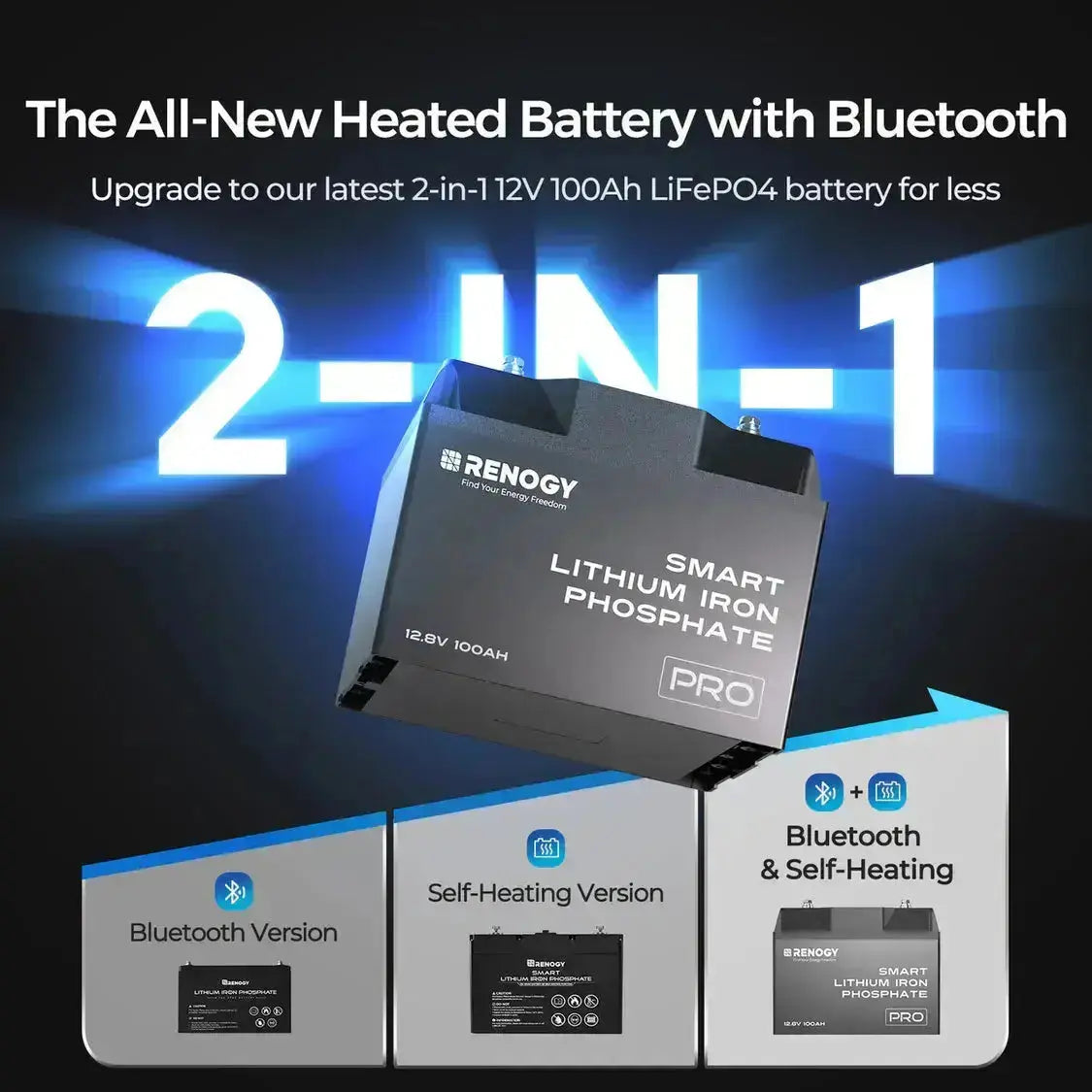

12V 100Ah Pro Lithium Battery w/Bluetooth & Self-heating
Battery Type: Lithium Iron Phosphate Rated Capacity: 100Ah (0.5C, 25℃)
Nominal Voltage: 12V Voltage Range: 10V to 14.8V
Cycle Life(0.5C,25℃): 5000 Cycles (80% DOD, 80% EOL)
 Connection Method: Parallel (Up to 8)
Protection Rate: IP67
 Maximum Charge Current: 100Ah
Maximum Discharge Current: 100Ah
 Peak Discharge Current: 245A@30s
Charge Temperature: -4°F to 131°F (-20°C to 55°C)
 Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
Communication Port: Bluetooth
 Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm)
Weight: 26.9 lbs. (12.2 kg)
12V 100Ah Core Mini Lithium Battery w/ Self-heating Function
Battery Type: Lithium Iron Phosphate Rated Capacity: 100AH
Voltage: 12V Cycle Life (0.5C, 77°F/25°C): 5000 Cycles (80% DOD)
Connection Method: Series & Parallel (up to 4S4P)
 Protection Rate: IP65 (Dust-tight & splash-resistant)
Charge Voltage: 14.6V
 Maximum Charge Current: 100A
Maximum Continuous Discharging Current: 100 A
 Charge Temperature Range: -22°F to 131°F (-30°C to 55°C) – Ideal for safe charging
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
 Terminal Bolt Size: M8 x 1.25 × 12 mm
Dimensions: 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm)
 Weight: 21.38 lbs (9.7 kg)
2000W 12V Pure Sine Wave Inverter
Continuous Power: 2000W Peak Power Rating: 4000W
Output Voltage: 1150V Output Frequency: 60 Hz ± 0.1%
AC Output Sockets: 3
 AC Terminal Block: 1
USB Power Port: 5V/2.1A
 Power Output Control: AC On/Off Switch, and Remote Control
Output Waveform: Pure Sine Wave
 Nominal Efficiency: > 90%
Operating Temperature Range: -4°F - 104°F
 Cooling Fan: Thermally controlled
Dimensions: 17.8 x 8.6 x 4 in
 Weight: 11.7 lbs
2000W 12V Pure Sine Wave Inverter Charger
Continuous Power: 2000W AC Output Voltage Range: 100~120VAC configurable, 5V interval
DC Input Voltage Range: 10~16 VDC Nominal Efficiency: > 90% Peak
Output Waveform/repea11: Pure Sine Wave
 Output Frequency : 50/60 Hz
Input Voltage Range: 90-138 VAC
 Input Wave Form: Sine Wave (Utility or Generator)
Operating Temperature: 0 ~ 40°C / 32 ~ 104°F
 Storage Temperature: -30 ~ 70°C / -22 ~ 158°F
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
 Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
Weight: 51.1 lbs / 23.2 Kg
WARRANTY INFORMATION
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
 AC Output Voltage Range: 100~120VAC configurable, 5V interval

1. What do I need to complete my off-grid solar power system ?



A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.

2. What does off-grid and on-grid mean ?


On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.

3. Can I add more solar panels to the Rover 60A and expand my system power output?


Yes, more solar panels can be added to this system to increase the power output. The Rover 60A has a maximum PV input current of 60A, maximum PV input voltage of 100VDC, and maximum input solar power of 520W at 12V or 1040W at 24V. You can wire more solar panels in series / in parallel to achieve larger power output, however you are limited by the maximum input voltage and current the charge controller can handle. It is safer to design the system to operate at approximately 90% of the rated voltage and current to ensure sufficient tolerance for overvoltage or overcurrent.

4. Will this solar kit power my AC unit ?


In order to determine what size solar kit is appropriate, you must first define the total load to be expected of the solar power system. Most manufacturers will publish a specification sheet of the AC unit online and will include a nameplate sticker on the AC body. Both can be used to determine the actual power rating of the AC. BTU is a common measuring unit for energy in AC and water heater products, however we are intrested in the energy rate, or simply power. Power will be listed in units of Watts, and can be used to determine the total load resulting from running the intended AC unit. Multiply the power rating recorded in watts by the total number of hours of operation intended, to obtain the total watt-hours. Divide the total watt-hours by the peak sun hours in the location of installation, and multiply by a safety factor of 1.5-2, to obtain the total number of watts your panels should produce to power the air conditioner load. The total power load can be divided by the power output of one panel to obtain the number of panels needed.

5. When do I need an inverter ?


If you intend to use this solar power kit to power home appliances (e.g., coffee maker, TV, etc.), an inverter is required to convert the output voltage from a 12 VDC system to a 120V AC outlet. Renogy offers a variety of inverter products to meet your power needs.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
