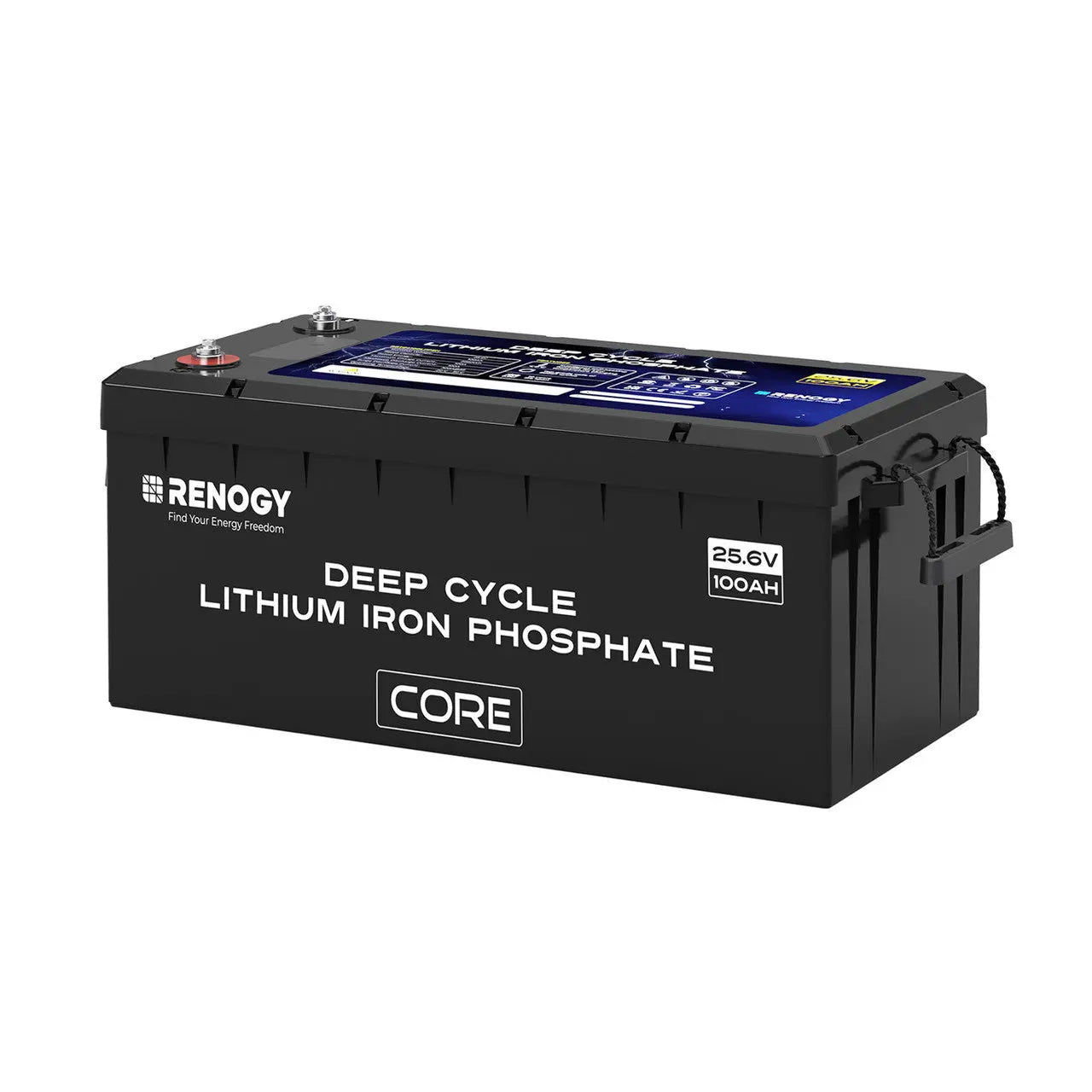

Renogy Core - 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery (SC)
Renogy Core - 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery
- Industry-leading 200W self-heating for peak cold-weather performance.
- Grade A EV-class cells with 5000 cycles at 80% DOD for reliability.
- Low-temp cut-off allows safe charging & discharging, protecting battery.
- Automatic cell balancing optimizes battery life and performance.
- Supports series, parallel, or series-parallel links for versatility.

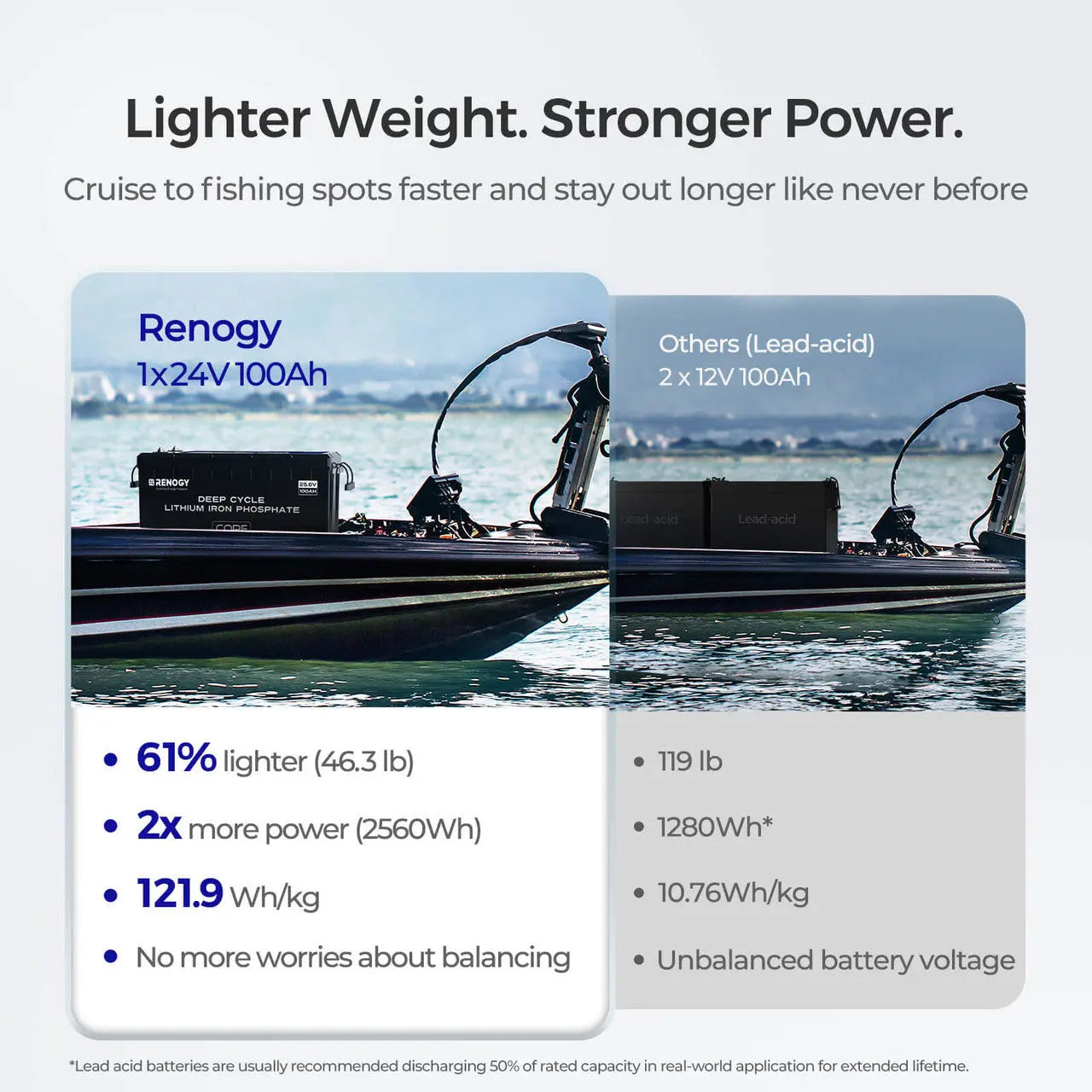

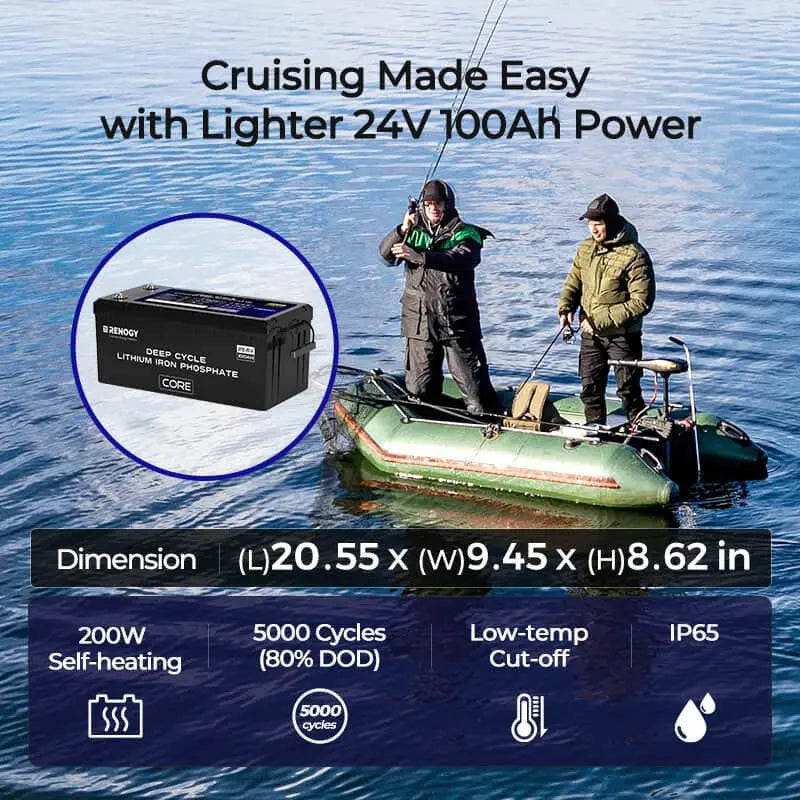

Cruising Made Easy with Lighter Power
The automotive-grade, Grade A battery cells reduce the overall weight of your 24V batteries, ensuring a smoother and faster cruising experience.
Efficient Backup Power for Peace of Mind
With over 5 times power condensed per kilo, Renogy 24V 100Ah LiFePO4 Battery offers more power in a similar footprint. Be power-ready before emergencies. Not after.
Longer Battery Life. Lasting Outdoor Fun.
Grade-A prismatic cells boast 5000 cycles at 80% depth of discharge – that's 10 times longer than traditional lead-acid batteries. With this longevity, enjoy a worry-free 10-year battery lifespan for extended and uninterrupted adventures on the road.
Why a 24V LiFePO4 Battery?
Enjoy a cleaner, more efficient setup with a Renogy 24V 100Ah LiFePO4 battery - that means 30% less wiring needed and pre-selected cells featuring balanced voltage, Plus, the programmable BMS ensures automatic cell balancing during charging, leaving behind the days of dealing with messy wires and unbalanced cells that come with 2 * 12V 100Ah batteries.

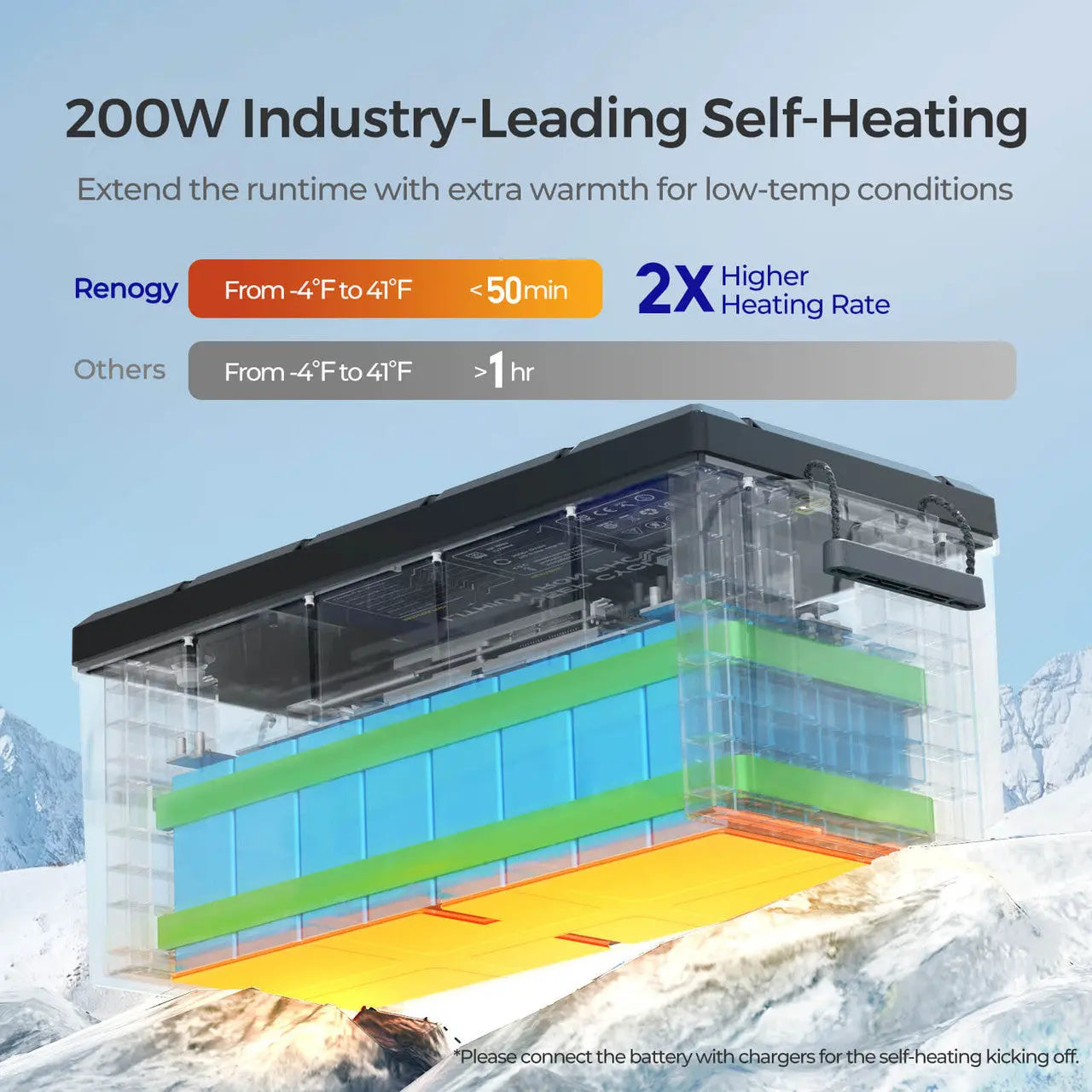

Extra Warmth. Extended Runtime.

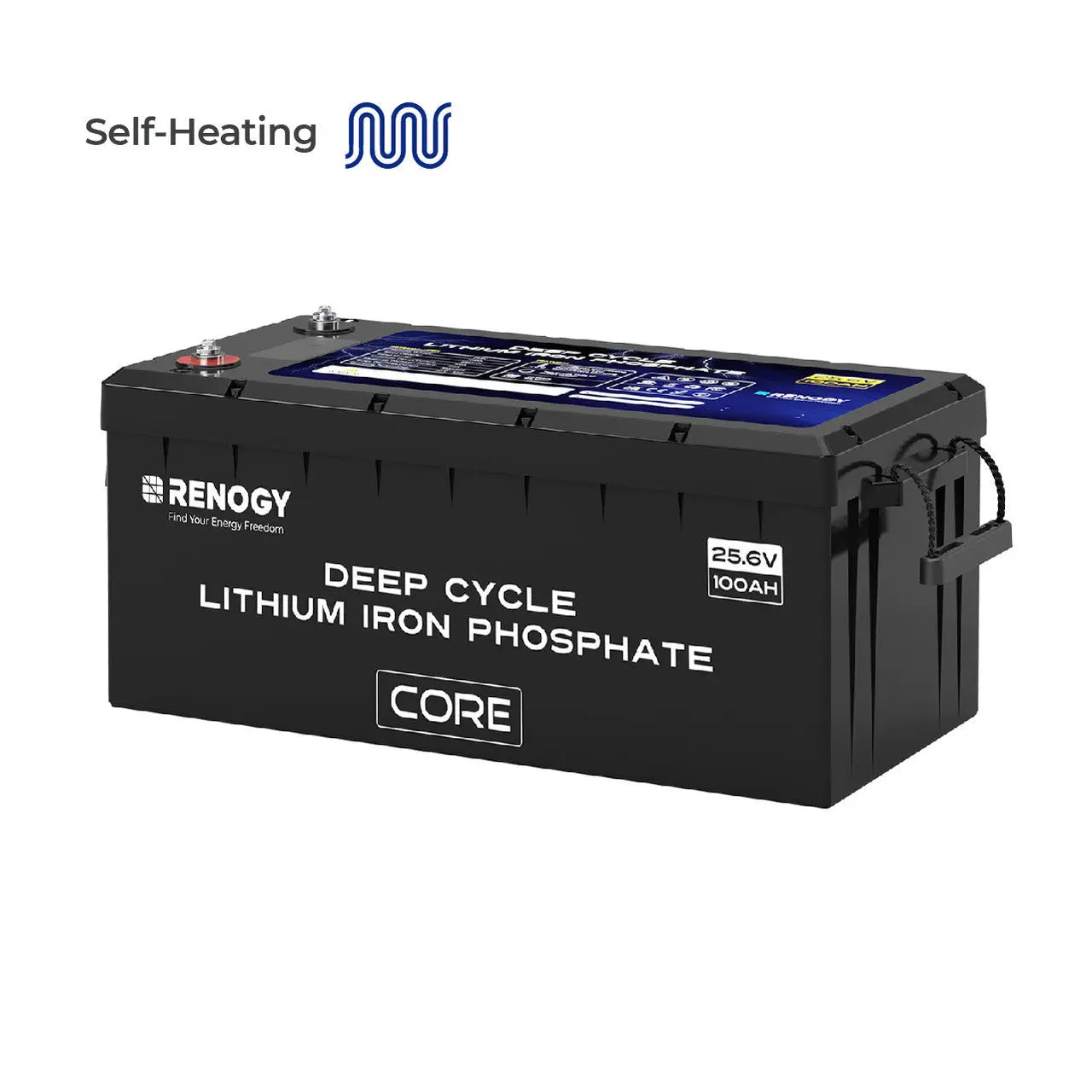

Featuring the highest 200W heating elements in the industry, this 24V 100Ah LiFePO4 Battery heats up 2X faster than competitors. Make sure the charge current stays above 10A for the self-heating to activate.

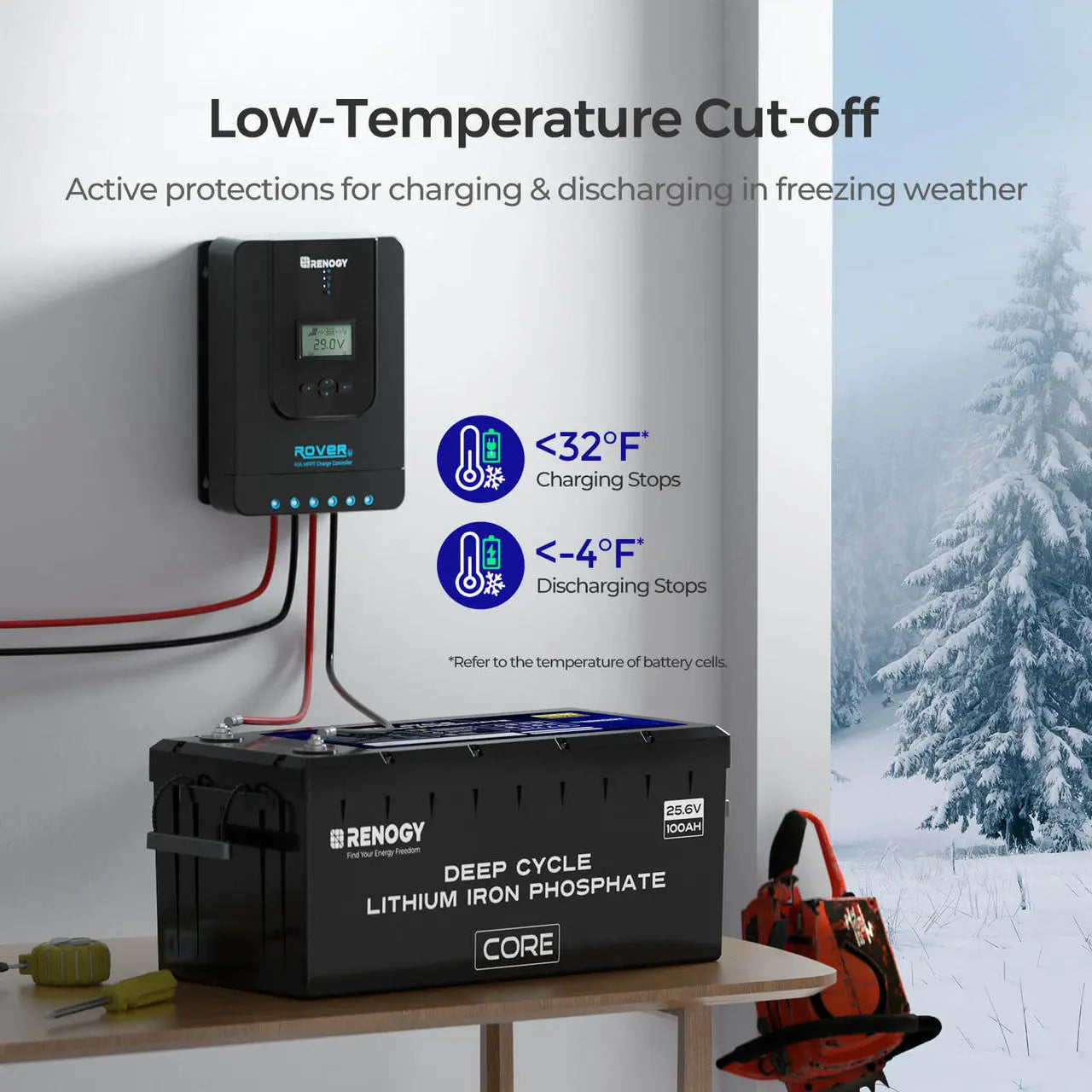

Reliable Power in Winter
When temperatures drop, the low-temperature charging and discharging protection kicks in, cutting off power to your 24V battery before it can damage the cells permanently.
Expandable Power up to 40.96kWh

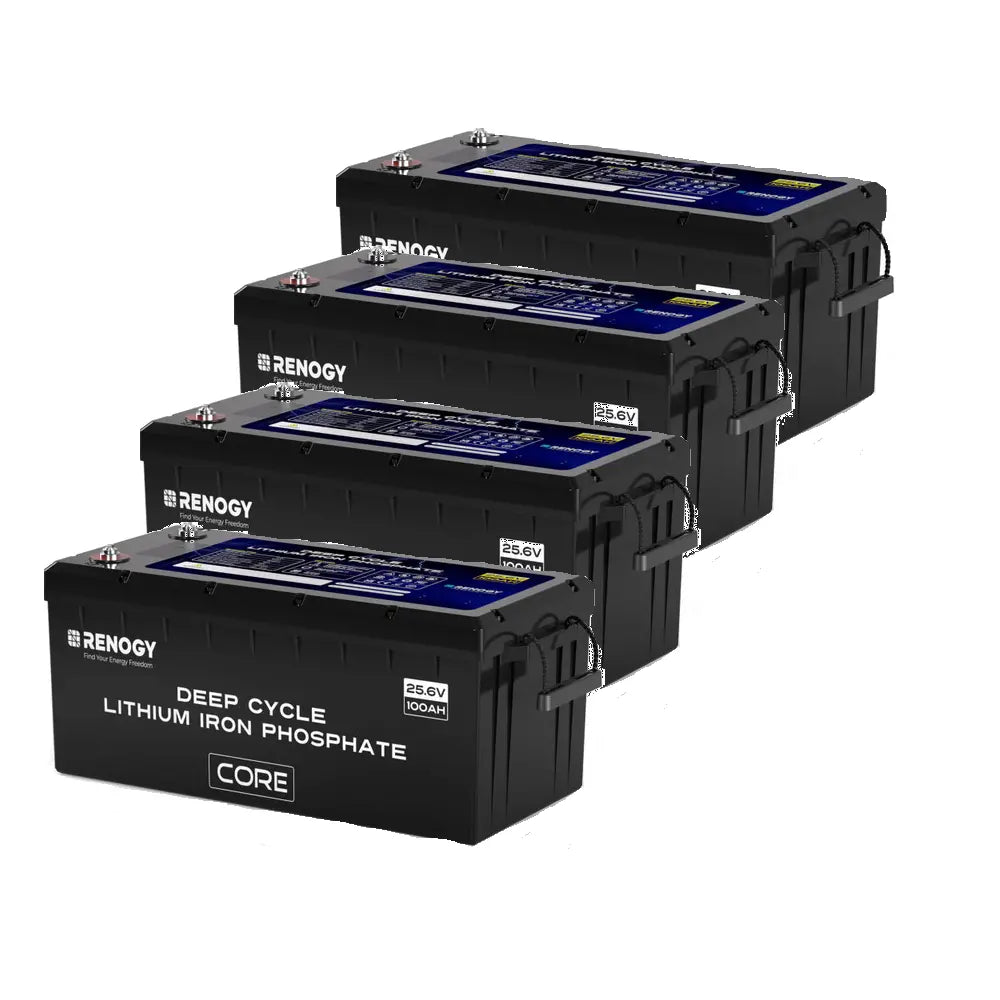

Maximize your backup power capacity to 40.96kWh by connecting up to 16 batteries in series-parallel. Keep your systems running smoothly even during extended blackouts or high-demand projects.
Ways to Connect

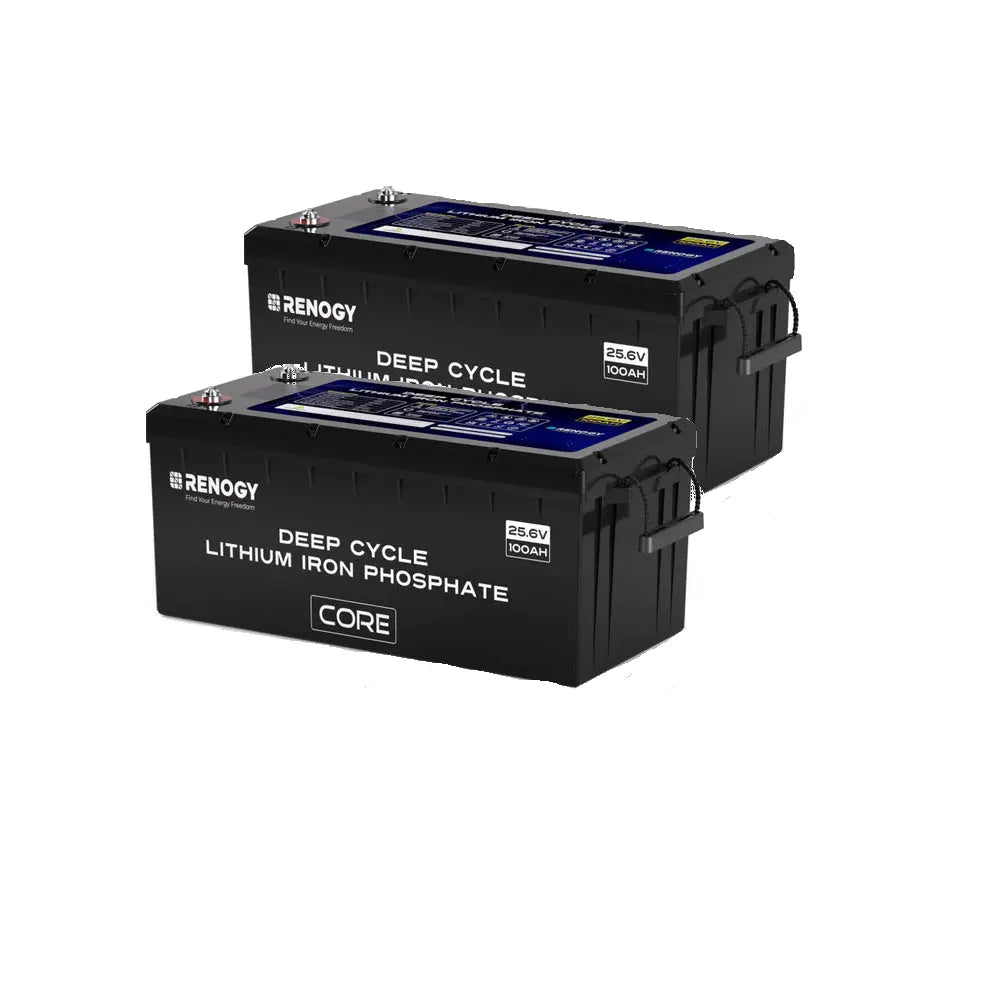

The Renogy 24V 100Ah LiFePO4 Battery offers flexible power setups. Wire up to 8 batteries in parallel or 2 in series to suit your needs.
Trusted Performance
Built to meet stringent performance standards, the Renogy 24V 100Ah LiFePO4 Battery delivers long-lasting, reliable power you can trust.
Dimensional Reference Guide
Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (200 mm).
The Renogy Difference
Going solar is not that complicated. Renogy is here to help you build your system faster so you can roam further.
10+ Years' Expertise in Off-Grid Power Solutions
Local Warehouses in the US
5 Years Warranty
Package Includes
Battery only option
- Core - 24V 100Ah Lithium Iron Phosphate Battery x 1
- User Manual x 1
| Renogy 24V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery | |
|---|---|
| Inverter Output Specifications | |
|
Battery Type: Lithium Iron Phosphate |
Voltage: 24V |
|
Rated Capacity: 100Ah (0.5C, 25℃) |
Voltage Range: 20.0V to 29.2V |
| Charge Voltage: 29.0V |
Maximum Charge Current: 100A |
|
Maximum Discharge Current: 100A |
Peak Discharge Current: 300A @ 5s |
|
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL) |
Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C) |
| Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C) | Storage Temperature Range: '-13°F to 149°F (-25C to 65°C) |
| Operation Relative Humidity: 10% to 95% | Connection Method: Series (Up to 2) Parallel (Up to 8) Series & Parallel (2S8P) |
| Terminal Bolt Size: M8 x 1.25 x 15 mm | Recommended Terminal Torque: 10 N·m |
| Housing Material: ABS & PC | Protection Rating: IP65 |
| Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm) | Weight: 46.3 lbs. (21.0 kg) |
| Accessories |
| Long Terminal Bolts (2): M8 |
| Warranty |
| Material and Workmanship Warranty: 5-year prorated material and workmanship warranty | Certifications: UL, RoHS, MSDS, UN38.3, FCC , PSE, CE, UKCA |
| Shop By Scenario: RV, Vans & Camper | Shop By Scenario: Trolling Motor |
1.Can this battery be used in series to create a 48-volt system?
Yes, Renogy 24V Core Series Batteries can be connected in series to increase the voltage for a 48V off-grid power system. You can also wire batteries in series first, then wire sets of batteries (same model) in parallel to achieve maximum power, up to 40.96kWh.
2. Will this new 24V 100Ah Core LiFePO4 battery work with 24V batteries from other brands?
We do not recommend connecting batteries of different chemistries, capacities, nominal voltages, brands, or models in series or parallel. Doing so may cause damage to the batteries and connected devices and may create safety hazards.
3. How many Renogy 24V 100Ah Core Series Batteries can I connect at most?
The 24V 100Ah Core Batteries support multiple connection types, including series, parallel, and series-parallel. You can connect up to 2 batteries in series, 8 in parallel, or 16 in series-parallel, provided all batteries are the same model and similar in capacity.
4. How long will the Renogy Core Series Lithium Iron Phosphate Battery last?
Renogy 24V 100Ah Core Series Batteries are designed to last for up to 5000 cycles with an 80% depth of discharge (DOD). These batteries also feature self-heating and low-temperature cut-off, allowing them to function in freezing temperatures.
5. How should I balance my batteries in a 2S2P configuration?
To maintain optimal performance, it is recommended to connect your four batteries in parallel every six months to rebalance their voltages. This process helps reduce voltage differences and improves overall battery efficiency.
6. How to recharge my LiFePO4 batteries?

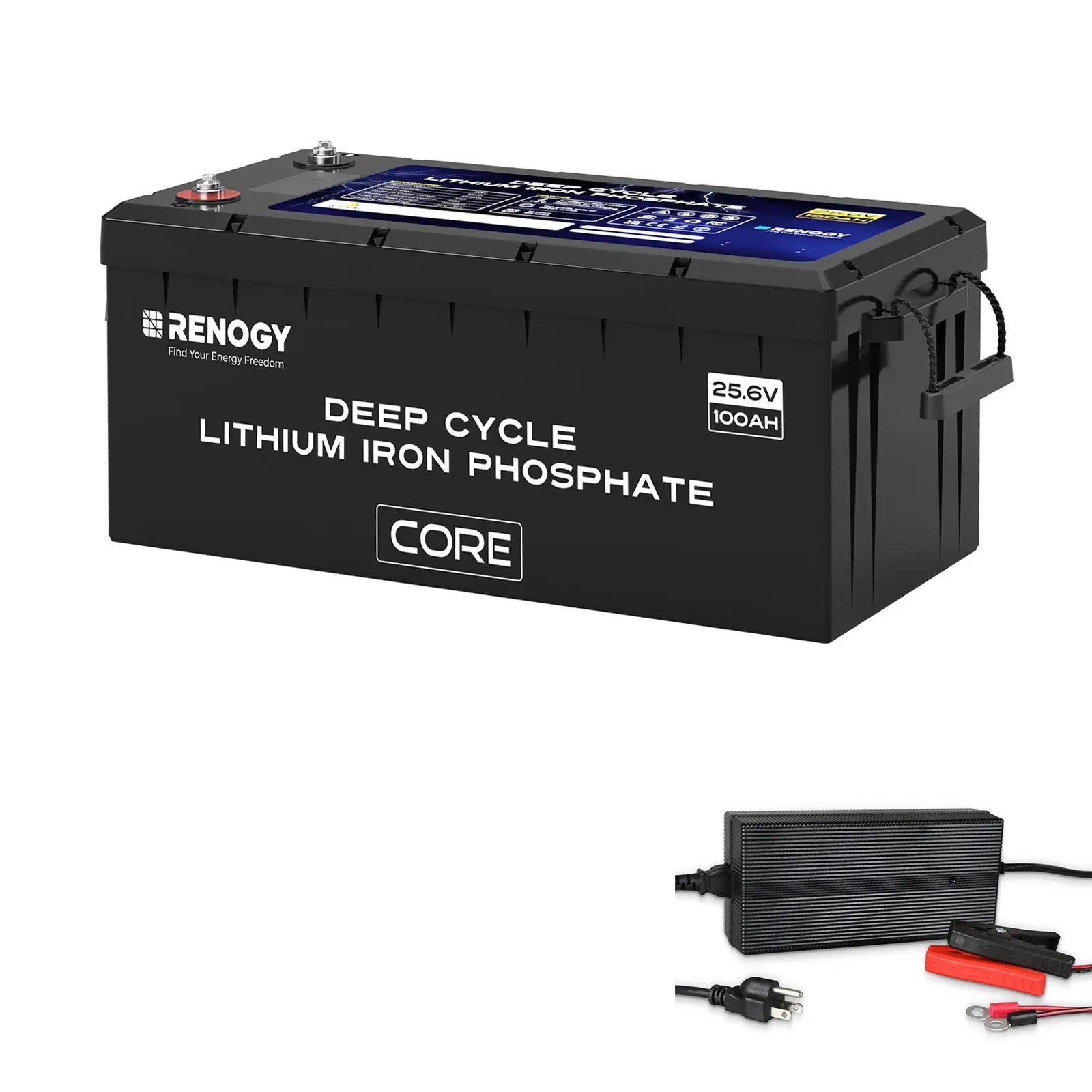

You can recharge your LiFePO4 batteries using solar power, a DC-DC battery charger, or an AC-DC charger. We recommend using a solar charge controller/charger that is specifically compatible with lithium iron phosphate batteries for optimal charging.
7. Can I use a Bluetooth module to monitor the battery status on my phone?
No, this battery is not compatible with a Bluetooth module. However, you can use a separate 500A Battery Monitor with Shunt (sold separately) to monitor the battery's status.
8. My battery temperature is too low during operation, and the self-heating doesn’t work properly.
Each 24V 100Ah Core LiFePO4 Battery requires a charging current greater than 10A to initiate and maintain self-heating. Please verify that the charger you're using provides at least 10A of current to ensure proper heating.
