Renogy Complete Cabin Solar Kit 1200W 2500W | Optional 9.6kWh Deep-Cycle AGM / LiFePO4 Batteries (SC)
- Regular price
- $2,599.99
- Sale price
- $2,599.99
- Regular price
-
$3,899.99
Shipping calculated at checkout.
Renogy Complete Cabin Solar Kit 1200W 2500W | Optional 9.6kWh Deep-Cycle AGM / LiFePO4 Batteries
● Latest generation high-efficiency PERC panels

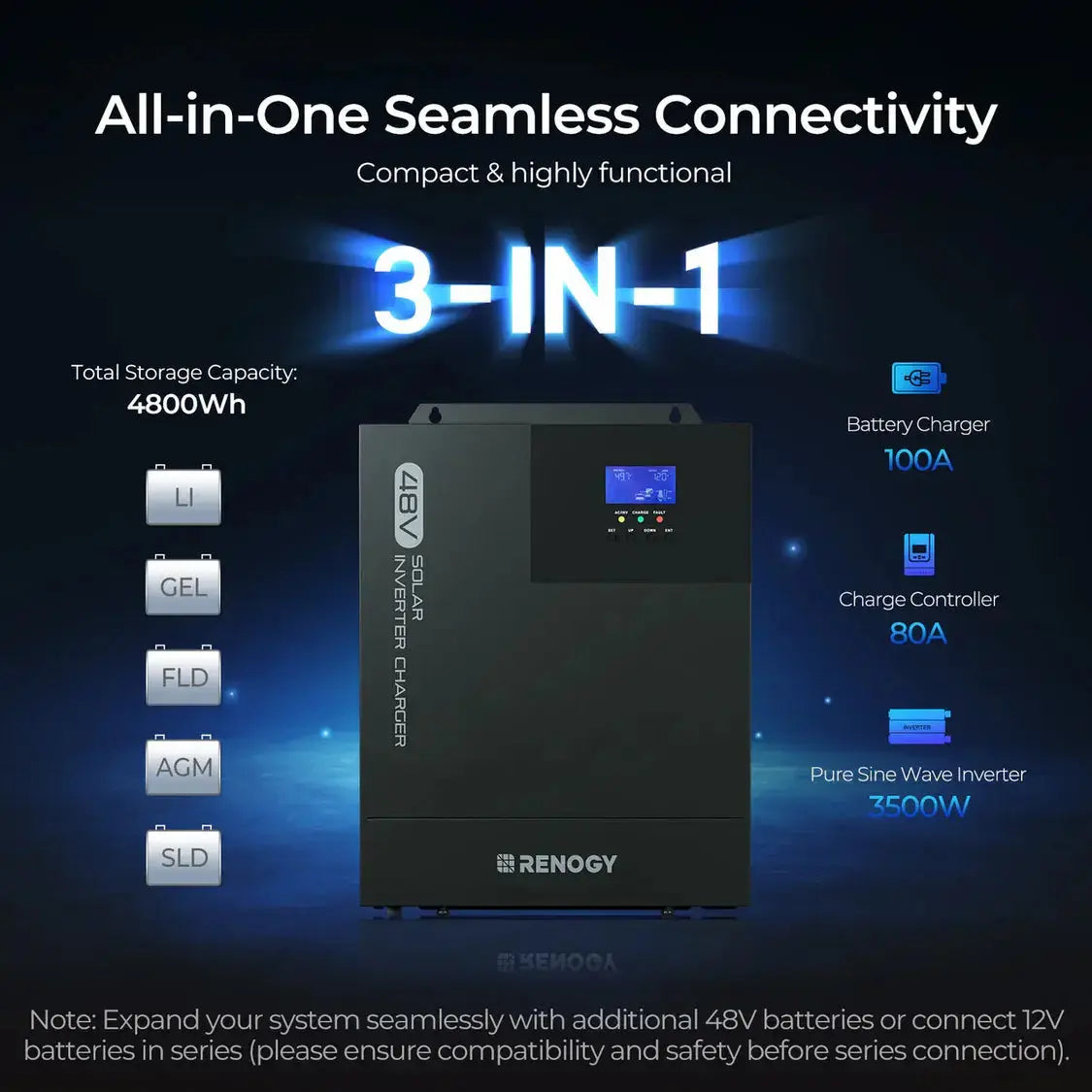

● All-in-one 48V 3500W solar inverter charger
● Reliable 2.5kWh battery banks
● DC circuit protection
● Bluetooth monitoring
KEY FEATURES
【Versatility】 This kit is perfect for any off-grid housing setup. It allows users to comfortably run typical household appliances throughout their day to day lives, or may simply serve as a emergency backup source of power capable of meeting the users needs for extended time, should there be grid-failure.
【Grid Independence】 Users can feel comfortable knowing that they will be able to use their common household appliances regardless of grid access; should their be a power outage or grid fluctuation, users need not be concerned.
【Economic Benefit】 Once set up, this package can provide complete grid independence, allowing users to disregard concern over expensive grid charges, while simultaneously increasing the value of their home.
【Environmental Impact】 By generating a constant supply of power through solar technology, users will be actively reducing their carbon footprint, and reduce or eliminate their contribution to harmful emissions.
【Safety】 The DC circuit breaker system allows this high power system to operate in a safe manner. The system is protected from damage caused by short circuits or overloads. The electrical system can be easily disconnected for maintinence or inspection.
Wiring Diagram
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK

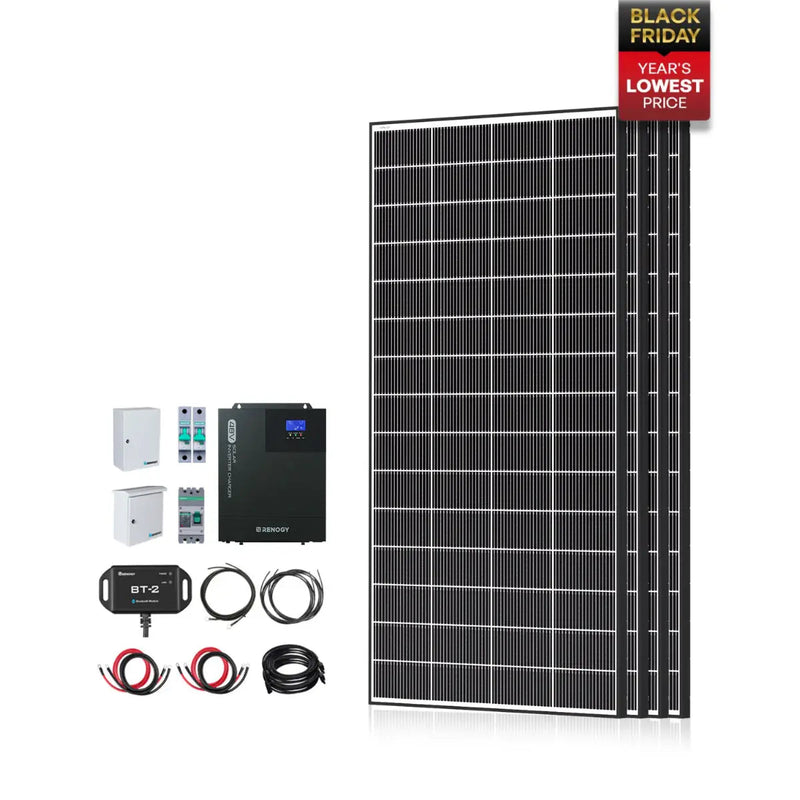

Package Includes

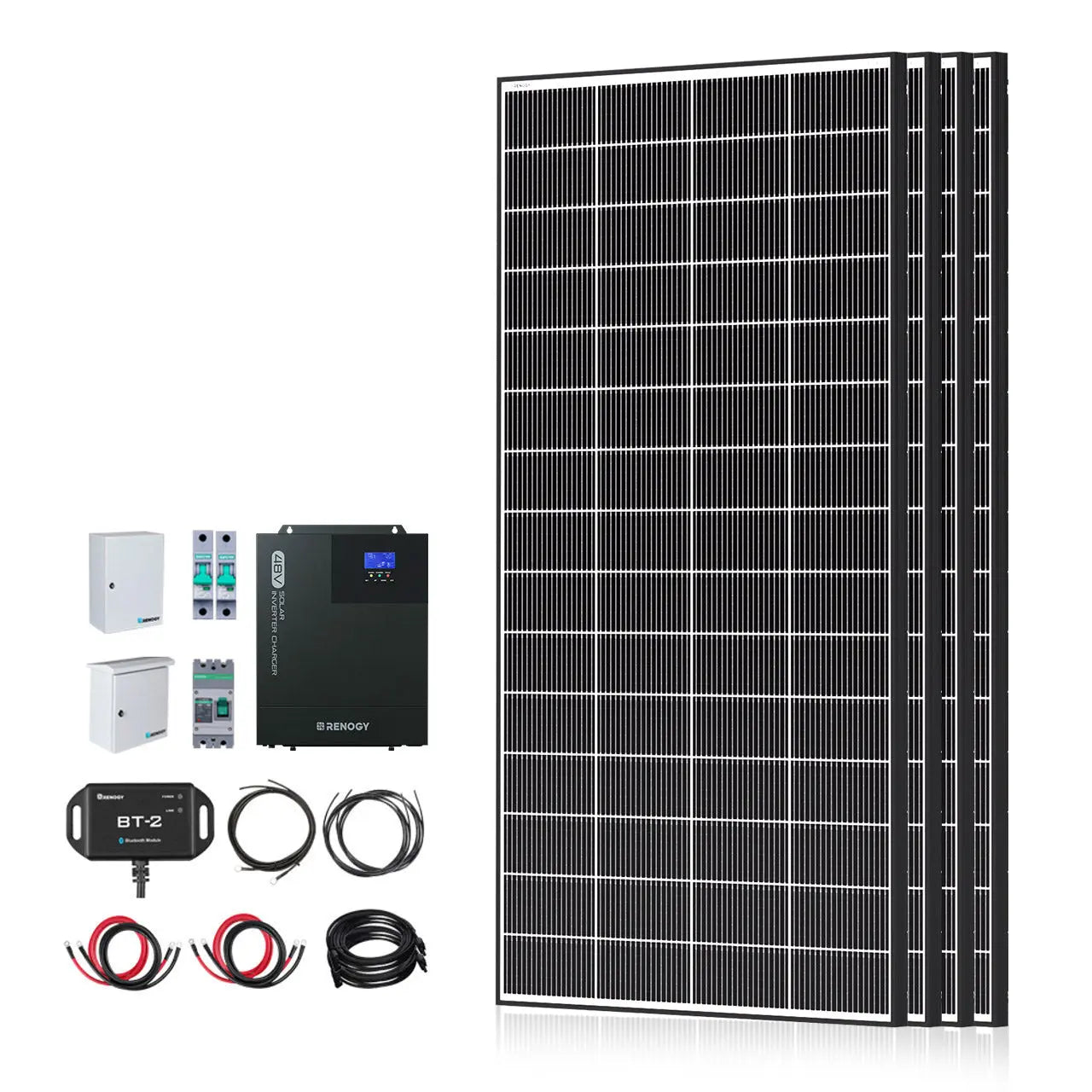

| RKIT1200D | Quantity*Title |
|---|---|
| 1*4 Pieces of 320W N-Type Monocrystalline Solar Panel | |
| 2*40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair) | |
| 1*5 Strings Solar Combiner Box | |
| 2*16A 1P DC Miniature Circuit Breaker | |
| 1*DC Circuit Breaker Box | |
| 1*32A 1P DC Miniature Circuit Breaker | |
| 1*16Ft 8AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair) | |
| 2*8Ft 8AWG Solar Stranded Copper PV Wire | |
| 1*160A 2P DC Molded Case Circuit Breaker | |
| 1*48V 3500W Pure Sine Wave Solar Inverter Charger | |
| 2*8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair) | |
| 1*BT-2 Bluetooth Module | |

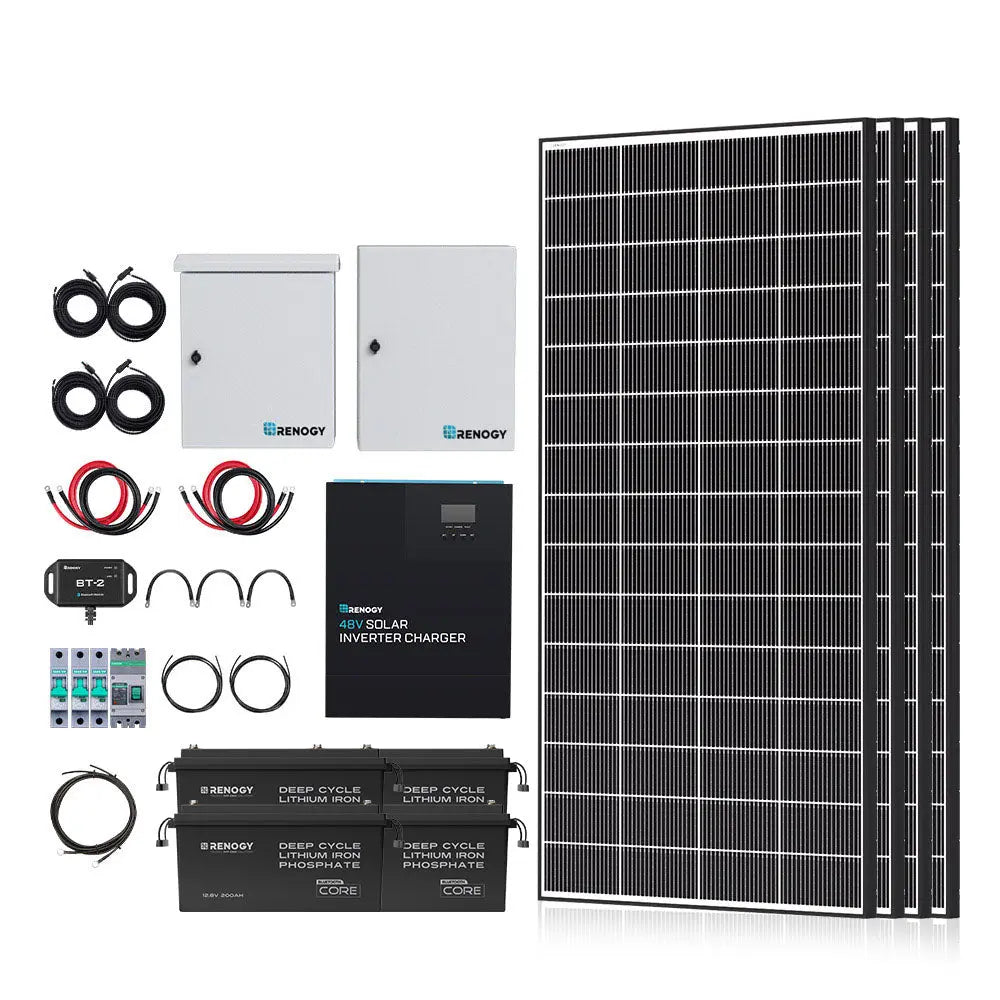

| RKIT1200D-CLFP
|
Quantity*Title |
| 1*RKIT1200D | |
| 4*12V 200Ah Pro Series Lithium Battery | |
| 3*1AWG 12Inch Copper Battery Interconnect Cable | |

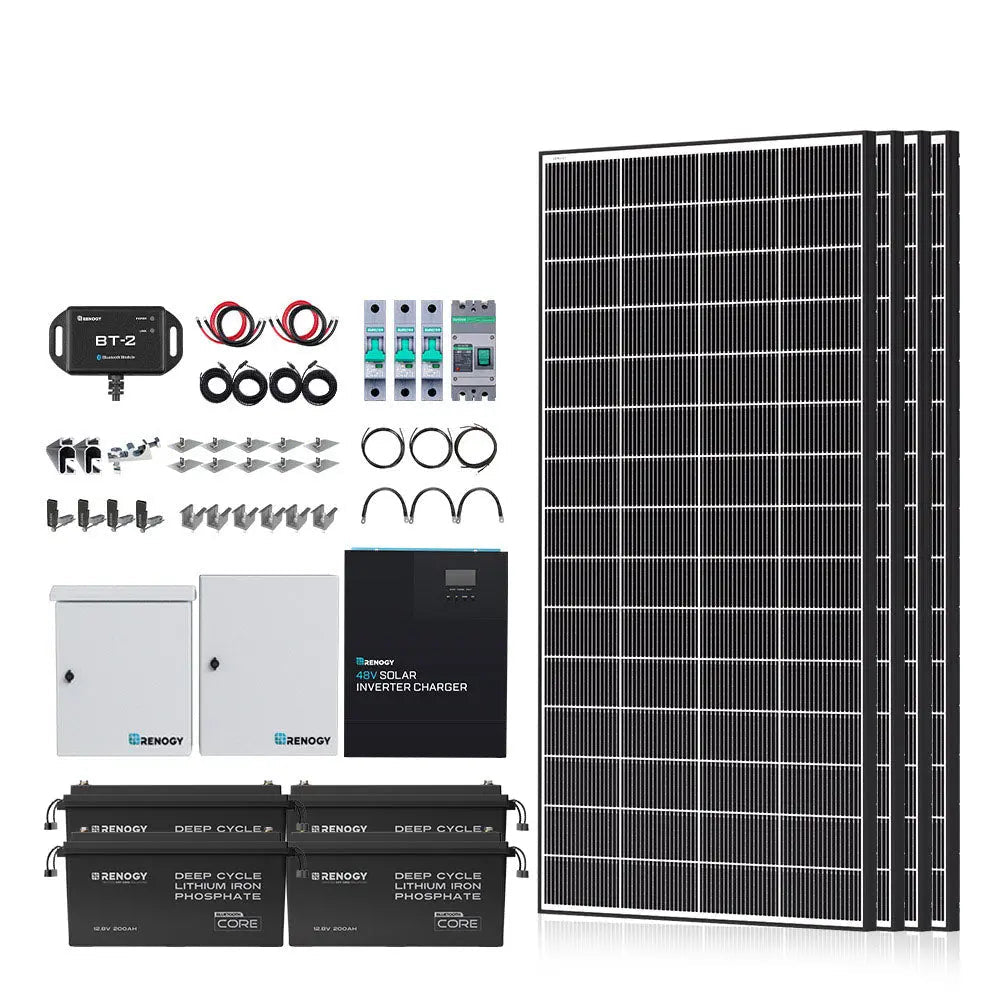

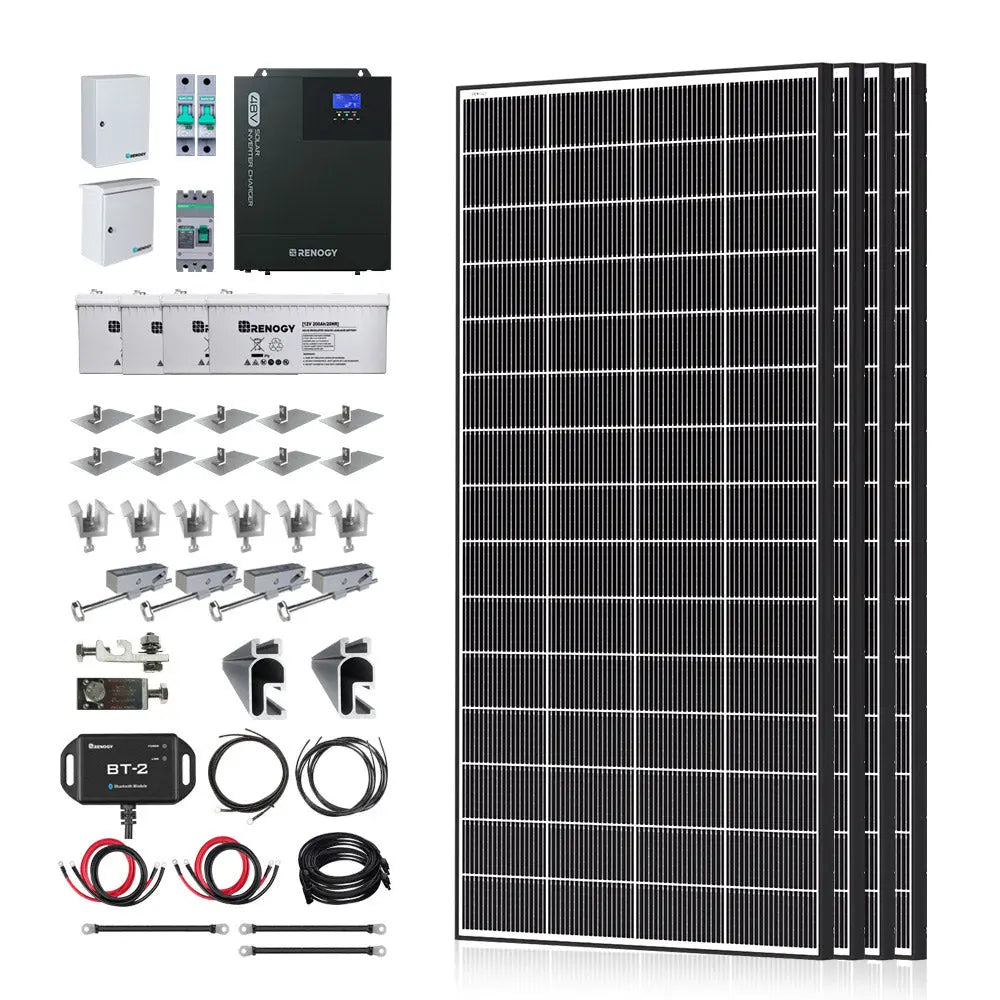

| RKIT1200D-R-CLFP/RKIT1200D-R-AGM/
|
Quantity*Title |
| 1*RKIT1200D | |
| 4*12V 200Ah Pro Series Lithium Battery or 4*12V 200Ah AGM Battery | |
| 3*1AWG 12Inch Copper Battery Interconnect Cable | |
| 2*Rail | |
| 1*Grounding Lug | |
| 10*Flashing | |
| 4*End Clamp | |
| 6*Mid Clamp | |

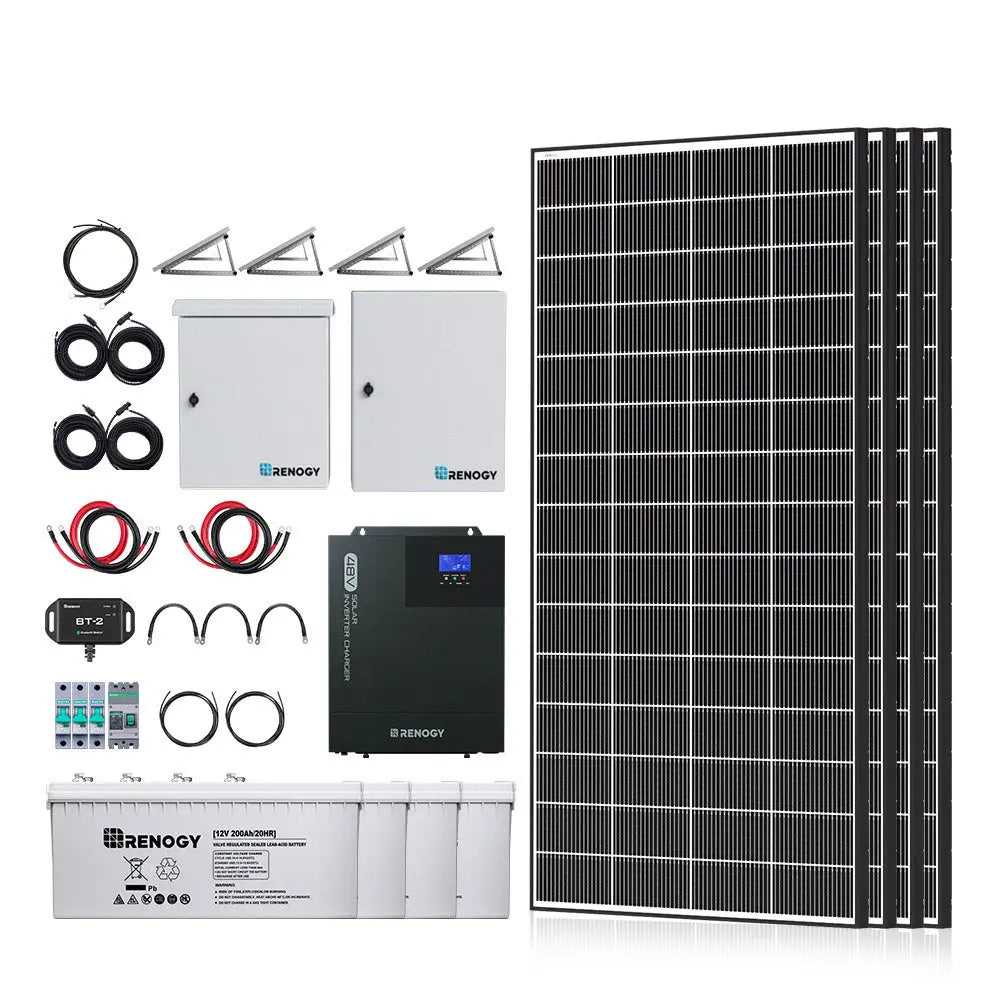

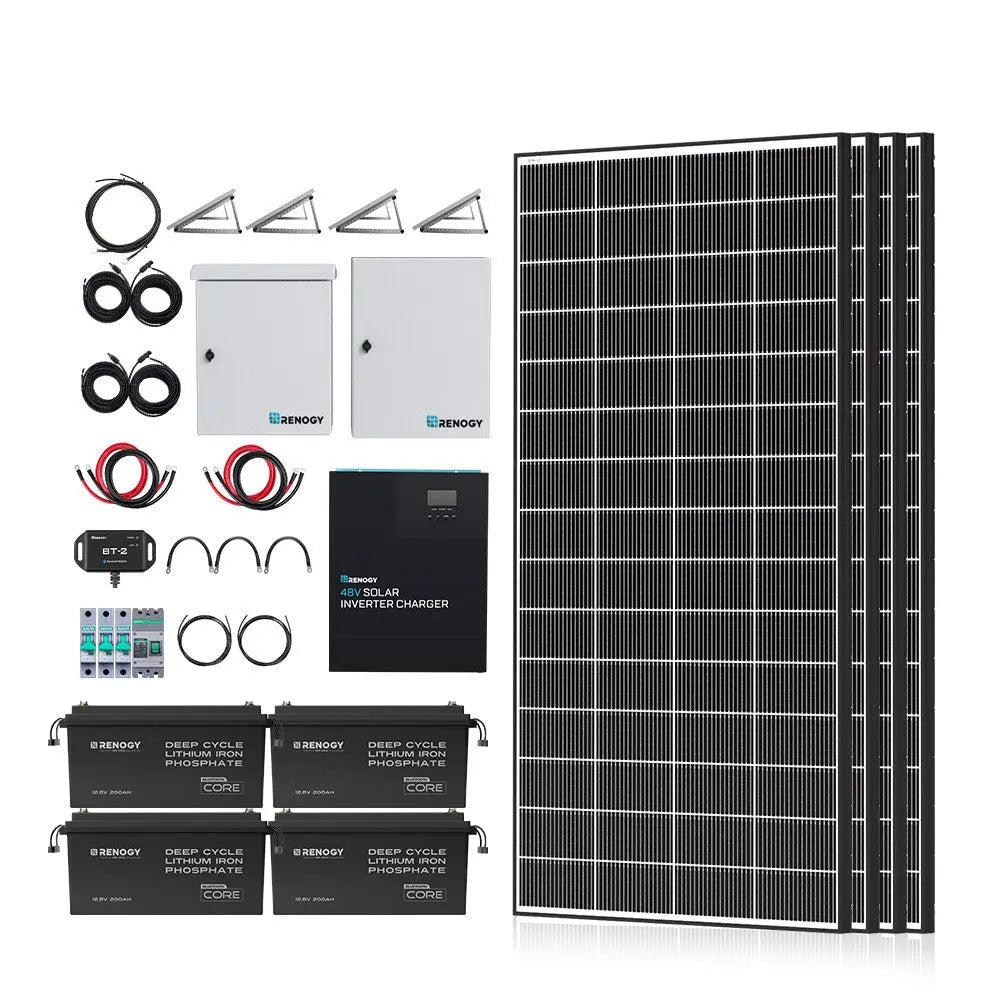

| RKIT1200D-T-CLFP/RKIT1200D-T-AGM
|
Quantity*Title |
| 1*RKIT1200D | |
| 4*12V 200Ah Pro Series Lithium Battery or 4*12V 200Ah AGM Battery | |
| 3*1AWG 12Inch Copper Battery Interconnect Cable | |
| 4*50Inch Tilt Mount Brackets | |

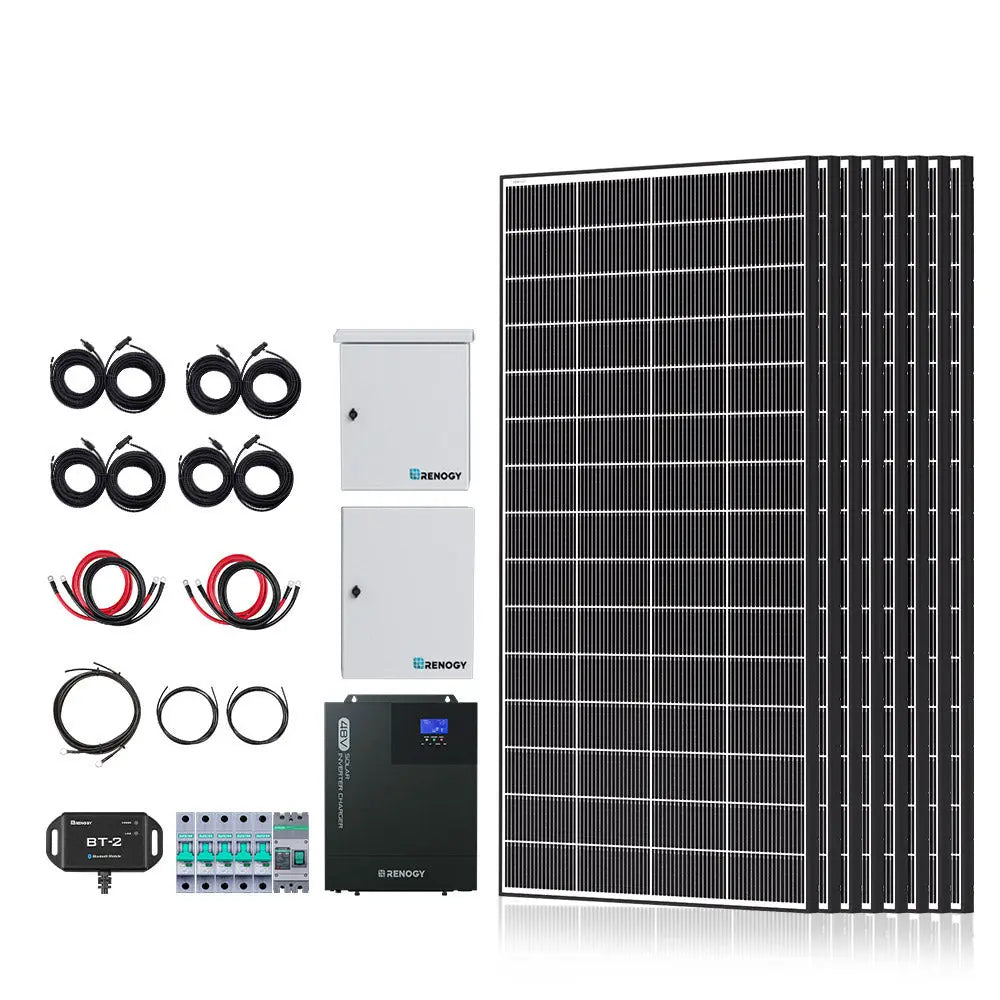

| RKIT2500D | Quantity*Title |
| 2*4 Piece of 320W N-Type Monocrystalline Solar Panel | |
| 4*40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair) | |
| 1*5 Strings Solar Combiner Box | |
| 4*16A 1P DC Miniature Circuit Breaker | |
| 1*DC Circuit Breaker Box | |
| 1*50A 1P DC Miniature Circuit Breaker | |
| 1*16Ft 10AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair) | |
| 2*8Ft 8AWG Solar Stranded Copper PV Wire | |
| 1*160A 2P DC Molded Case Circuit Breaker | |
| 1*48V 3500W Pure Sine Wave Solar Inverter Charger | |
| 2*8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair) | |
| 1*BT-2 Bluetooth Module | |

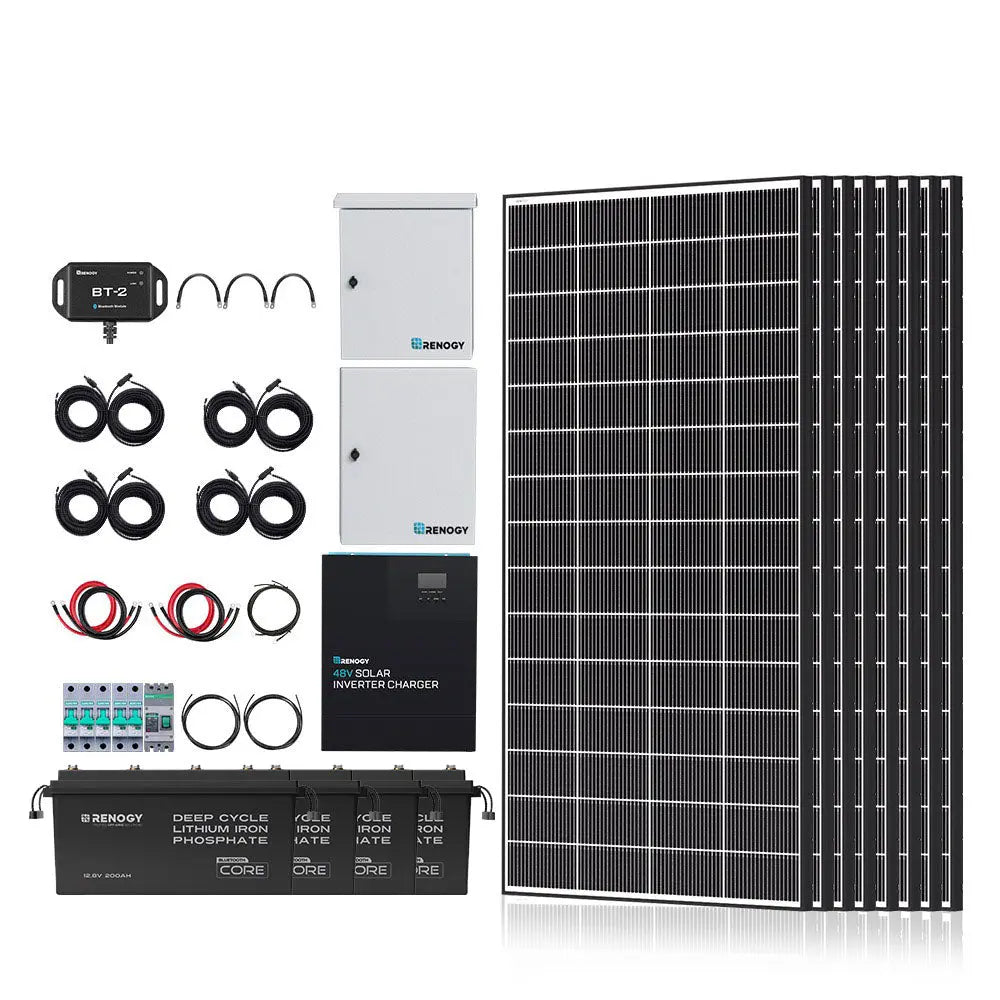

| RKIT2500D-CLFP
|
Quantity*Title |
| 1*RKIT2500D | |
| 4*12V 200Ah Pro Series Lithium Battery | |
| 3*1AWG 12Inch Copper Battery Interconnect Cable | |

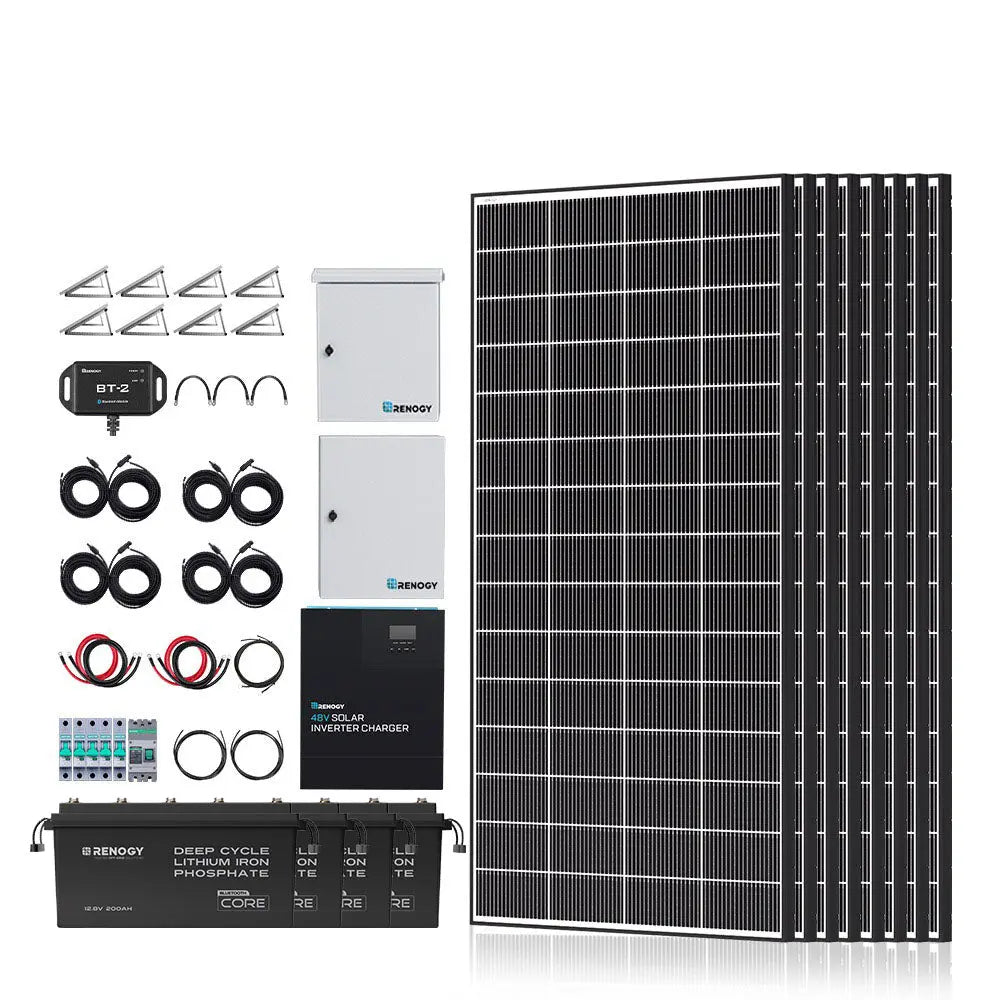

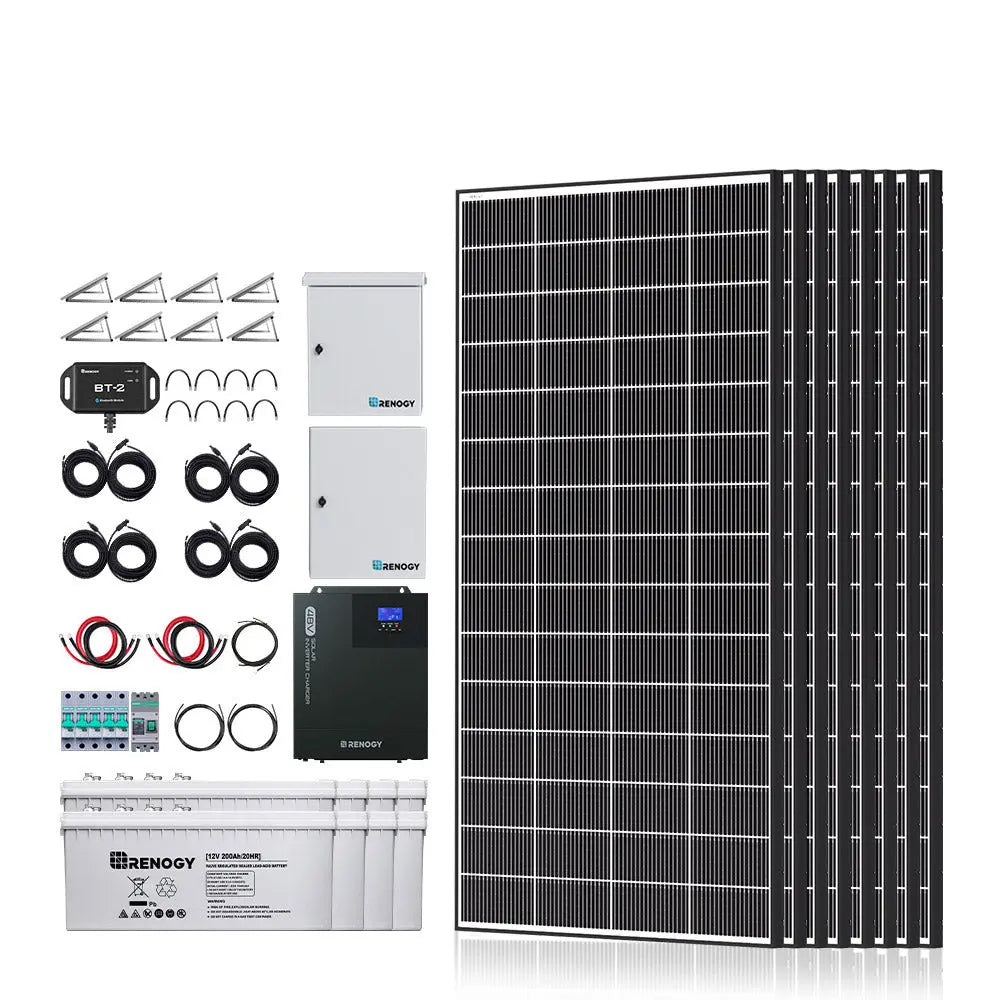

| RKIT2500D-T-CLFP/RKIT2500D-T-AGM
|
Quantity*Title |
| 1*RKIT2500D | |
| 4*12V 200Ah Pro Series Lithium Battery or 8*12V 200Ah AGM Battery | |
| 3*1AWG 12Inch Copper Battery Interconnect Cable or 8*1AWG 12Inch Copper Battery Interconnect Cable | |
| 8*50Inch Tilt Mount Brackets |

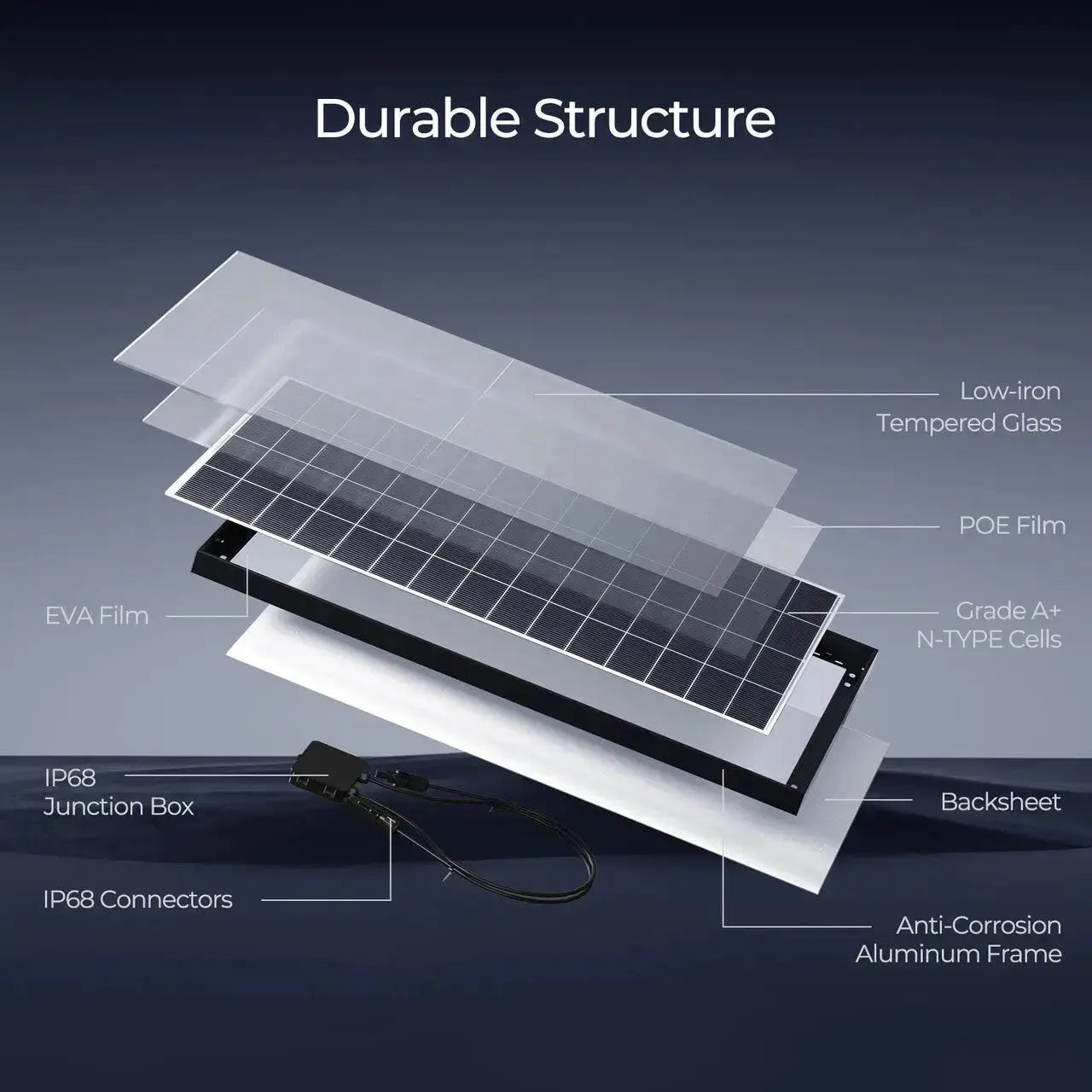

| 320W N-Type Mono Solar Panel | |
|---|---|
|
Maximum Power at STC: 320W |
Optimum Operating Voltage (Vmp): 37.85V |
|
Open-Circuit Voltage (Voc): 43.82V |
Optimum Operating Current (Imp): 8.46A |
|
Short-Circuit Current (Isc): 8.92A |
Operating Temperature: -40°F~185°F / -40℃~85℃ |
|
Cell Efficiency: 22.2% |
Maximum System Voltage: 1000V DC (UL) |
| Maximum Series Fuse Rating: 20A | Weight: 14.9kg/32.9lbs |
| Dimensions: 1640*880*35mm/64.6*34.7*1.4in |
Certifications: CE, ISO, UL |

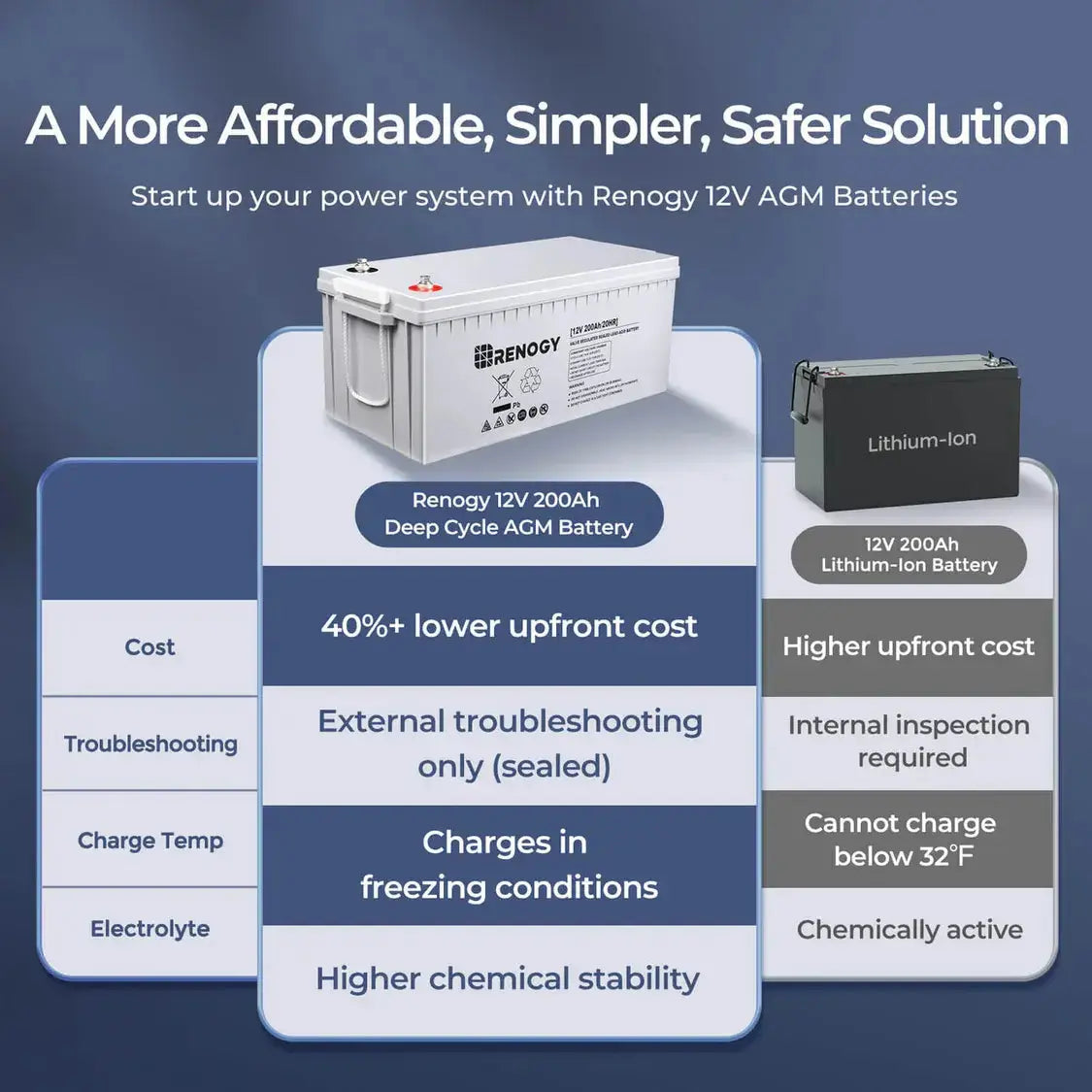

| 12 Volt 200Ah Deep Cycle AGM Battery | |
|---|---|
|
Battery Type: AGM |
Rated Capacity: 200Ah (20 Hour Rate to 10.5V) |
|
Nominal Voltage: 12V |
Internal Resistance: Approx. 3.5mΩ |
|
Connection Method: In Series, and In Parallel (up to 4) |
Dimensions: 20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm |
|
Weight: 127.9 lbs / 58 kg |
Standard Operation Temperature: 77°F±9°F（25°C±5°C） |
| RENOGY 12V 200AH CORE SERIES DEEP CYCLE LITHIUM IRON PHOSPHATE BATTERY | |
|---|---|
|
Rated Capacity: 200Ah (0.5C, 25℃) |
Nominal Voltage: 12.8V |
|
Voltage Range: 10V to 14.8V |
Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL) |
|
Maximum Charge Current: 200A |
Maximum Discharge Current: 200A |
|
Dimension (L x W x H): 18.4 x 8.4 x 8.2 in (467 x 212 x 208 mm) |
Weight: 50.7 lb (23 kg) |
| Terminal Bolt Size: M8 x 1.25 x 16 mm | Protection Rating: IP67 |
| WARRANTY INFORMATION | |
|---|---|
|
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty |
Accessories: 1-year material and workmanship warranty |
1. Does this package come ready to mount on a roof?
The panels included in this package all come with pre-drilled holes for mounting installation. The deluxe and premium versions of the package also include rail-mounting components for complete installation.
2. Why does my system seem to be underproducing?
The performance of a solar system is influenced by many factors, including: environmental conditions (such as sunlight, temperature, dirt buildup, etc.). Moreover, the conversion efficiency of a solar panel may decrease over time. Please see warranty for additional information.
3. Does this package include all wiring?
The basic package includes all wiring to connect panels to the inverter charger, which can then convert the power to a usable form for necessities and standard appliances. The deluxe package also includes all wiring required to set up a battery bank system for energy storage.
4. Can the inverter be used with a 24V system?
No, the inverter charger is designed to work with a 48V battery system.
5. Does this system include everything I need?
The basic package only comes with components designed to be used with a pre-existing battery system. The premium versions of the package also include everything needed to set up a battery system.
6. How do I size my electrical system requirements?
To determine the total load consumption of your system, you must get the wattage of each item you plan to run, as well as how long you plan to run each device. Simply multiply the wattage of each device by the hours said device will run; this will give you watt-hours of each device. All devices watt-hours can be summed to give you total watt-hours load of your electrical system.
7. Can this package be installed by myself?
Yes. This package is specifically designed for DIY users who wish to have an off-grid power solution. However, it is advised to consult a professional for advanced grid integration (net-metering).
8. Which types of homes is this package designed for?
This package is designed for mobile homes, sheds, and small cabins.
9. Does this system include a battery bank?
Only the premium versions of this package include the components necessary to set up a battery bank.
10. How long will my system last?
Depends on the specific system. In general, the panels included in this package will remain at least 80% efficient over a 25 year span. The batteries will be a more significant variable; LFP batteries will typically perform for 5-10 years, and AGM batteries will perform for 3-5 years.
11. Can this package be integrated with a grid tied system?
This package may be used as a standalone backup power source for a grid tied system. A transfer switch is needed in such application.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
