Renogy 400 Watt 12 Volt Solar Premium Kit W/MPPT (SC)

Renogy New 400 Watt 12 Volt Solar Premium Kit

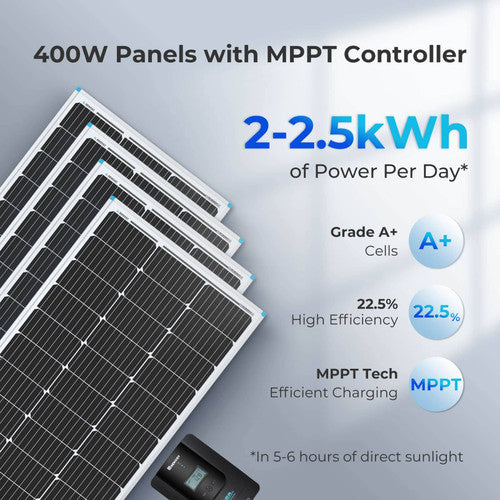

Feel the green power of 2-2.5kWh with Renogy New 400 Watt 12 Volt Solar Premium Kit, a comprehensive pack that comes with globally renowned Renogy Solar Panels, ANL fuse, a Rover MPPT charge controller to harvest 30% more power and Bluetooth connectivity for remote monitoring and control.

Renogy's solar panels boasts of high-quality PERC cells in half-cell BB design that delivers 22.5% higher cell efficiency. Built to last a lifetime and a little more, the panels are crafted with premium materials which include a TPT backsheet and aluminum frame.

Renogy's MPPT charge controller with all 8 of its protection condiments is in place to actively, monitor, charge and keep track of voltage, current and load changes. Your solar energy system is well protected from over temperature, low temperature, reverse current, reverse polarity, short-circuit, overload, overcharging and overdischarging.

The kit includes an In-line fuse and ANL fuse leaving you with a promising fuse solution. Renogy solar premium kit supports both series and parallel wiring to assist in upgrading your energy system.

Specifications:

RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

Maximum Power: 100W

Maximum System Voltage: 600V DC (UL)

Open-Circuit Voltage (Voc): 24.3V

Optimum Operating Voltage (Vmp): 20.4V

Short-Circuit Current (Isc): 5.21A

Optimum Operating Current (Imp): 4.91A

Dimensions: 41.8 x 20.9 x1.4 in

Weight: 14.1lbs/6.4kg

ROVER LI 40A MPPT CHARGE CONTROLLER

Nominal System Voltage: 12V/24V Auto Recognition

Rated Charge Current: 40A

Max. PV Input Voltage: 100 VDC

Max. PV Input Power: 12V/520W, 24V/1040W

Max Battery Voltage: 32V

RENOGY 8FT 8AWG TRAY CABLES (A PAIR)

Rating Voltage: 600/1000V

Length: 8ft

Wire Gauge: 8AWG

Temperature: -40°F to +185°F

2FT 8AWG ANL FUSE CABLE

Length and Wire Gauge: 2ft and 8AWG

Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV

Temperature: -40°F to +194°F

RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)

Length: 20ft

Wire Gauge: 10AWG

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F

BT-2 BLUETOOTH MODULE

Input Voltage: 5V or 12V

Communication Range: ≤82ft (25m)

Communication Protocol: RS485

Operation Temperature: -4°F to 185°F ('-20℃~85℃)

RENOGY 10A IN-LINE FUSE HOLDER W/FUSE

Rated Current: 10A

Rated Voltage: 1000 V DC

Contact Material: Copper, Silver Plated

Replaceable Fuse: Cylindrical PV Fuse (10x38mm)

ANL 40A FUSE SET

Current Rating: 40A

Voltage Rating: 72V

Interrupt Capacity: 80A

Withstanding voltage: 1000V DC(TUV), 600V(UL)

Rated Current: 50A

Protection Degree: IP67, mated

Temperature : -40°F to +194°F

Protection Class: Class II

Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets: Four Nuts

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories: 1-year material and workmanship warranty

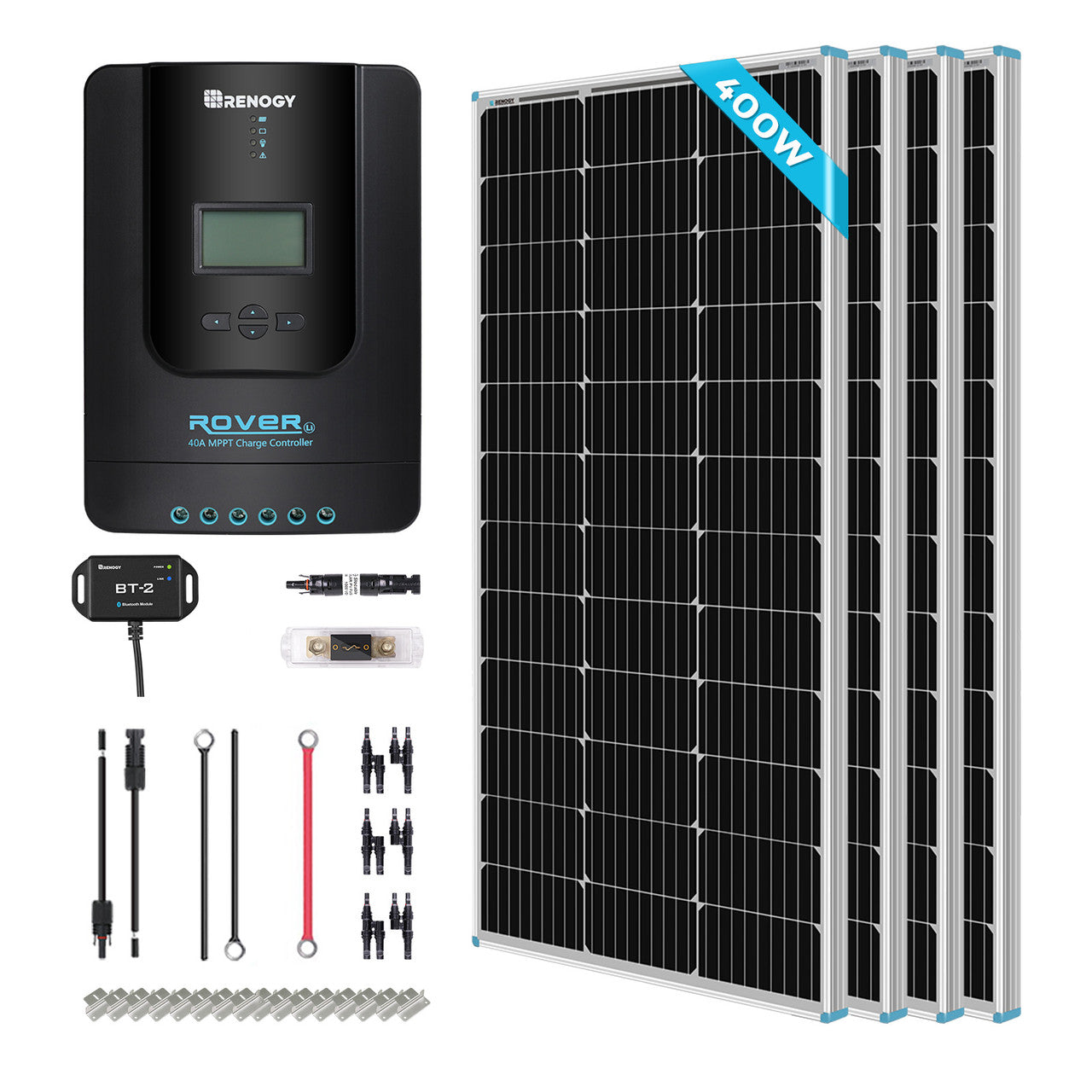

What's in the Box:

4 x 100W Mono Solar Panel

1 x Rover Li 40A MPPT Charge Controller

1 x BT-2 Bluetooth Module

1 x 20FT 10AWG Adaptor Kit

1 x 2FT 8AWG Fuse Cable

1 x 8FT 8AWG Tray Cable

4 x Mounting Z Brackets (Set)

3 x Solar Y Branch Connectors MMF+FFM Pair

1 x 10A In-line Fuse

1 x 40A ANL Fuse

1 x User Manual
