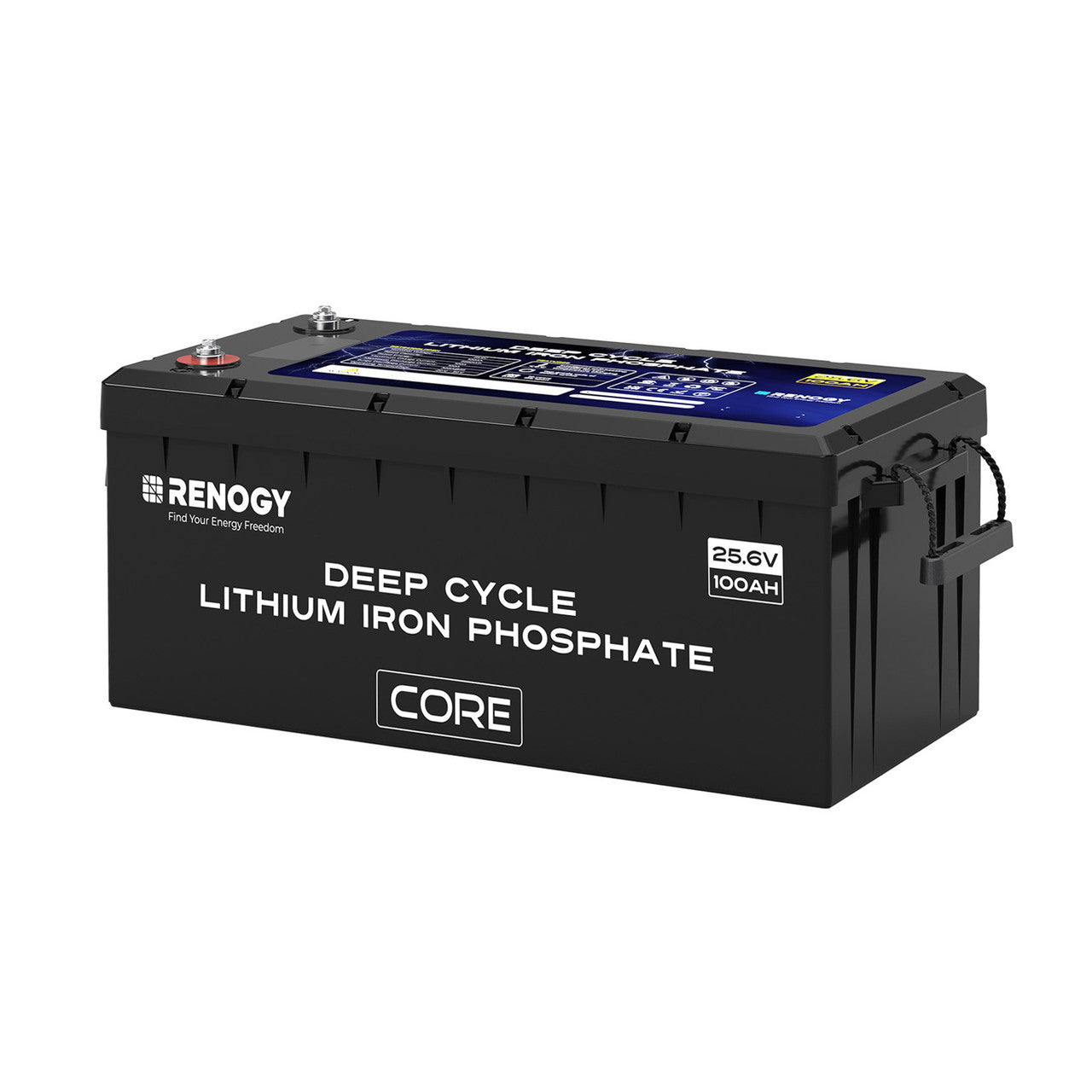

Renogy 24V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery (SC)

Renogy Deep Cycle 24V 100Ah Core lithium battery  with Self-heating function

From fishing expeditions to unexplored hike trials, Renogy Deep cycle 24V 100Ah Core lithium battery with self-heating function fitted with EV-grade Grade-A cells, 200W self heating, low temp cut off and automatic charge balancing of cell, connect series, parallel or series-parallel to enhance your energy efficiency is the one energy boost you need to stay off-grid with endless supply of power.

TAILOR-MADE FOR CRUISES

Unlike bulky lead--acid or LiFEPO4 batteries, Renogy 24V 100Ah core weighs 61% lighter at just 46.3lbs, reduces overall weight as you cruise your boat to fishing grounds.

EFFICIENT BACKUP POWER

At 121.9 Wh/kg which is 5 time power condensed per kilo, Renogy delivers more power in least footprint.

EXTENDED BATTERY LIFE

Enjoy a 10 year battery lifespan as the Grade-A prismatic cells boast of 5000 cycles at 80% DOD, a whopping 10 x higher battery life than any traditional lead-acid battery.

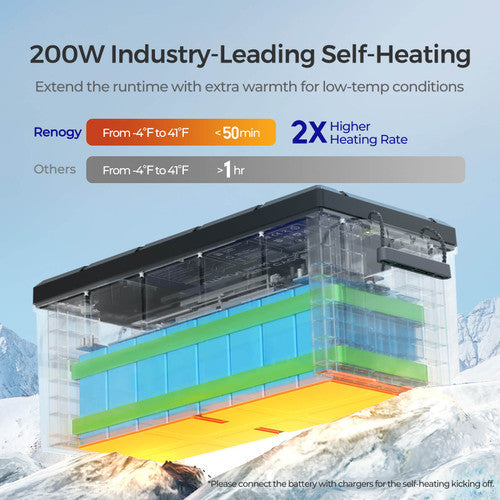

EXTENDED RUNTIME WITH EXTRA WARMTH

Out on a gold digging adventure on the rugged snowy peaks? Renogy self-heating core lithium battery fitted with industry's highest 200W heating elements can heat up the battery 2X faster to keep your log hut powered up.

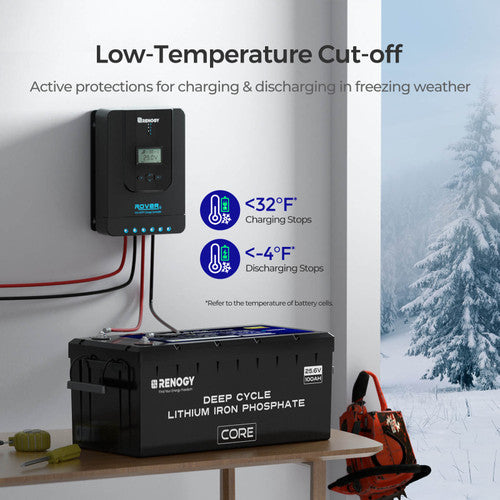

LOW TEMPERATURE CUT OFF

A reliable battery for extreme winters, your battery stands protected against low temp charging with an auto cut-off triggered by its BMS (Battery management system).

SEAMLESS POWER EXPANSION

Expand your power base to an optimal 40.96kWh in a series-parallel connection to handle extended black outs and extreme weather conditions.

Specifications:

Battery Type: Lithium Iron Phosphate

Voltage: 24V

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage Range: 20.0V to 29.2V

Charge Voltage: 29.0V

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Peak Discharge Current: 300A @ 5s

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C)

Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: '-13°F to 149°F (-25C to 65°C)

Operation Relative Humidity: 10% to 95%

Connection Method: Series (Up to 2) Parallel (Up to 8) Series & Parallel (2S8P)

Terminal Bolt Size: M8 x 1.25 x 15 mm

Recommended Terminal Torque: 10 N·m

Housing Material: ABS & PC

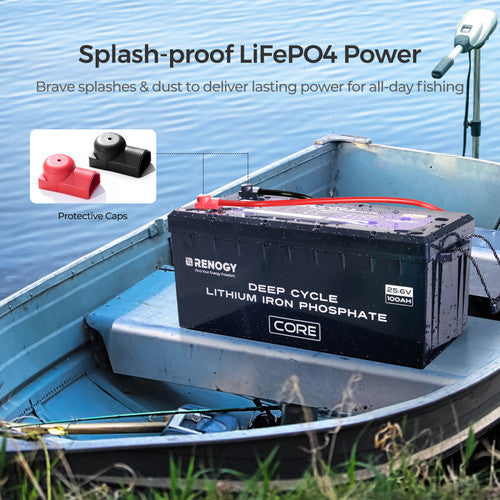

Protection Rating: IP65

Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)

Weight: 46.3 lbs. (21.0 kg)

Long Terminal Bolts (2): M8

Material and Workmanship Warranty: 5 Years

What's in the Box:

1 x Core - 24V 100Ah Lithium Iron Phosphate Battery

1 x User Manual
