Renogy 100W Flexible Dual Battery Charging Kit (SC)

Renogy 100W Flexible Dual Battery Charging Kit

The Renogy 100W Flexible Dual Battery Charging Kit provides efficient off-grid power and dual battery charging, designed for versatility in RV, marine, and overland applications. This advanced kit includes a flexible 100W monocrystalline solar panel, a 30A dual battery charge controller, and all necessary accessories to support simultaneous charging of two batteries, ensuring optimized power distribution for starting and auxiliary power needs. The flexible panel's lightweight and bendable design allows for seamless installation on curved surfaces, enhancing power accessibility without compromising vehicle or vessel aesthetics.

Dual Battery Support for Enhanced Power Management

This kit’s dual battery charge controller intelligently manages power distribution between two separate batteries, such as a starter and service battery, ensuring reliable power for both primary and auxiliary systems. Ideal for RVs, boats, or off-road vehicles, the controller optimizes charging to maintain battery health, prolonging battery life and offering dependable power on the go.

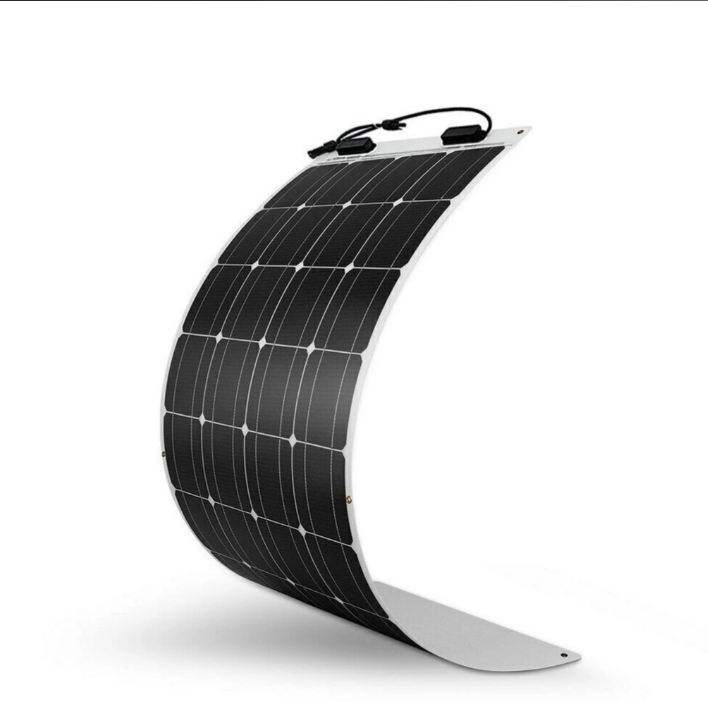

High-Efficiency Flexible Solar Panel

The 100W flexible monocrystalline panel features a high energy conversion rate, providing reliable power even in low-light conditions. Its ultra-lightweight construction and flexibility up to 248 degrees allow it to conform to non-flat surfaces, making it an excellent choice for curved roofs or uneven surfaces on boats and campers.

Advanced Battery Protection and Monitoring

Built-in protections against overcharging, short circuits, and reverse polarity ensure safe, long-term operation for your batteries. The charge controller also monitors real-time performance, displaying charging status and battery health to provide you with essential system information.

Durable and Weather-Resistant Design

Engineered with a robust ETFE laminate and IP68-rated waterproof connectors, this solar kit withstands extreme weather conditions, including high humidity and saltwater exposure. With an operating temperature range from -40°F to 185°F, it delivers consistent performance in various climates, from deserts to coastal environments.

Easy Installation and Compatibility

Equipped with pre-attached cables and plug-and-play connectors, this kit is user-friendly and easy to install, minimizing setup time. It also integrates well with both 12V and 24V battery systems, enhancing its adaptability for different off-grid setups and allowing for expansion as energy demands grow.

Specifications

• Nominal Voltage: 12V

• Rated Charge Current (Single Input): 30A (either Solar or Alternator)

• Rated Charge Current (Dual Input): 15A (Solar) + 15A (Alternator) = 30A Max

• Max PV Input Voltage: 25 VDC

• Max PV Power: 400W (for 12V systems)

• Temperature Compensation: -3mV/°C/2V (excludes Lithium batteries)

• Operating Temperature Range: -35°C to 65°C (-31°F to 149°F)

• Self-Consumption: 60mA

• Weight: 3.1 lbs (1.4 kg)

• Dimensions: 9.2 x 5.8 x 3.0 in (234 x 146 x 77 mm)

• Terminals: M8 x 1.25-10mm

• Certifications: CE, ROHS, FCC Part 15 Class B

• Grounding: Common Negative

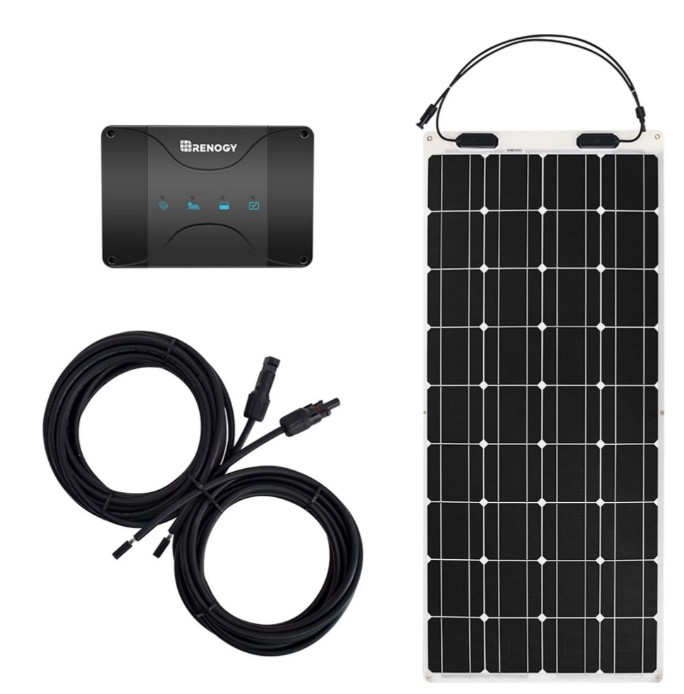

What’s in the Box

1 x 100W 12V Flexible Monocrystalline Solar Panel

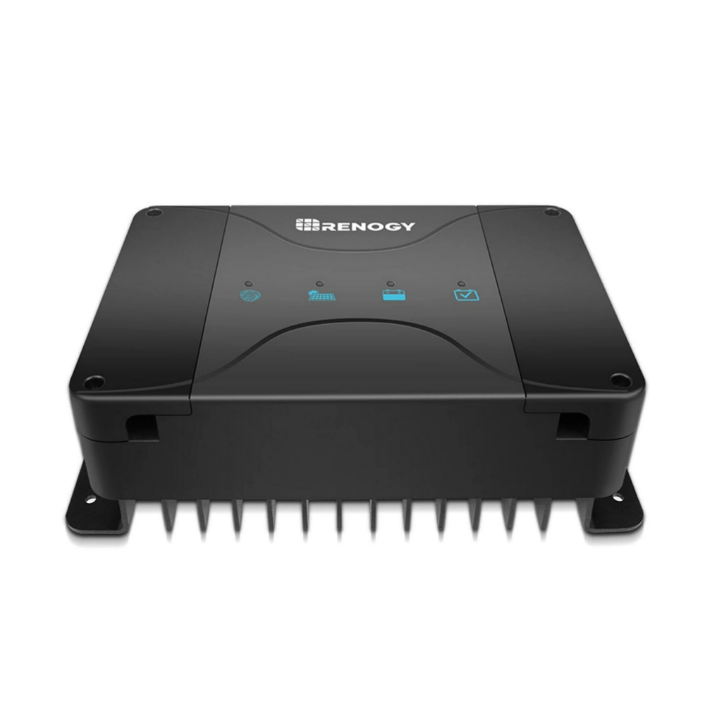

1 x DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

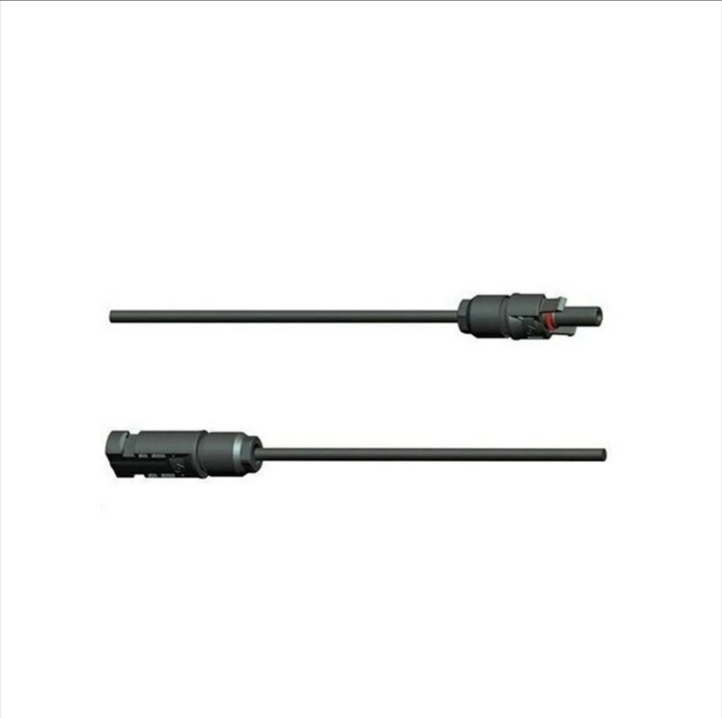

1 x 20ft 10AWG Solar Panel to Charge Controller Adapter Kit
