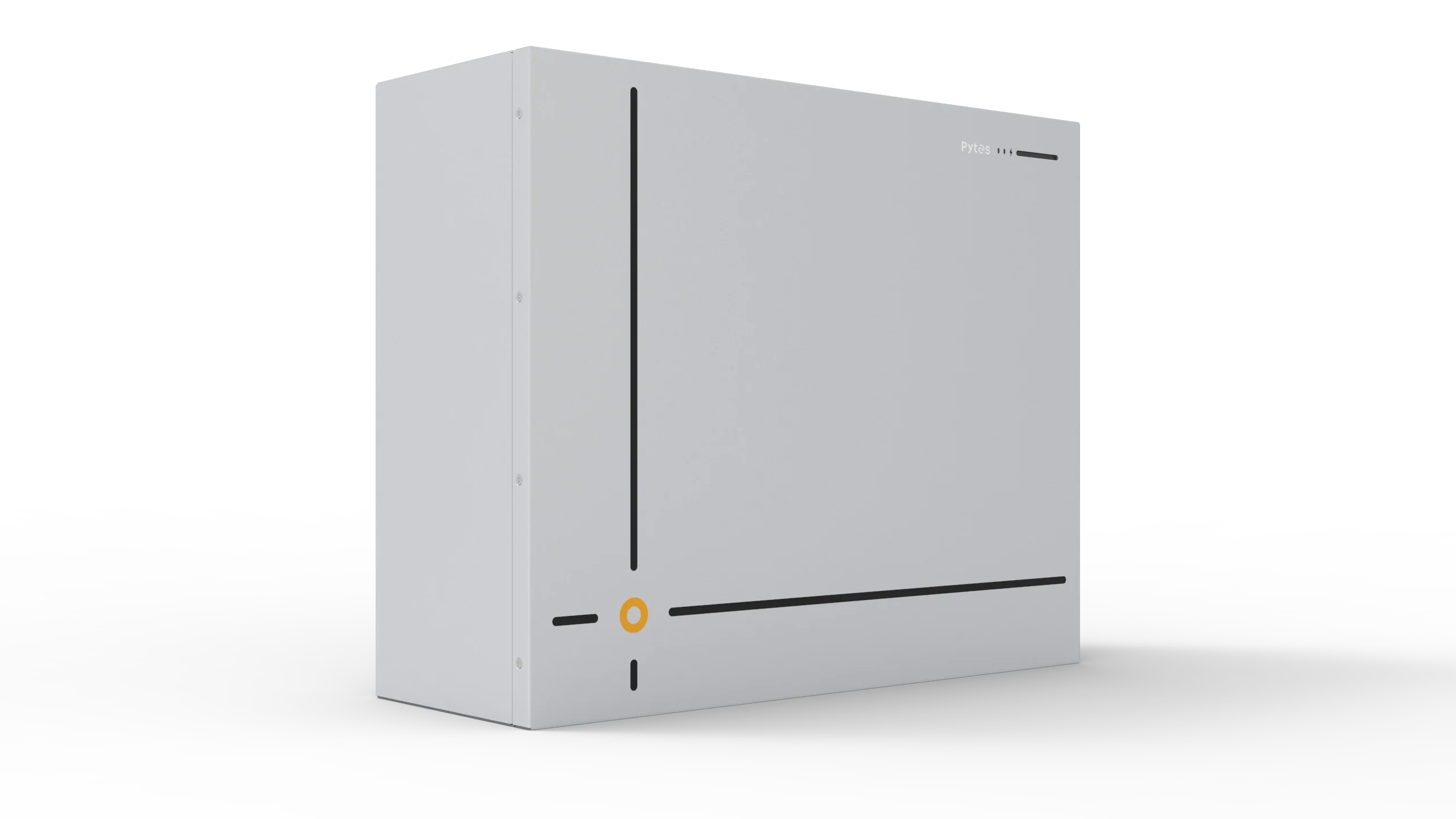

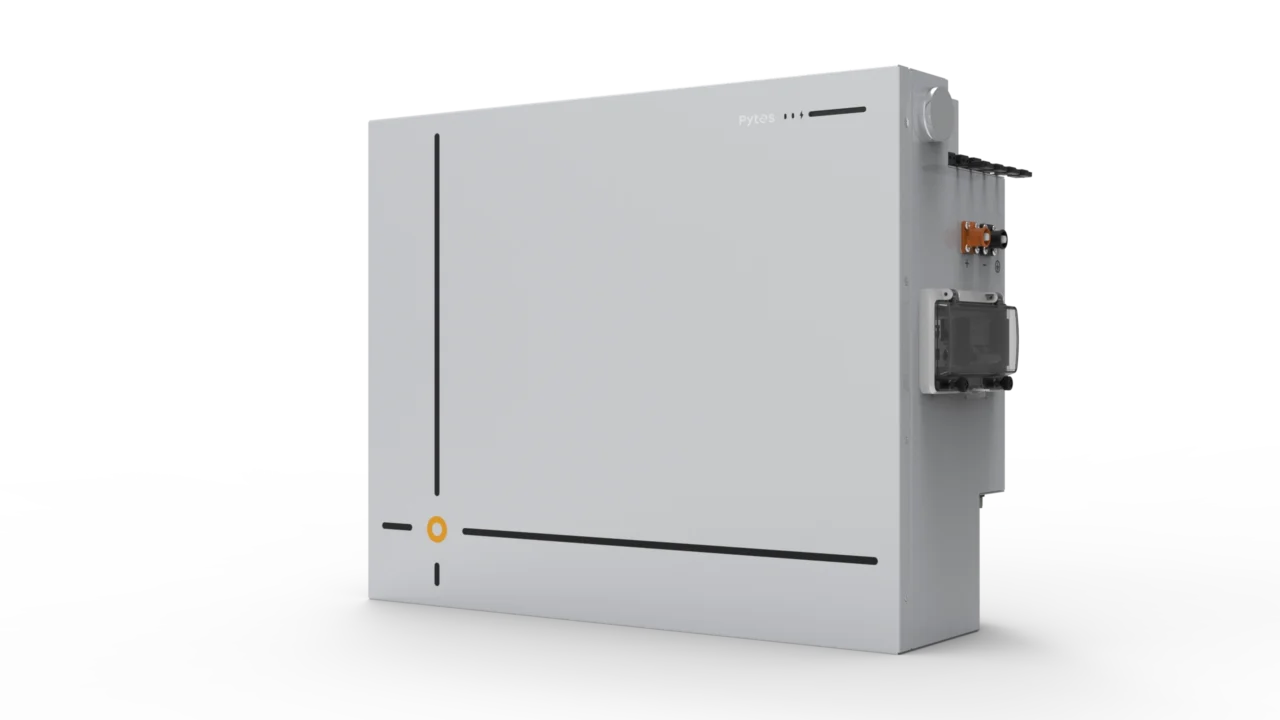

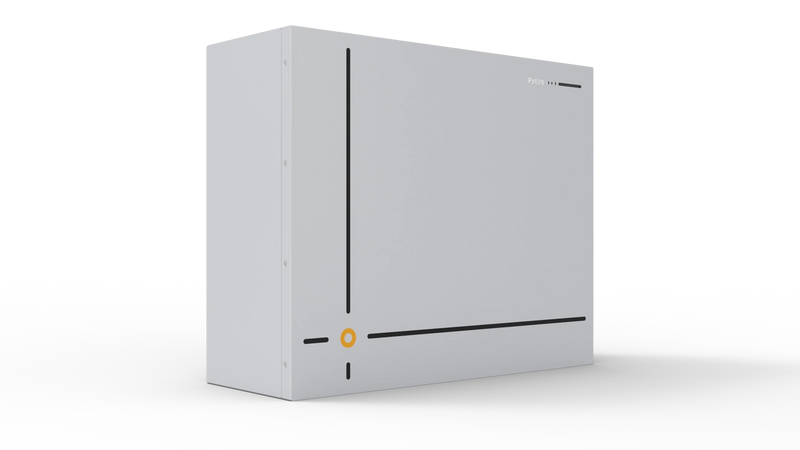

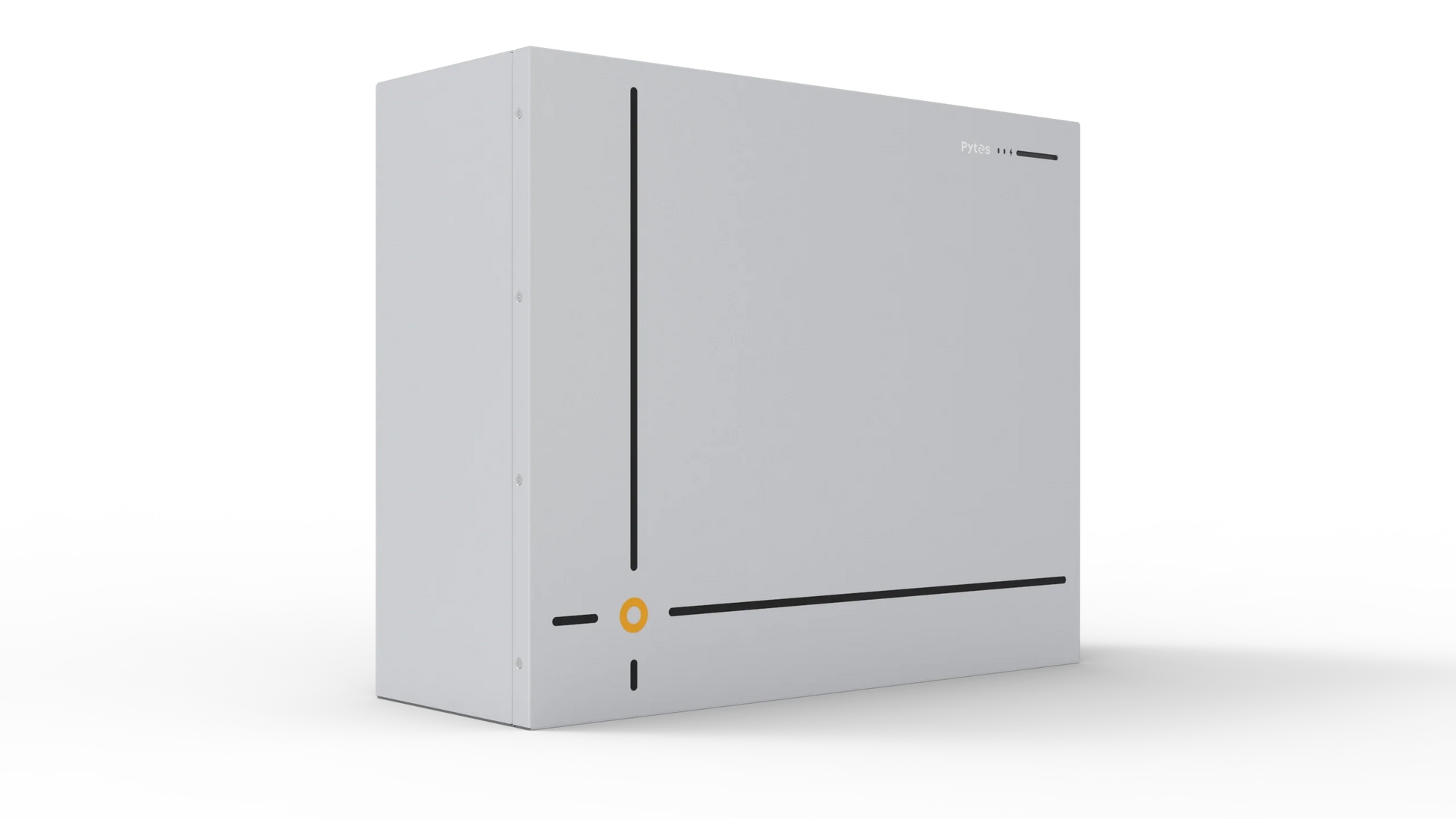

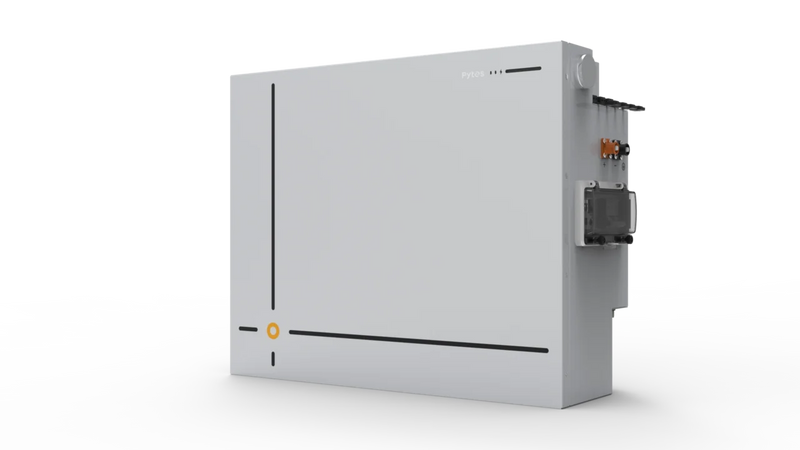

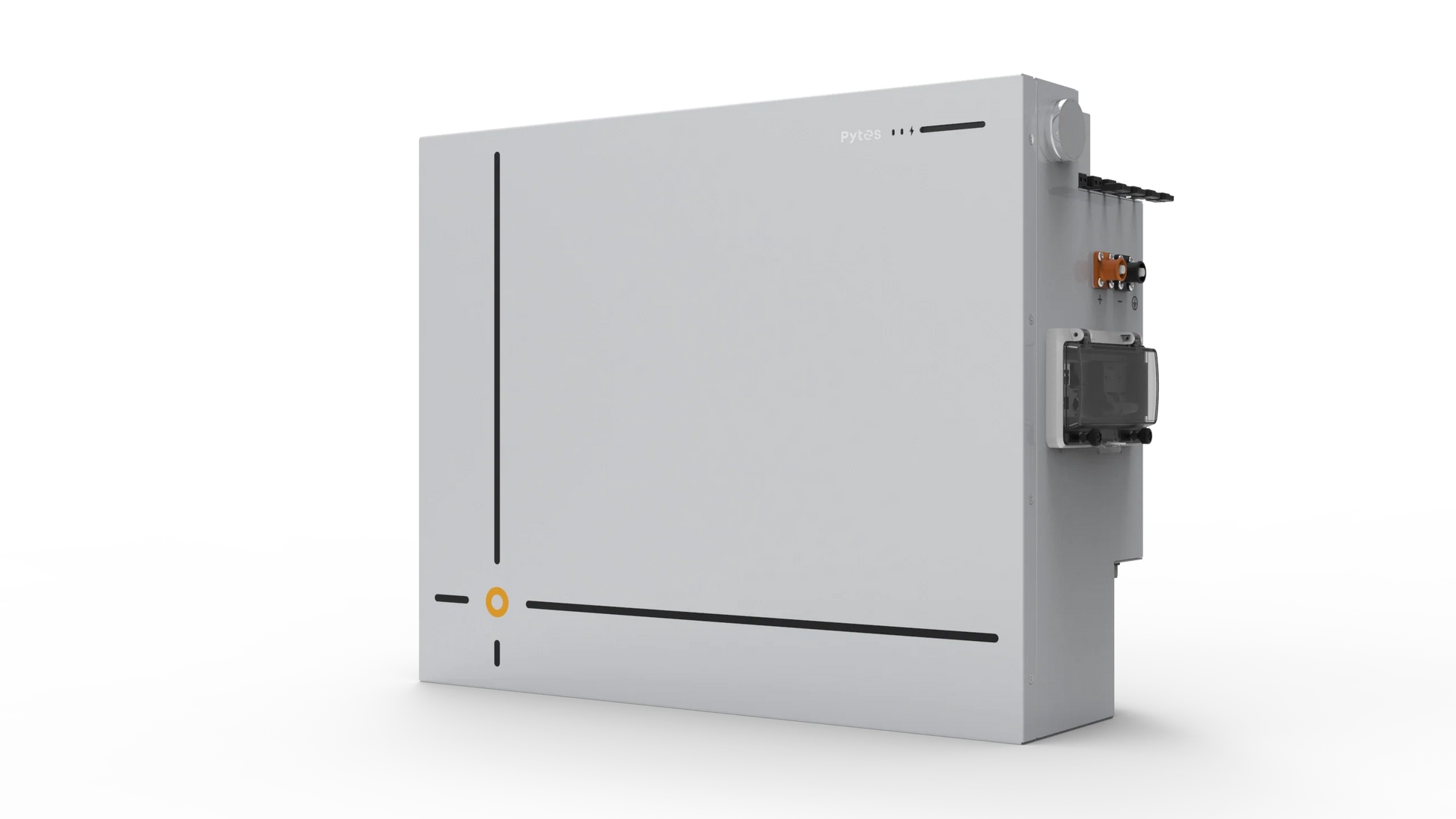

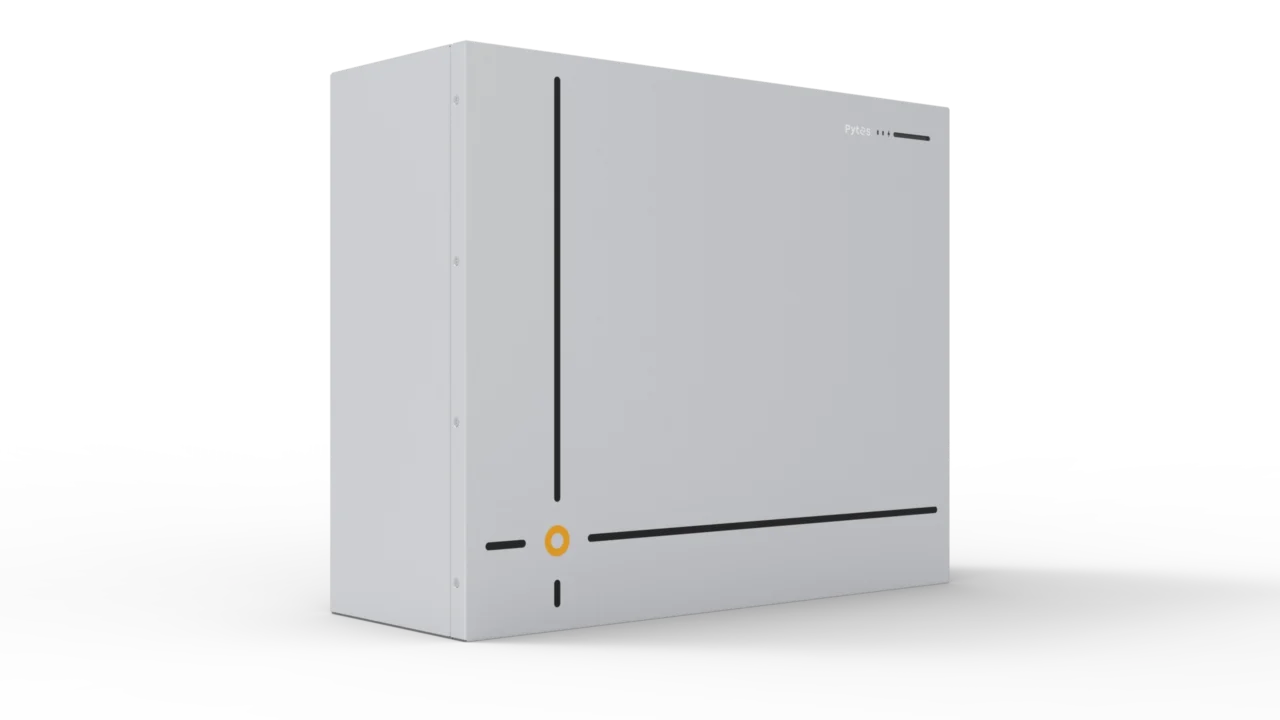

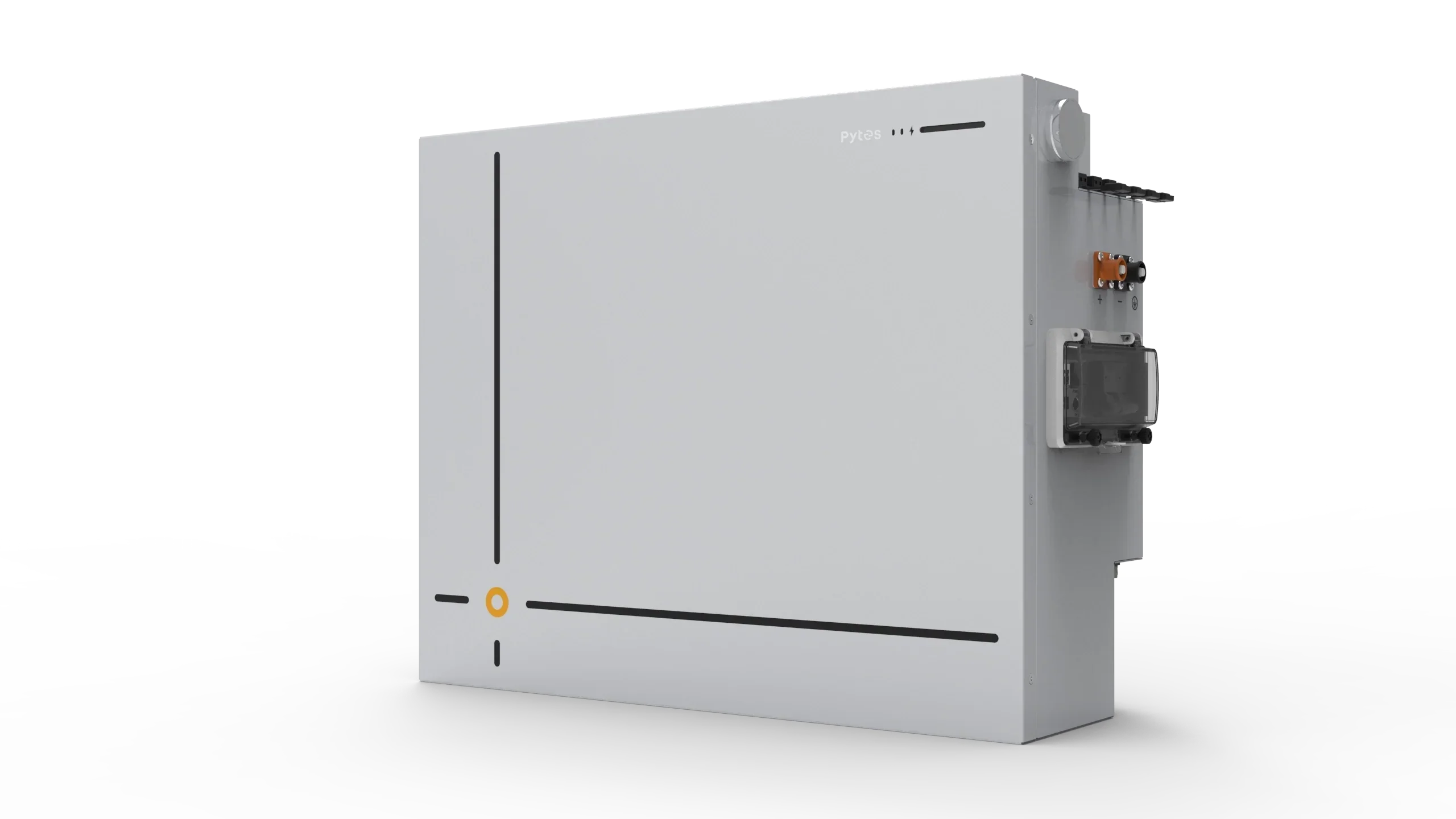

Pytes V10 48V 9.98kWh 200Ah LiFePO4 Wall-Mounted Battery (SC)
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
$3,499.00
Pytes V10 48V 9.98kWh 200Ah LiFePO4 Wall-Mounted Battery, Corrosion Resistant IP66 Lithium Battery
Pytes designed the V10 with multiple thermal management features. Eight incorporated temperature sensors constantly monitor the battery’s health, and if the battery temperature ever reaches 400°F, a safety port opens to vent heat and prevent the build up of pressure.
The charging temperature range is 32°F to 131°F, but the included heating element expands this range to 14°F. This means the V10 can be safely stored outside down to 14°F. For regions often falling below 14°F, it’s best to install the battery in a shed, close to a heat source to optimize battery charging capabilities.
Pytes designed and incorporated its own BMS (Battery Management System) into the V10 to control battery functions. The Pytes MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) BMS handles higher voltages, has a higher response time, and uses significantly less power than a contactor BMS. Since the MOSFET has no moving parts, nothing wears out, giving the BMS an almost infinite lifespan. Therefore the BMS can continue protecting the battery from unsafe conditions long after the individual battery becomes obsolete.
Pytes recommends a charge and discharge current up to 120A, but the battery can handle 150-175A for 30 minutes and over 200A for 3 minutes. If the current reaches 300A, the BMS automatically limits charging to protect the battery.
Lithium Iron Phosphate (LiFePO4) battery
- Dimensions (H×W×D): 20.47×25.20×9.06in
- Weight: 220.5lbs
- 8,000 cycles per lifetime
- BMS manufactured by Pytes
- 10 year warranty
Specifications
- 48V battery with nominal voltage of 51.2Vdc
- Capacity: 200Ah
- 5.88kW continuous output
- 120Adc recommended for charge and discharge
- Maximum continuous discharge current is 150Adc
General Information
- The IP66 weatherproof enclosure includes an integrated heating pad
- Corrosion resistant for environments high in humidity and salinity
- Can be mounted on a wall or on the ground
- Compatible with 30 inverter brands, including Sol-Ark, Victron, and Luxpower
- Communicates through RS485, CAN, and RS232
Safety Features
- Emergency shutdown for the energy storage system (ESS)
- Dc breaker with integrated pre-charge circuit
- UL 1973 and UL 9540A
- Pending certification: UL9540
