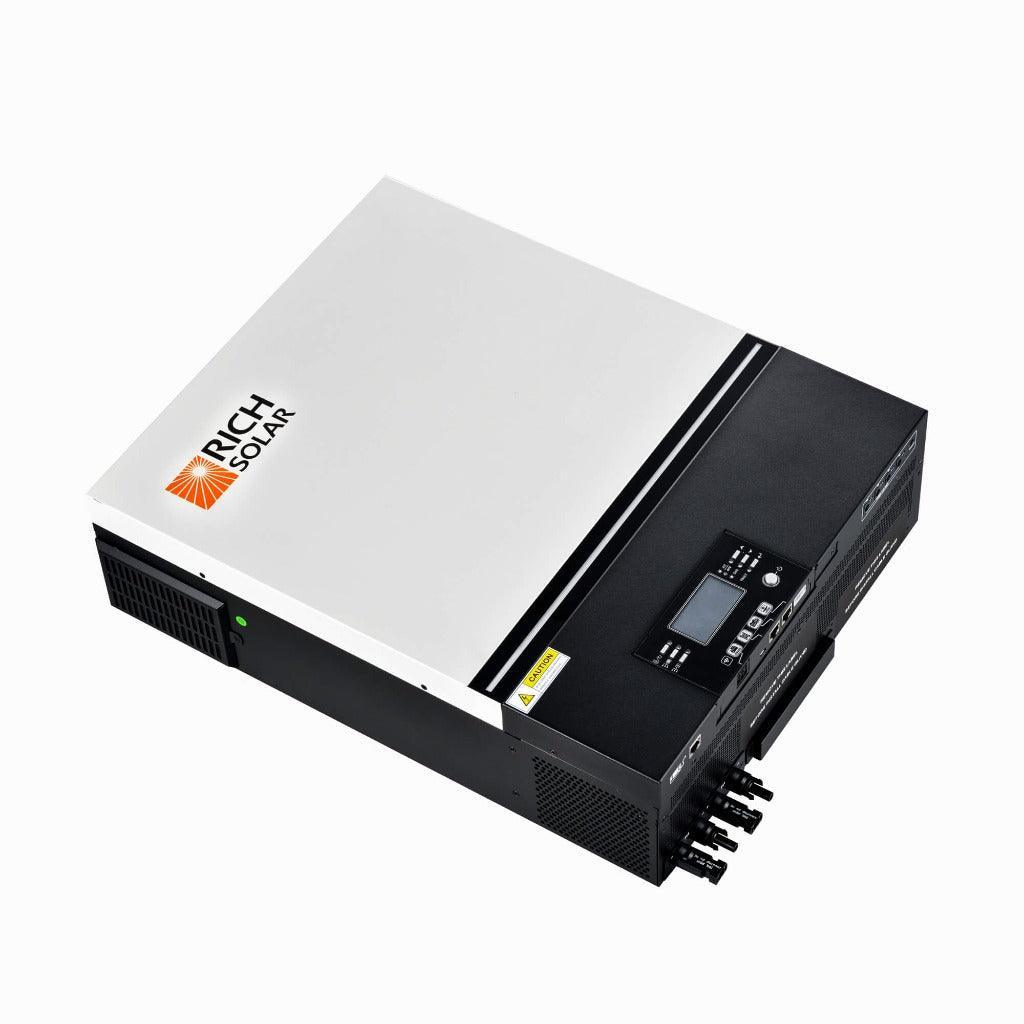

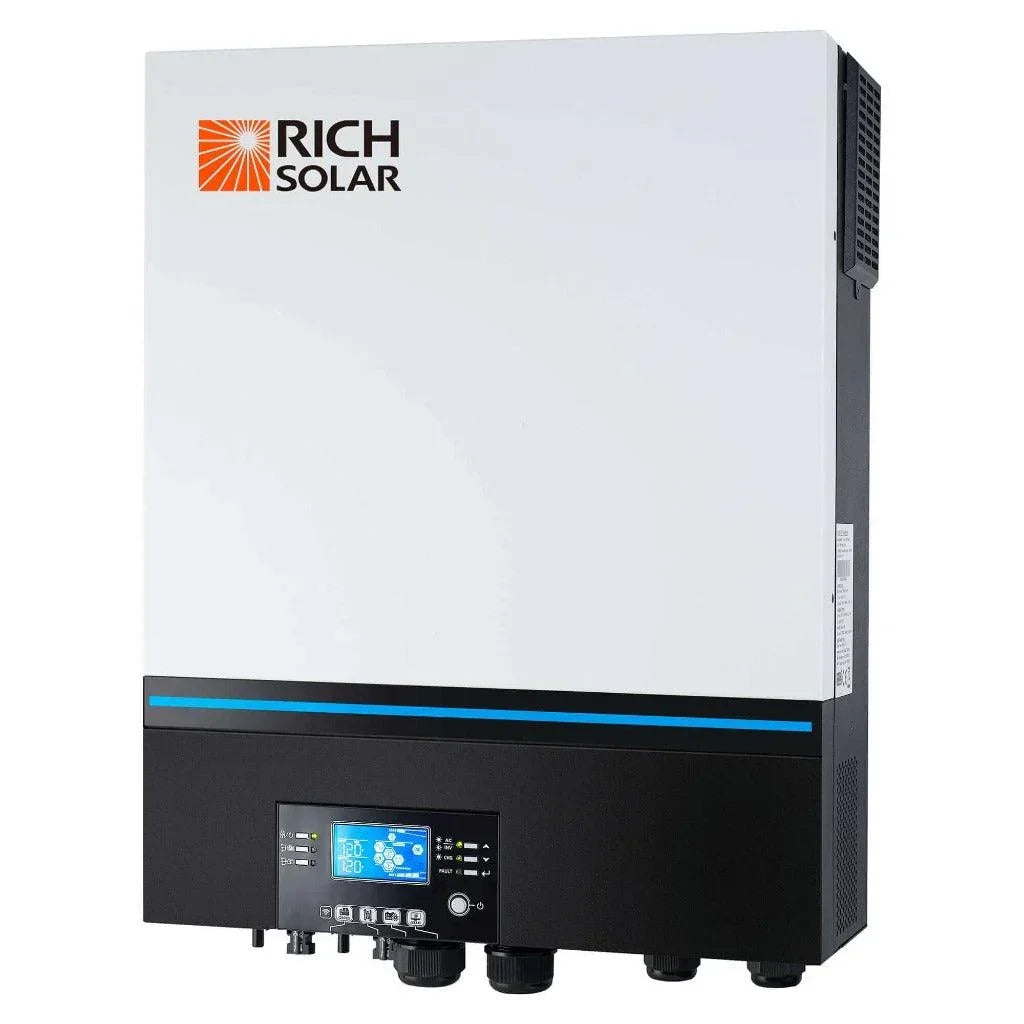

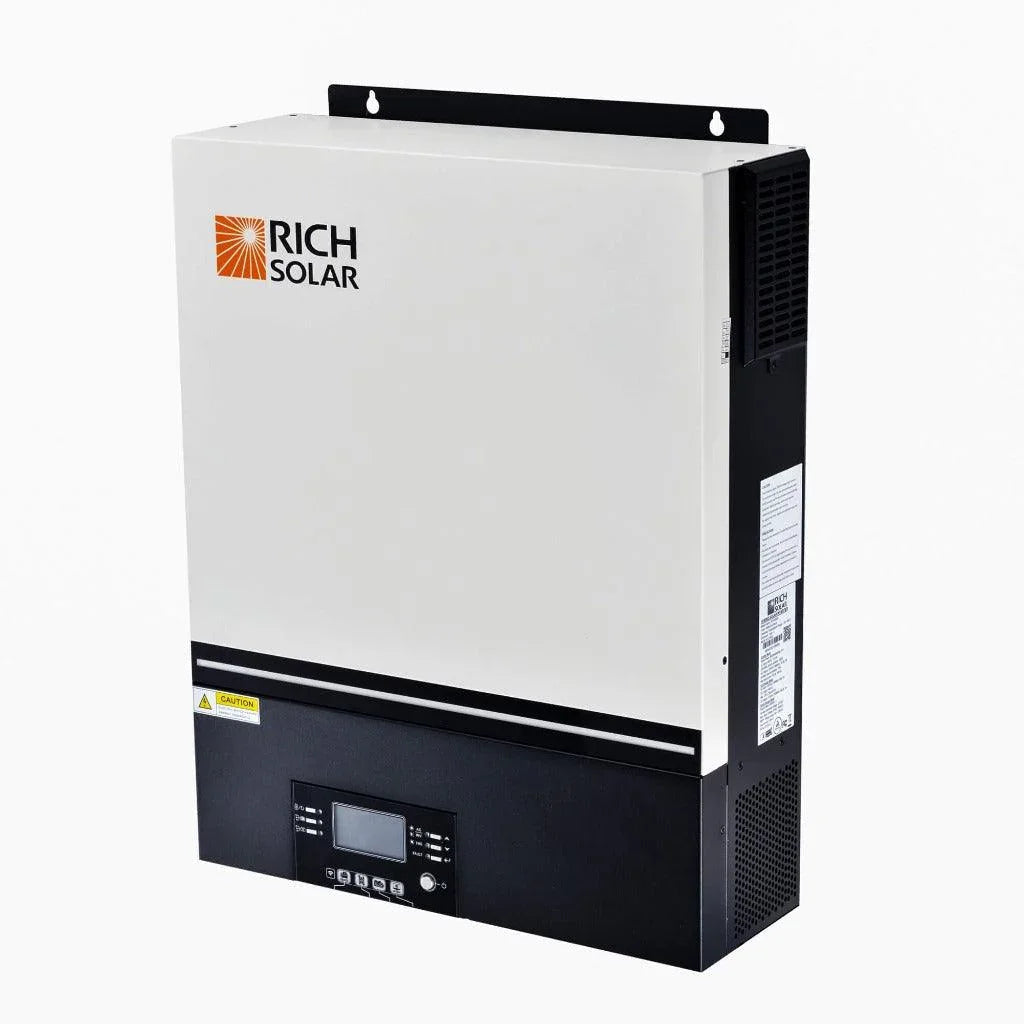

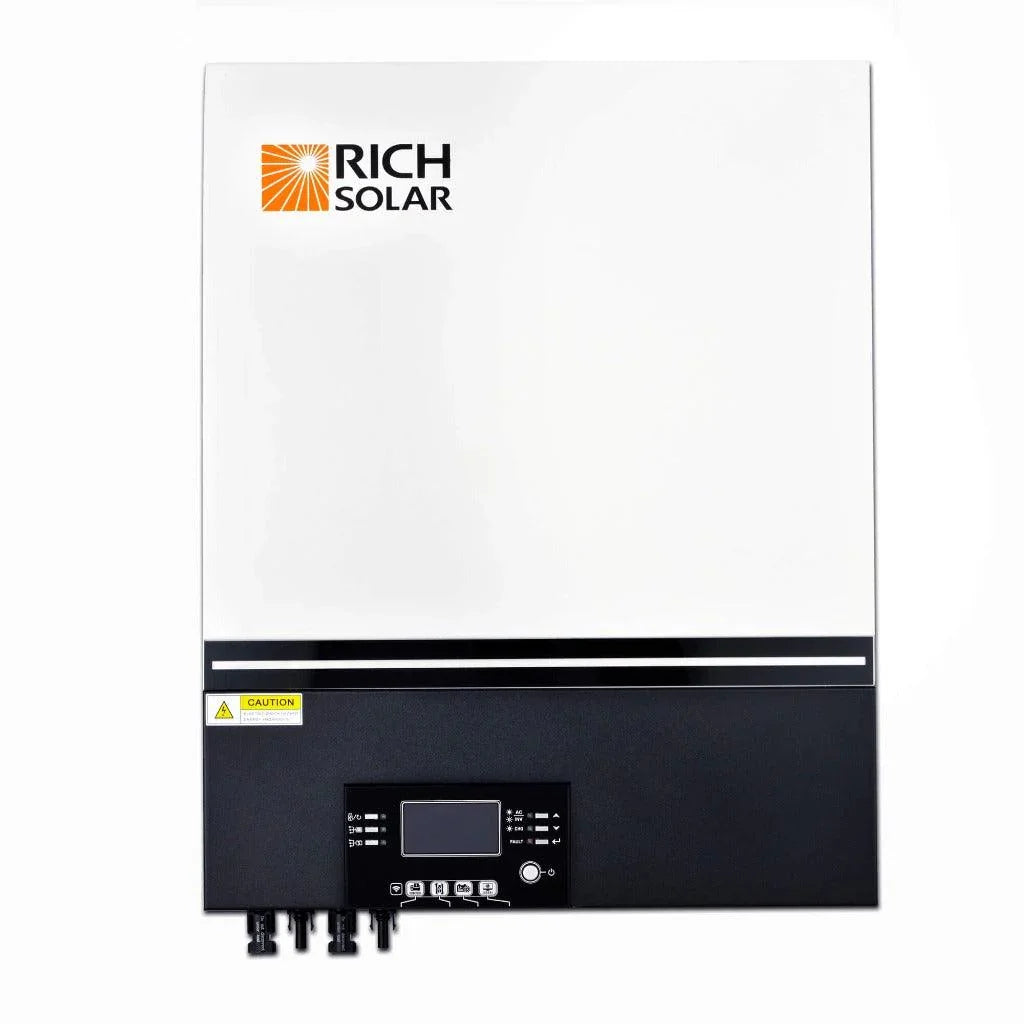

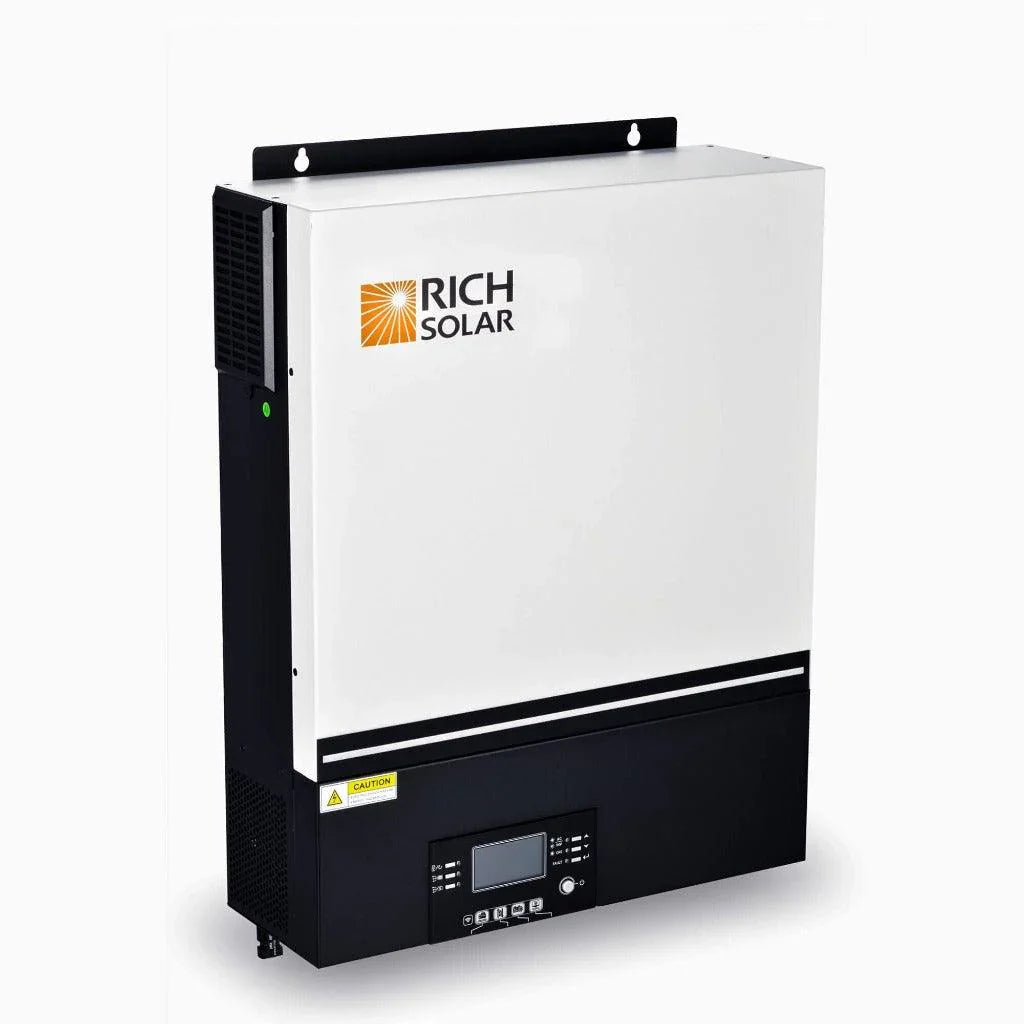

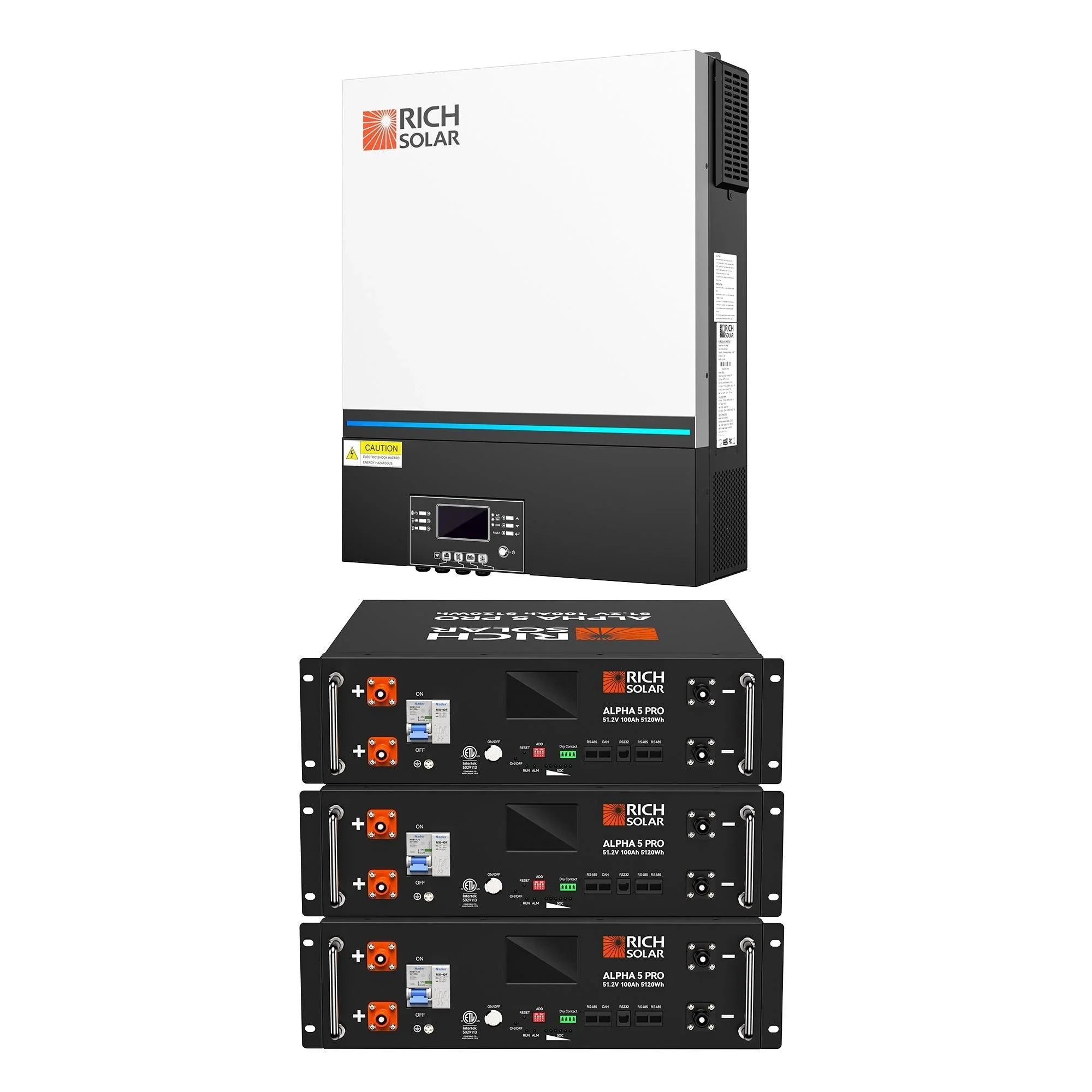

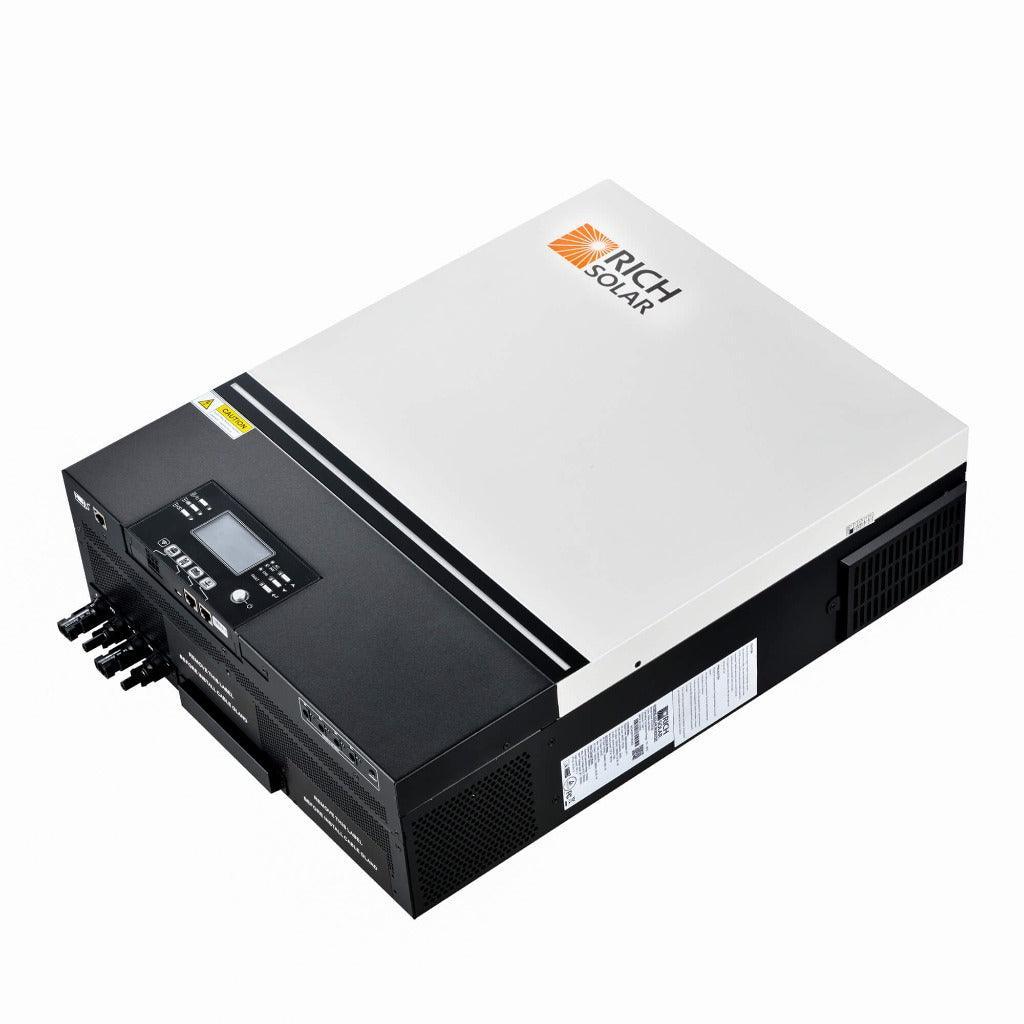

NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 6500W 48V Hybrid Inverter for Campers, Cabins, Tiny Homes, ADUs, RVs, Off-Grid | UL Certified (SC)
- Regular price
- $1,199.99
- Sale price
- $1,199.99
- Regular price
-
$1,499.99
FEATURES
- Pure Sine Wave Inverter
- Configurable color with the built-in RGB LED bar
- Built-in Wi-Fi for mobile monitoring (APP is required)
- Supports USB On-the-Go function
- Built-in anti-dusk kit
- Detachable LCD control module with multiple communication ports for BMS(RS485,CAN-BUS, RS232)
- Configurable input voltage ranges for home appliances and personal computers via LCD control panel
- Configurable AC/PV output usage timer and prioritization
- Configurable AC/Solar charger priority via LCD control panel
- Configurable battery charging current based on applications via CD control panel
- Compatible to utility mains or generator power
- Auto restart while AC is recovering
- Overload/Over temperature/short circuit protection

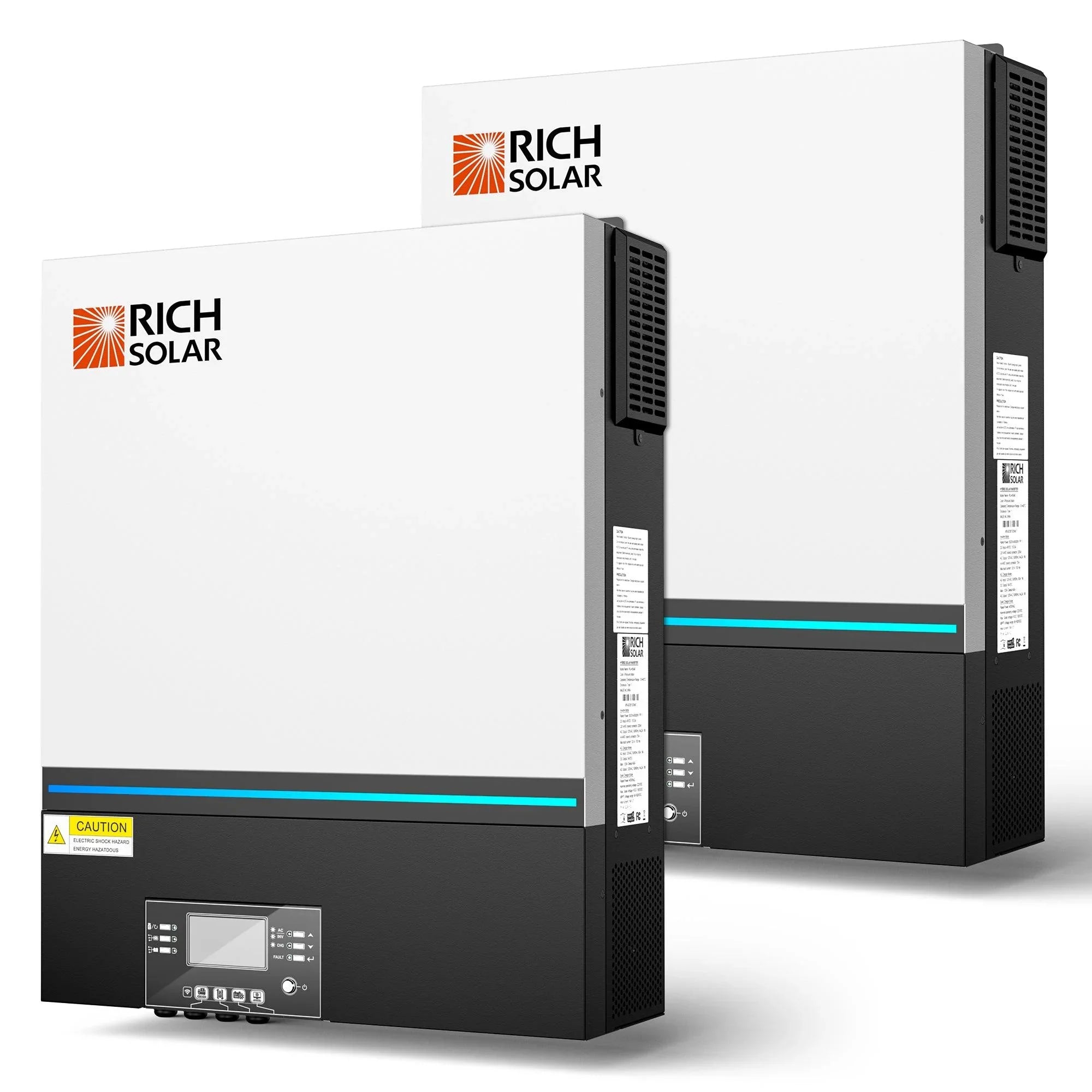

- Parallel operation with 6 units
- Smart battery charger design for optimized battery performance
- Cold start function
How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations
When Not to Update the Firmware on the 6548 Hybrid Inverter
Tech Specs
Specifications:
Model: RS-H6548
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units
INPUT
- Voltage: 120 VAC
- Selectable Voltage Range: 90-140 VAC (For Computers)
- 80-140 VAC (For Home Appliances)
- Frequency Range: 50 Hz/60 Hz (Auto Sensing)
OUTPUT
- AC Voltage Regulation (Batt. Mode): 120VAC ± 5%
- Surge Power: 15000VA
- Efficiency (Peak): 90% ~ 93%
- Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform: Pure Sine Wave
- No Load Power Consumption: <70W
- Optional DC Voltage: 12 VDC ± 5%, 100W
- Dual Outputs: Yes
BATTERY
- Battery Voltage: 48 VDC
- Floating Charge Voltage: 54 VDC
- Overcharge Protection: 66 VDC
SOLAR CHARGER & AC CHARGER
- Solar Charger Type: MPPT
- Maximum PV Array Power: 8000W (4000W x 2)
- MPPT Operating Voltage Range: 90 ~ 230 VDC
- Maximum PV Array Open Circuit Voltage: 250 VDC
- Maximum Solar Charge Current: 120A
- Maximum AC Charge Current: 120A
- Maximum Charge Current: 120A
PHYSICAL
- Dimension(D X W X H): 5.8 x 17.0 x 21.8 in
- Net Weight: 40.6 lb
- Communication Interface: USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
- Humidity: 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
STANDARD
- Compliance Safety: UL
User Manual & Certification
6500 WATT (6.5KW) 48 VOLT OFF-GRID HYBRID SOLAR INVERTER
