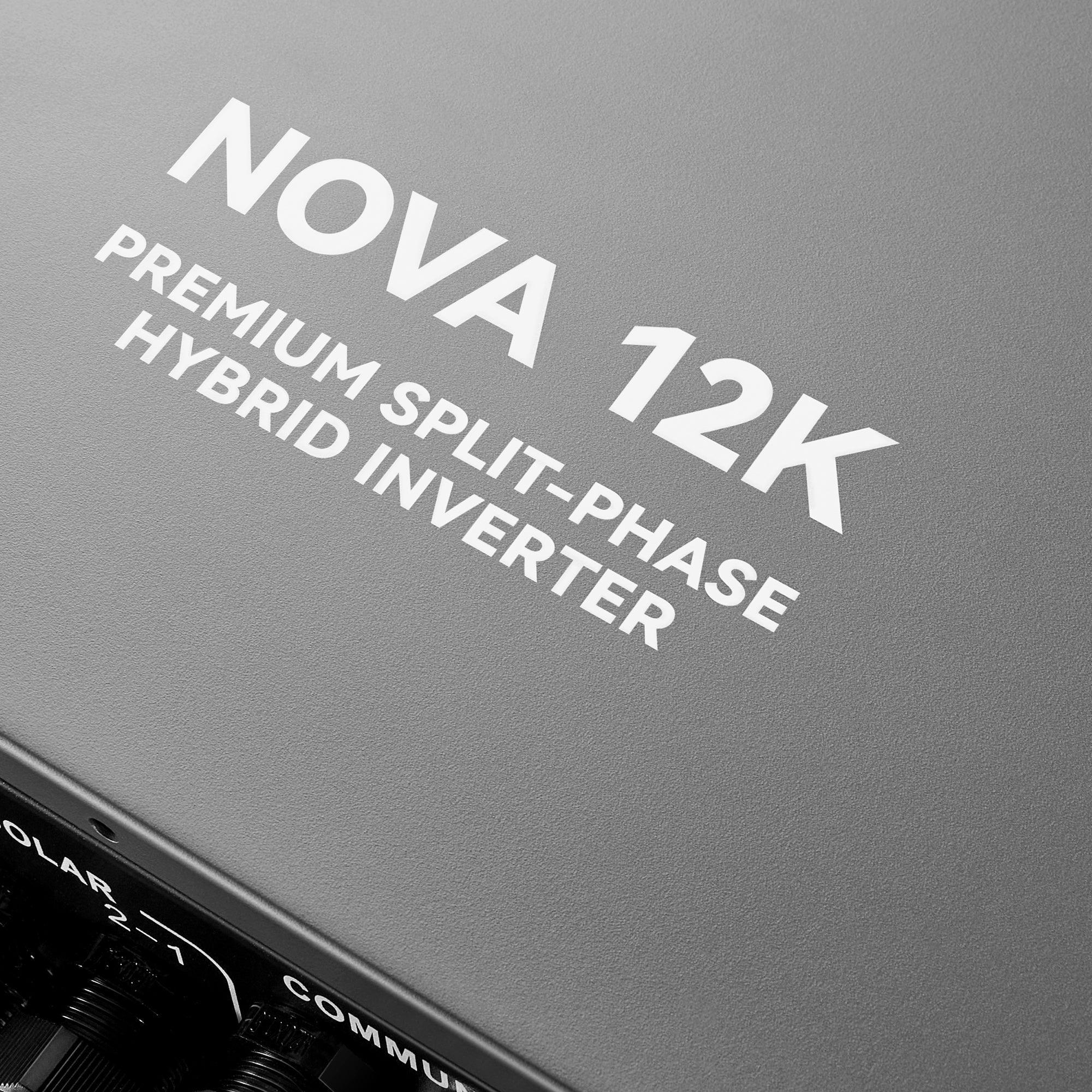

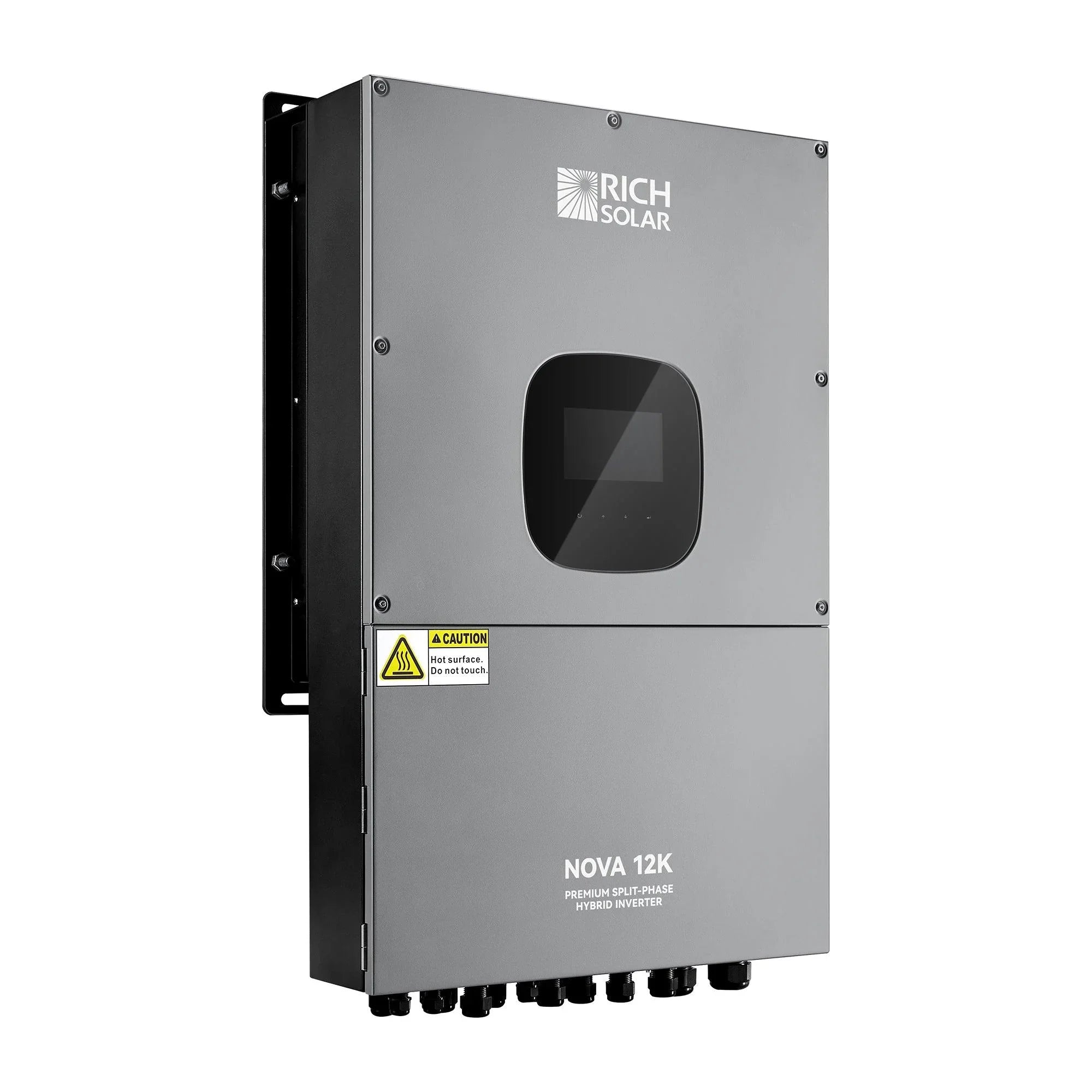

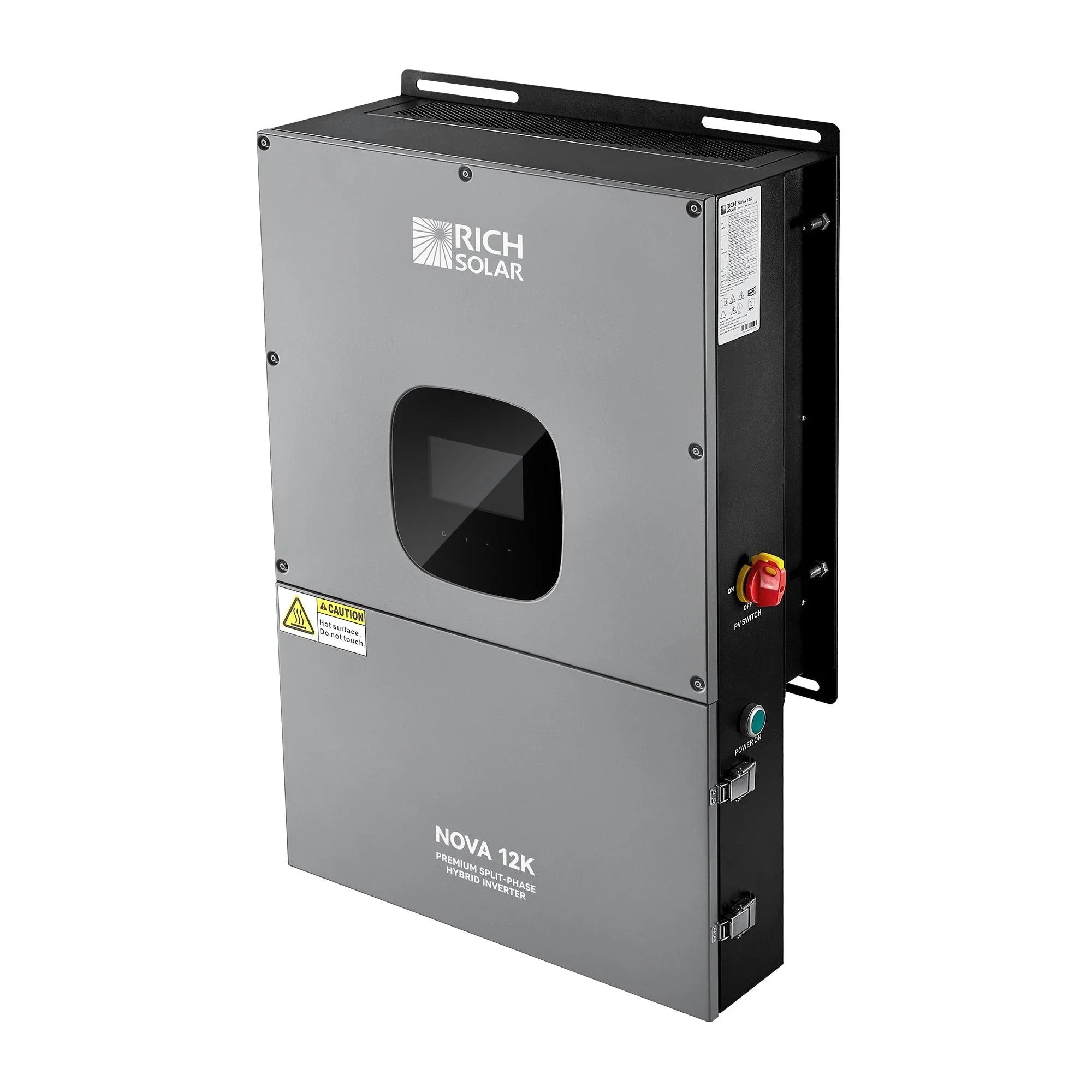

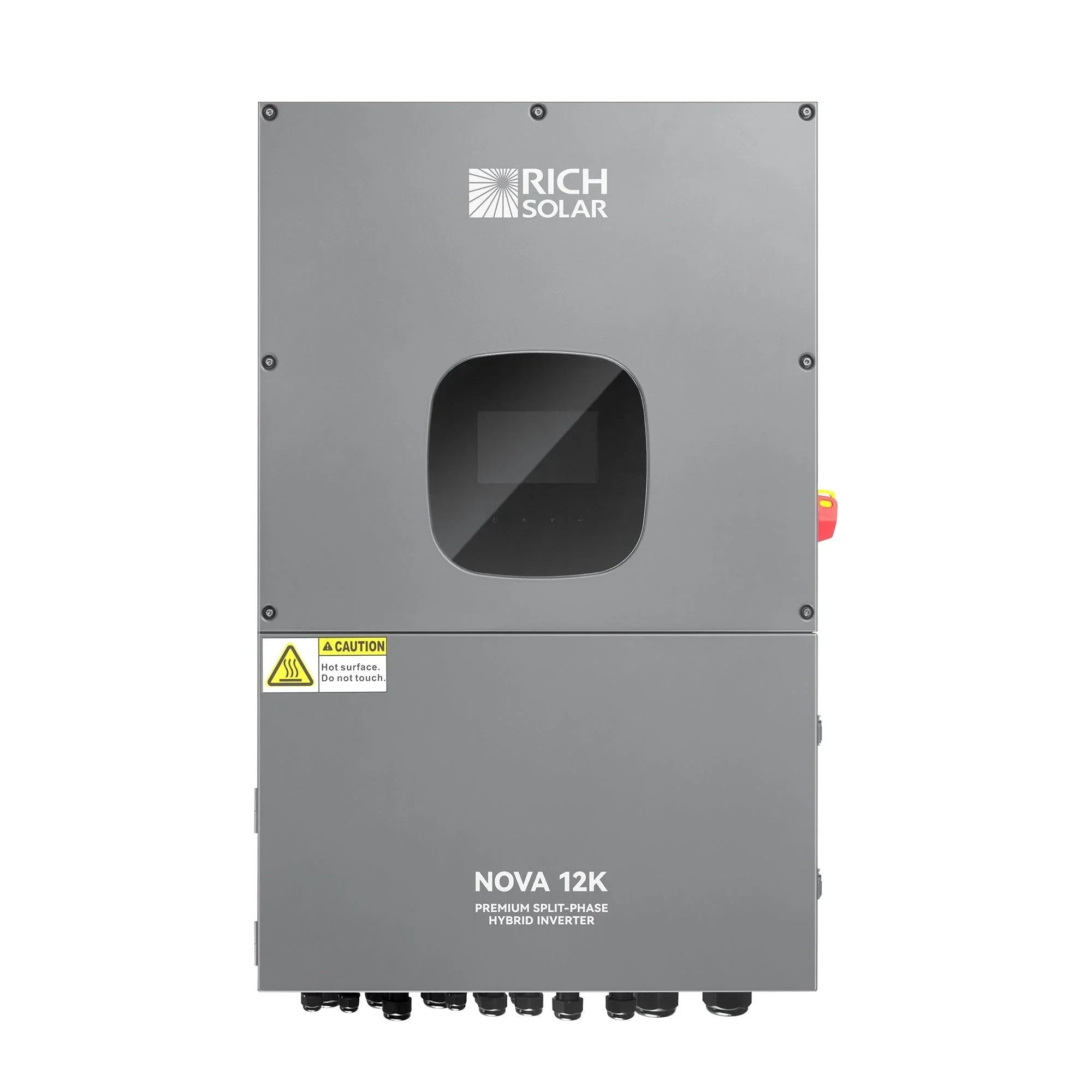

NOVA 12K 12000 Watt 48V Split Phase Hybrid Inverter UL Certified (SC)
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
$3,299.99
NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | UL Certified
FEATURES
- Support multiple input & output - Split phase 208/240VAC or single

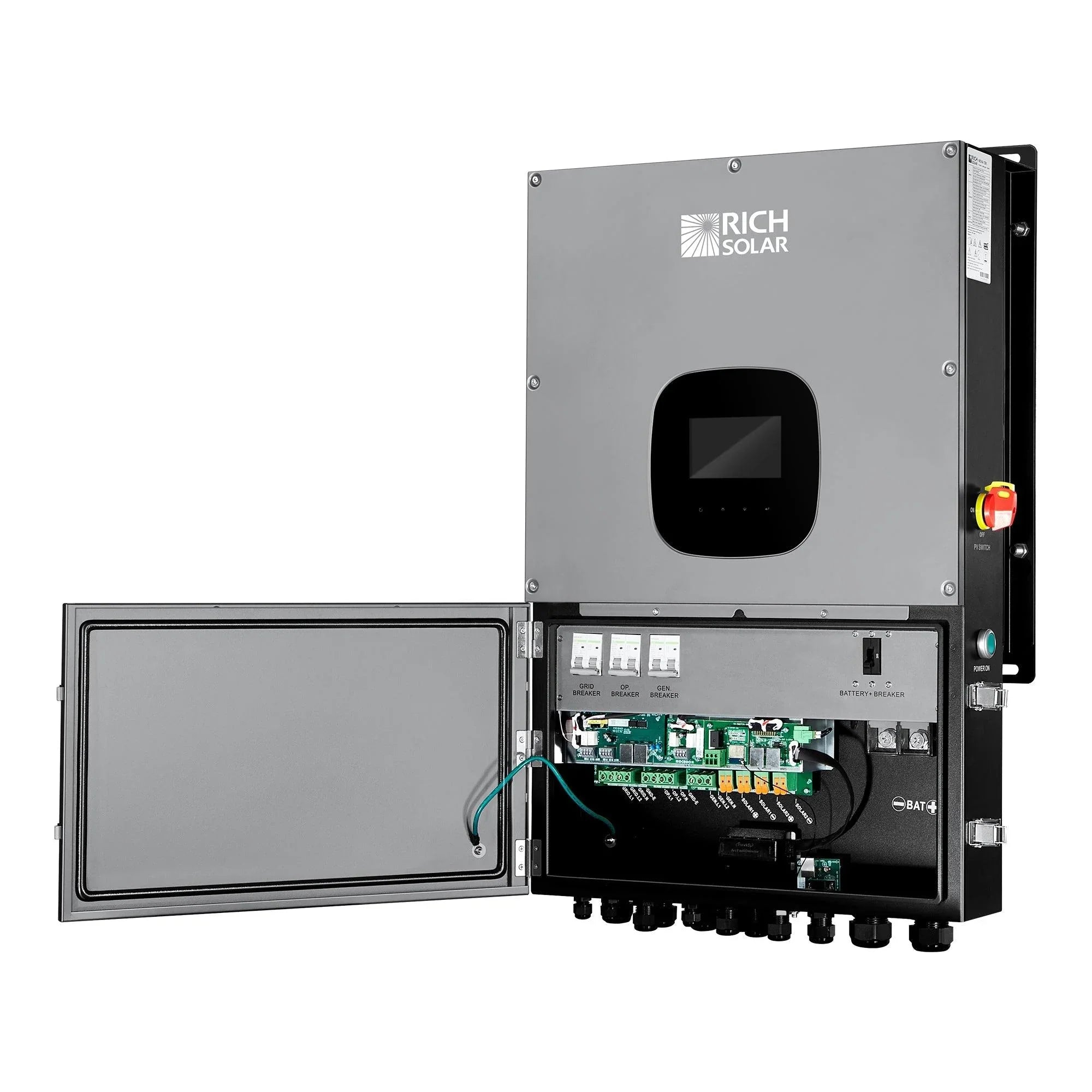

phase 230VAC. - Door-type cable compartment.
- Built-in 300A DC breaker and 60A AC breaker.
- Built-in AC coupled function.
- Built-in Wi-Fi for mobile monitoring (APP is available).
- Accepts second input power source, generator input compatible.
- Built-in arc fault detection (AFD) and rapid shutdown (RSD).
- External CT sensor to guarantee 100% self-consumption.
- Built-in communication port for BMS (RS485).
- User-adjustable charging current and voltage.
- Parallel operation up to 6 units.
SPECIFICATIONS
Maximum PV Input Power: 12000W
Parallel Capability: 6 units
INPUT
- Maximum PV input Power: 12000W
- Maximum DC Voltage: 600VDC
- Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC
- MPP Voltage Range: 120VDC-550VDC
- Number of MPPT Trackers/Maximum Input Current: 2/18A
OUTPUT
- Rated Output Power: 10000VA/10000W
- Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output Voltage Range: 105.5-132VAC per phase
- Nominal Output Current: 41.5A per phase
BATTERY
- Battery DC Voltage Range: 40-62VDC / 48VDC
- Maximum Solar Charging Current: 200A
- Maximum AC Charging Current: 200A
- Maximum Charging Current: 200A
OPERATING ENVIRONMENT
- Operating Temperature Range: -25°C to 60°C(>45°C derating)
- Protection Degree: IP 65
- Communication Port: RS232, RS485, WI-FI, USB
PHYSICAL
- Dimension (DxWxH): 8.5x20.3x28.1in / 215.5x515x715mm
- Net Weight: 99.2lb / 45kg
CERTIFICATE
- UL 1741SA, UL 1741SB, CSA 22.2.107.1, CEC
User Manual & Specification
12000 Watt (12kW) 120/240V Hybrid Off-grid Solar Inverter
