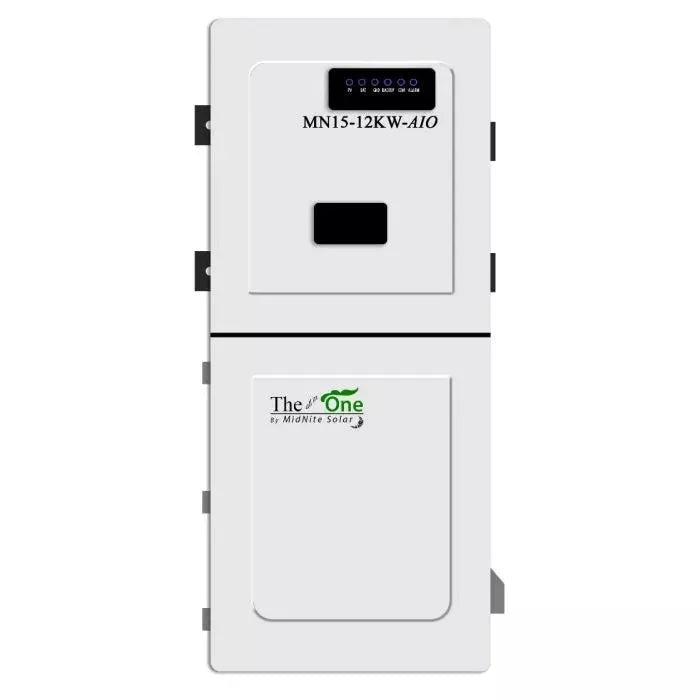

MidNite Solar All In One Inverter MN15-12KW-AIO (SC)

MidNite Solar MN15-12KW-AIO-P All In One Inverter

FEATURES:

• 30A, 50A & 60A 120/240VAC branch circuit breakers with programmable relays for load shedding and AC inputs for generator and AC coupling.
• Three 15 amp and One 20 Amp 120V AC load breakers
• UL1741SB sell to grid, self consumption with CT’s or Off grid mode
• Residential and commercial
• Up to 200% oversizing allowed with 3 MPPTs
• Supports up to 30A PV input current
• Supports AC coupling
• Supports self-consumption
• Our standard Battery Temp Sensor included with every inverter
• Arc Fault, Ground Fault and Rapid shut down included
• 100A AC pass through with input and output breakers for NEC compliance
• All AC and DC breakers are Magnetic Hydraulic allowing for 100% continuous duty
• 250 Amp CBI Magnetic Hydraulic battery breaker
• Supports 40-64VDC Lithium or Lead-acid battery
• Maximum battery charge/discharge current of 210A
• Stable Output Power
• Continuous 100% AC power (11.4KW with PV, 10Kw without PV)

• Supports 120/240/208VAC connections
• Seamless backup transition (<10ms)
• Stackable up to 9 units
• Standby generator connection for whole-home back up
• Remote configuration and upgrade
• 10 year warranty

SPECIFICATIONS

• Max. Efficiency (PV to AC 98.0%
  Max. Efficiency (BAT to AC) 94.5%
  Max. PV Input Power 15,000W Max.
  PV Voltage 600V
  Start-up Voltage 90V
  MPPT Operating Voltage Range 70V-550V
  Max. Input Current per MPPT 30A/22A/22A
  String (per MPPT) 6(2/2/2)
  Number of MPPTs 3
  Battery Type Lithium-ion/Lead-acid or other
  Nominal battery voltage 48V
  Battery voltage range 40V-64V
  Max. charge/discharge current 210A/210A
  Grid Frequency Range 45Hz-55Hz/55Hz-65Hz (Adjustable)
  Power Factor > 0.99 @rated power (Adjustable 0.8 LG - 0.8 LD)
  THDI> <3% (Rated Power)
  Nominal Output Power 11.4KW continuous
  Nominal Output Current A/47.5A
  Peak Output Apparent Power(1s) 20,000VA (13,000VA per leg)
  Nominal Output Voltage 120/240V (Split phase) / 208V (2/3 phase)
  Nominal Output Frequency 50 Hz /60Hz
  Transfer Time <10ms
  THDV <3% @100% R Load
  DC Switch YES
  AC Overcurrent Protection YES
  DC/AC Overvoltage Protection DC Type II, AC Type III
  AC Short Circuit Protection YES
  DC Reverse connection YES
  Surge Arrester DC Type II, AC Type II
  Insulation Resistance Detection YES
  Leakage Current Protection YES
  AFCI YES
  RSD Yes (APsystems Sunspec Transmitter built in)
  Generator YES
  Max. Operation Altitude 6500FT / 2000M
  Ingress Protection Degree IP65/NEMA 3R
  Operating Temperature Range -25~60C(>450 derating)
  Relative Humidity 0~100%
  Cooling Method Fan Cooling
  Mounting Wall bracket
  PV Connection Spring Terminals
  Display Wireless & APP + LED , LCD (optional)
  Communication Interface RS485/CAN (for BMS), DRM/RS485 (for meter), RS485
  Optional: WiFi /LAN

• Dimensions (W*H*D) 16.5W x 38.3L x 10.27D inch (420mm x 973mm x 261mm)
  Weight 44.45Kg/98Ib
