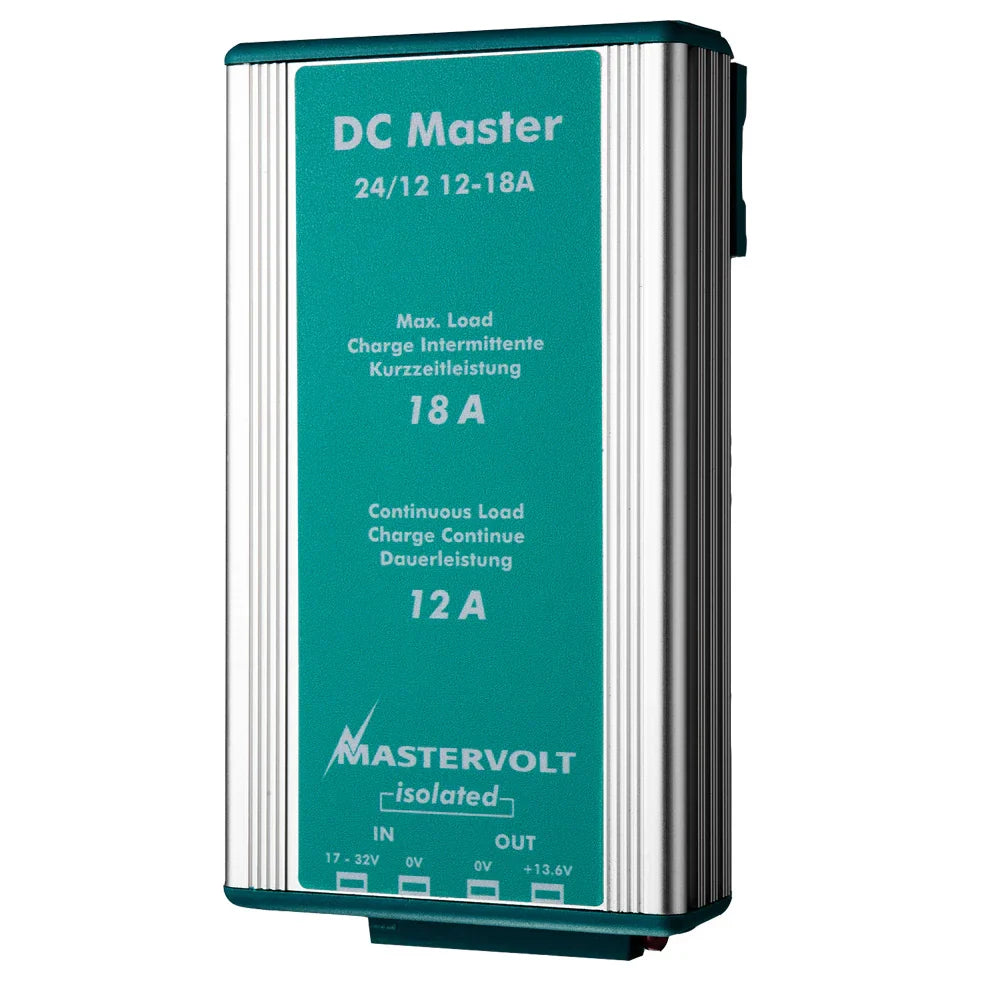

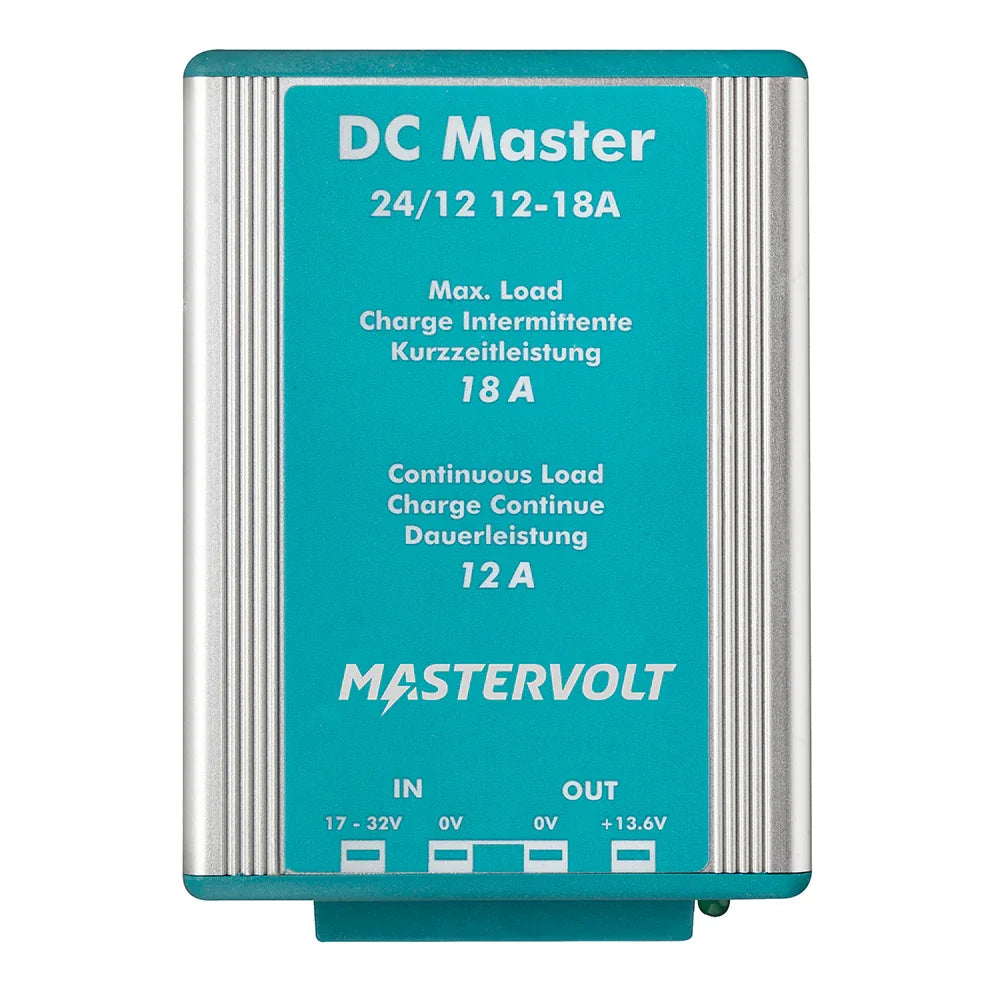

Mastervolt DC Master 24V to 12V Converter - 12 Amp [81400300]
DC Master 24V to 12V Converter - 12 Amp
Always on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent.
DC Master DC-DC converters
The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.
Features:
- Recreational and semi-professional use

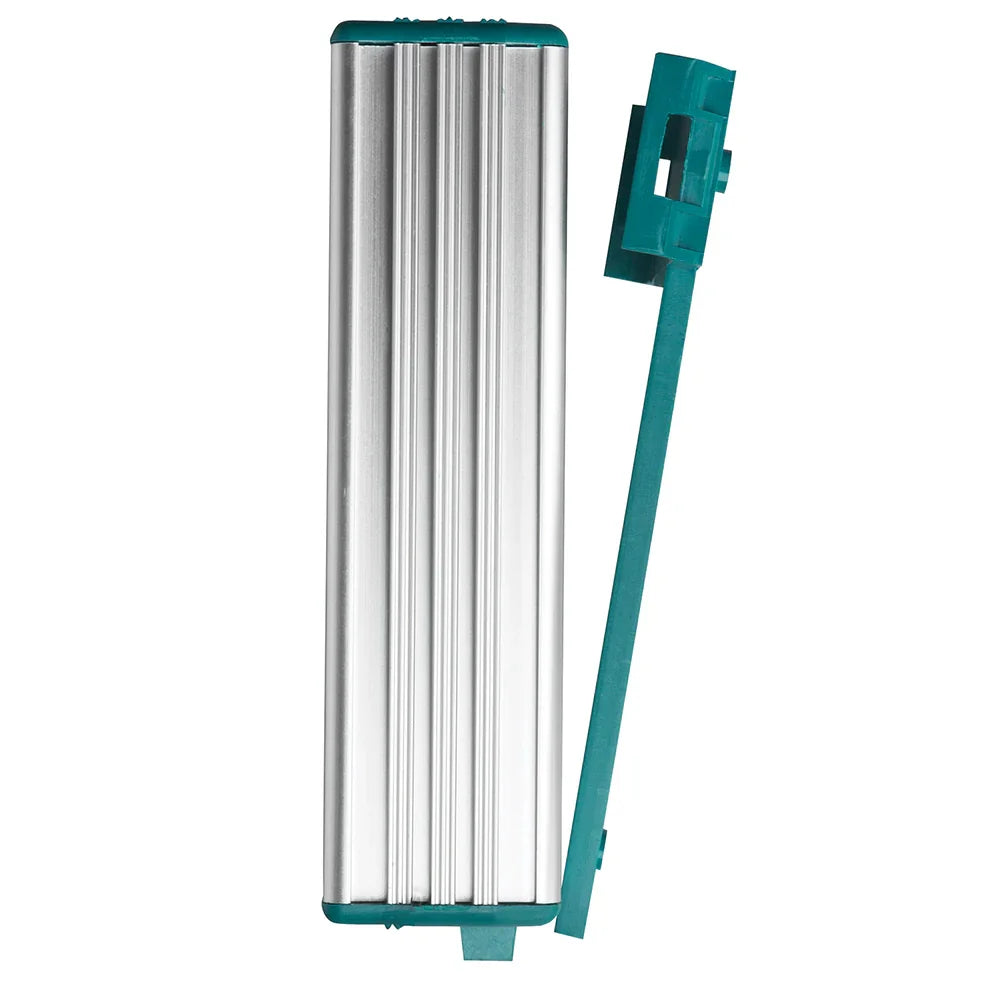

- Easy to install using included mounting bracket, screws and fasteners
- Smart electronics mean no unnecessary heat generation
- Continuous output
- Two minutes of extra power for short power boosts
- Excellent price/performance ratio
General Specifications
- Nominal output voltage: 13.6 V
- Max. output power: 245 W
- Nominal output power: 164 W
- Max. output current (for 2 min. intervals): 18 A
- Continuous output current: 12 A
- Nominal input voltage: 24 V
- Input voltage range (max.): 20-32 V DC (35 V)
- Galvanic isolation: no
- Stabilised: yes
- Dimensions, hxwxd: 127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch
- Weight: 0.405 kg 0.9 lb
- Compliance: CE
Technical Specifications
- DC consumption: < 15 mA
- Connections: fast-on
- Temperature range (ambient temp.): -25 °C to 80 °C, derating > 30
- Cooling: natural cooling
- Protection degree: IP53
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Charger Input - Voltage: 24v
- Charger Output - Amps: 12a
- Charger Output Voltage: 12v
- Box Dimensions: 2"H x 4"W x 6"L WT: 0.95 lbs
- UPC: 852968002806
Owner's Manual (pdf)
Brochure (pdf)
