LINIOTECH 6500W Off-Grid Inverter | 9000W PV Input | 6500W Output | 48V 120 Single Phase | All-In-One Solar Inverter (SC)
LINIOTECH 6500W Off-Grid Inverter | 9000W PV Input | 6500W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter
✅ Go Green. Lower Carbon. Power Smarter.
Take your solar system to the next level with the Liniotech LNT6500-48, a powerful, intelligent, and fully integrated 6.5kW off-grid solar inverter with dual MPPT charge controllers, built for high-performance off-grid and backup energy applications. Designed for homeowners, solar installers, and clean energy professionals, this pure sine wave hybrid inverter combines advanced digital control, smart battery charging, and exceptional reliability in one compact unit.
Key Features – High-Efficiency Off-Grid Solar Inverter with MPPT Charging
-
6500W Continuous Power Output – Delivers stable AC power for homes, cabins, workshops, and remote sites.
-
9000W Max Solar PV Input (2x MPPT) – Accepts up to 4500W per MPPT, maximizing solar harvest and supporting flexible panel configurations.
-
Pure Sine Wave Output (120V Single Phase) – Clean, stable power safe for sensitive electronics and appliances.
-
48V Battery Bank Compatible – Works seamlessly with lithium and lead-acid batteries (LFP, AGM, GEL, Flooded).
-
Stackable Design – Parallel up to 6 units for scalable systems up to 39kW.
-
Smart Monitoring via WiFi, GPRS, RS485, USB – Control and monitor your inverter remotely via Android/iOS apps.
-
Battery-Free Operation Capable – Can run directly from solar without requiring a battery (for daytime loads).
-
One-Key Factory Reset – Restore default settings in seconds.
-
Dual MPPT Tracking – Increases efficiency by tracking two separate solar input arrays for optimal performance.
-
Anti-Dust Design – Built-in dust protection ensures consistent performance in harsh environments.
-

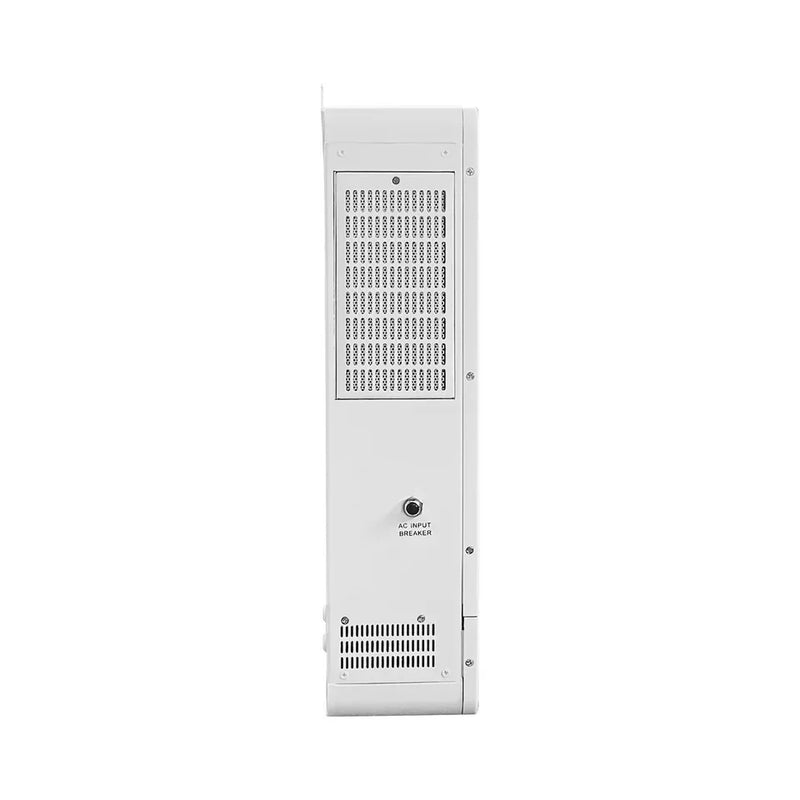

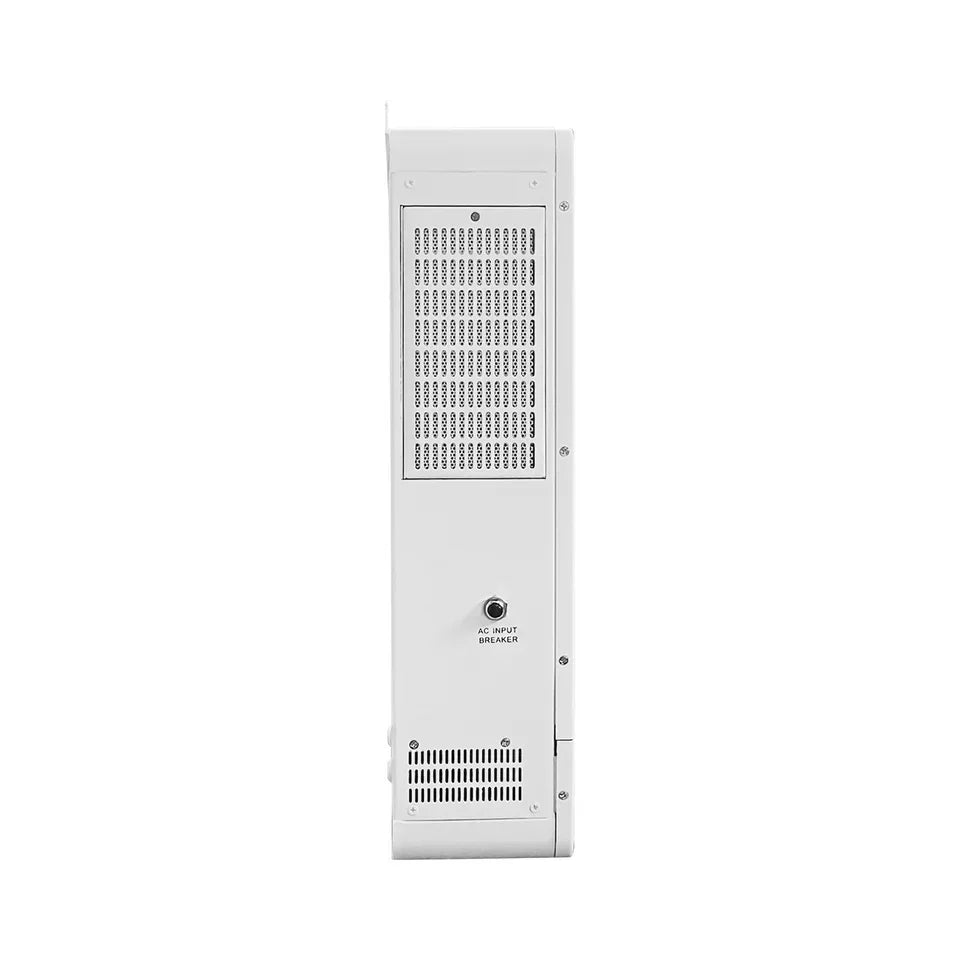

Built-in Safety Breakers – Includes PV disconnect breaker and battery breaker for added protection.
-
High Efficiency with Low Self-Consumption – Up to 95% charge controller efficiency and <25W self-consumption.
Smart MPPT Solar Charge Controller – Liniotech MPPT100-48HV Integrated
This inverter features dual integrated MPPT charge controllers, enabling fast and efficient battery charging even under varied sunlight conditions. Ideal for maximizing solar harvest without needing external combiner boxes.
MPPT Highlights:
-
✅ Max PV Array Power: 9000W (4500W x 2)
-
✅ Max PV VOC: 300VDC
-
✅ Max Charging Current: 150A (Adjustable)
-
✅ RS485 BMS Communication – Compatible with Liniotech & 3rd party batteries
-
✅ High-Speed Battery Charging: Charge a 5.12kWh Liniotech battery in ~2 hours @ 80A
-
✅ Built-In Safety Breakers: PV Disconnect & Battery Breaker
Ideal for Off-Grid Living, Solar Backup, RV Systems & Sustainable Energy Projects
The Liniotech 6.5kW all-in-one inverter is the ultimate solution for:
-
✅ Residential solar systems
-
✅ Off-grid cabins & tiny homes
-
✅ Emergency solar backup systems
-
✅ Mobile solar setups (RVs, vans)
-
✅ Remote work sites and energy storage projects

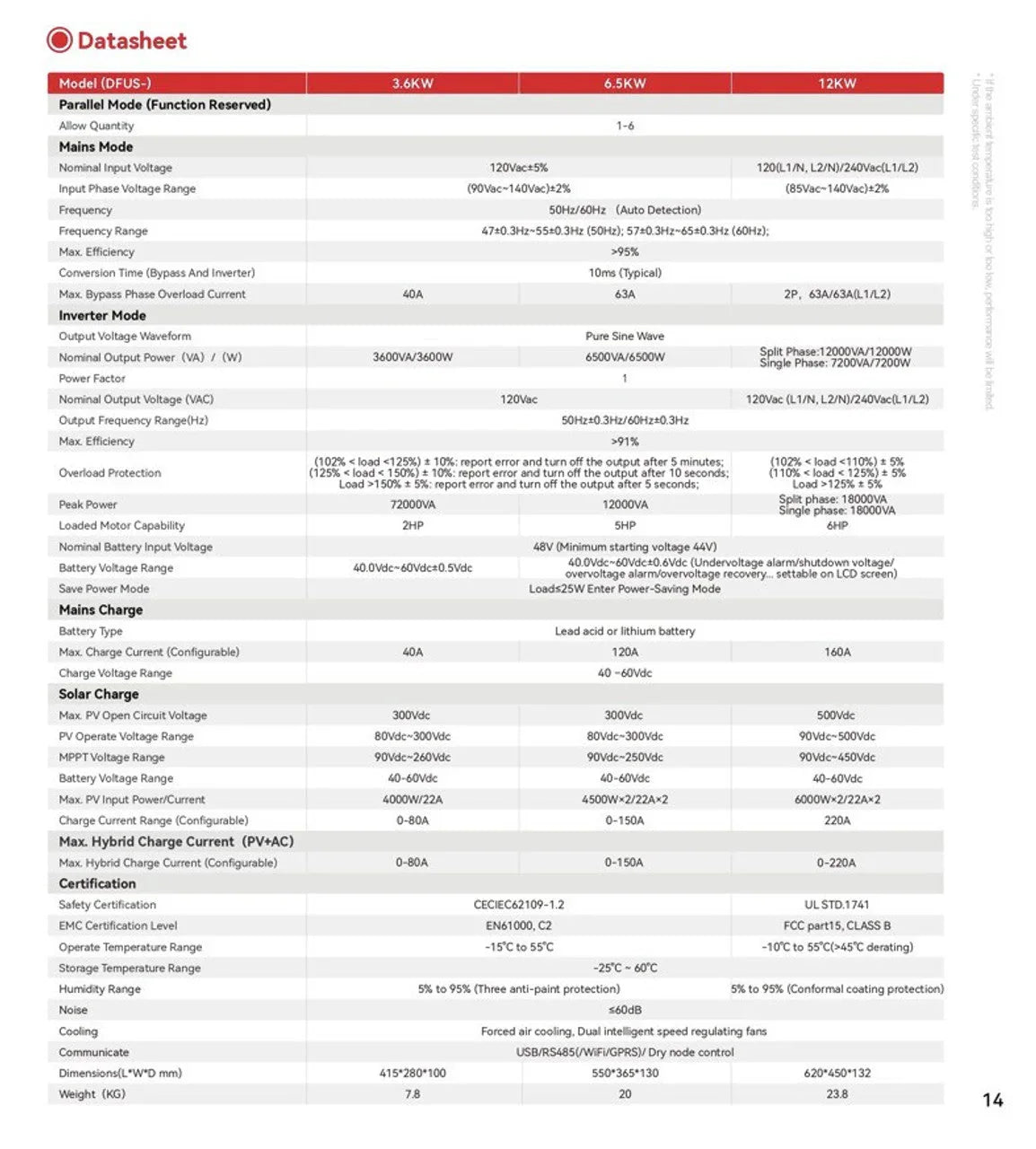

Product Specifications
LINIOTECH 6500W Off-Grid Inverter | 9000W PV Input | 6500W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter Product Specifications
| Specification | Details |
|---|---|
| Model | LNT6500-48 |
| Rated Output Power | 6500W / 6.5kW |
| Max PV Input Power | 9000W (4500W x 2 MPPTs) |
| MPPT Voltage Range | Up to 300VDC (Max VOC) |
| PV String Current | Max 22A per MPPT input |
| Battery Voltage | 48VDC (Nominal) |
| Charging Voltage | 48V–60V (Default: 56V) |
| Max Charging Current | 150A (Adjustable 0A–100A) |
| Output Voltage | 120VAC ±5% (Pure Sine Wave) |
| Frequency | 50Hz / 60Hz Auto Detection |

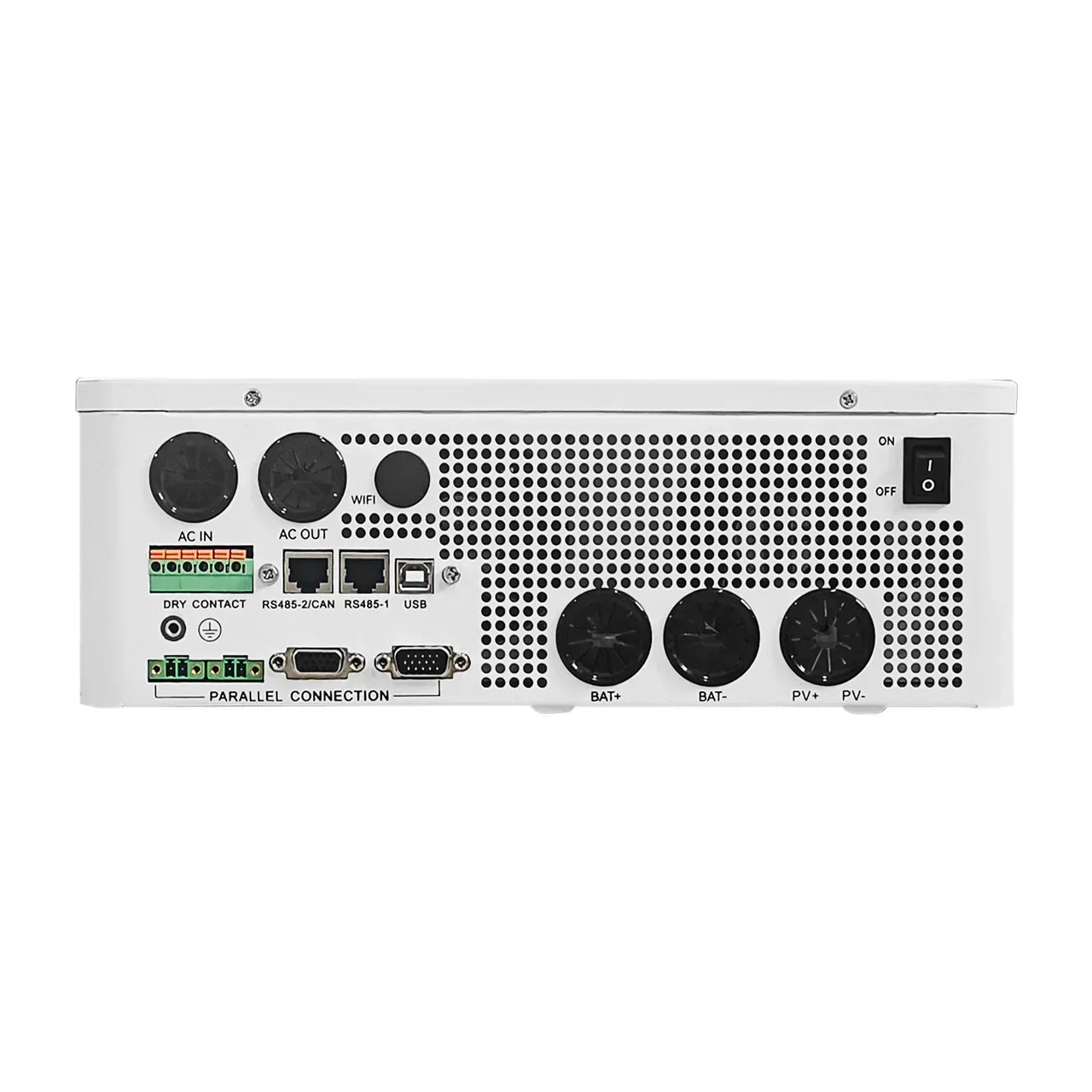

| Communication | USB, RS485, WiFi, GPRS, Dry Node |
| Compatible Batteries | Lithium (LFP), AGM, GEL, Lead-Acid |
| Efficiency | 95% MPPT |
| Parallel Units Supported | Up to 6 Units (Stackable) |
| Recommended Load | Off-grid homes, cabins, RVs, workshops |
Product Manual
LINIOTECH 6500W Data Sheet

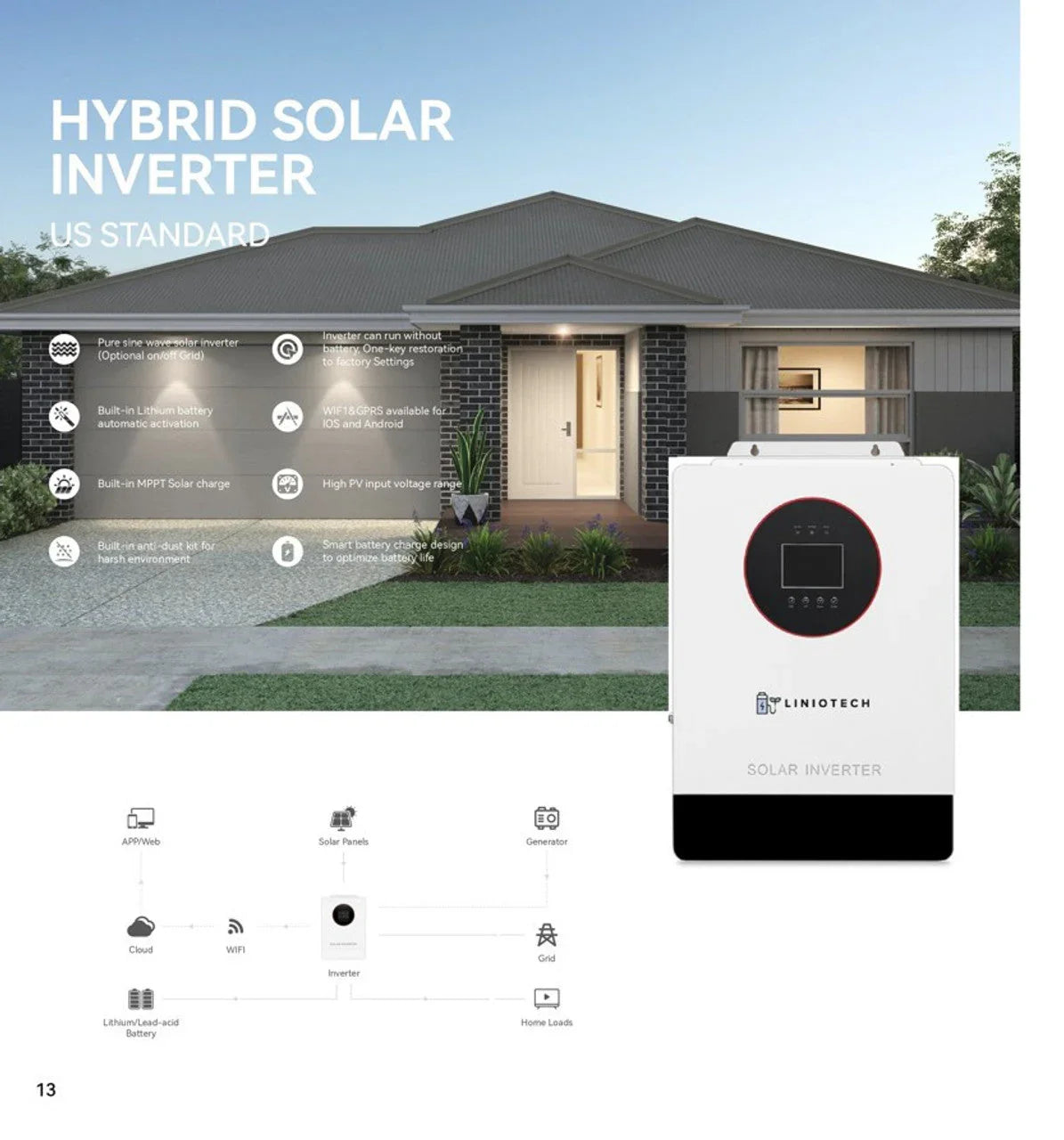

Liniotech Brochure
Product Warranty
3 years of warranty!
