LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter (SC)
LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter
Power Your Solar Energy System with the High-Performance Liniotech 3.6kW Off-Grid Inverter — Built for Efficiency, Durability & Intelligent Energy Management
The Liniotech LNT3600-48 is a premium 3600W off-grid solar inverter designed for high-efficiency power conversion in residential, commercial, or remote energy systems. Engineered with advanced MPPT charge controller technology, robust safety features, and intelligent battery management, this all-in-one hybrid solar inverter delivers stable, clean, and reliable energy from your solar panel array directly to your home or battery bank.
Key Features & Benefits:
-
✅ Pure Sine Wave Output (120V Single Phase) – Delivers smooth, reliable AC power safe for sensitive electronics and appliances.
-
✅ Built-In 4000W MPPT Solar Charge Controller – Automatically tracks the maximum power point to maximize solar efficiency and power output.
-
✅ Wide PV Input Voltage Range (Max 300VDC VOC) – Compatible with high-voltage solar arrays for flexible solar panel configurations.
-
✅ Supports 48V Lithium & Lead-Acid Batteries – Fully compatible with multiple battery types, including Liniotech 5.12kWh lithium batteries.
-
✅ Fast 80A Charging Current – Quickly recharge batteries to full capacity in as little as 2 hours (based on 5.12kWh battery).
-
✅ Battery-Free Operation Supported – System can run directly off solar power when battery is not present.
-
✅ One-Key Factory Reset – Reset to default settings with a single button.
-
✅ Smart Monitoring via WiFi, RS485, GPRS, USB – Real-time system diagnostics and control via mobile app (iOS & Android).
-
✅ Built-in Lithium Battery Wake-Up & Anti-Dust Kit – Designed to operate efficiently even in harsh and dusty environments.
-
✅ Stackable Design – Parallel up to 6 Units – Expand power capacity up to 21.6kW for larger off-grid systems or future upgrades.
Ideal for Off-Grid, Backup, and Remote Solar Energy Systems
Whether you're powering a residential solar system, off-grid cabin, mobile solar RV setup, or building an emergency backup power solution, the Liniotech 3.6kW all-in-one hybrid inverter offers unmatched performance, reliability, and expandability.
Product Specifications
LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter Product Specifications
⚙️ Technical Specifications:
-
Rated Output Power: 3600W / 3.6kW
-
Max PV Input Power: 4000W
-
Battery Voltage: 48VDC
-
Max PV VOC: 300VDC
-
Max PV Input Current: 22A
-
Max Charging Current: 80A (Adjustable 0A–100A)
-
Output Voltage: 120V AC ±5%
-
Frequency: 50Hz / 60Hz Auto Detection
-
Efficiency: ≥99% MPPT Charging Efficiency
-
Self-Consumption: <25W
-
Communication Ports: RS485, USB, WiFi, GPRS, Dry Node
-
Supported Battery Types: LFP, AGM, GEL, Flooded (Multiple Brands Supported)
⚡ Liniotech MPPT100-48HV – Built-In High Voltage Solar Charge Controller
This inverter incorporates the Liniotech MPPT100-48HV, a reliable and high-efficiency solar MPPT charge controller that intelligently regulates solar power to charge your batteries at optimal rates.
-
MPPT Voltage Range: 150–300VDC
-
Max Solar Panel Power: 4000W
-
Max String Current: 22A
-
Battery Voltage: 48V Nominal
-
Charging Voltage Range: 48V–60V (Default 56V)
-
Fast Charge Capability: Charge 5.12kWh Liniotech battery in ~2 hrs @ 80A
-
Built-In DC Disconnect & Battery Breakers for added safety
Product Manual

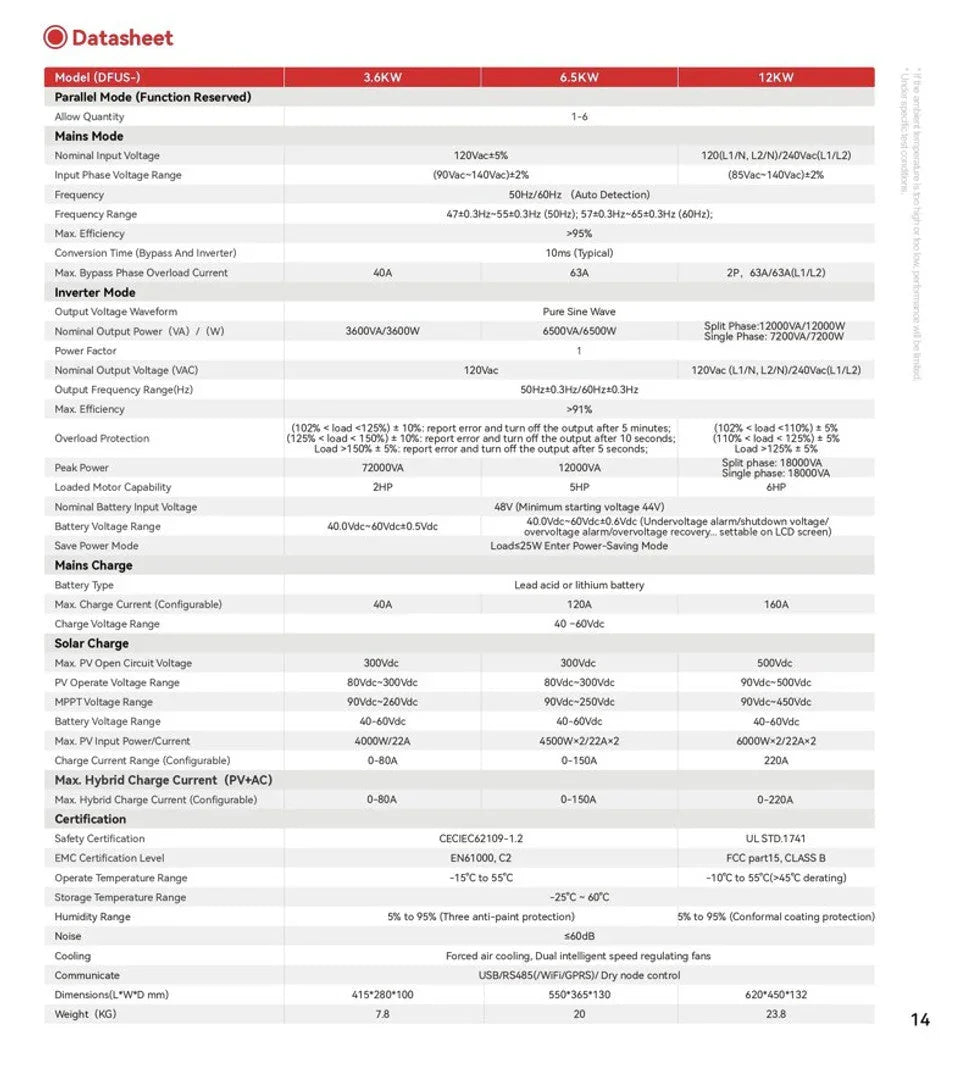

LINIOTECH 3600W Data Sheet
Liniotech Brochure
Product Warranty
3 years warranty!
Product FAQs
N/A
