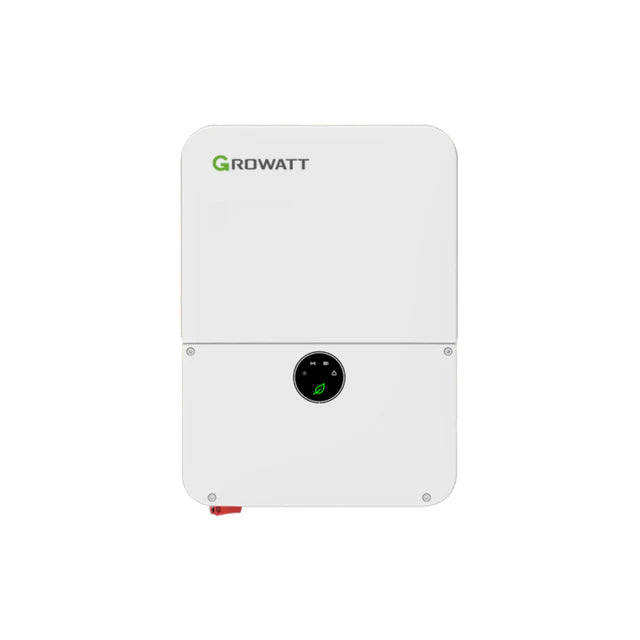

Growatt MIN 7600TL-XH-US (V3) - 7.6 kW Grid-Tie Solar Inverter
With three independent MPP trackers and 98.4% peak efficiency, Growatt MIN 7600TL-XH-US 7.6kW grid-tie inverter maximizes energy harvest from complex roof layouts. It’s a good choice for residential solar systems, especially if you plan future battery storage, as it is compatible with different battery systems.
- Battery-Ready Architecture with DC/AC Coupling
- 3 Independent MPP Trackers
- UL 1741 SA/SB Certified
About the Product
The Growatt MIN 7600TL-XH-US delivers 7,600W of continuous AC power with support for up to 15,200W of solar array capacity. Unlike standard grid-tie models, this battery-ready inverter supports both DC-coupled and AC-coupled energy storage configurations.
Compatible with Growatt APX, ARO, and LG battery systems, the MIN 7600TL-XH-US enables backup power capabilities and advanced energy management modes, including self-consumption, zero export, time-of-use optimization, and off-grid operation.
The NEMA4X-rated (IP65) weatherproof enclosure allows operating temperatures from -13°F to +140°F, making it suitable for installations across diverse climates. Natural convection cooling eliminates mechanical fans, removing common failure points while ensuring silent operation near living spaces. Also, Growatt MIN 7600TL-XH-US grid-tie inverter enables real-time monitoring through iOS, Android, and Windows apps, with built-in 4G and Wi-Fi connectivity.
Additionally, the inverter comes with comprehensive safety features, ensuring peace of mind. These include UL 1741 SA/SB certification, AFCI arc-fault protection, rapid shutdown compliance (NEC 2020 690.12), Type III AC surge protection, ground fault monitoring, and anti-islanding protection.
Specifications
|
Type |
Grid-tie (battery-ready) |
|
AC Output Power |
7,600W nominal |
|
Phases |
Split-phase 240V (L1/L2/N/PE) |
|
Efficiency |
98.4% peak / 97.5% CEC weighted |
|
DC Input Voltage |
600V max system / 400V nominal / 80V startup |
|
MPP Trackers |
3 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
240V / 208V (grid-compatible) |
|
Battery Support |
Growatt APX , ARO, LG |
|
Protections |
UL 1741 SA/SB, AFCI, RSD, Type III AC surge, ground fault, anti-islanding, residual current monitoring |
|
Operating Conditions |
-13°F to +140°F / IP65 (NEMA4X) / Natural convection cooling |
|
Warranty |
10 years (manufacturer standard) |
Download full specifications here.
Download quick guide here.
Download certificate here.
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
$1,599.00
