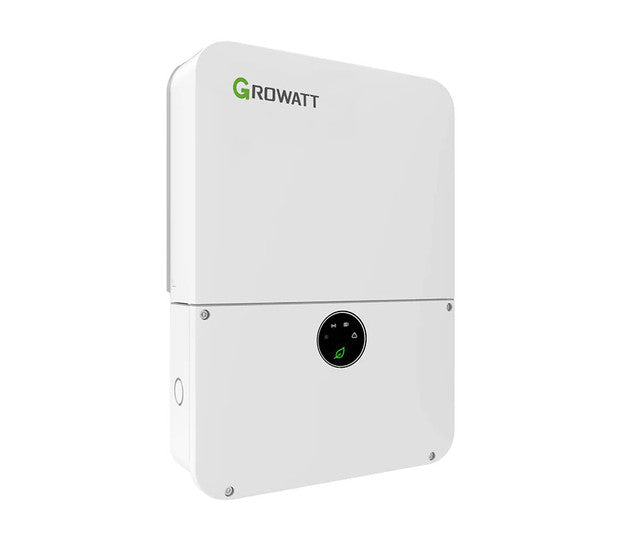

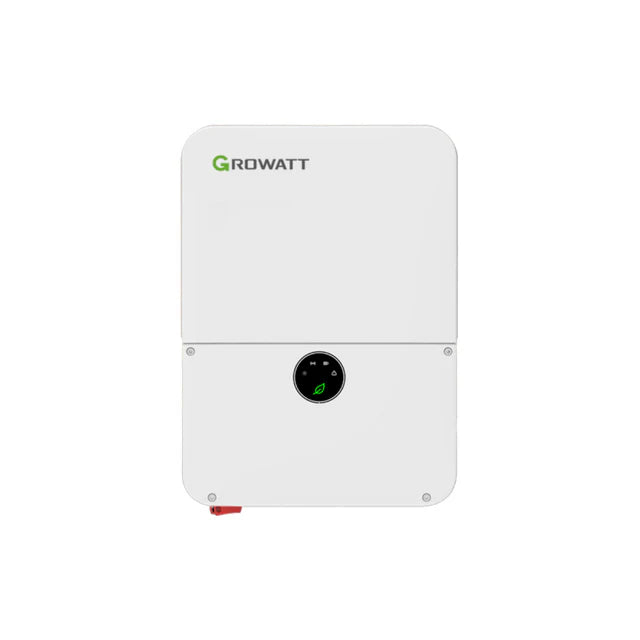

Growatt 11.4kW Grid-Tie Inverter (V3) | MIN 11400TL-XH-US
Growatt 11.4kW Grid-Tie Inverter (V3) | MIN 11400TL-XH-US
The Growatt 11.4kW grid-tie inverter is a good choice if you require robust, efficient solar energy conversion. With 98.5% peak efficiency, four independent MPP trackers, and battery-ready architecture, this string solar inverter efficiently handles complex roof layouts, partial shading, and high-capacity battery storage.
- 22.8kW Maximum PV Input Capacity
- Battery-Ready Design
- 98.5% Peak Efficiency
About the Product
The Growatt 11.4kW grid-tie inverter (MIN11400TL-XH-US) delivers 11,400W of continuous AC power with support for up to 22.8kW of solar array capacity. With dual string inputs per MPP tracker, the inverter accommodates complex residential solar installations without performance compromise.
Compatible with Growatt APX, ARO, and LG battery systems, this string inverter supports DC-coupled and AC-coupled configurations with automatic backup switching. The NEMA4X-rated enclosure withstands temperatures from -13°F to +140°F, which makes it suitable for desert, coastal, and mountain installations. Also, the inverter includes comprehensive safety features, such as AFCI arc-fault protection, rapid shutdown compliance, ground fault monitoring, and anti-islanding protection.
Furthermore, with built-in 4G and Wi-Fi connectivity, you have real-time monitoring through iOS, Android, and Windows apps.. Whether upgrading an existing system or building new, this battery-ready inverter delivers professional-grade performance with residential ease of use.
Specifications
|
Type |
Grid-tie (battery-ready) |
|
AC Output Power |
11,400W nominal |
|
Phases |
Split-phase 240V (L1/L2/N/PE) |
|
Efficiency |
98.5% peak / 97.5% CEC weighted |
|
DC Input Voltage |
550V max system / 400V nominal / 80V startup |
|
MPP Trackers |
4 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
240V / 208V (grid-compatible) |
|
Battery Support |
Growatt APX , ARO, LG |
|
Protections |
AFCI, RSD, surge (Type II/III), ground fault, anti-islanding, residual current monitoring |
|
Operating Conditions |
-13°F to +140°F / IP65 (NEMA4X) / Natural convection cooling |
|
Warranty |
10 years (manufacturer standard) |
Download the full specifications here.
Download the quick guide here.
Download the certificate here.
Download the full manual here.
