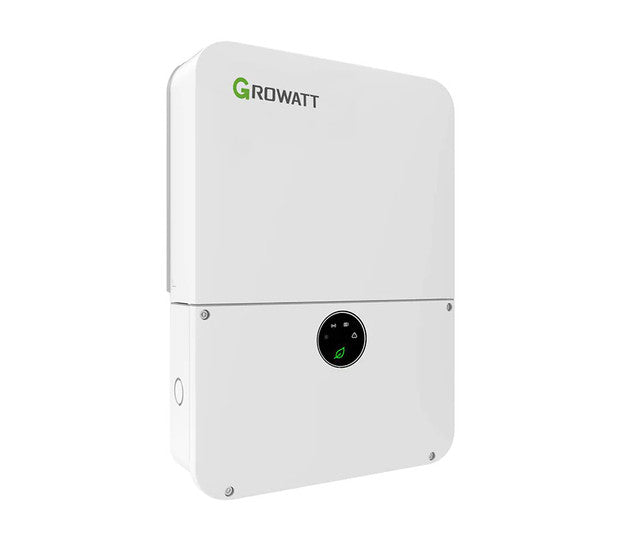

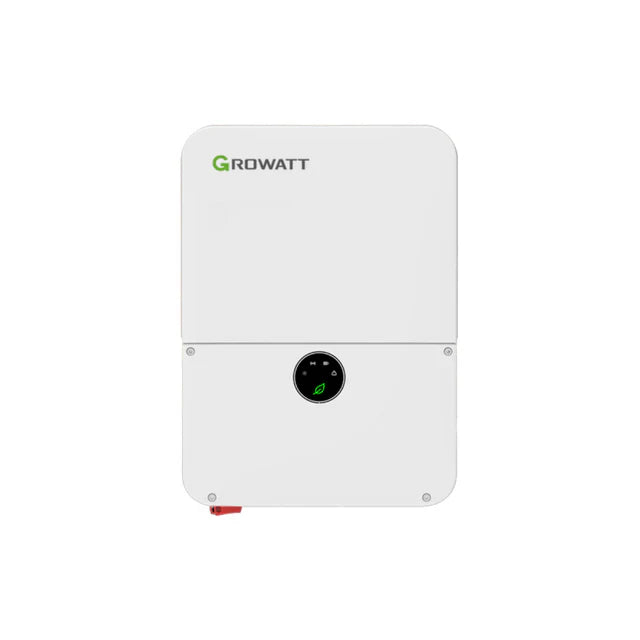

Growatt 11.4kW Grid-Tie Inverter (V3) | MIN 11400TL-XH-US
Growatt 11.4kW Grid-Tie Inverter (V3) | MIN 11400TL-XH-US
The Growatt 11.4kW grid-tie inverter MIN11400TL-XH-US offers exceptional performance for large-scale residential or commercial solar setups. Equipped with four MPP trackers, the Growatt grid tie inverter ensures maximum energy harvest from multi-array installations, even in shaded areas. Its durable NEMA4X-rated enclosure allows reliable operation in harsh outdoor environments.
Advanced IoT integration provides hassle-free monitoring and management through intuitive apps, helping users maintain optimal system performance. The Growatt 11.4kW grid-tie inverter MIN11400TL-XH-US is a top-tier solution for those seeking efficiency, safety, and scalability.
Features:
Cutting-Edge Grid-Tie:
- 11400W Nominal Output
- High 550 VDC Input (22800W Max PV!)
- 4 MPP Trackers, 2 Strings Per MPP Tracker
- Up to 98.5% Efficiency
Quality Design:
- –13°F to +140°F Operating Temperature
- Natural Convection Cooling
- NEMA4X (IP65) Rated
- 'Aerospace grade' Flame-retardant Lightweight Materials
Communication:
- Built-in 4G/Wi-Fi Communication with APP, IoT integrated Cloud and monitoring
- IOS, Android & Windows Apps
Advanced Protection & Safety:
- UL Certified (1741)
- Type III AC Surge Protection
- AC Short Circuit Protection
- Ground fault & Grid Monitoring
- AFCI Protection
- Rapid Shutdown Capable, RFCI Protection
- Anti-islanding Protection
- Residual-Current Monitoring
Specifications
|
Type |
Grid-tie (battery-ready) |
|
AC Output Power |
11,400W nominal |
|
Phases |
Split-phase 240V (L1/L2/N/PE) |
|
Efficiency |
98.5% peak / 97.5% CEC weighted |
|
DC Input Voltage |
550V max system / 400V nominal / 80V startup |
|
MPP Trackers |
4 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
240V / 208V (grid-compatible) |
|
Battery Support |
Growatt APX , ARO, LG |
|
Protections |
AFCI, RSD, surge (Type II/III), ground fault, anti-islanding, residual current monitoring |
|
Operating Conditions |
-13°F to +140°F / IP65 (NEMA4X) / Natural convection cooling |
|
Warranty |
10 years (manufacturer standard) |
Download full specifications here.
Download manual here.
Download certificate here.
