Eco-Worthy 4800W 48V (24×195W) Complete MPPT Off-Grid Solar Kit | 5kW Inverter + 10.24kWh Battery (SC)

Eco-Worthy 4800W 48V (24×195W) Complete MPPT Off-Grid Solar Kit | 5kW Inverter + 10.24kWh Battery

The Eco-Worthy 4800W 48V Complete MPPT Off-Grid Solar Kit is a high-capacity, all-in-one solar solution designed for off-grid homes, cabins, workshops, and backup power systems. Featuring 24 high-efficiency 195W monocrystalline solar panels, a 5000W 48V split-phase off-grid inverter charger, and 2× 48V 100Ah Rack LiFePO₄ lithium batteries, this kit delivers clean, stable, and reliable energy for residential or small commercial applications.

Equipped with advanced MPPT solar charging technology, pure sine wave inverter output, and modular lithium battery storage, this kit provides efficient, scalable, and uninterrupted power for appliances, electronics, and critical loads. All required cables, connectors, and mounting hardware are included for convenient installation.

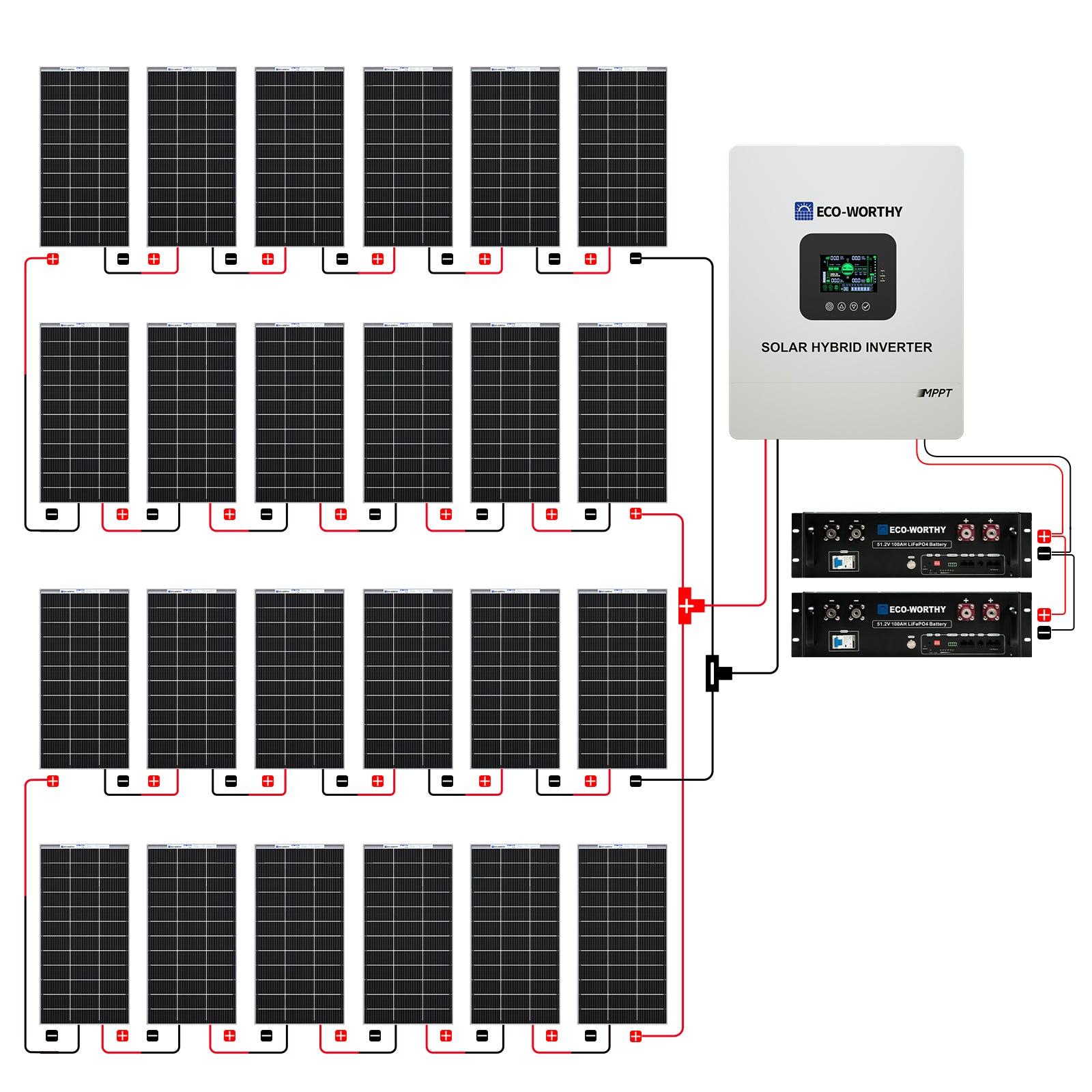

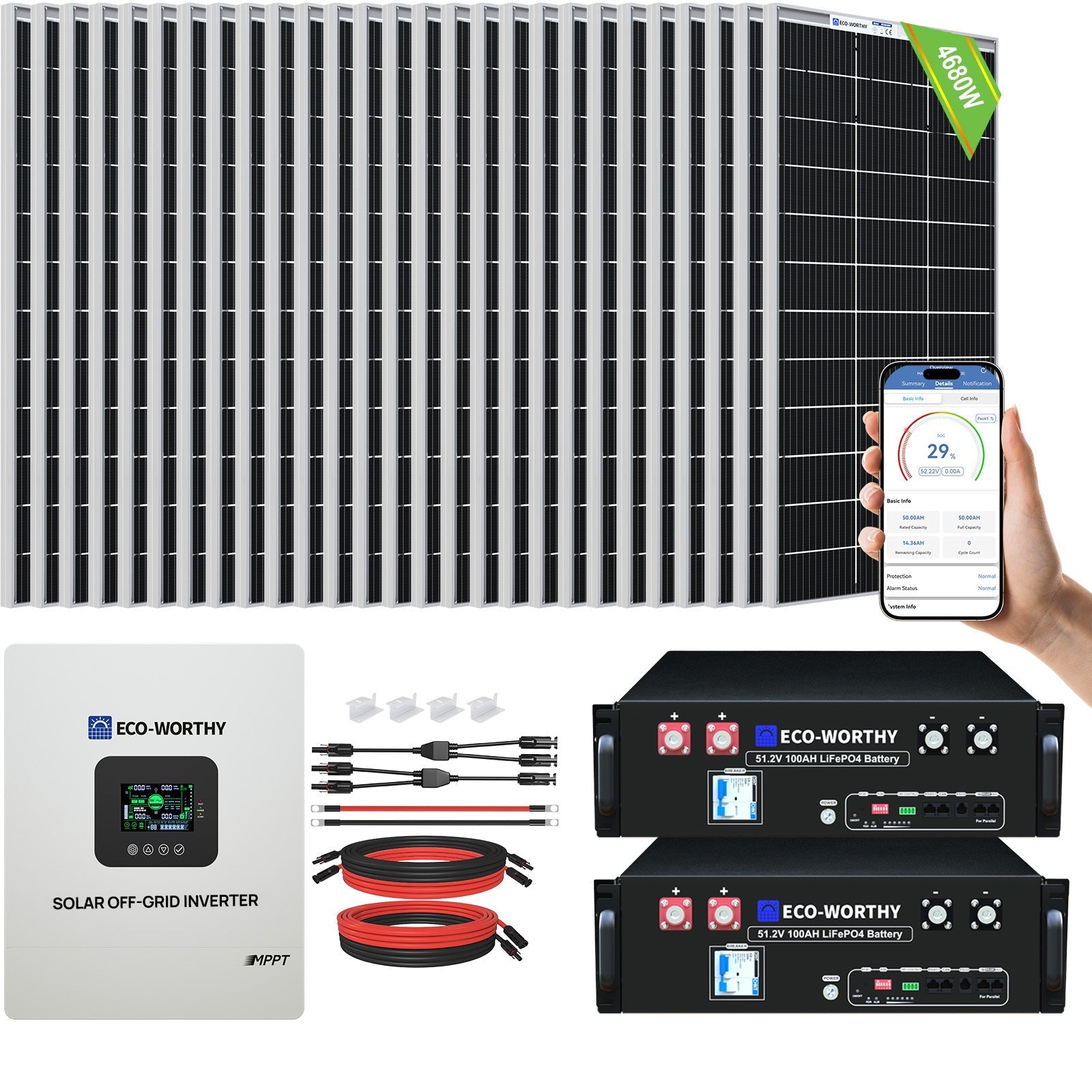

Package Includes

• 24× 195W Monocrystalline Solar Panels

• 1× 5000W 48V Split-Phase Off-Grid Inverter Charger

• 1× 5M 8AWG Extension Cable with MC4

• 2× 5M 12AWG Solar Cable with MC4

• 1× Y MC4 Connector

• 24× Z Mounting Brackets with stainless steel nuts and cap bolts

• 2× 48V 100Ah Rack LiFePO₄ Lithium Batteries

• 16.4 ft (5m) 12AWG Solar Cables for panel connection

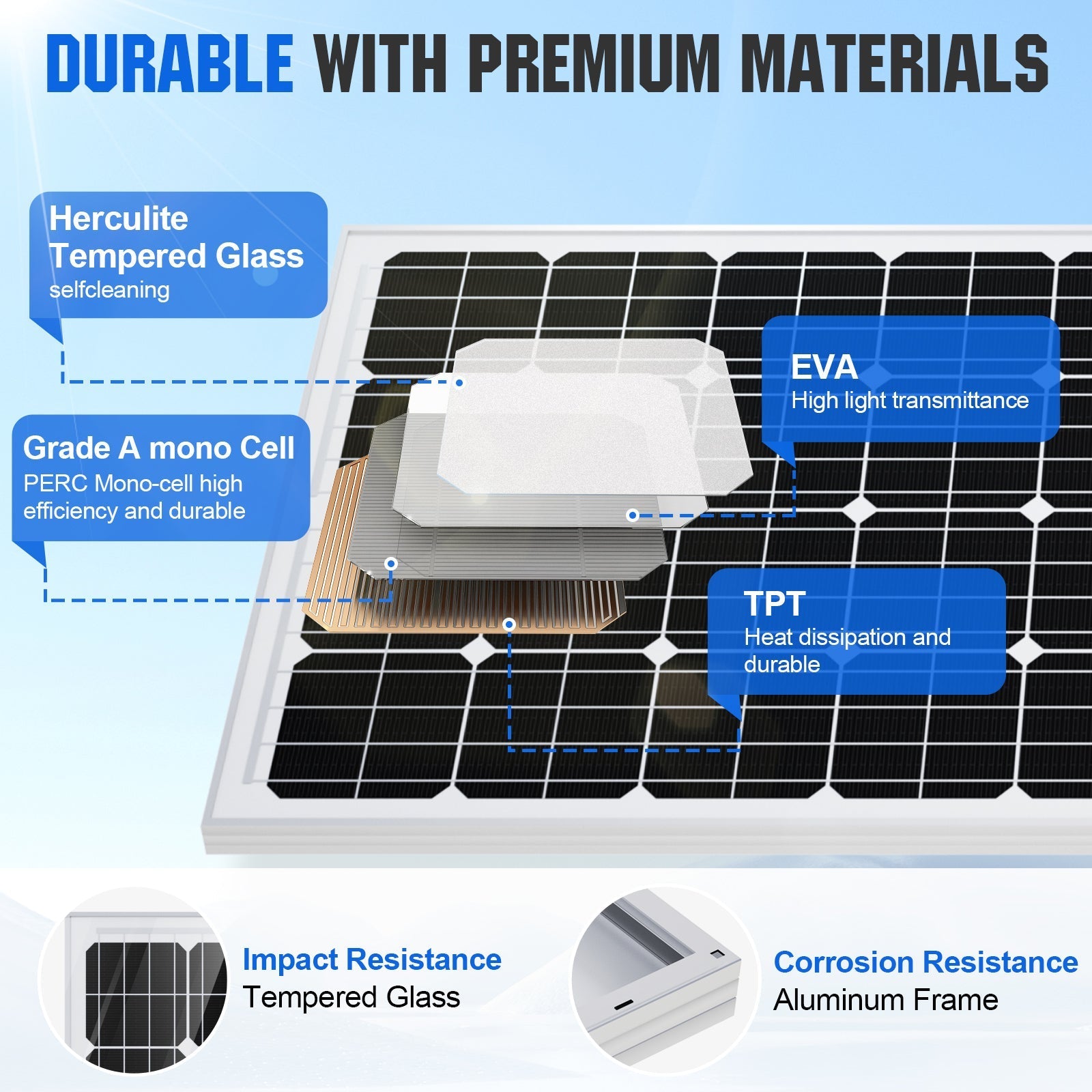

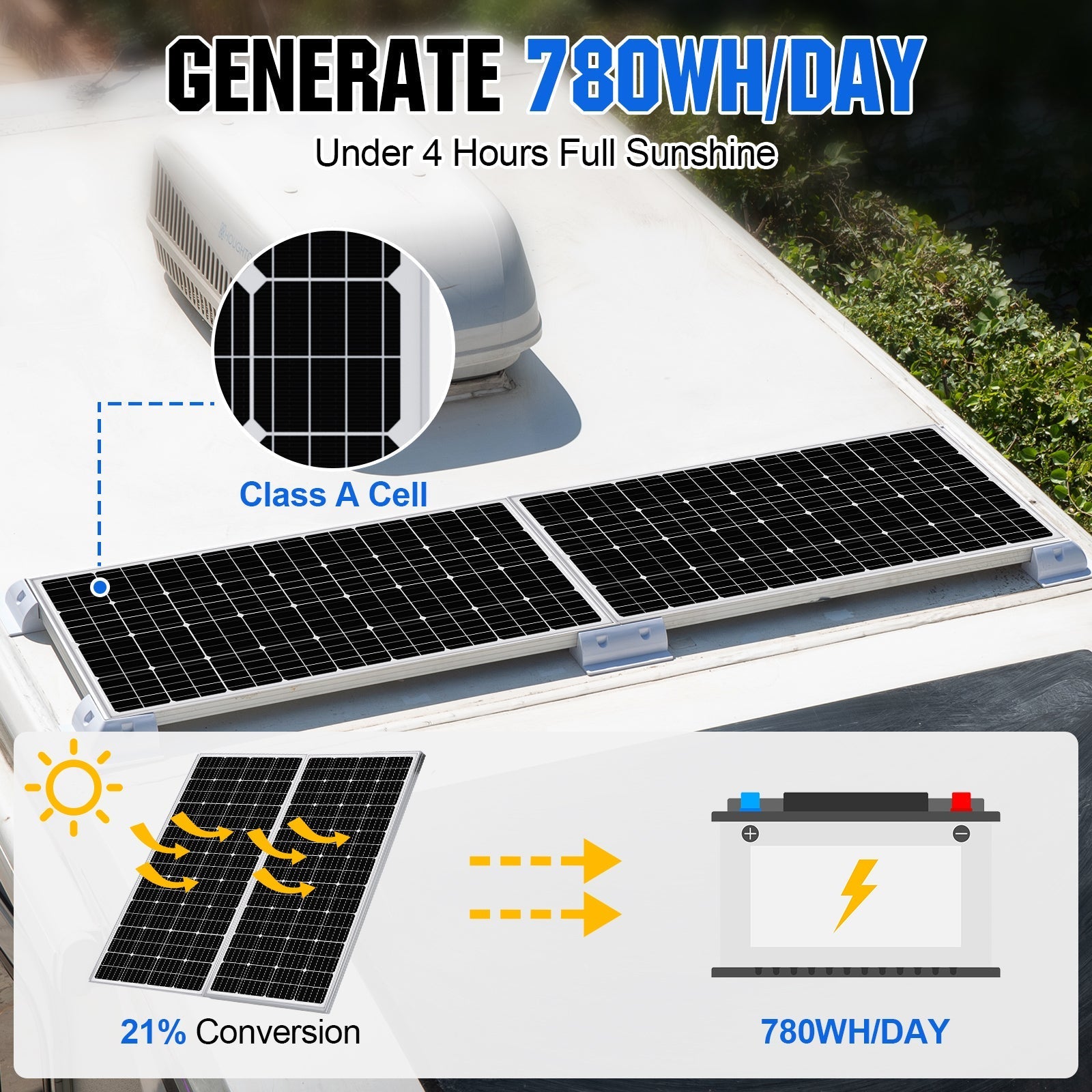

Eco-Worthy 195W Monocrystalline Solar Panel Specifications

• Rated Power: 195W

• Solar Cell Type: Monocrystalline

• Maximum Power Voltage (Vmp): 20.2V

• Open Circuit Voltage (Voc): 24.5V

• Short Circuit Current (Isc): 10.14A

• Maximum Current (Imp): 9.65A

• Output Tolerance: ±3%

• Temperature Coefficient of Isc: 0.10 ±0.01%/°C

• Temperature Coefficient of Voc: –0.38 ±0.01%/°C

• Operating Temperature: –40°C to +85°C

• Frame: Aluminum Alloy

• Dimensions: 52.6 × 26.38 × 1.38 in (1335 × 670 × 35 mm)

• Weight: 20.48 lbs (9.29 kg)

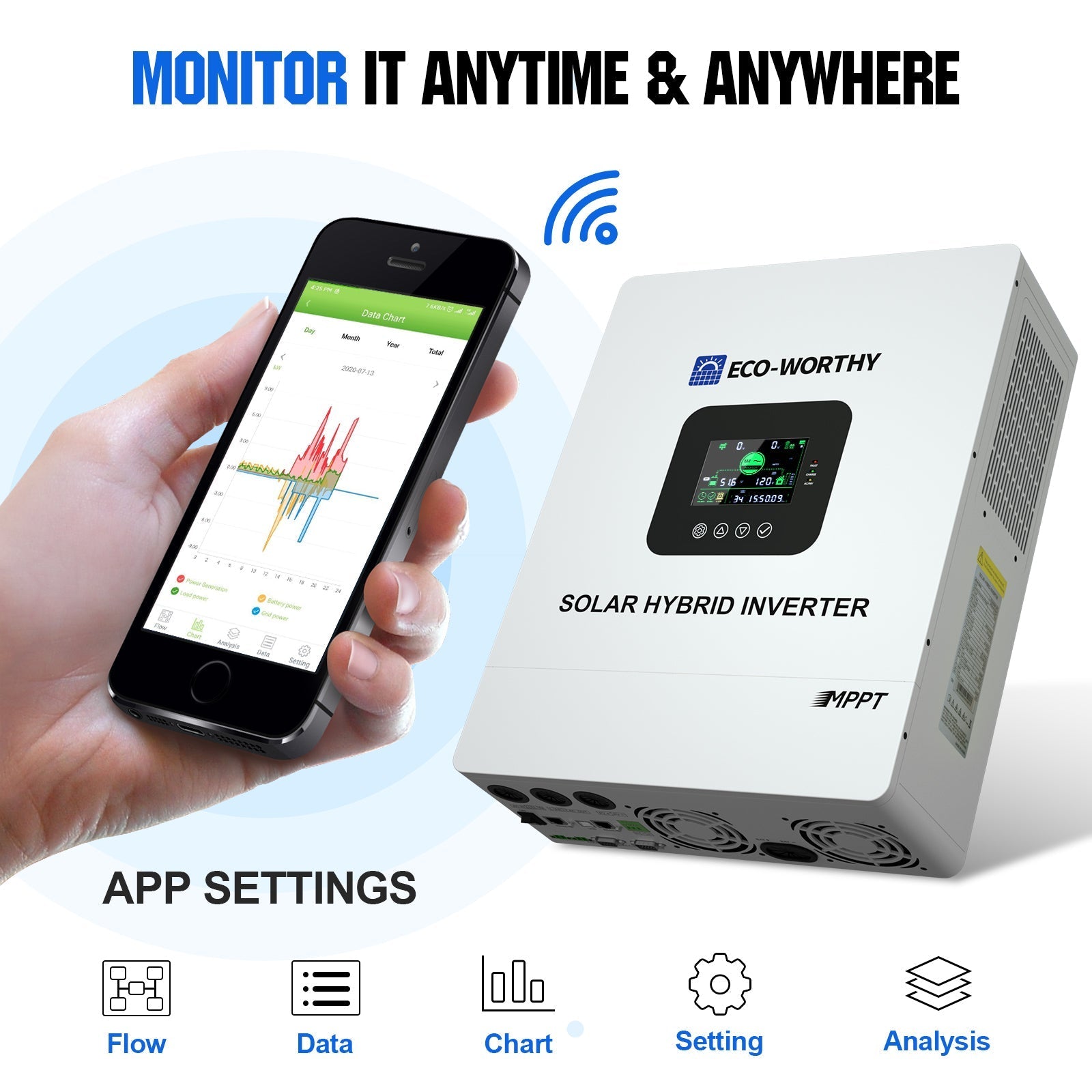

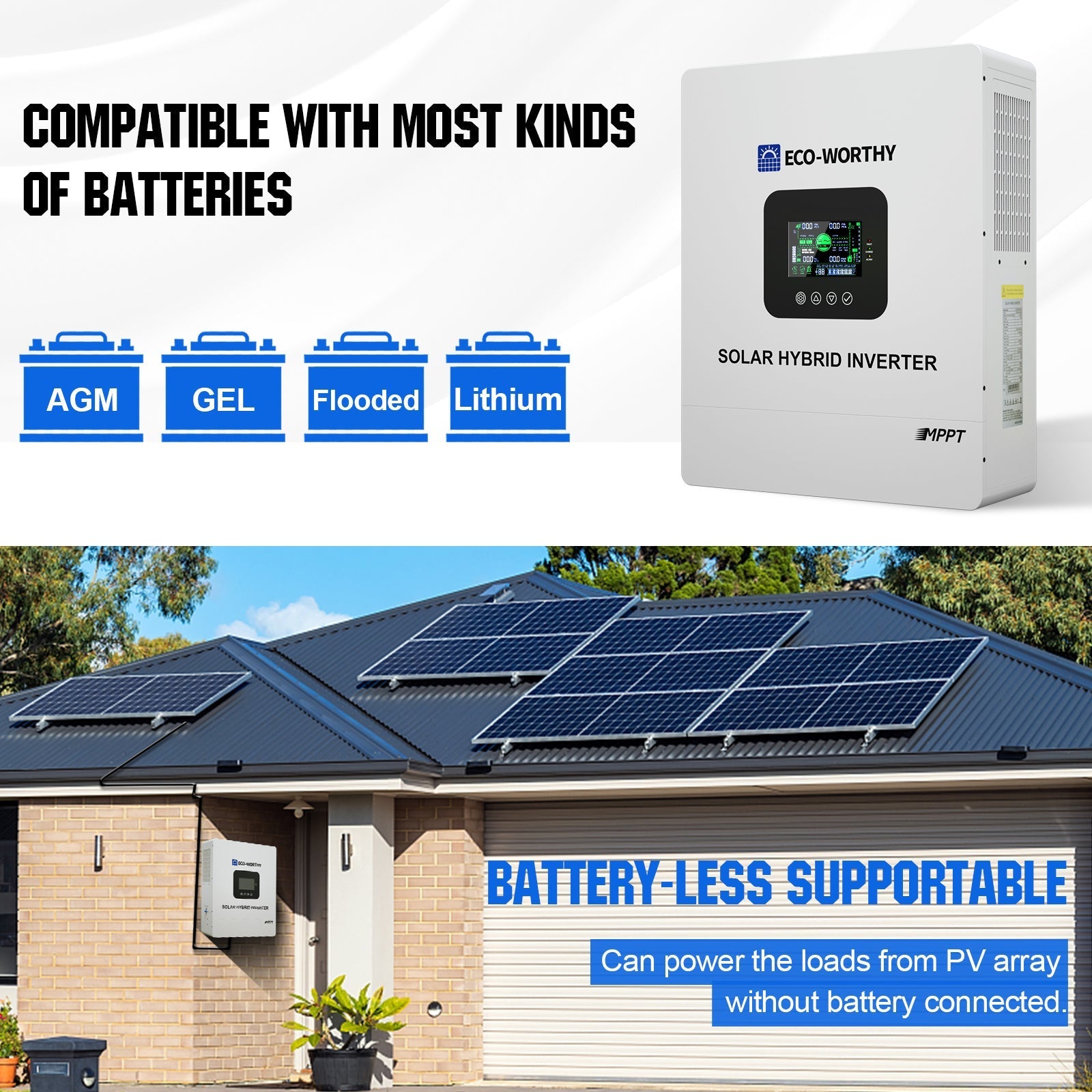

Eco-Worthy 5000W 48V Split-Phase Off-Grid Inverter Charger

• Solar Charging Mode: PV Charging Current Range 100A, MPPT Voltage 120–450VDC, Max Input Power 5500W

• Battery Voltage Range: 40–60VDC

• Inverter Mode: Pure Sine Wave Output, Rated Output Power 5000W, Peak Power 10,000W

• Output Voltage: 110V/120V AC, 50Hz/60Hz

• Battery Input Voltage: 48V DC

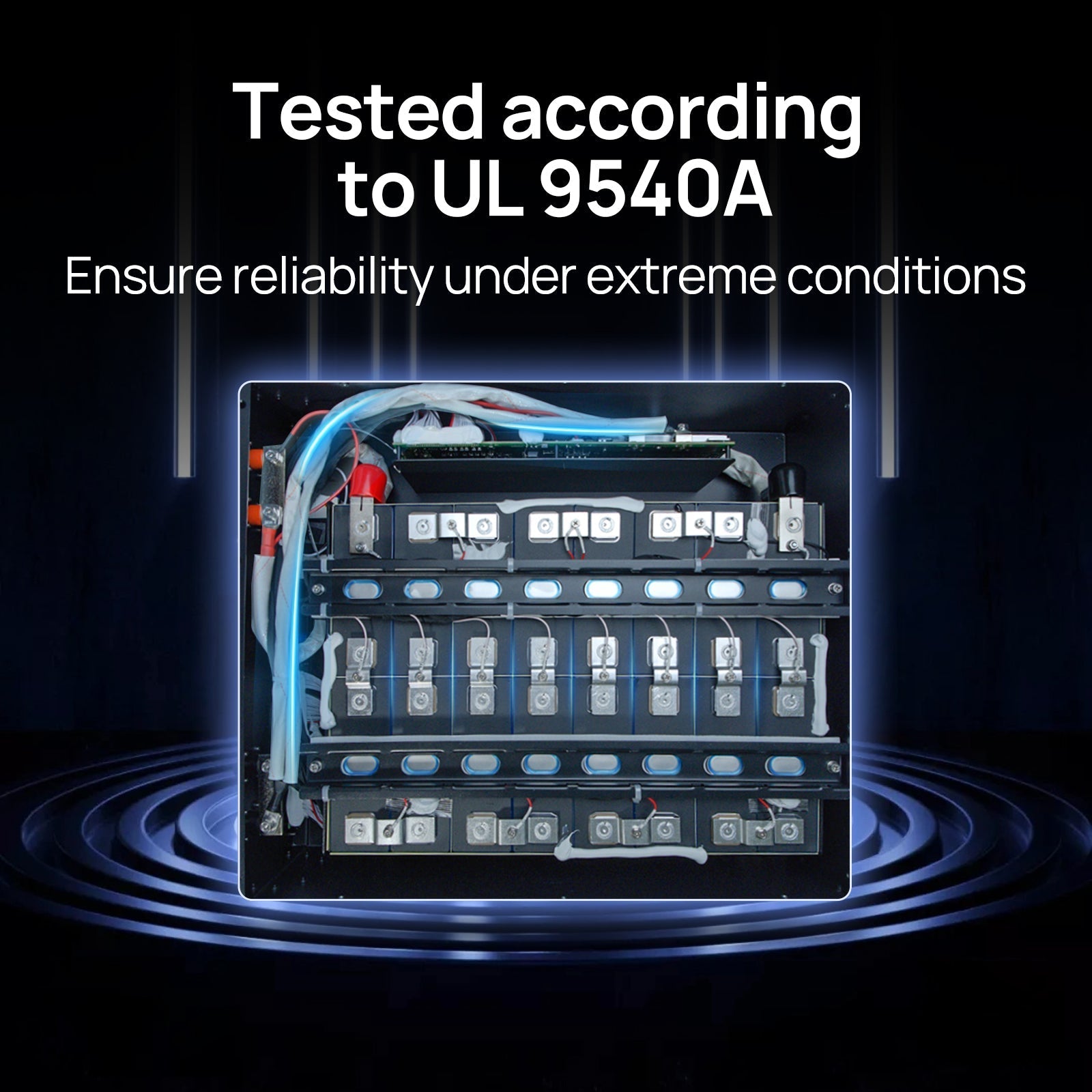

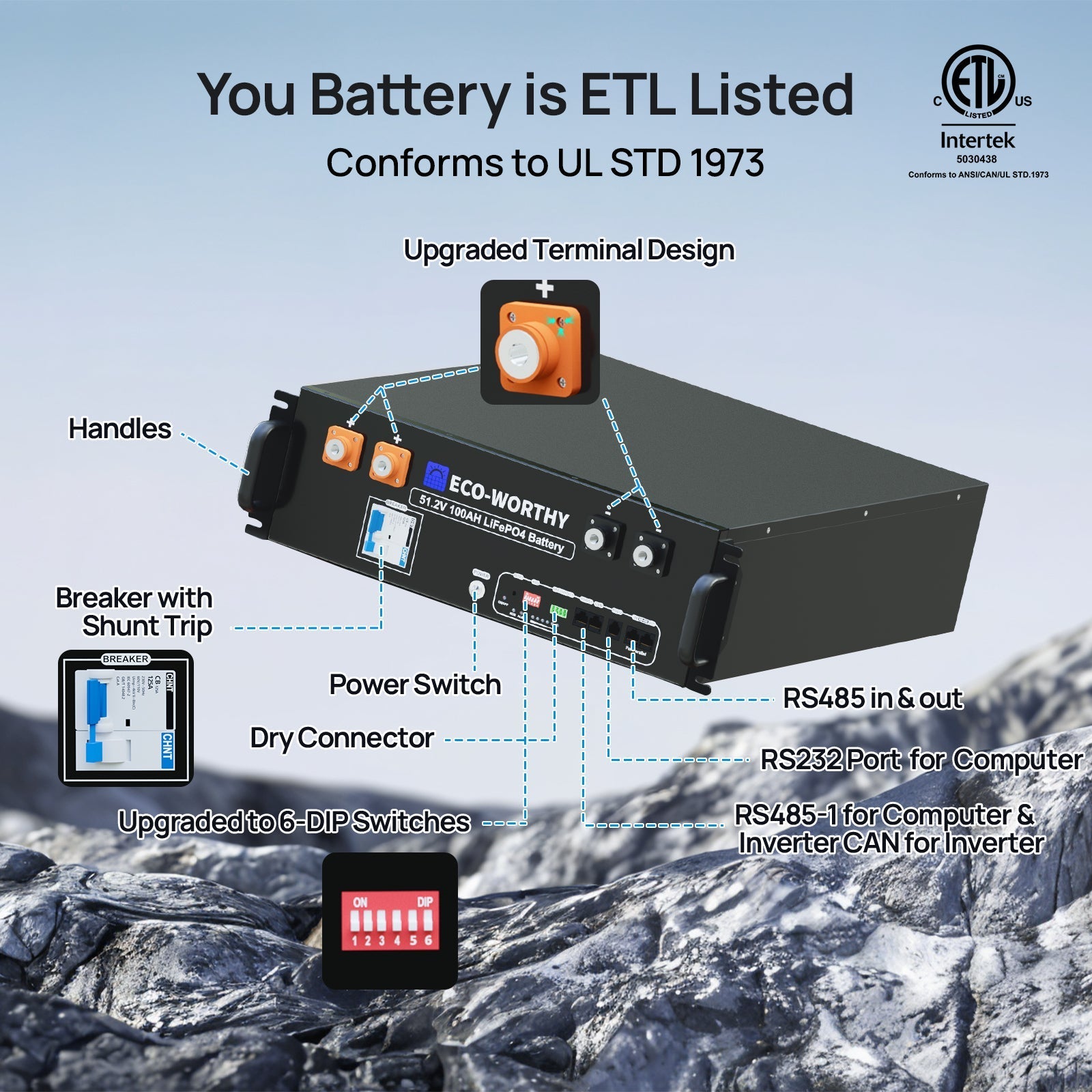

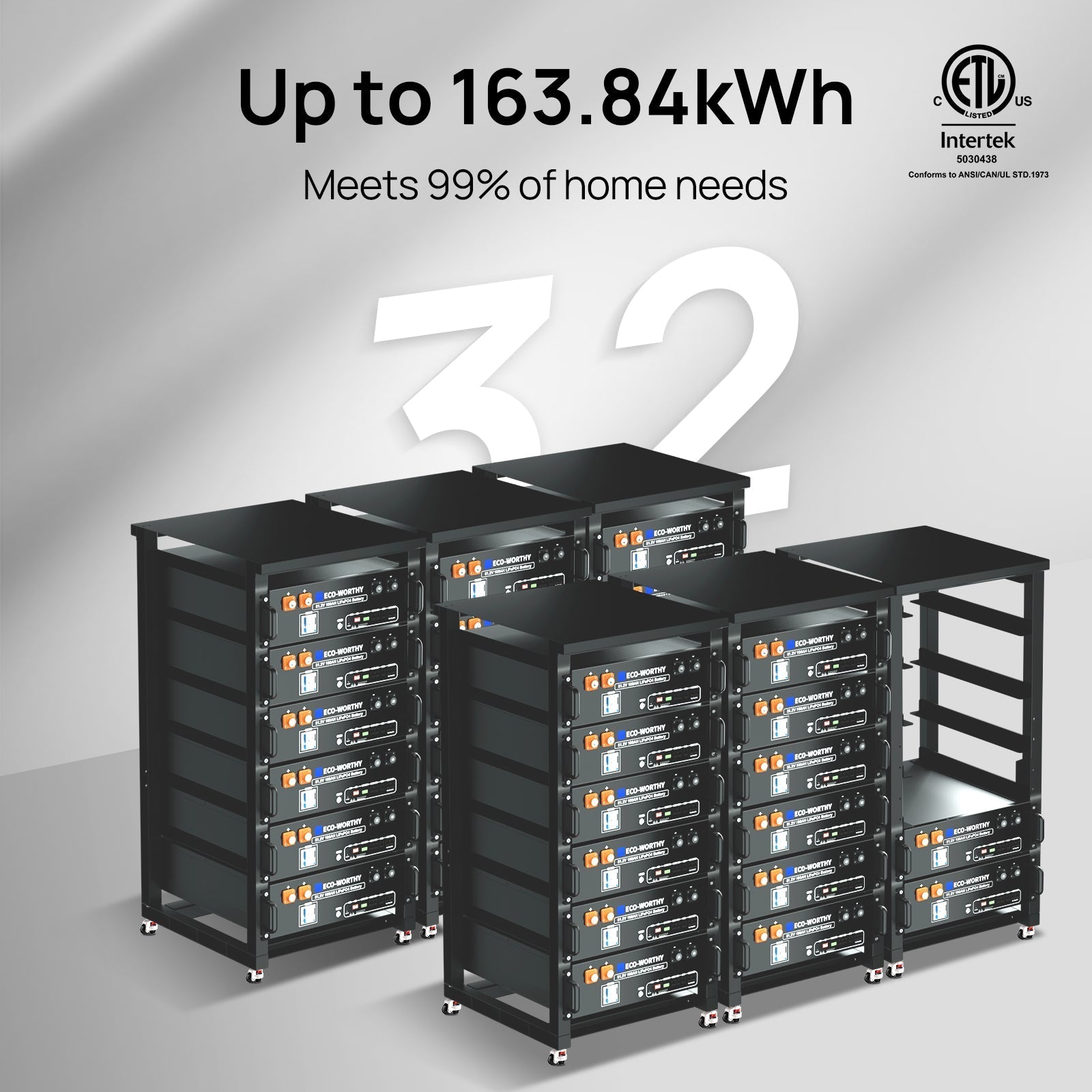

Eco-Worthy 48V 100Ah Rack LiFePO₄ Lithium Battery

• Battery Capacity: 100Ah

• Energy: 5120Wh

• Rated Voltage: 51.2V

• Voltage Range: 40–58V

• Max Charge/Discharge Current: 100A

• Max Charge Voltage: 58.4V

• Charge Temperature: 0–55°C

• Discharge Temperature: –20–55°C

• Dimensions: 22.55 × 17.13 × 5.63 in

• Weight: 97 lbs

Cables & Mounting Hardware

• 16.4 ft (5m) 12AWG solar cables with MC4 connectors, tinned copper, IP65 waterproof, –40°F to +185°F

• 24× Z Mounting Brackets with stainless steel nuts and cap bolts

This Eco-Worthy 4800W 48V Complete MPPT Off-Grid Solar Kit provides a scalable, reliable, and high-efficiency solution for off-grid solar energy storage and power conversion.
