Eco-Worthy 2340W 48V (12×195W) Complete MPPT Off-Grid Solar Kit | 5kW Inverter + 48V 100Ah Rack Battery (SC)

Eco-Worthy 2340W 48V (12×195W) Complete MPPT Off-Grid Solar Kit | 5kW Inverter + 48V 100Ah Rack Battery

The Eco-Worthy 2340W 48V Complete MPPT Off-Grid Solar Kit is a high-performance, all-in-one solar solution designed for homes, cabins, workshops, and remote properties. Featuring 12 high-efficiency 195W monocrystalline solar panels, a 5000W 48V split-phase off-grid inverter charger, and a 48V 100Ah Rack LiFePO₄ lithium battery, this kit delivers reliable, clean, and renewable energy for off-grid, backup, or hybrid solar systems.

Equipped with advanced MPPT solar charging technology, pure sine wave inverter output, and modular lithium battery storage, this Eco-Worthy solar kit provides efficient, stable, and scalable power for appliances, electronics, and critical loads. All necessary cables, connectors, and mounting hardware are included for fast installation.

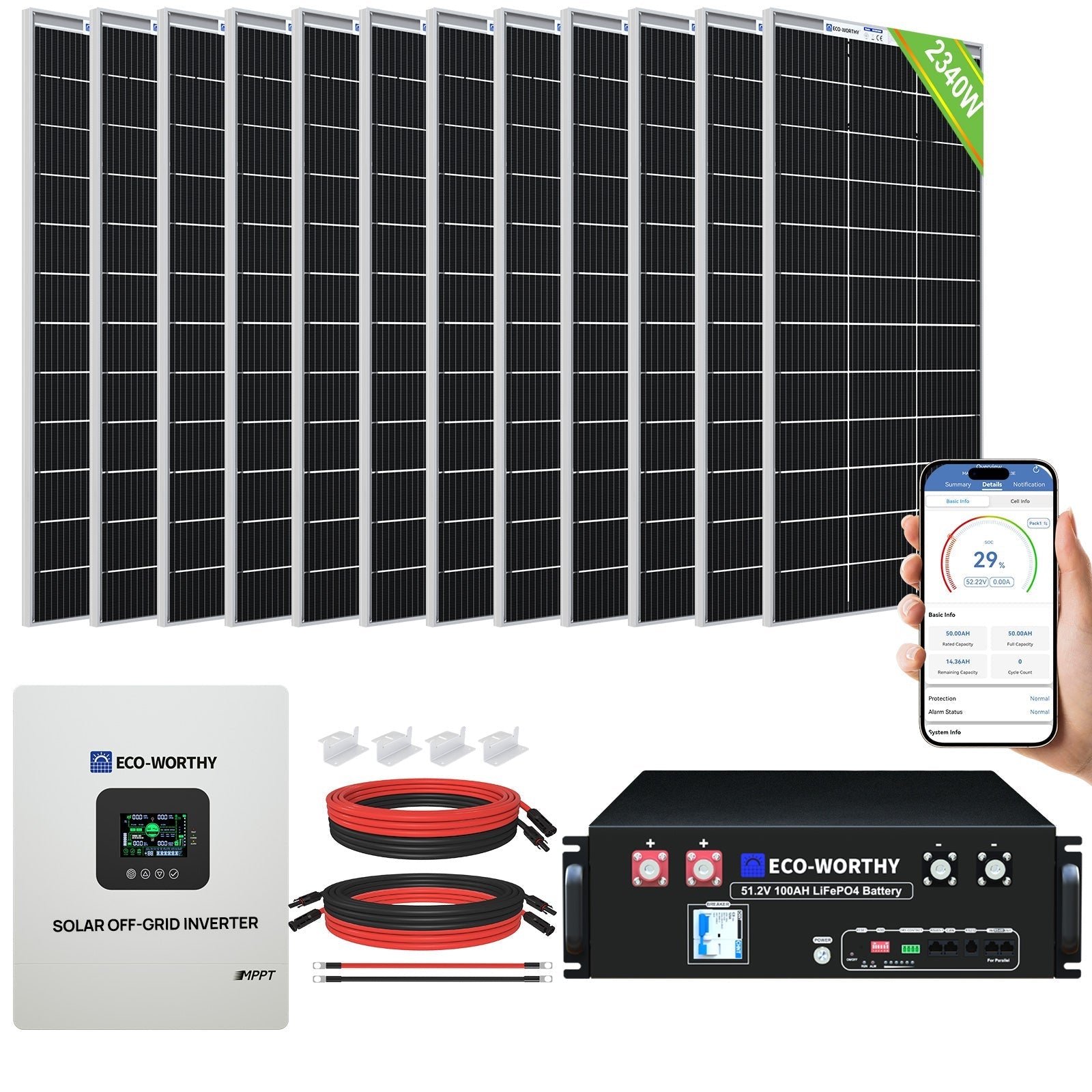

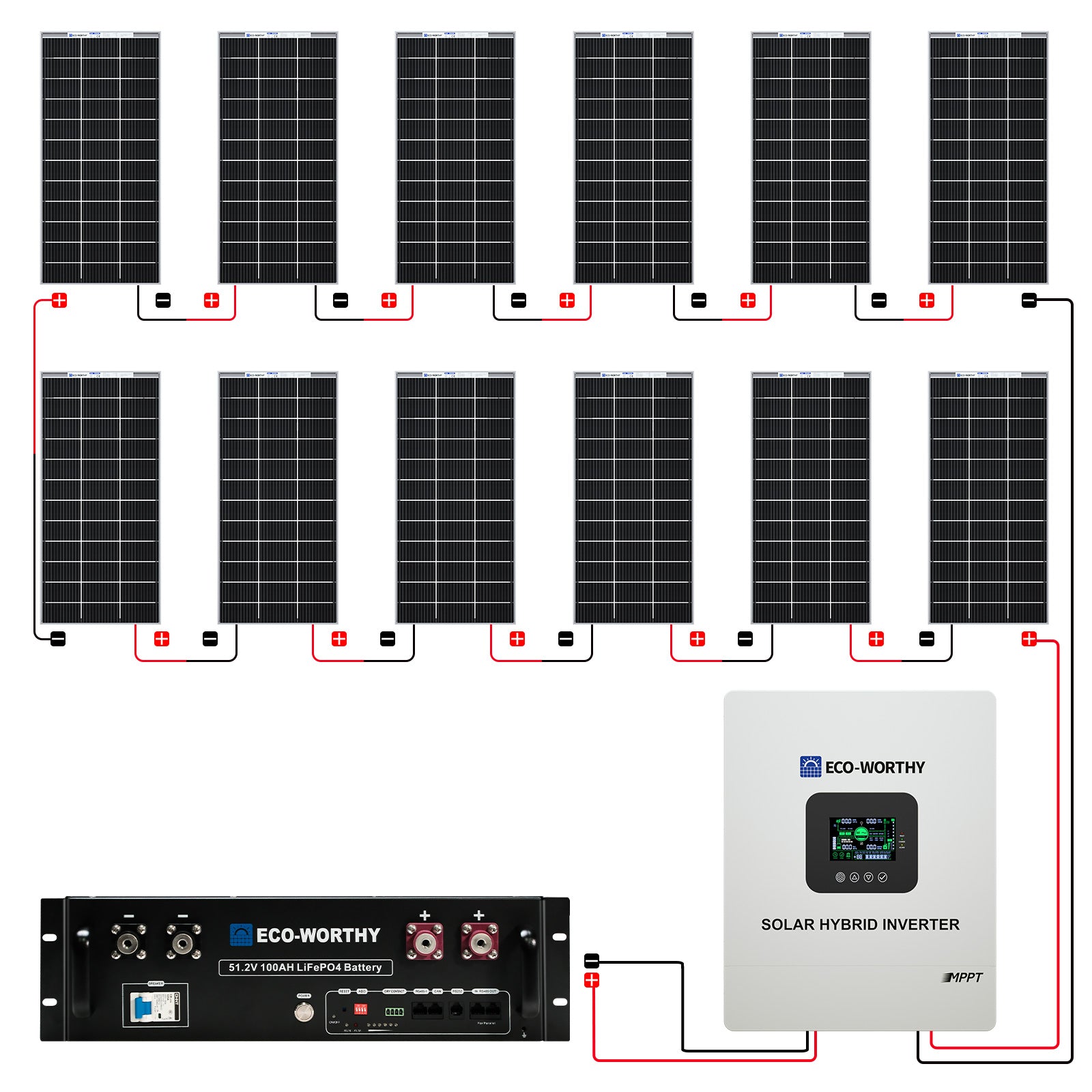

Package Includes

• 12× 195W Monocrystalline Solar Panels

• 1× 5000W 48V Off-Grid Inverter Charger

• 1× 5M 8AWG Extension Cable with MC4

• 1× 5M 12AWG Solar Cable with MC4

• 12× Z Mounting Brackets with stainless steel nuts and cap bolts

• 1× 48V 100Ah Rack LiFePO₄ Lithium Battery

• 16.4 ft (5m) 12AWG Solar Cables for panel connection

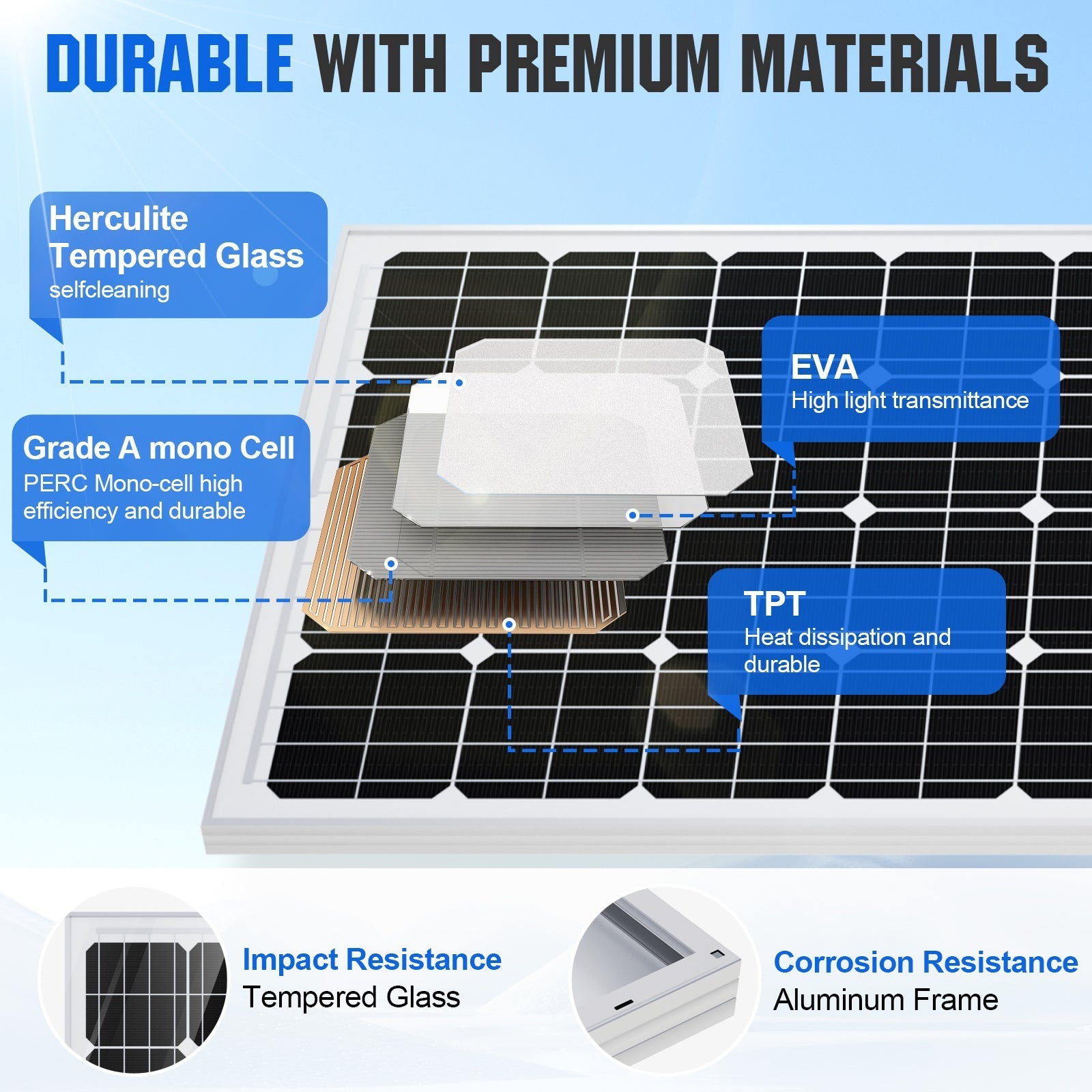

Eco-Worthy 195W Monocrystalline Solar Panel Specifications

• Rated Power: 195W

• Solar Cell Type: Monocrystalline

• Maximum Power Voltage (Vmp): 20.2V

• Open Circuit Voltage (Voc): 24.5V

• Short Circuit Current (Isc): 10.14A

• Maximum Current (Imp): 9.65A

• Output Tolerance: ±3%

• Temperature Coefficient of Isc: 0.10 ±0.01%/°C

• Temperature Coefficient of Voc: –0.38 ±0.01%/°C

• Operating Temperature Range: –40°C to +85°C

• Frame: Aluminum Alloy

• Dimensions: 52.6 × 26.38 × 1.38 in (1335 × 670 × 35 mm)

• Weight: 20.48 lbs (9.29 kg)

Eco-Worthy 5000W 48V Split-Phase Off-Grid Inverter Charger

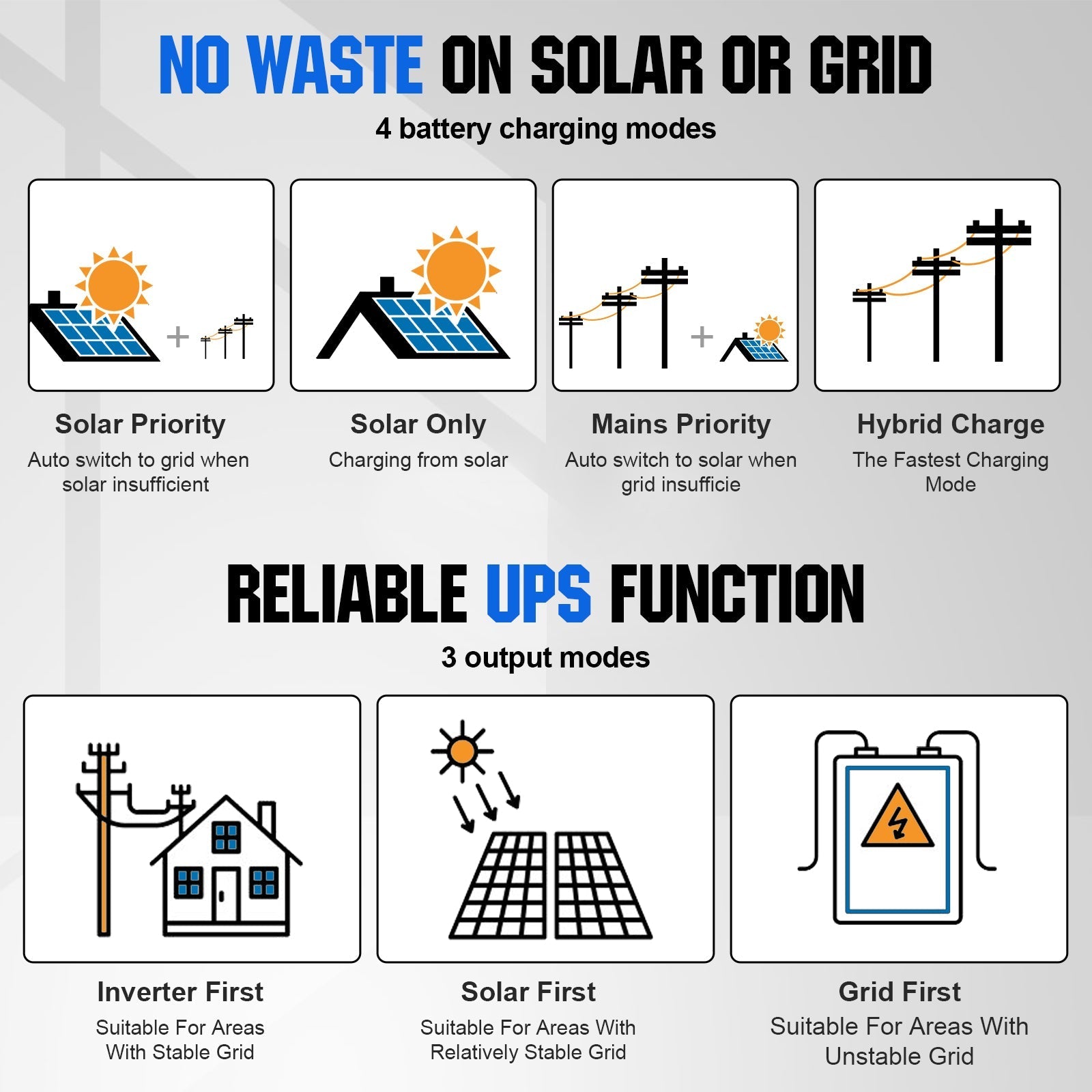

Solar Charging Mode

• PV Charging Current: 100A

• MPPT Voltage Range: 120–450VDC

• Max Solar Input Power: 5500W

• Battery Voltage Range: 40–60VDC

Inverter Mode

• Output Waveform: Pure Sine Wave

• Rated Output Power: 5000W

• Rated Output Voltage: 110V/120V AC, 50Hz/60Hz

• Rated Battery Input Voltage: 48V

• Peak Power: 10,000W

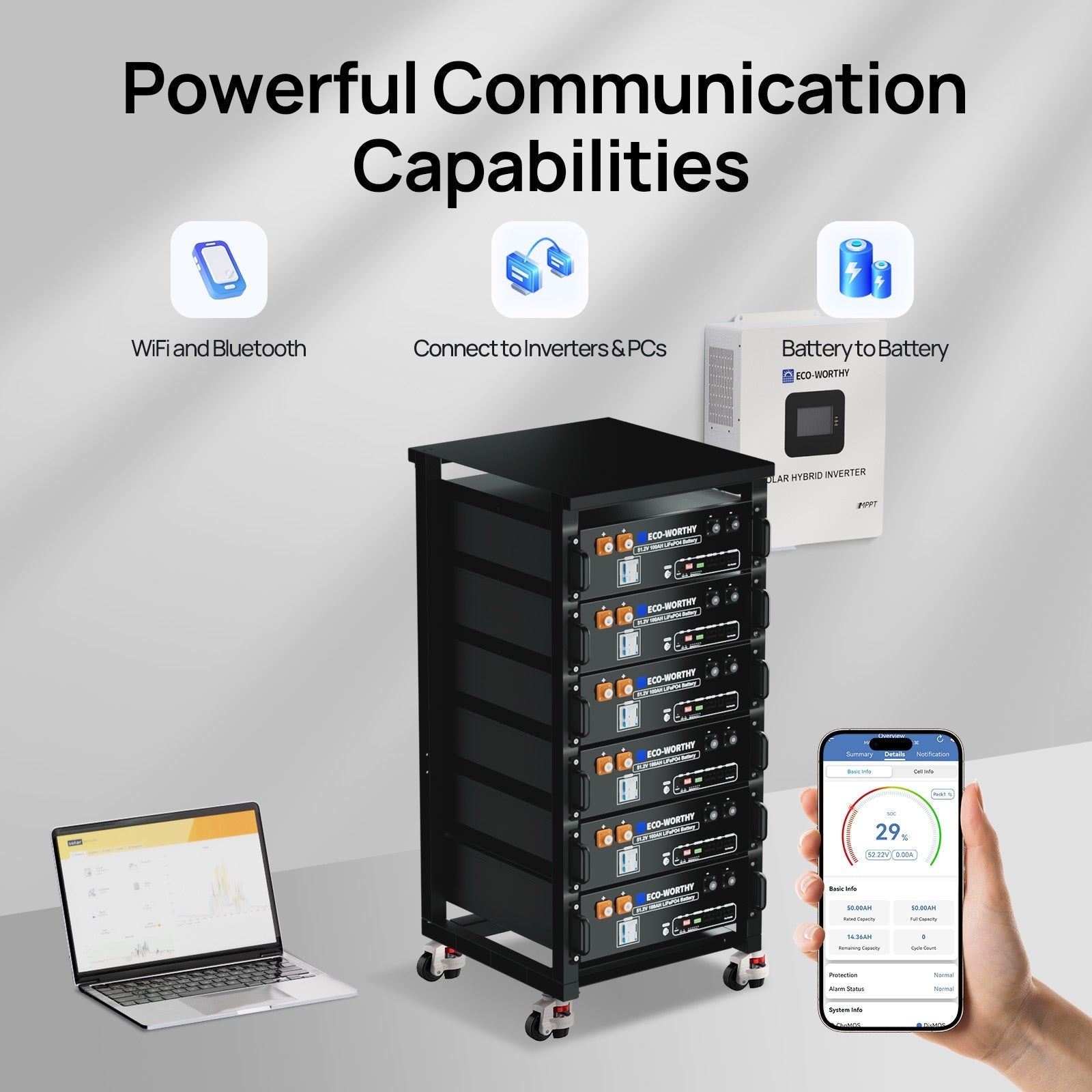

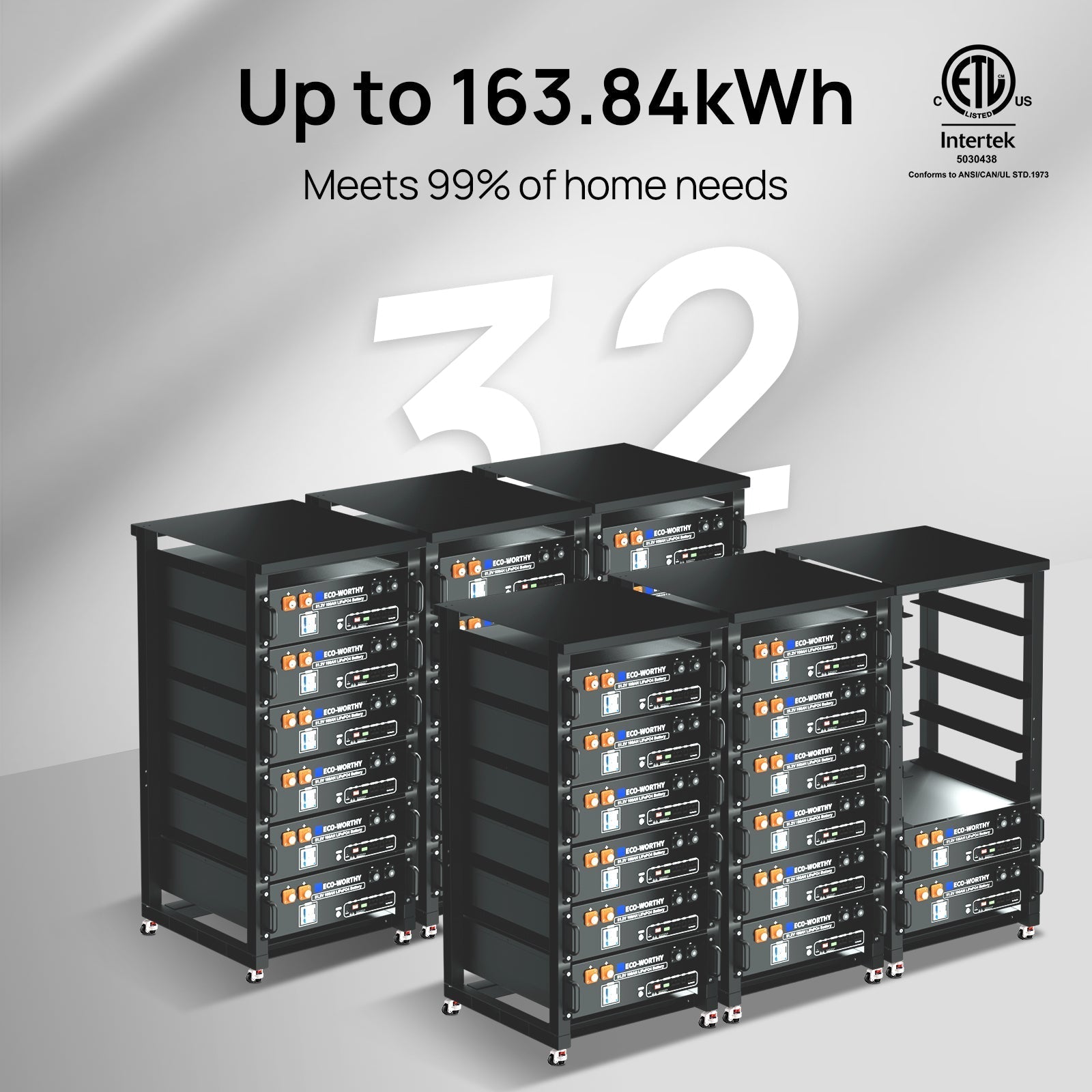

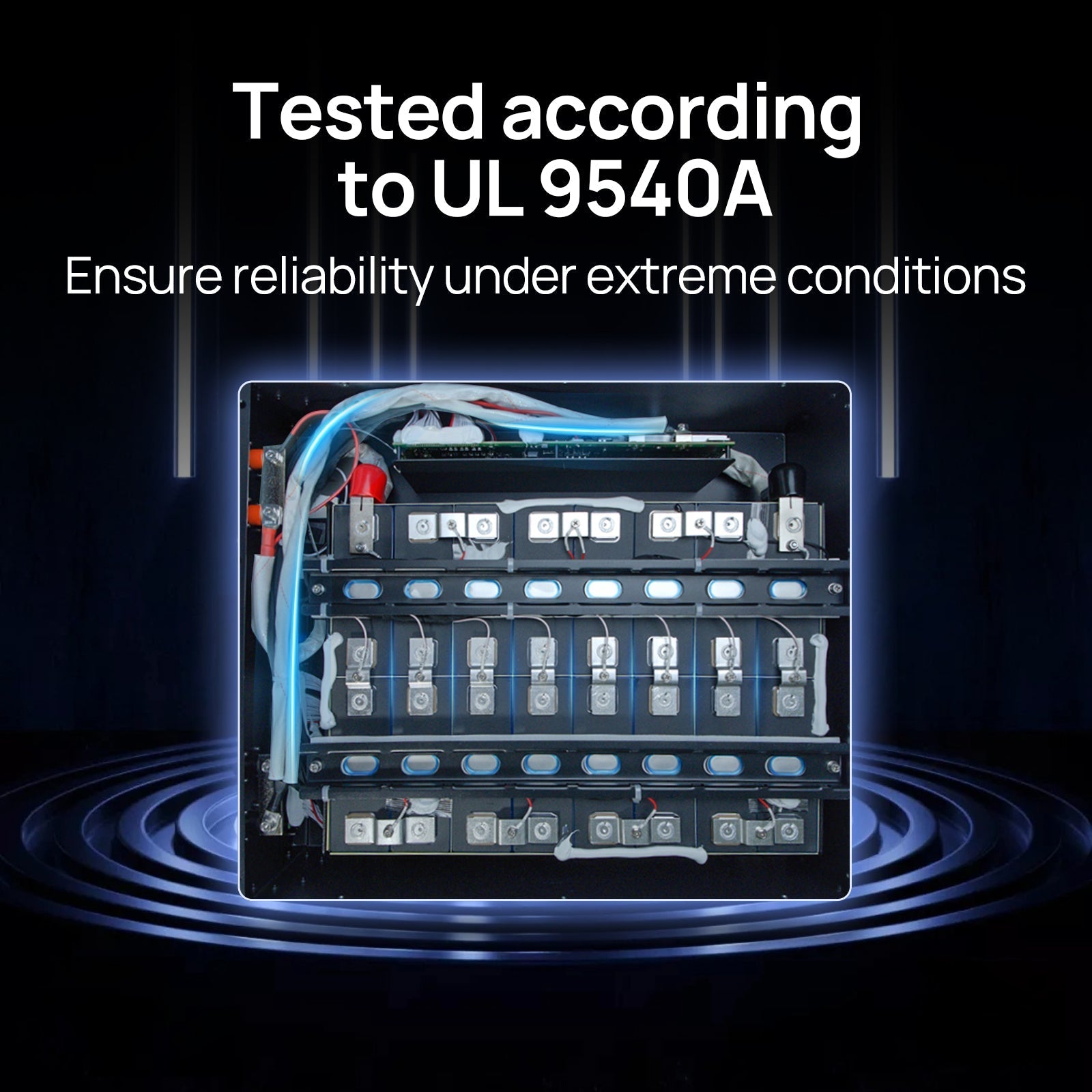

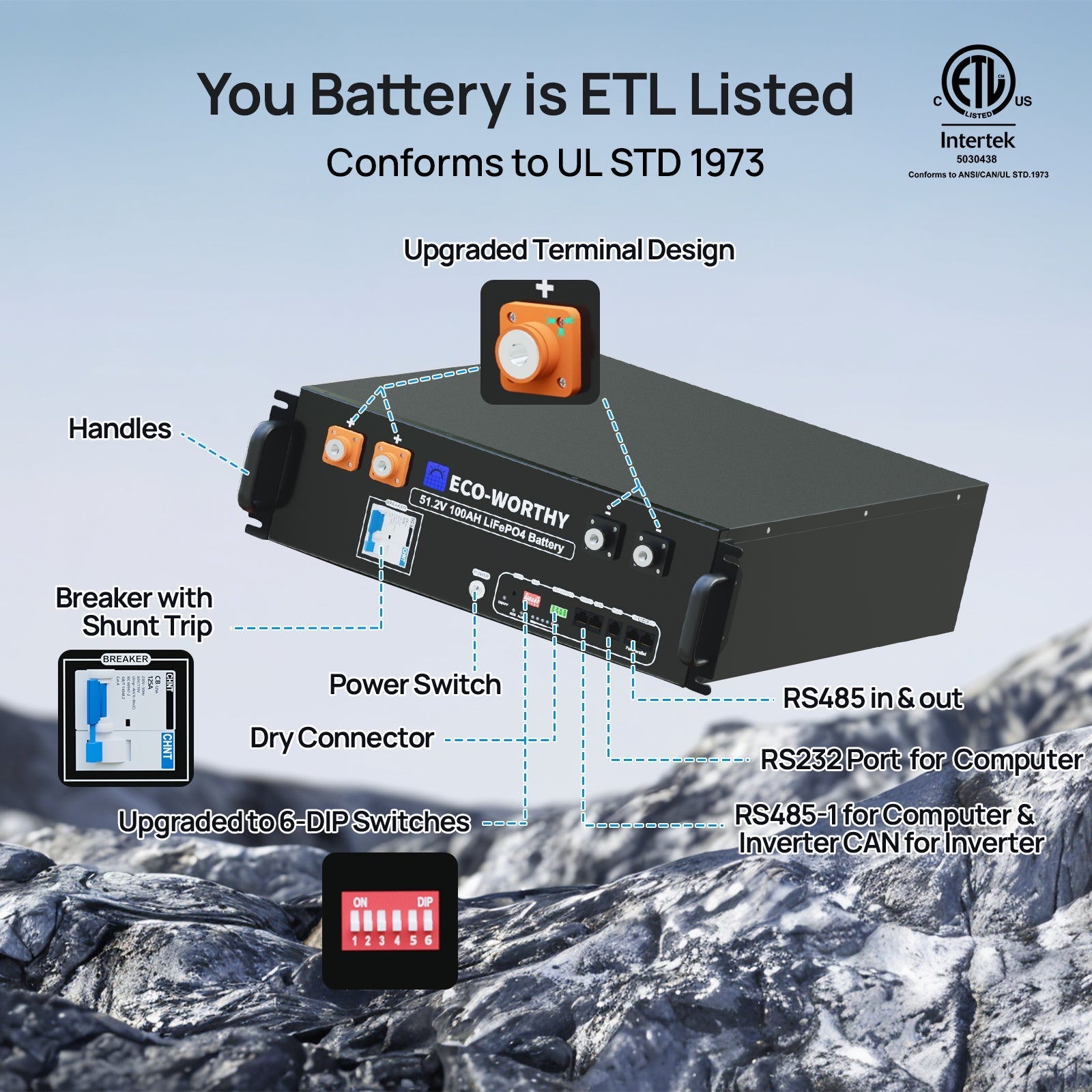

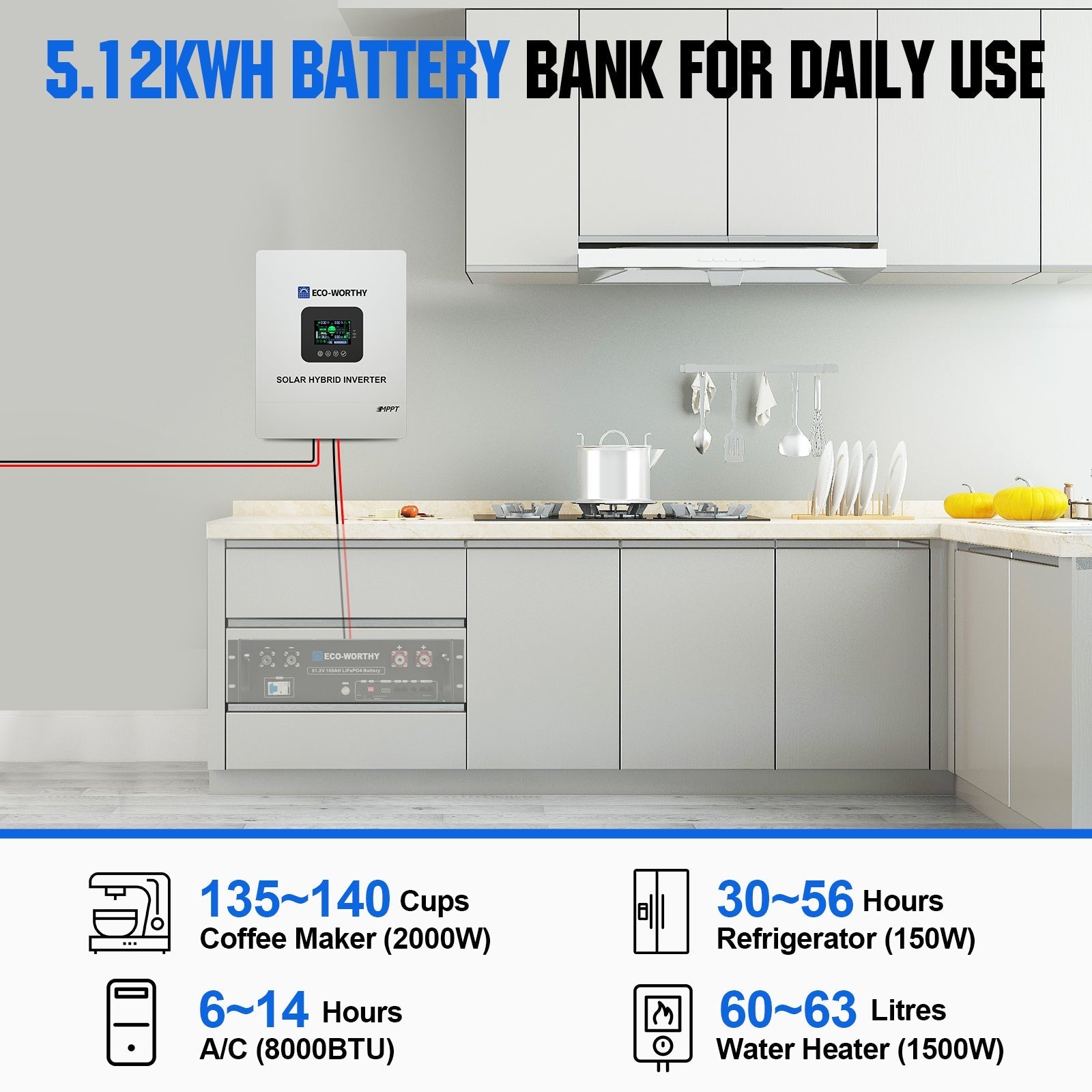

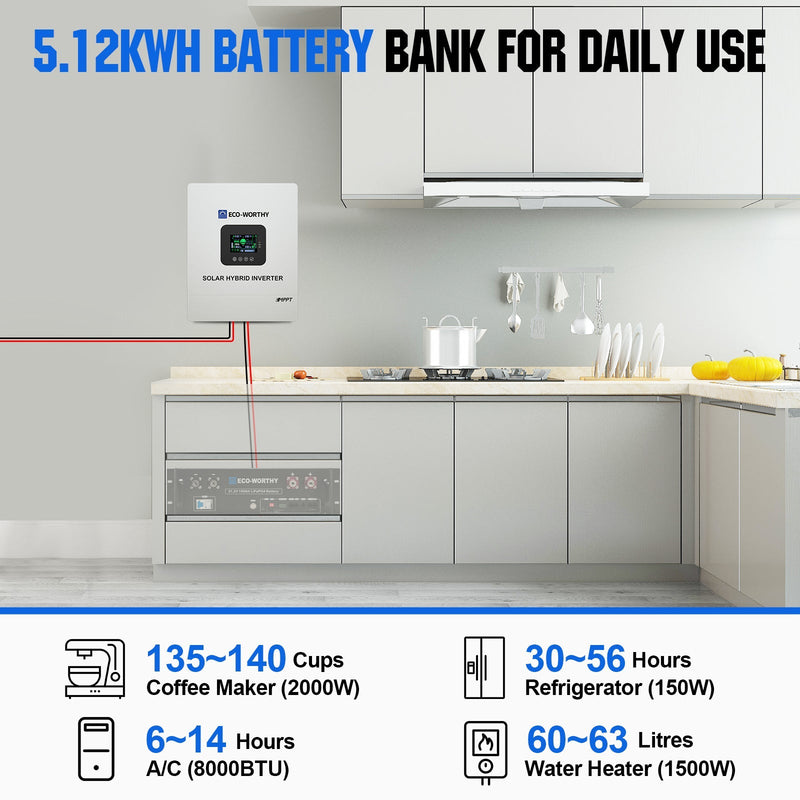

Eco-Worthy 48V 100Ah Rack LiFePO₄ Lithium Battery

• Battery Capacity: 100Ah

• Energy: 5120Wh

• Rated Voltage: 51.2V

• Voltage Range: 40–58V

• Max Charge/Discharge Current: 100A

• Max Charge Voltage: 58.4V

• Charge Temperature Range: 0–55°C

• Discharge Temperature Range: –20–55°C

• Dimensions: 22.55 × 17.13 × 5.63 in

• Weight: 97 lbs

Solar Cables & Mounting Hardware

• 16.4 ft (5m) 12AWG solar cables with MC4 connectors

• 12× Z Mounting Brackets with stainless steel nuts and cap bolts

• Tinned copper wire, IP65 waterproof, –40°F to +185°F
