ECO-WORTHY 20.48KWh/30.72KWh Home Backup Power With 48V 100Ah LiFePO4 And 10000W 48V Off-Grid Inverter (SC)

Eco-Worthy 20.48kWh / 30.72kWh Home Backup Power System | 48V 100Ah LiFePO₄ Batteries + 10kW Off-Grid Inverter

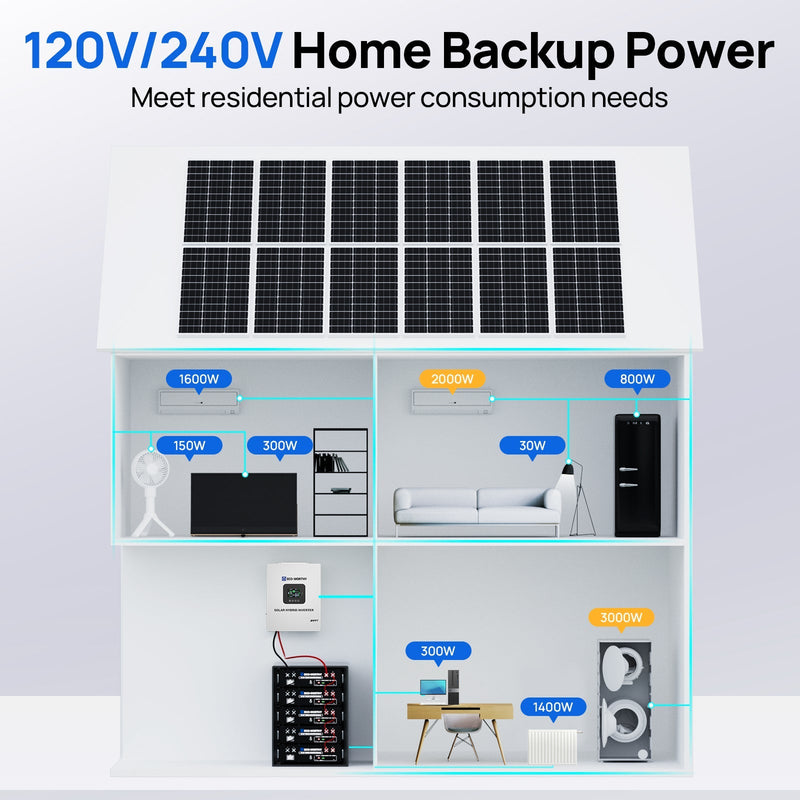

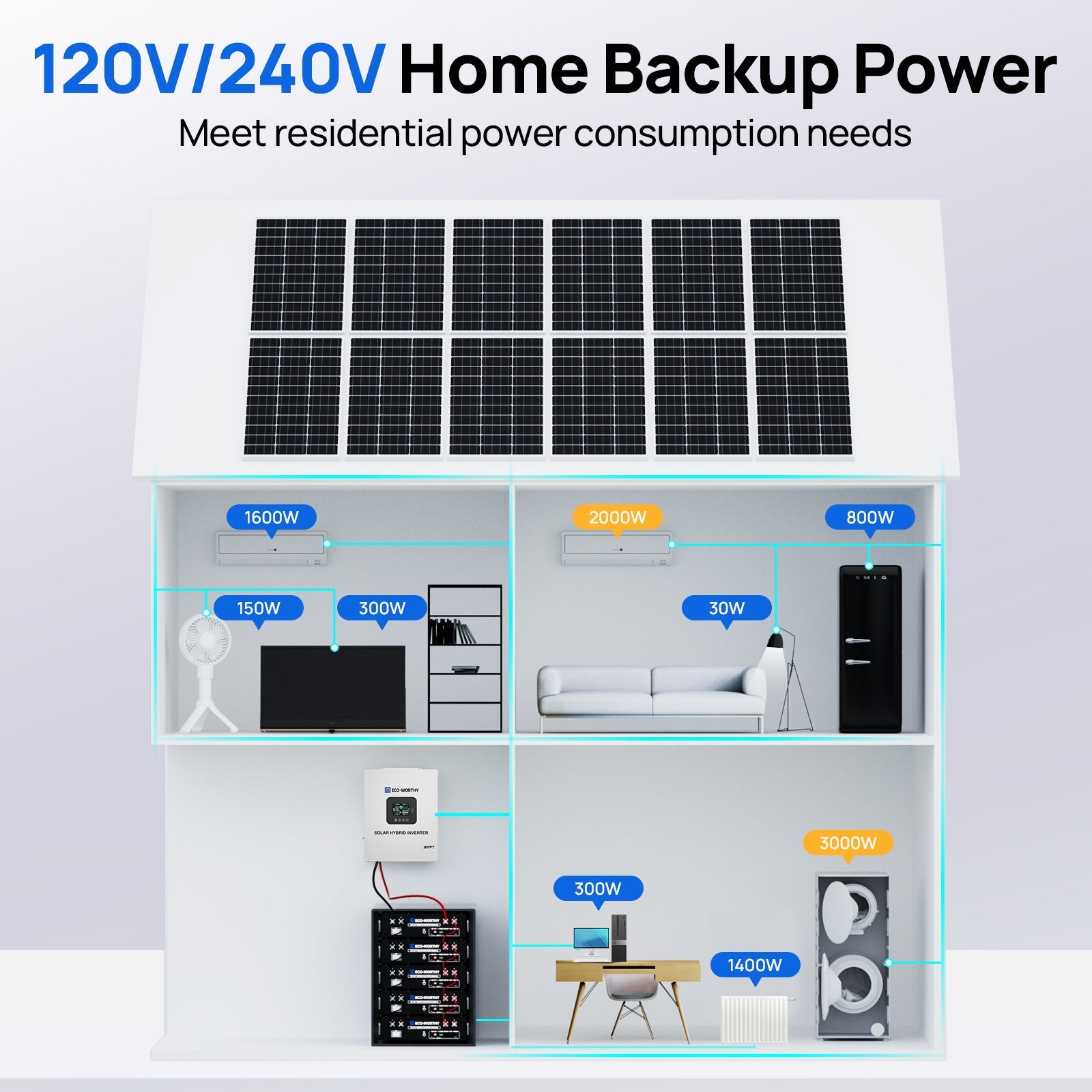

The Eco-Worthy Home Backup Power System is a high-capacity, all-in-one solution for off-grid homes, cabins, workshops, and emergency backup needs. Available in 20.48kWh and 30.72kWh configurations, this system combines multiple 48V 100Ah LiFePO₄ server rack batteries with 10kW 48V off-grid inverters, providing reliable, clean, and stable power for high-demand appliances, tools, and home electronics.

Engineered for efficiency and scalability, the system includes advanced MPPT solar charging, split-phase inverter output, and expandable battery racks for long-term energy storage. All required cables, connectors, and mounting accessories are included, making installation straightforward and convenient.

Package Options

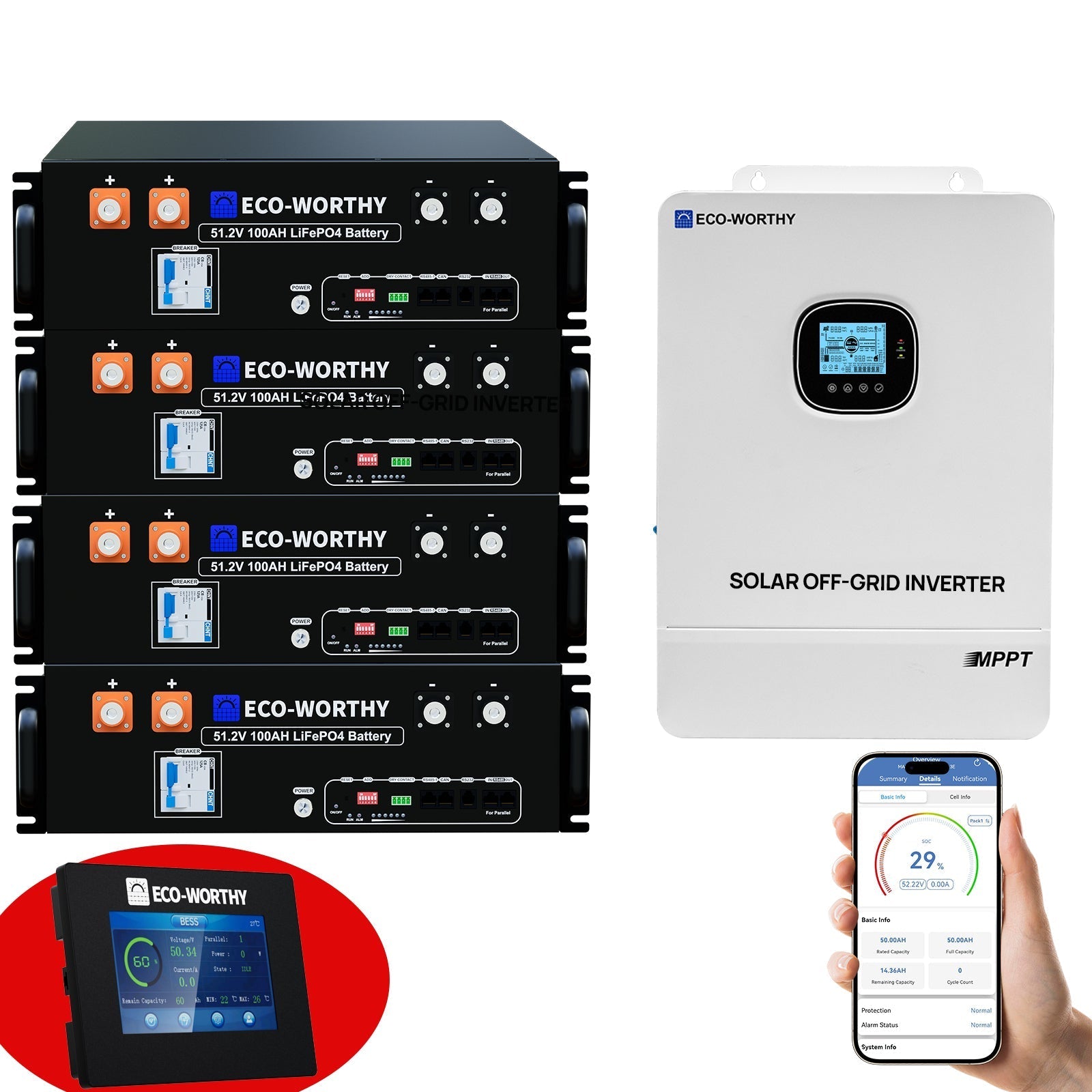

20.48kWh System – 10kW AIO Inverter

• 4× 48V 100Ah Server Rack LiFePO₄ Batteries

• 1× 10kW Off-Grid Inverter

• 1× Pair Battery-to-Inverter Connection Cable

• 4× Pairs Battery Parallel Cables

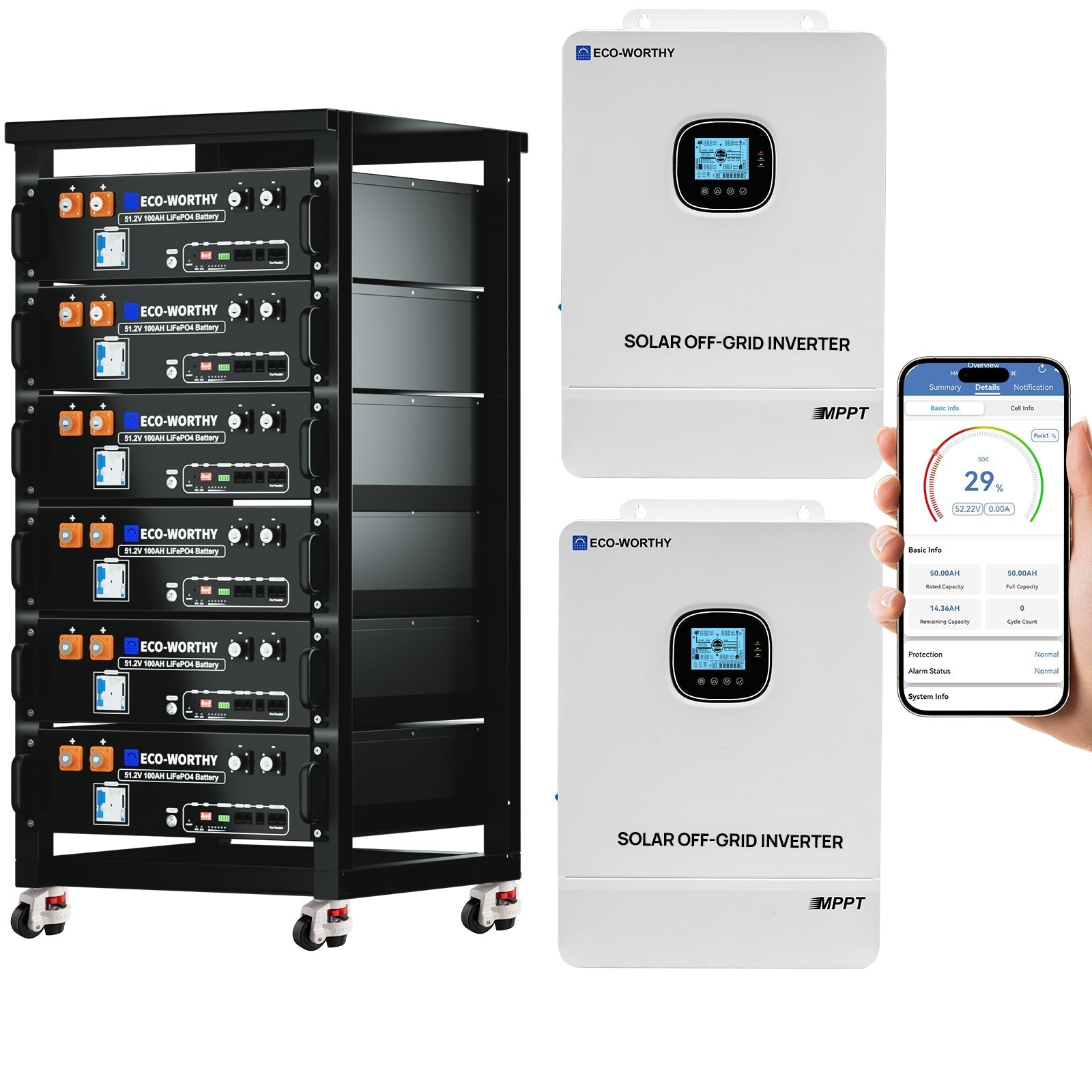

30.72kWh System – 20kW AIO Inverter

• 6× 48V 100Ah Server Rack LiFePO₄ Batteries

• 2× 10kW Off-Grid Inverters

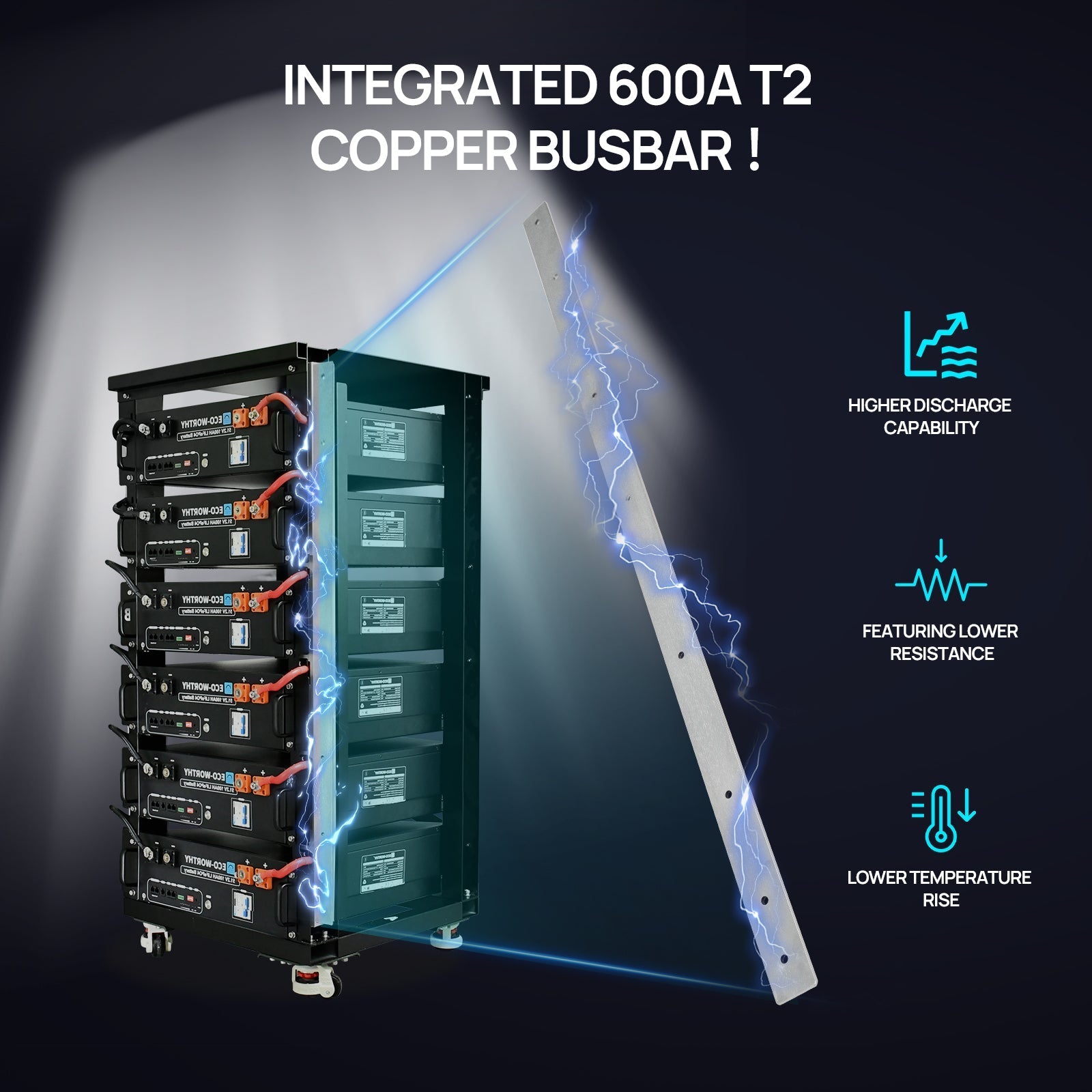

• 1× ECO-WORTHY RACK6 V2 6-Layer Rack with 600A Busbar

• 2× Pairs Battery-to-Inverter Connection Cable

• 6× Pairs Battery Parallel Cables

Special Offers: Buy 4 packs to get an ESM100 Battery Monitor, buy 6 packs to get a 6-layer battery rack.

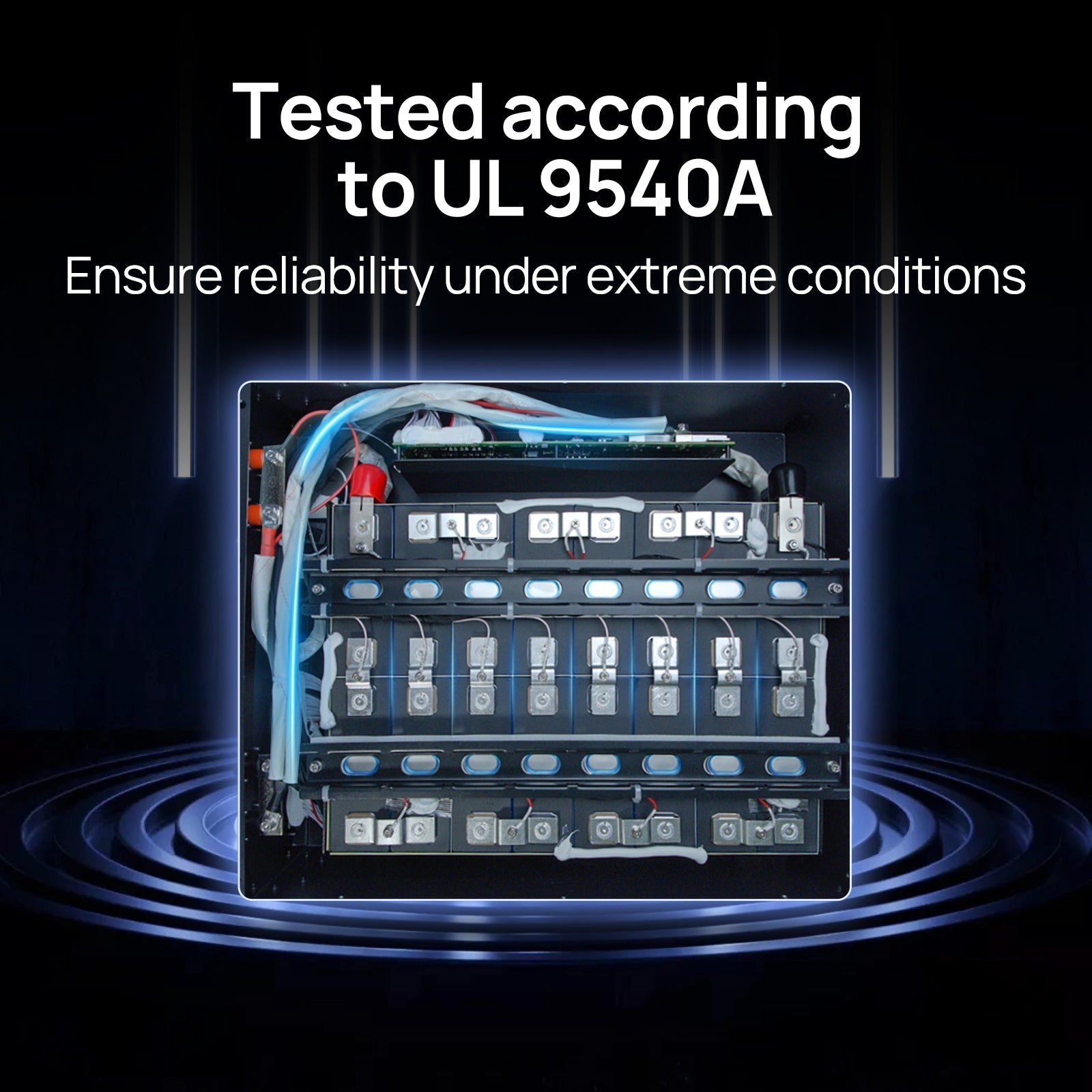

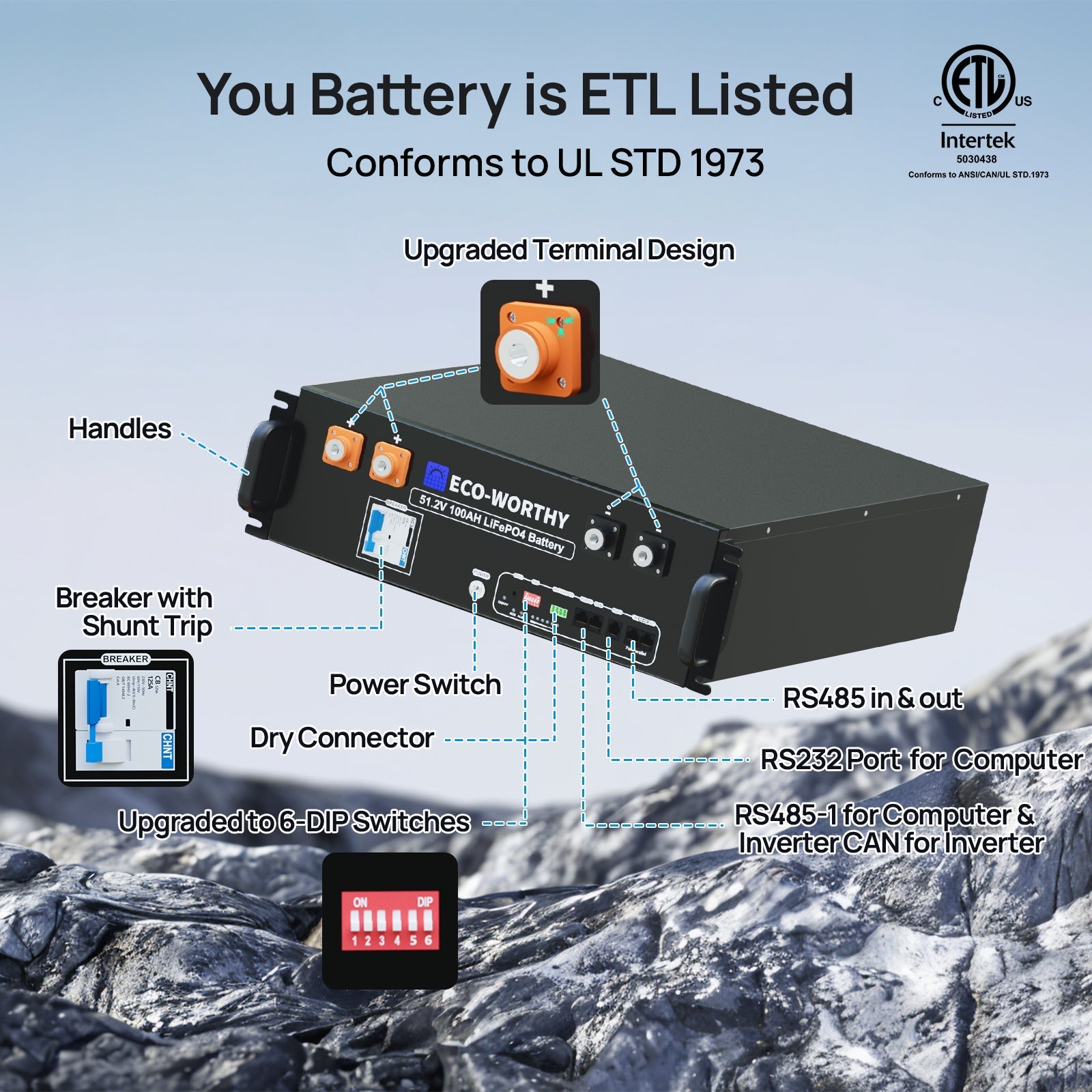

Eco-Worthy 48V 100Ah Server Rack LiFePO₄ Battery Specifications

• Battery Capacity: 100Ah

• Energy: 5120Wh

• Rated Voltage: 51.2V

• Voltage Range: 40–58V

• Max Charge/Discharge Current: 100A

• Max Charge Voltage: 58.4V

• Charge Temperature Range: 0–55°C

• Discharge Temperature Range: –20–55°C

• Screw Size: M8

• Dimensions: 22.55 × 17.13 × 5.63 in

• Weight: 97 lbs

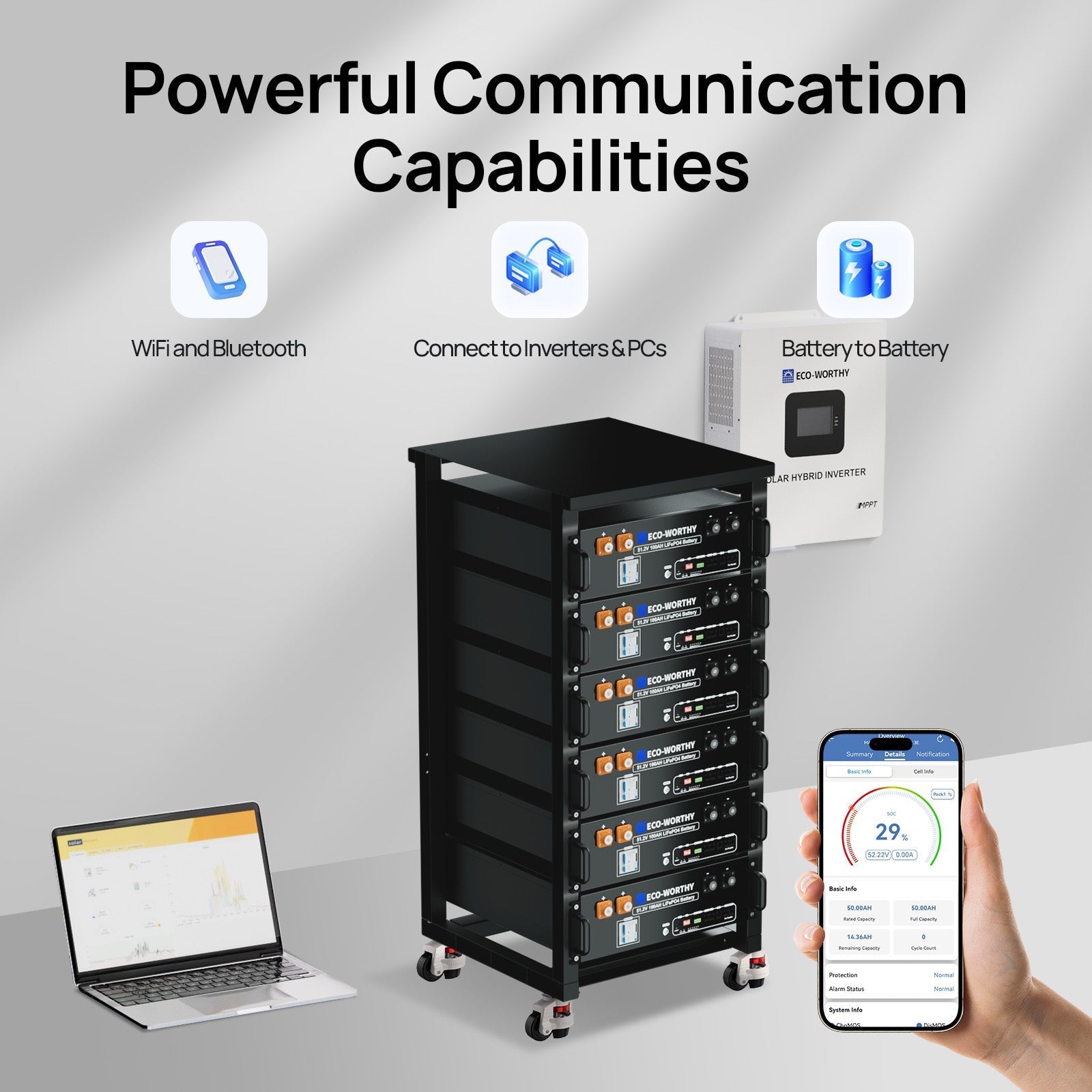

• Each battery comes with parallel cables, screws, terminal cover, grounding wire, and battery-to-battery communication cable

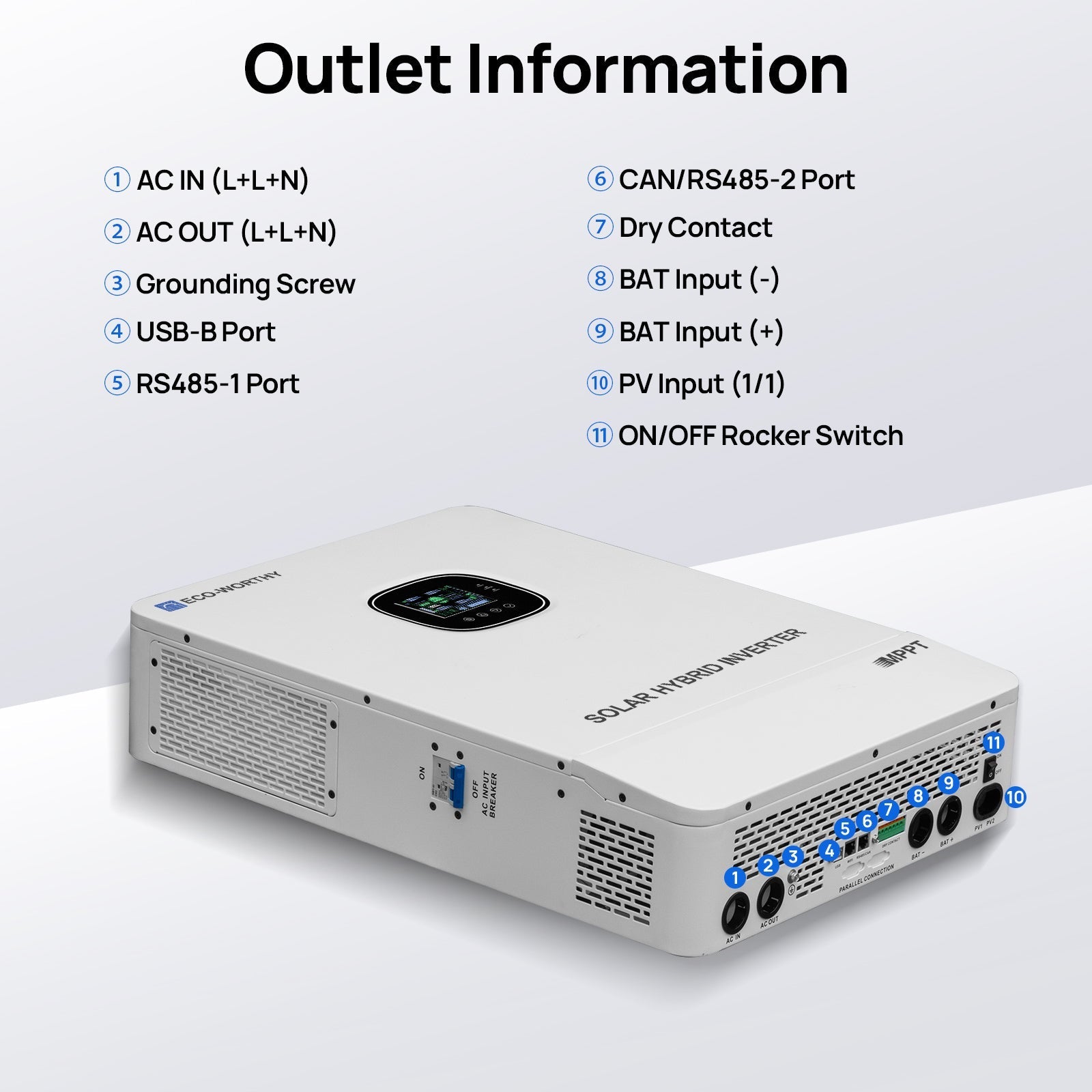

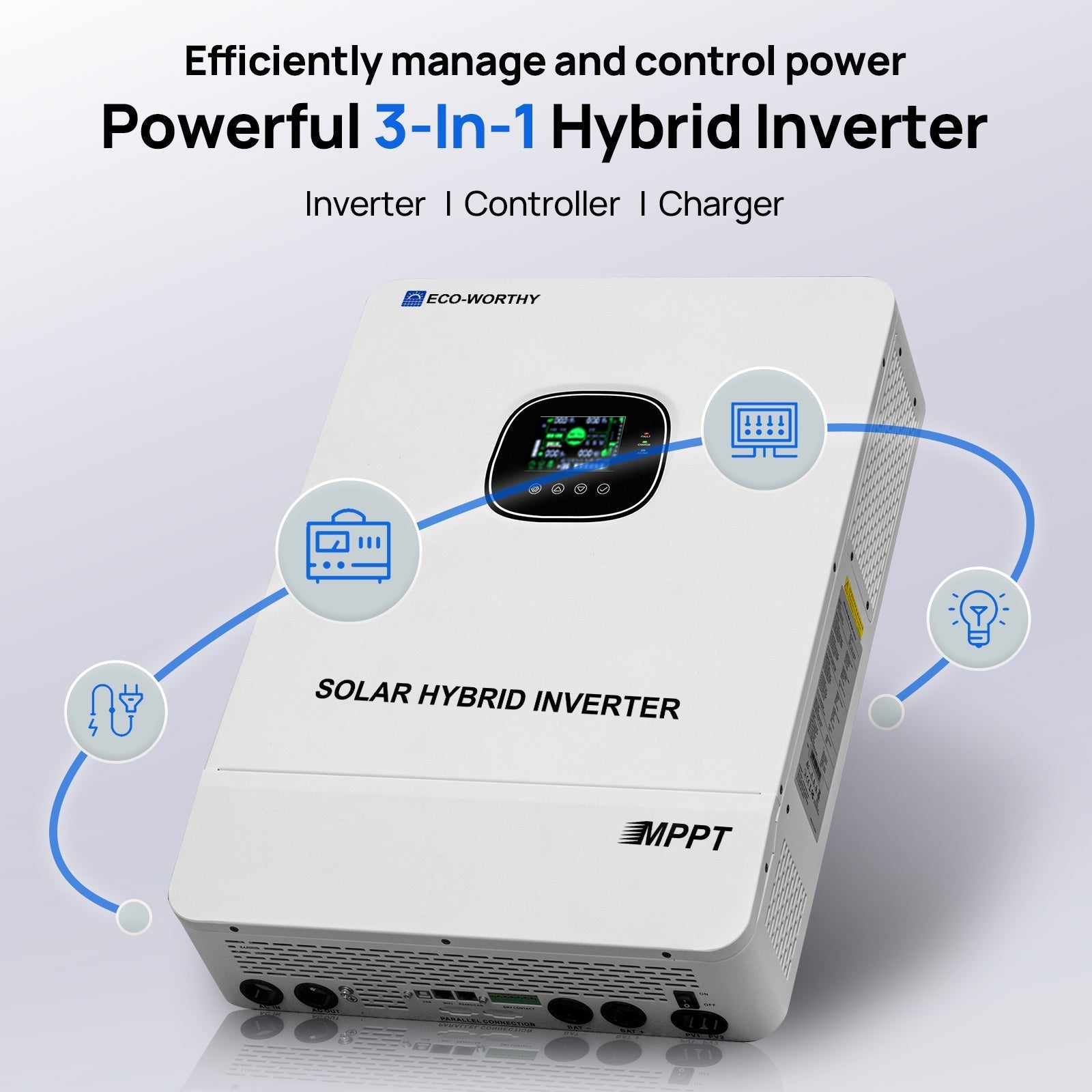

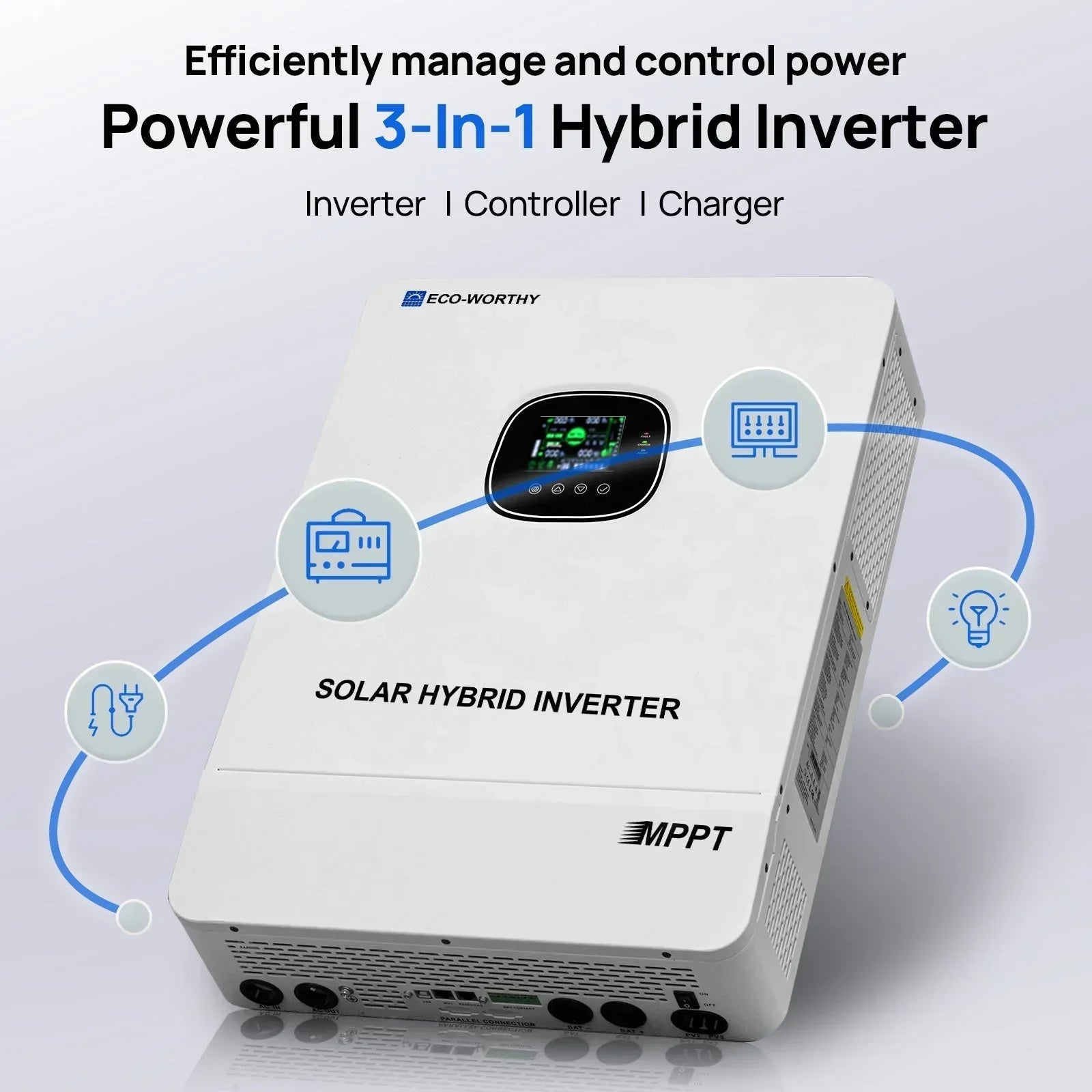

Eco-Worthy 10kW 48V Off-Grid Inverter Specifications

• Output: Split Phase L1/L2/N/PE or Single Phase

• Rated Output Power: 10,000W

• Peak Output Power: 10,000W

• Output Voltage: 120V AC (per phase)

• Output Current: 83.3A

• Frequency: 50Hz / 60Hz

• AC Input Voltage Range: 90–140V

• Max AC Charge Current: 126A

• Battery Input Voltage: 48V DC (40–60V)

• Max Battery Discharge Current: 220A

• Max Battery Charge Current: 200A

• Number of PV Circuits: 2

• PV Input Voltage Range: 100–500V DC

• MPPT Input Range: 125–425V DC

• Max PV Input Current: 22A + 22A

• Max PV Input Power: 5500W + 5500W

• Max PV Charge to Battery Current: 200A

• IP Rating: IP20

This Eco-Worthy Home Backup Power System delivers scalable, reliable, and high-capacity off-grid energy storage and power conversion for residential, commercial, and emergency applications.
