Eco-Worthy 1560W 48V (8×195W) Complete Off-Grid Solar Kit | 3.5kW Inverter + 2× 48V 50Ah Server Rack Batteries (SC)

Eco-Worthy 1560W 48V (8×195W) Complete Off-Grid Solar Kit | 3.5kW Inverter + 2× 48V 50Ah Server Rack Batteries

The Eco-Worthy 1560W 48V Complete Off-Grid Solar Kit is a fully integrated solar power solution designed for homes, cabins, workshops, and remote properties. This kit combines 8 high-efficiency 195W monocrystalline solar panels, a 3.5kW 48V All-in-One Inverter, and 2 Eco-Worthy 48V 50Ah server rack lithium batteries to deliver reliable, clean, and renewable energy for off-grid and backup power applications.

With advanced MPPT charging, pure sine wave inverter output, and modular battery storage, this kit is perfect for powering appliances, electronics, and critical loads in off-grid or emergency scenarios. All necessary cables, connectors, and components are included for quick and easy installation.

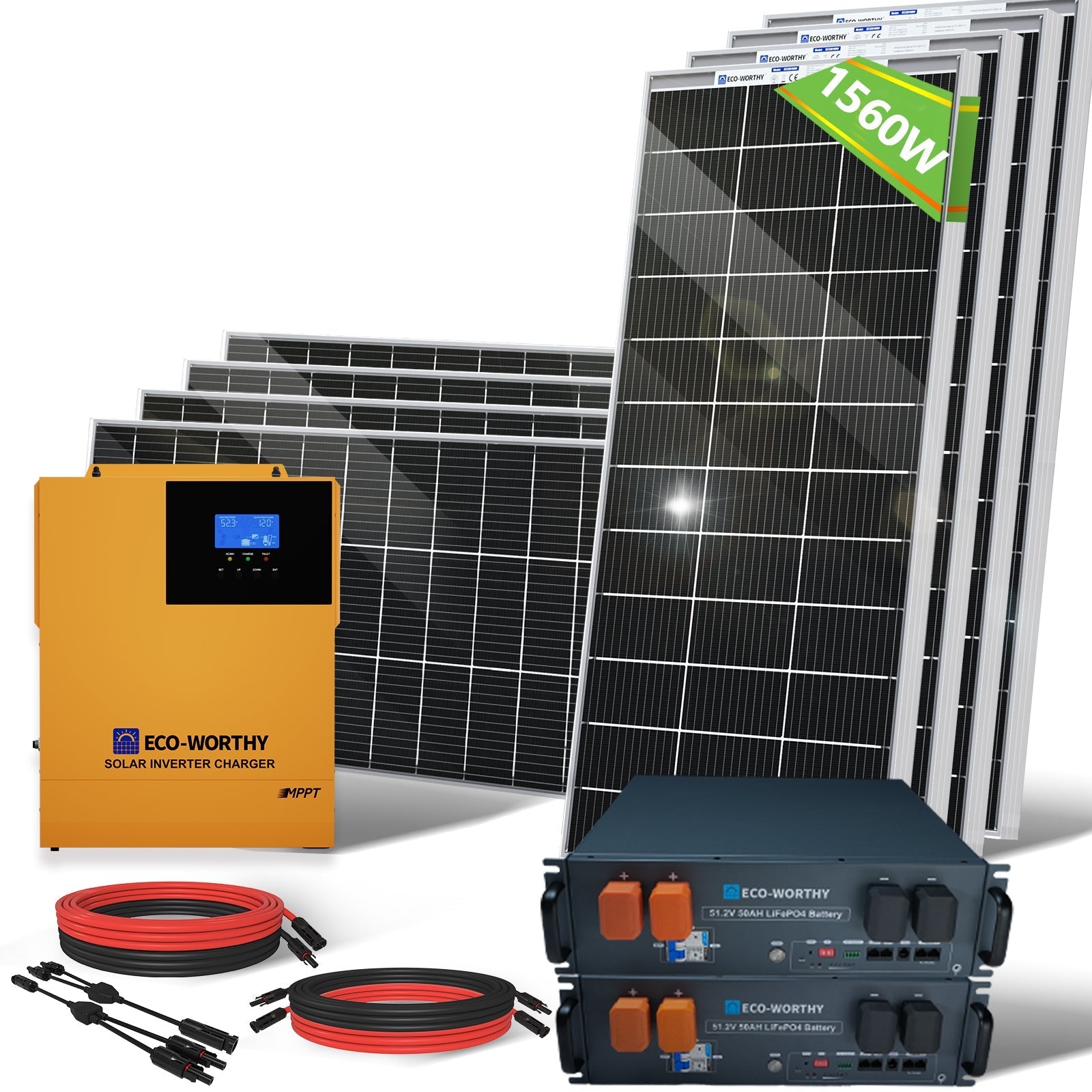

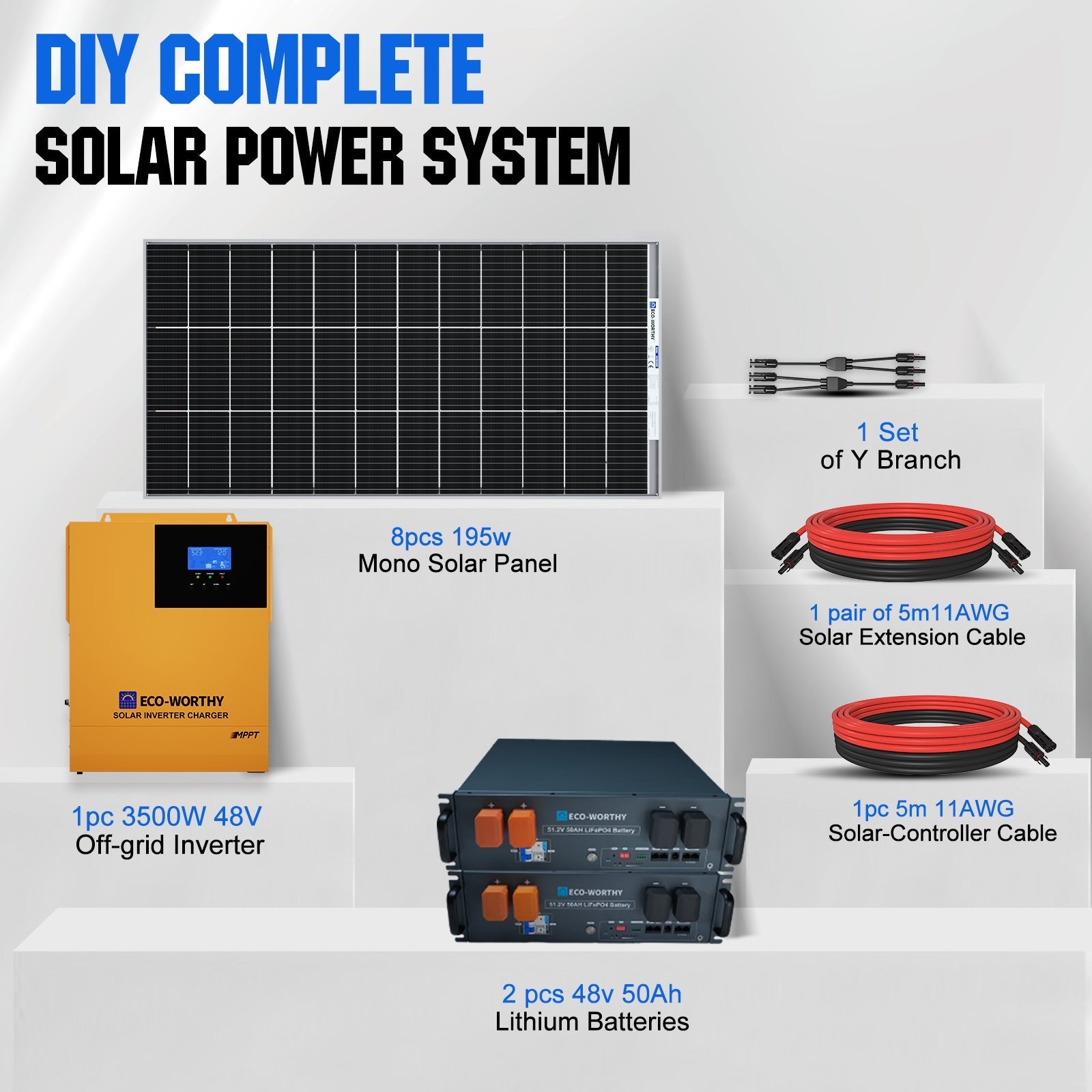

Package Includes

• 8× 195W Monocrystalline Solar Panels

• 1× 3.5kW 48V All-in-One Inverter

• 1× 5M 12AWG Extension Cable with MC4

• 1× 5M 12AWG MC4-MC4 Extension Cable

• 1× Y MC4 Connector

• 2× 48V 50Ah Server Rack Lithium Batteries

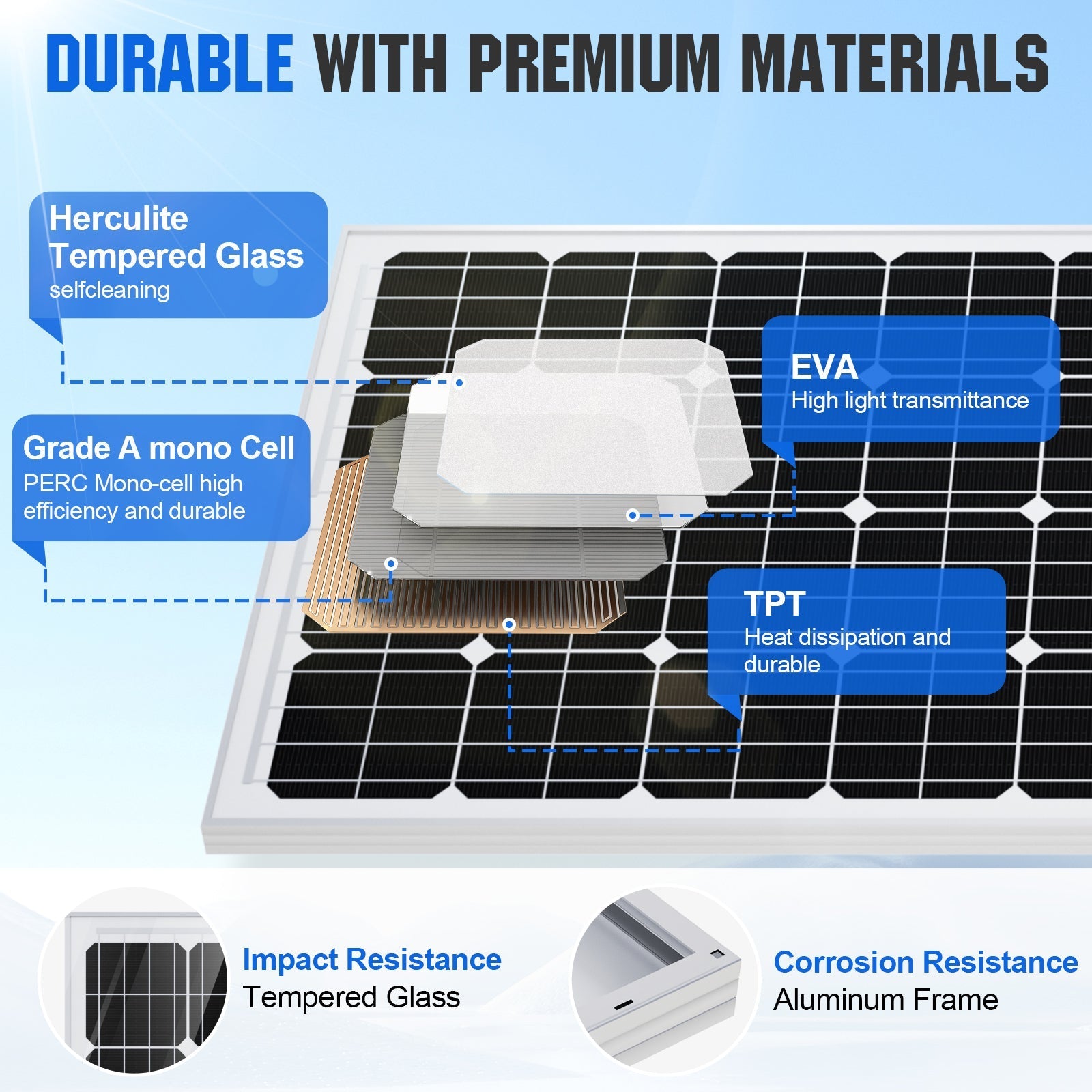

Eco-Worthy 195W Monocrystalline Solar Panel Specifications

• Rated Power: 195W

• Solar Cell Type: Monocrystalline

• Maximum Power Voltage (Vmp): 20.2V

• Open Circuit Voltage (Voc): 24.5V

• Short Circuit Current (Isc): 10.14A

• Maximum Current (Imp): 9.65A

• Output Tolerance: ±3%

• Temperature Coefficient of Isc: 0.10 ±0.01%/°C

• Temperature Coefficient of Voc: –0.38 ±0.01%/°C

• Operating Temperature Range: –40°C to +85°C

• Frame: Aluminum Alloy

• Dimensions: 52.6 × 26.38 × 1.38 in (1335 × 670 × 35 mm)

• Weight: 20.48 lbs (9.29 kg)

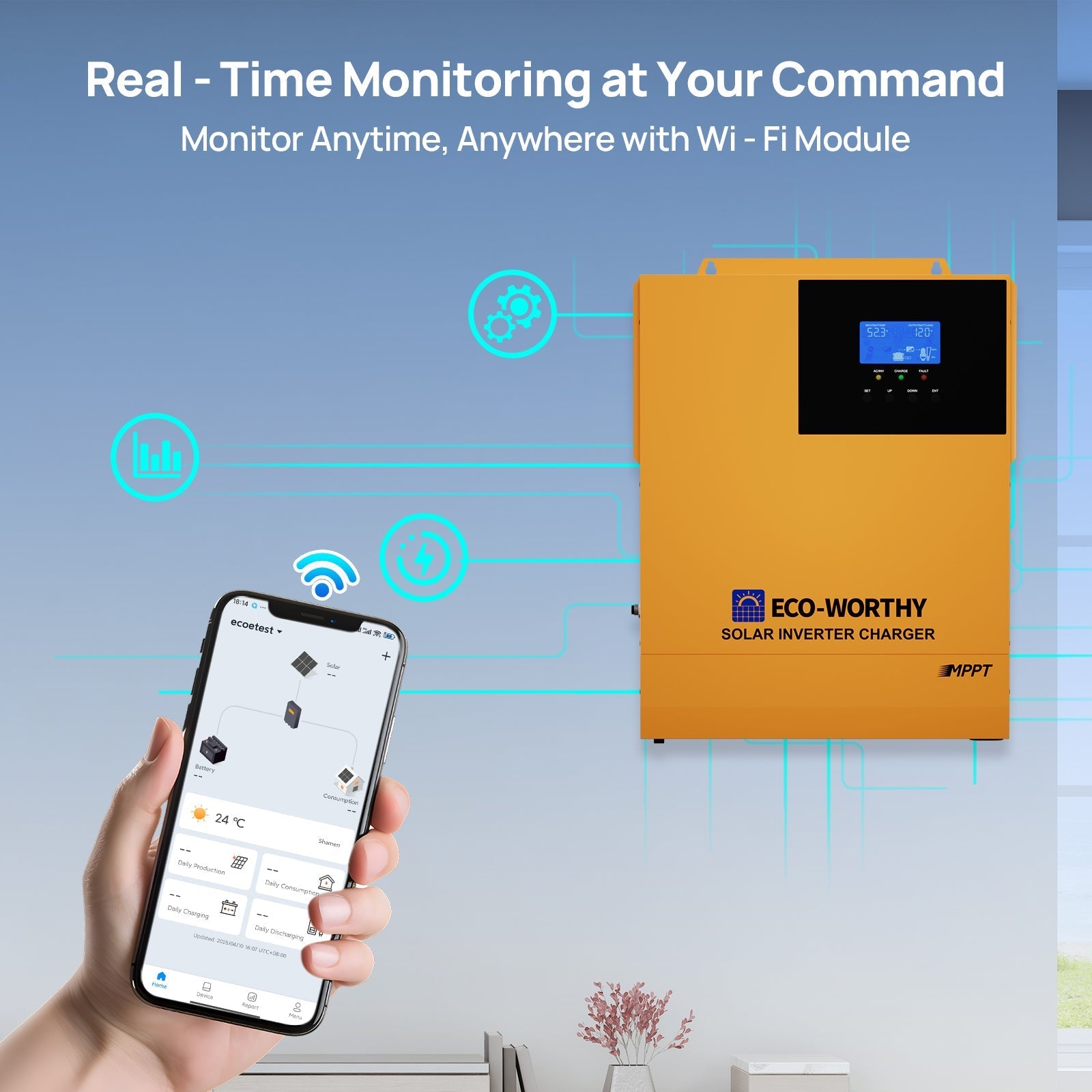

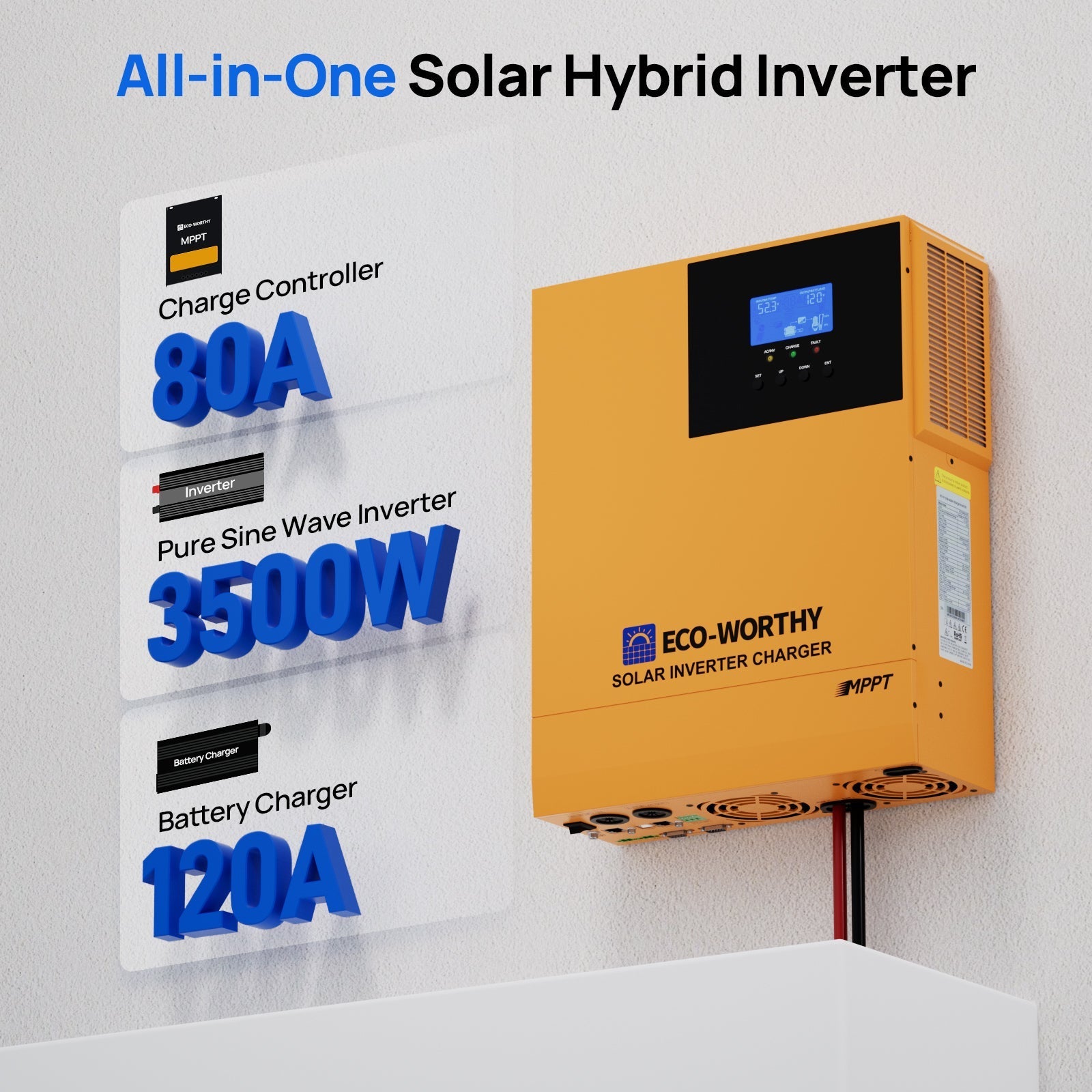

Eco-Worthy 3.5kW 48V All-in-One Inverter Specifications

AC Input Mode

• Rated Input Voltage: 110/120VAC

• Input Voltage Range: 90–140VAC

• Frequency: 50/60Hz (auto detect)

• Overload/Short Circuit Protection: Circuit breaker

• Efficiency: 92%

• AC Reverse Protection: Available

• Max Bypass Overload Current: 40A

Invert Mode

• Output Waveform: Pure Sine Wave

• Rated Output Power: 3500W

• Rated Output Voltage: 120VAC

• Peak Power: 6000W

• Bypass Breaker: 40A

• Rated Battery Input Voltage: 48V

• Min Starting Voltage: 44V

• Power Saving Mode: Load ≤50W

AC Charging Mode

• Compatible Battery Types: Lead-acid or Lithium

• Max Charge Current: 40A

• Charge Voltage Range: 40–60VDC

• Overcharge Protection: Alarm and turn off charging after 1 minute

PV Charging Mode

• Max Input Power: 5000W

• PV Charging Current Range: 0–80A (adjustable)

• Max PV Open Circuit Voltage: 500VDC

• PV Operating Voltage Range: 120–450VDC

• MPPT Voltage Range: 120–450VDC

• Battery Voltage Range: 40–60VDC

• Max Output Power: 4400W

• Short Circuit Protection: Blown fuse

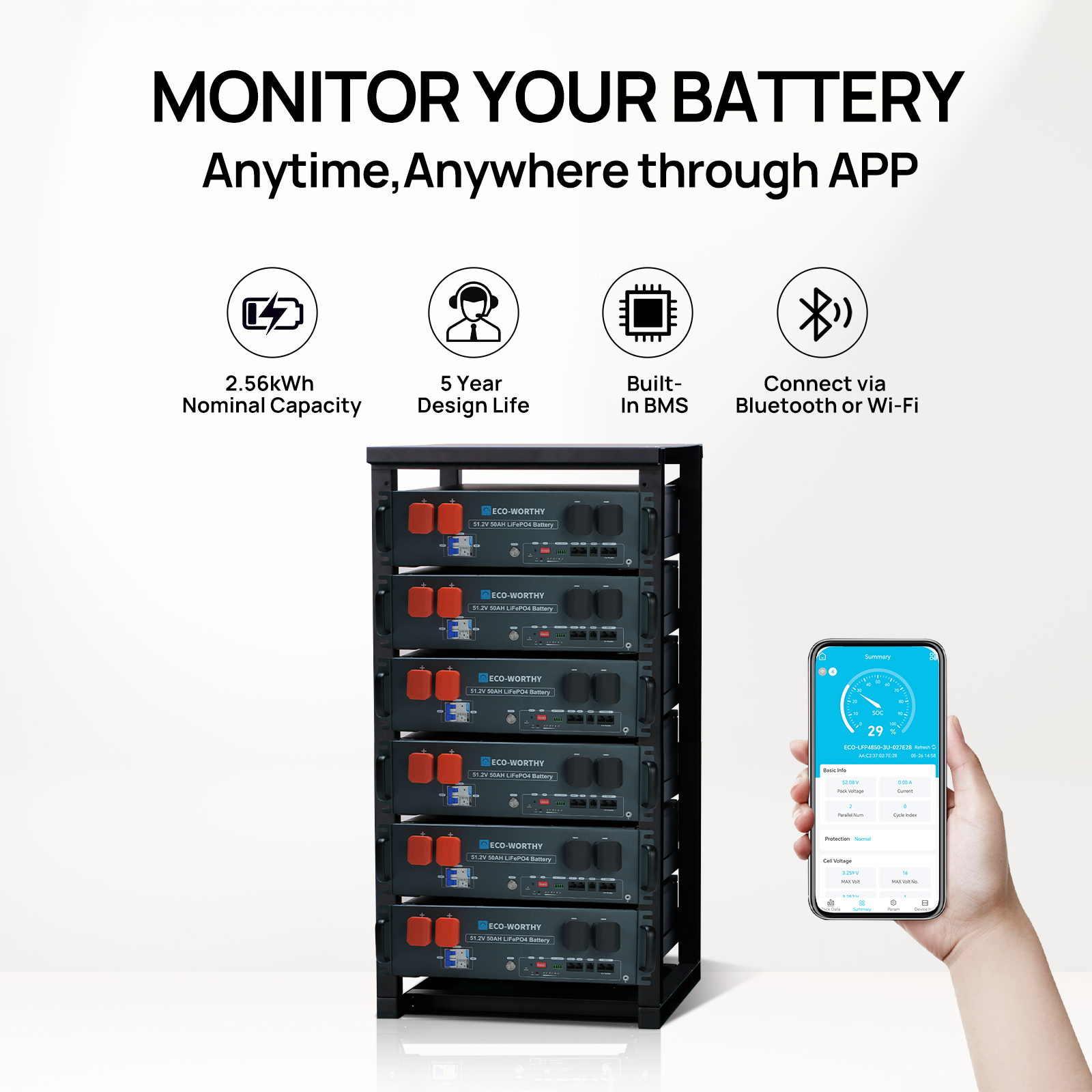

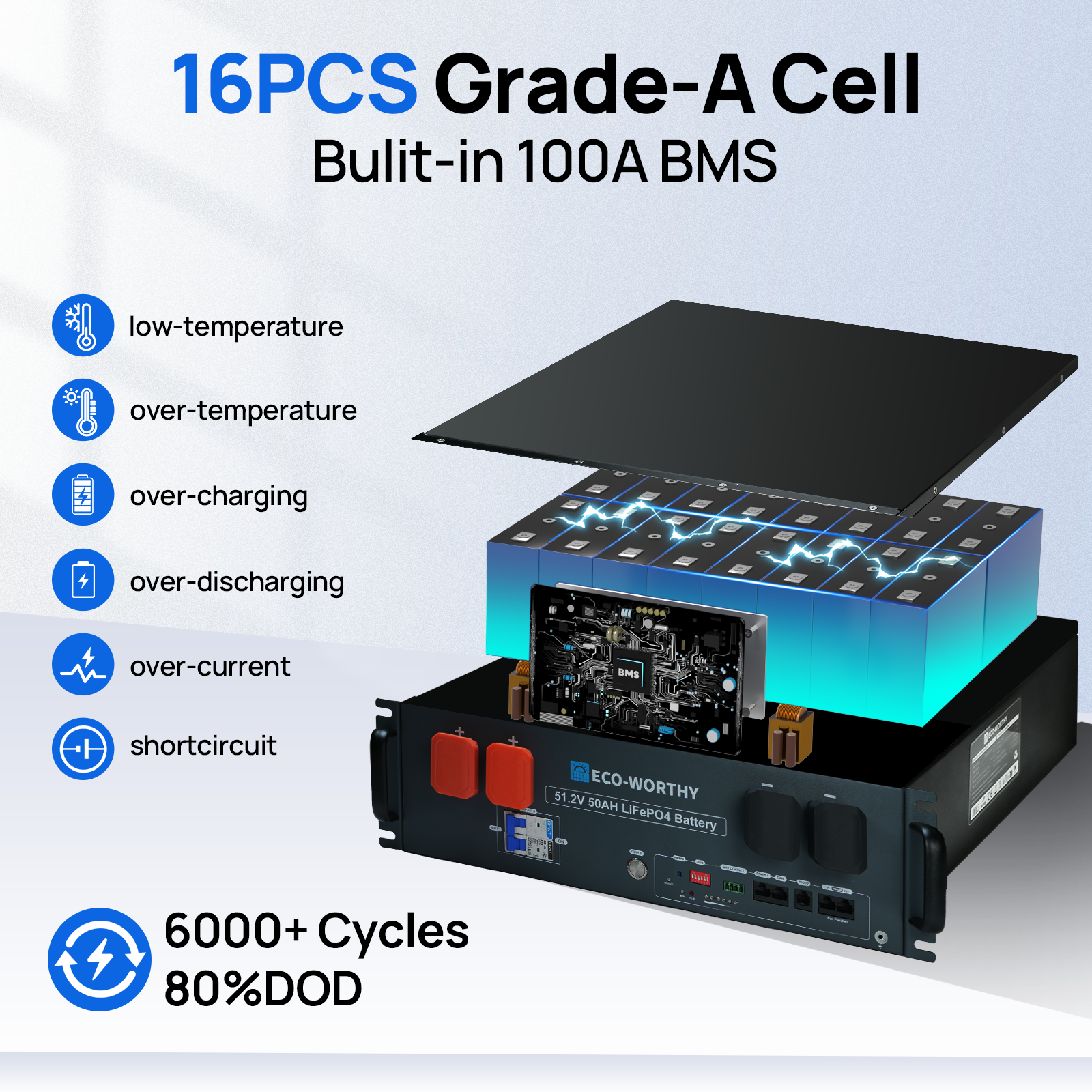

Eco-Worthy 48V 50Ah Server Rack Lithium Battery Specifications

• Battery Capacity: 50Ah

• Energy: 2560Wh

• Rated Voltage: 51.2V

• Voltage Range: 40–58.4V

• Max Charge/Discharge Current: 50A

• Max Charge Voltage: 58.4V

• Charge Temperature Range: 0–55°C

• Discharge Temperature Range: –20–55°C

• Dimensions: 17.13 × 16.76 × 5.24 in

• Weight: 61.95 lbs

• Screw Size: M8

• Each battery includes a pair of parallel cables
