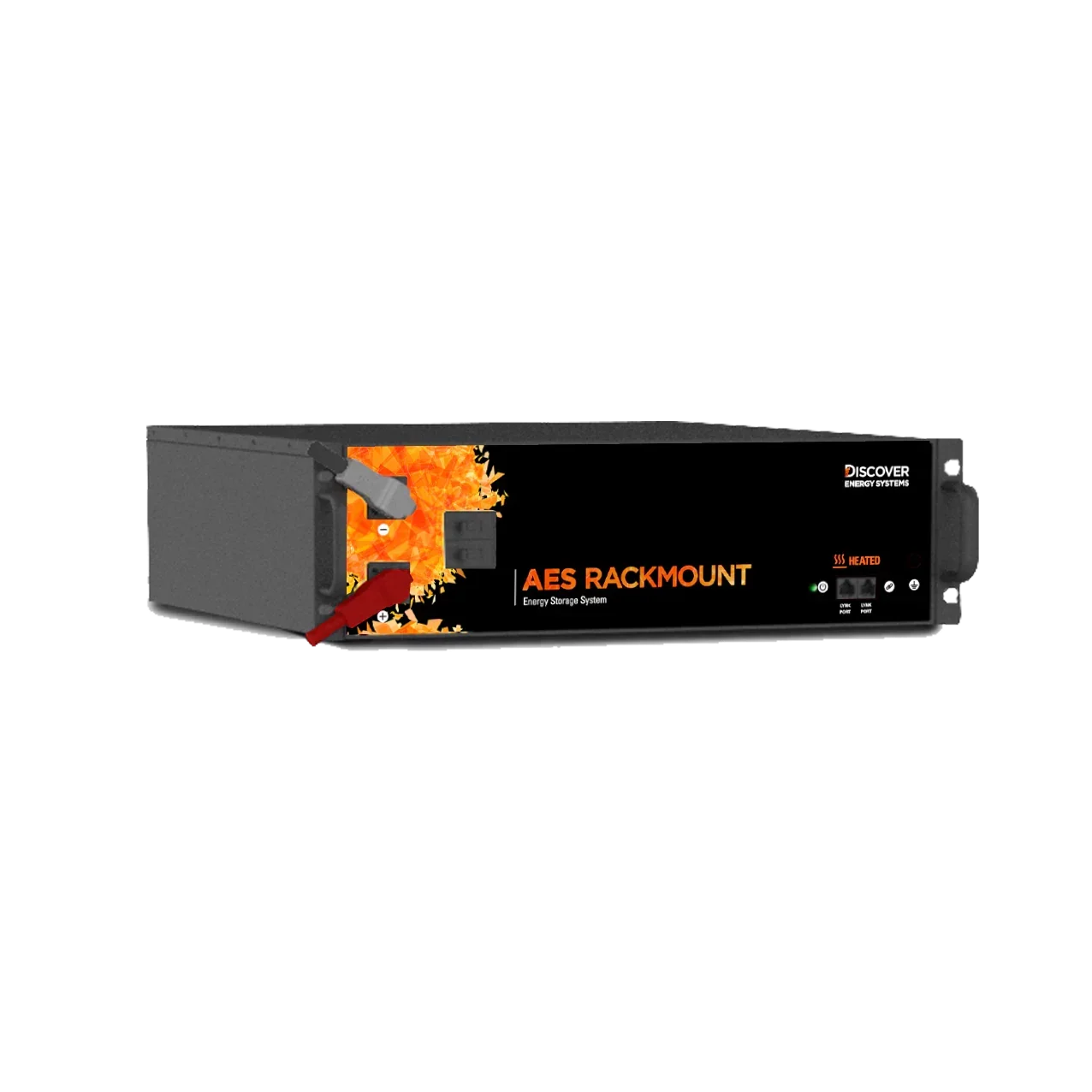

Discover ESS Battery Module 5.0 KWH 51.2V 100 AH, Heated 48-48-5120-H
Discover ESS Battery Module, 5.0 KWH, 51.2V, 100 AH, Heated, 3U 19 inch
AES RACKMOUNT is the rapid install energy storage system designed for Residential Off-Grid Solar and Whole-Home Backup Power. The battery features a high-current GEN-4 BMS that delivers superior peak power for demanding load support, 1C charge/discharge rates and self-heating allowing for cold charge functionality. Easy configuration, UL1973 and UL9540-BESS enable seamless permitting throughout North America. An industry-leading 10-year warranty and energy throughput performance guarantee delivers a strong ROI.
Features
LYNK PORT
- Connect battery string to LYNK Gateway
- Multi-battery BMS communication
- Remote ON/OFF capability
HIGH-CURRENT BMS
- High peak surge, continuous current
- Sets charge voltage, broadcasts SoC and temperature, balances cells
HEATED
- Integrated self-heating
LYNK ACCESS
- Monitor and troubleshoot
- Configure communication with charger
- Export battery data logs
- Update battery firmware
ACCESSORIES
LYNK GATEWAY
- Closed-loop charger configuration
- J1939 / CAN Open / Serial CAN
- Three programmable relays
ELEMENT ESS BATTERY COMBINER
- Fully assembled. Quick connect cables
- 19-inch rack mount
- Combine up to 6 Battery Modules
- Disconnect breaker
- System ON/OFF button
BENEFITS
RUNS LONGER
- 2x Runtime of lead-acid batteries
- Up to 100% usable capacity
LASTS LONGER
- 10x the life of lead-acid battery (BCI-06)
- 10-Year warranty and energy performance guarantee
CHARGES FASTER
- 1C max charge rate, regardless of SoC
- 2x faster than C/2 rated Lithium batteries
SURGE POWER
- Up to 2.2C peak power
- Up to 1C charge/discharge
HIGH-EFFICIENCY
- Up to 50% more energy efficient than lead-acid batteries
- Up to 98% round-trip efficiency
DYNAMIC CHARGING
- Up to 40% faster recharge from 0% to 100% SoC
- Real-time charge rate optimization
PARALLEL POWER
- Up to 160 kWh (per LYNK)
- Linear scaling of charge, discharge, peak capacity
CERTIFICATION STANDARDS
- IEC 62619
- UL 1973
- UL 9540a (pending)
- UL9540 (pending)
- CE
SHIPPING CLASSIFICATION
- UN 38.3
- UN 3480, Class 9 (Lithium batteries)
- Regular price
- $1,590.00
- Sale price
- $1,590.00
- Regular price
-
$1,999.00
