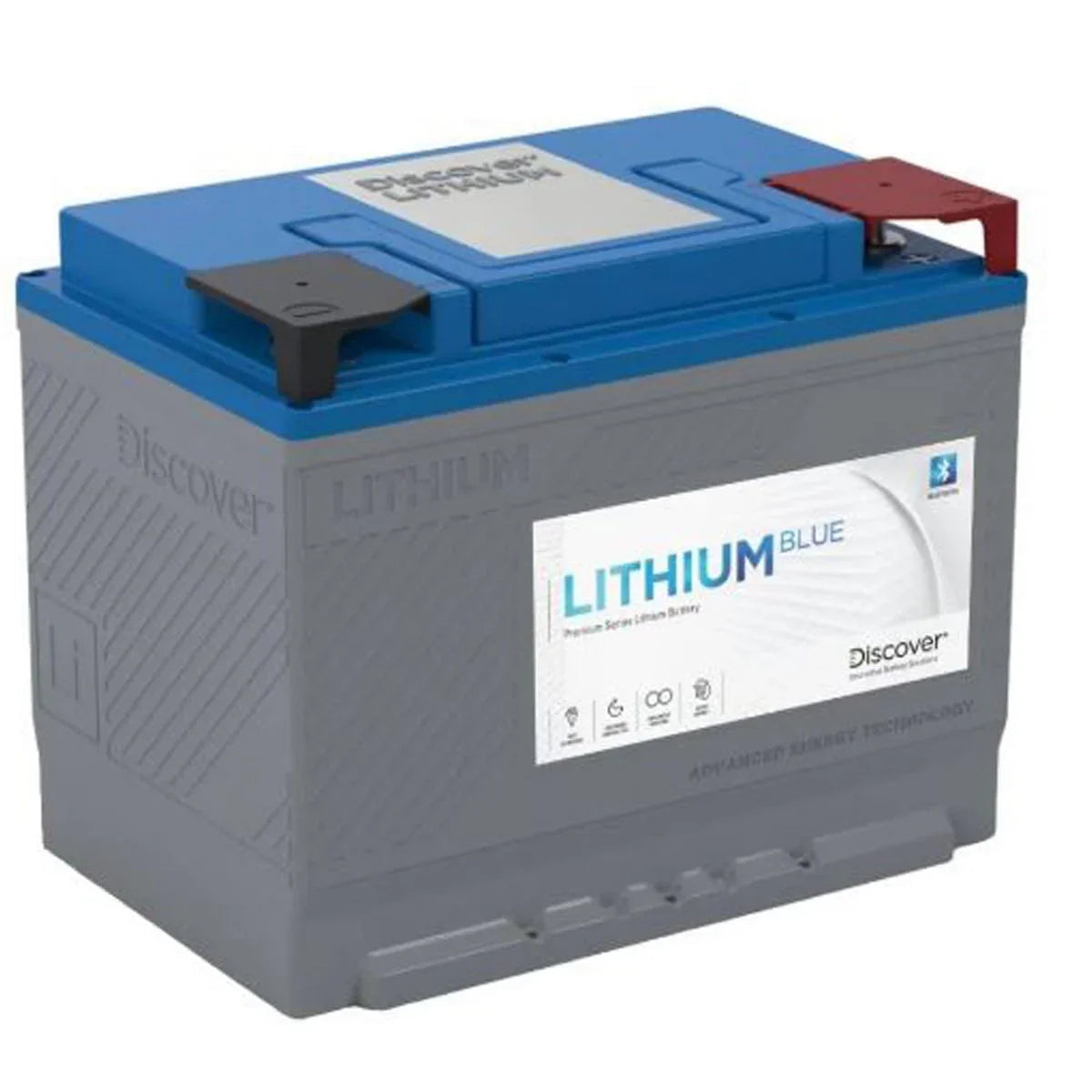

Discover DLB-G24-12V Lithium Blue 12V 100Ah Battery With BMS & Bluetooth (SC)
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
$2,160.99
Discover DLB-G24-12V Lithium Blue 12V 100Ah Battery With BMS & Bluetooth
Discover LITHIUM BLUE LiFePO4 Premium Series batteries offer BMS controlled safety, long life, lightning fast charging performance and real-time Bluetooth access to battery State of Charge, voltage, current, temperature status. LITHIUM BLUE batteries reflect Discovers Design for Excellence philosophy, incorporating suitcase style carrying handles, terminal protection and field serviceable fuses. LITHIUM BLUE batteries are safe, easily to install and parallel for more capacity.

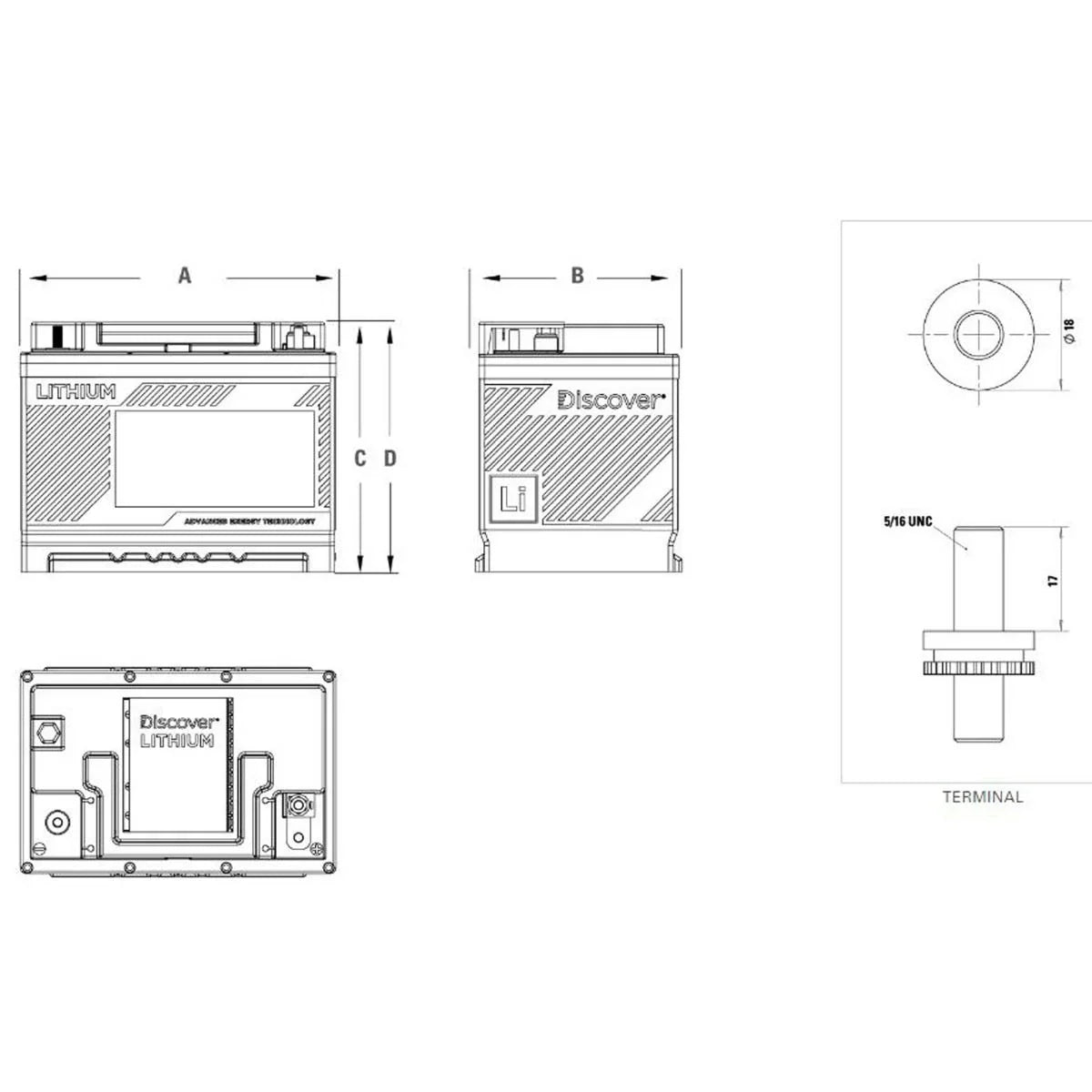

MECHANICAL SPECIFICATIONS- Industry Reference: BCI: Low G24R DIN: Tall H6 JIS: D26L
- Length A (in/mm): 10.3 262
- Width B (in/mm): 6.9 175
- Height C (in/mm): 8.3 210
- Total Height D (in/mm): 8.3 210
- Weight (lbs/kgs): 25.3 11.5
- Terminal*: ST 5/16
- Cell(s): Prismatic 4S1P
- Case Material: UL94-VO PBT/PC
- IP Rating: 67
- Electrolyte: LiFePO4
- *TERMINAL TORQUE: 8 to 10 Nm (5.9 to 7.4 ft-lb). DO NOT EXCEED 10 Nm (7.4 ft-lb)
- Open Circuit Voltage (V): 12.8
- Charge Voltage (Bulk Vdc): 13.8 - 14.2
- Max Absorption Voltage (U1 Vdc): 13.8
- Float Voltage (U2 Vdc): 13.6
- BMS Max. Voltage protection (Vdc): 14.6 (Approximately)
- Suggested Low Voltage Cutoff (Vdc) *: 12
- BMS Min. Voltage protection (Vdc): 10.0 (Approximately)
- Max. Continuous Charge Current (I Max. Adc): 100
- Min. Finishing Charge Current (I Min. Adc): 2%-3% C1 / Min. 200ma
- Max Continuous Discharge Current (Adc): 100
- Max. Peak Current (Adc): 250 A RMS (2 sec)
- Self Discharge (25°C / 77°F): < 3% per month
- Charge Temperature: Min: 0°C (32°F) | Max: 55°C (131°F)
- Discharge Temperature: Min: -20°C (-4°F) | Max: 60°C (140°F)
- Storage Temperature: Min: -10°C (14°F) | Max: 30°C (86°F)

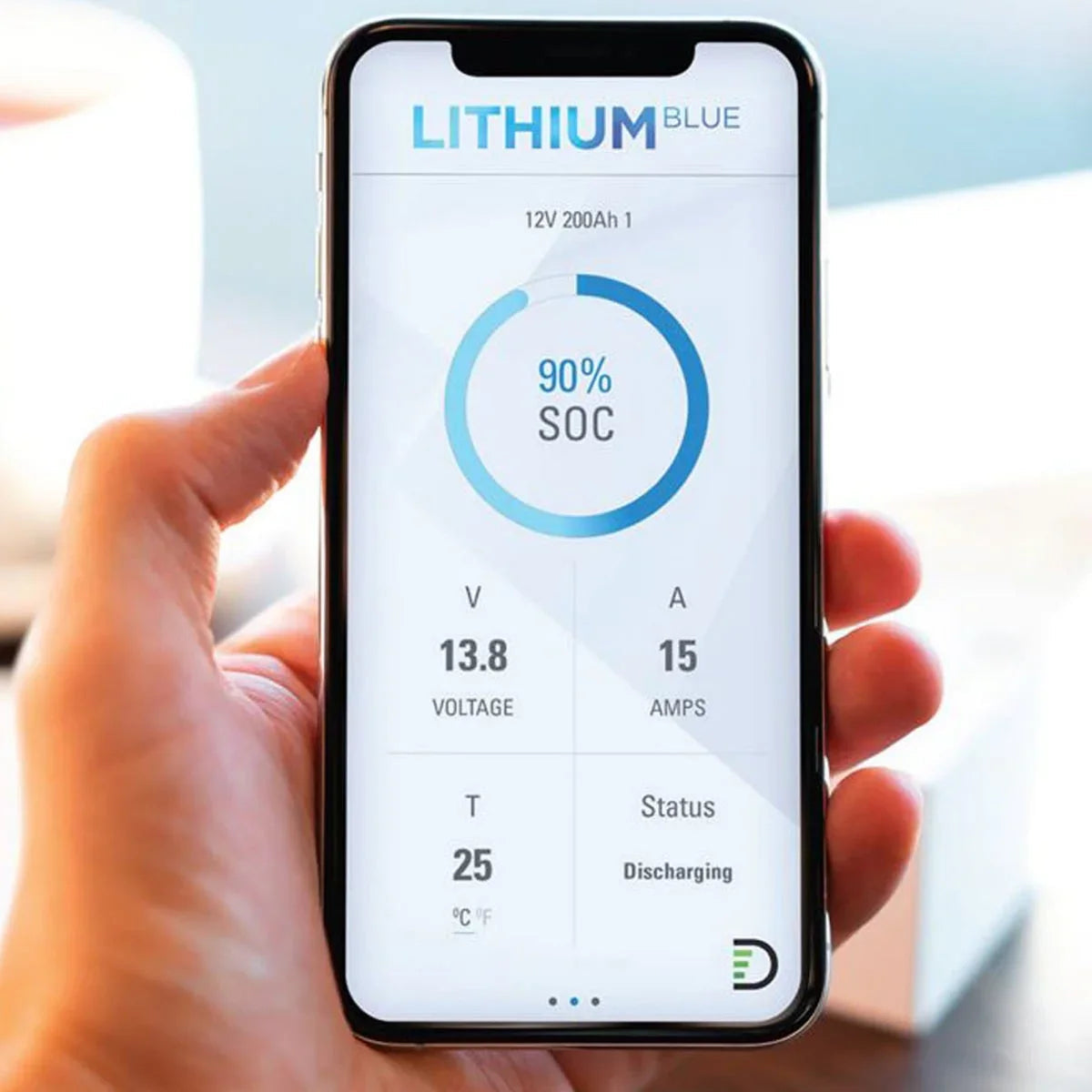

- State of Charge
- Voltage / Current
- Temperature ˚F/˚C
- Field replaceable fuse protection
- Double the high-current runtime of lead-acid battery
- Up to 100% usable capacity
- Up to 100% Depth of Discharge
- 10x the life of lead-acid battery (BCI-06)
- Unlimited Partial State of Charge cycles
- Energy throughput warranty
- Up to 5x faster than new lead-acid batteries
- Up to 10x faster than aged lead-acid batteries
- 2x faster than C/2 rated lithium batteries
- Opportunity charge at 1C rate anytime, regardless of SoC
- Surge power for inverter chargers
- Up to 3C peak power discharge rate
- Up to 1C continuous discharge rate
- Up to 50% more energy efficient than a lead-acid battery
- Up to 98% round-trip efficiency
- Easy to parallel more capacity
- Linear scaling of charge, discharge and peak capacity
- Fast installation. No special tools
- Drop-in lead-acid replacement
- LiFePO4 is safe
- Maintenance-free
- UL94 V0 flame retardant case and cover
- IP 67 rated
- Discover manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.
- CE
- UN 38.3
- UN 3480, Class 9 (Lithium batteries)
