Commercial 60KW Solar Array - 3 Phase 480V Solar Kit + 60K 480V Sol-Ark Inverter + 60KW Sol-Ark INDOOR Lithium Battery +60.5KW Solar with Ground Mount and Wiring (SC)
- Regular price
- $127,581.19
- Sale price
- $127,581.19
- Regular price
-
Commercial 60KW 3 Phase 480V Solar Kit + 60K 480V Sol-Ark Inverter + 60KW Sol-Ark Indoor Lithium Battery +60.5KW Solar with Ground Mount and Wiring
This Package is a great solution for light commercial or high-end residential projects. The Solar Array will produce around 272250Watts per day based on 4.5 hours sun. This size of system generally works great for applications that use around 8100 KWH per month. This Sol-Ark Three Phase system is built to be scaled up with future additions of Inverters, Panels and Batteries.

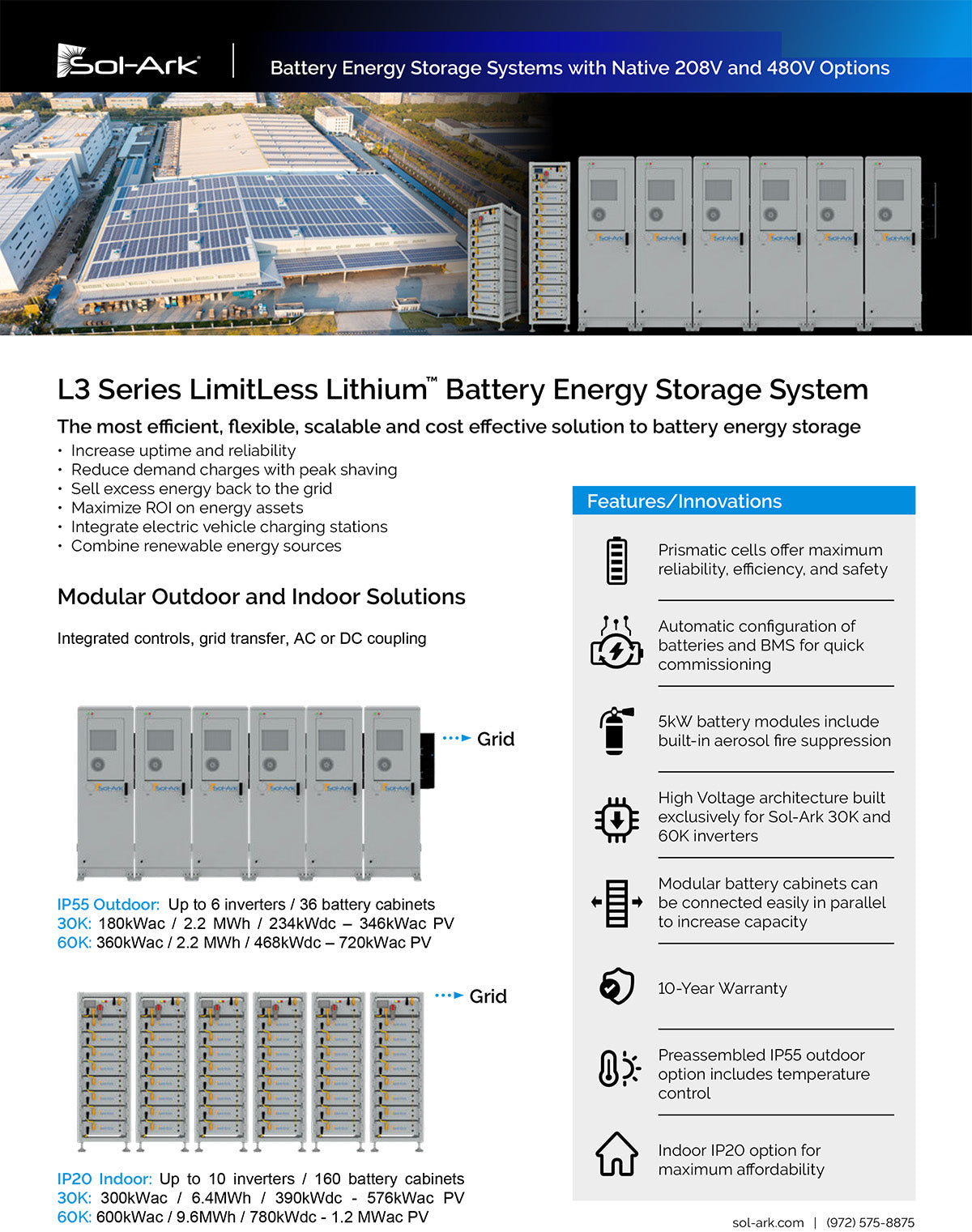

This kit has an Indoor (IP20 rated) Lithium Battery Bank that is rated for 60KW of storage power.

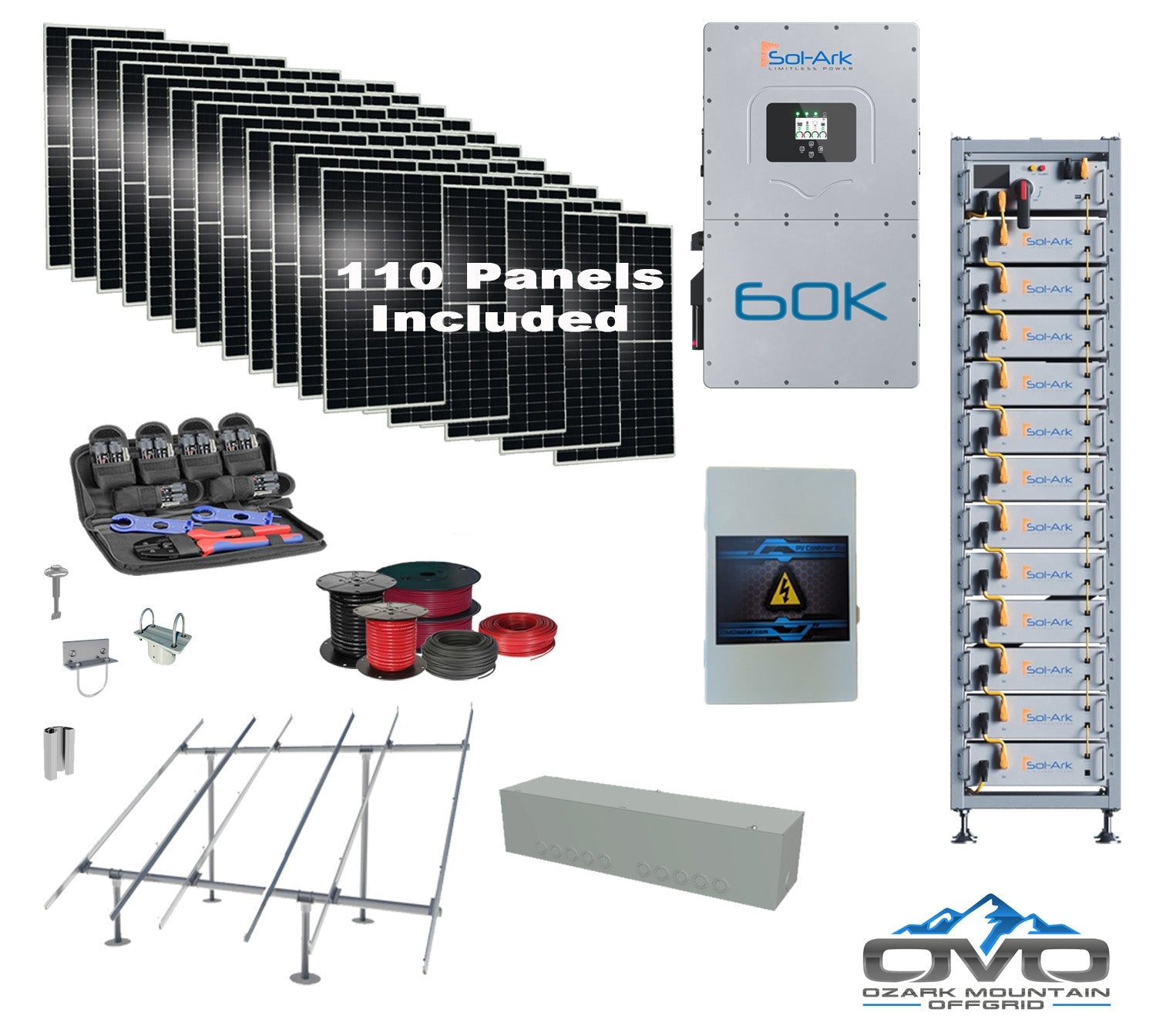

110x 550W Bifacial Mono Solar Panels (60500 Watt Array)

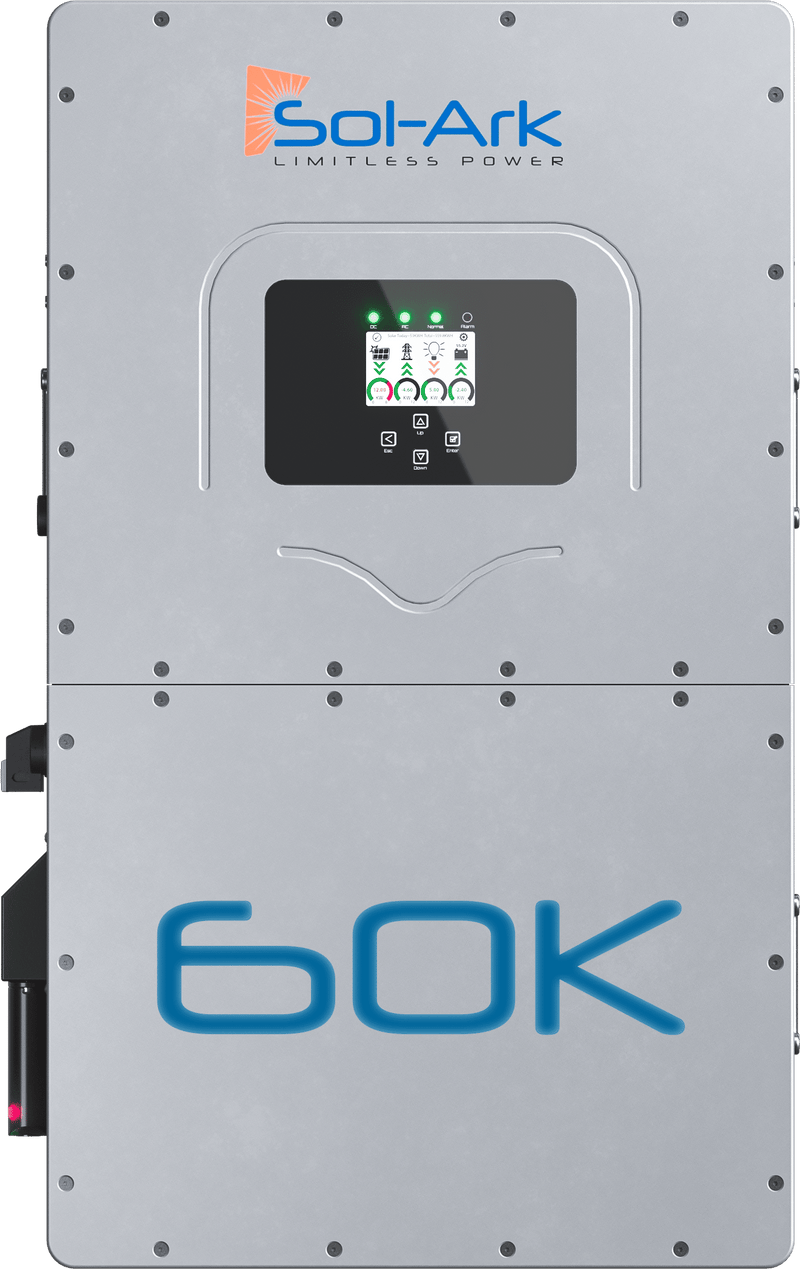

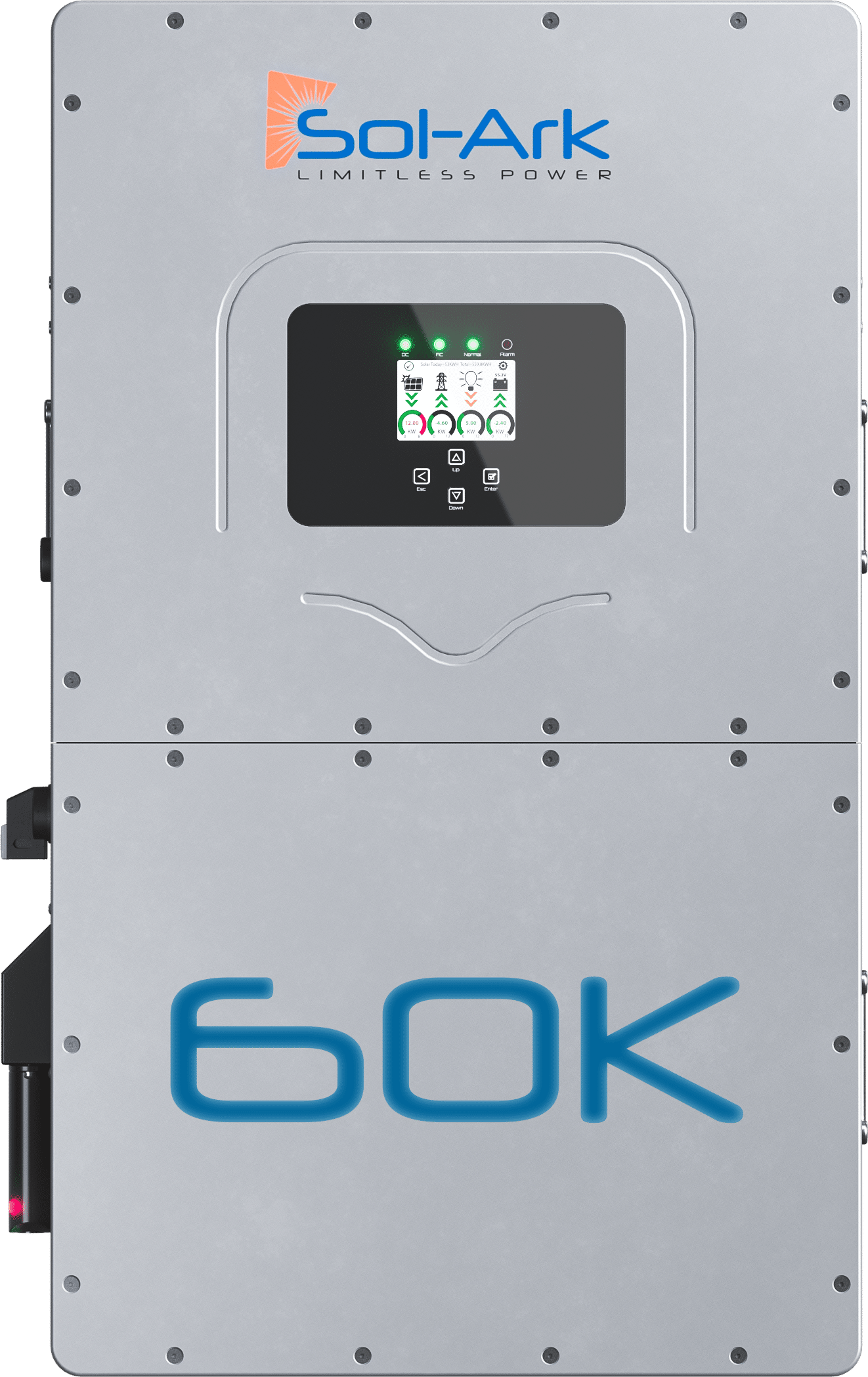

1x Sol-Ark 60KW Three Phase 480V Inverter (Included MPPT Charge Controllers built in)

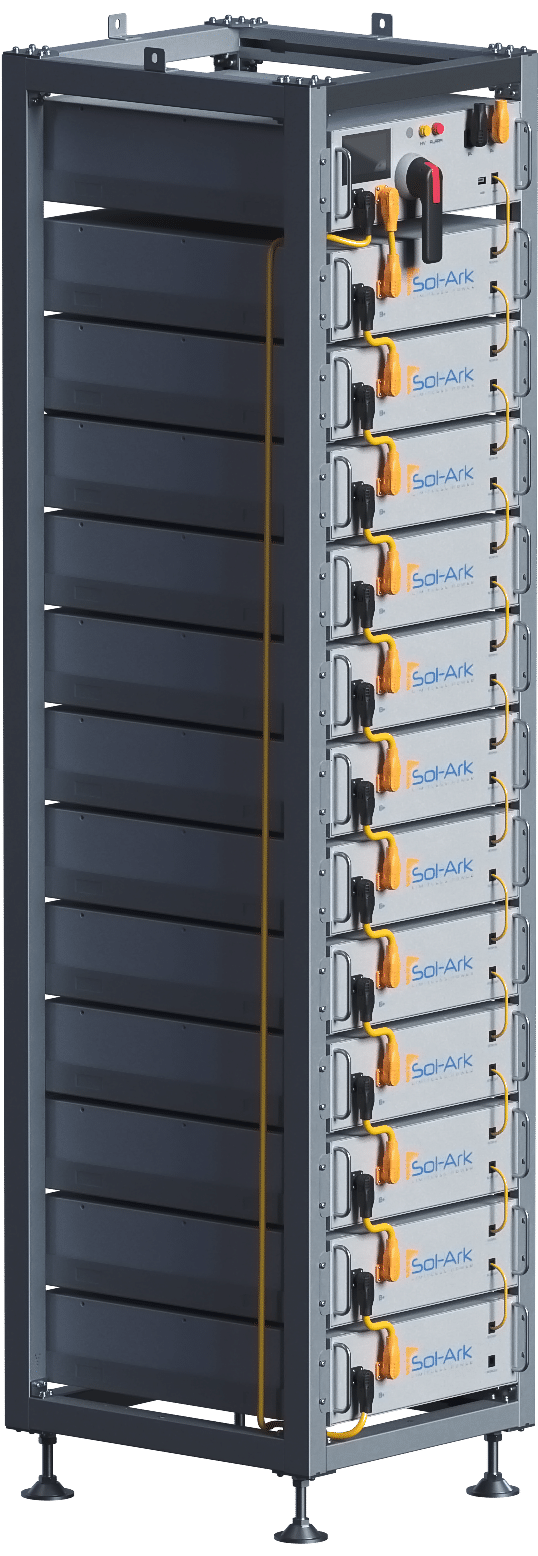

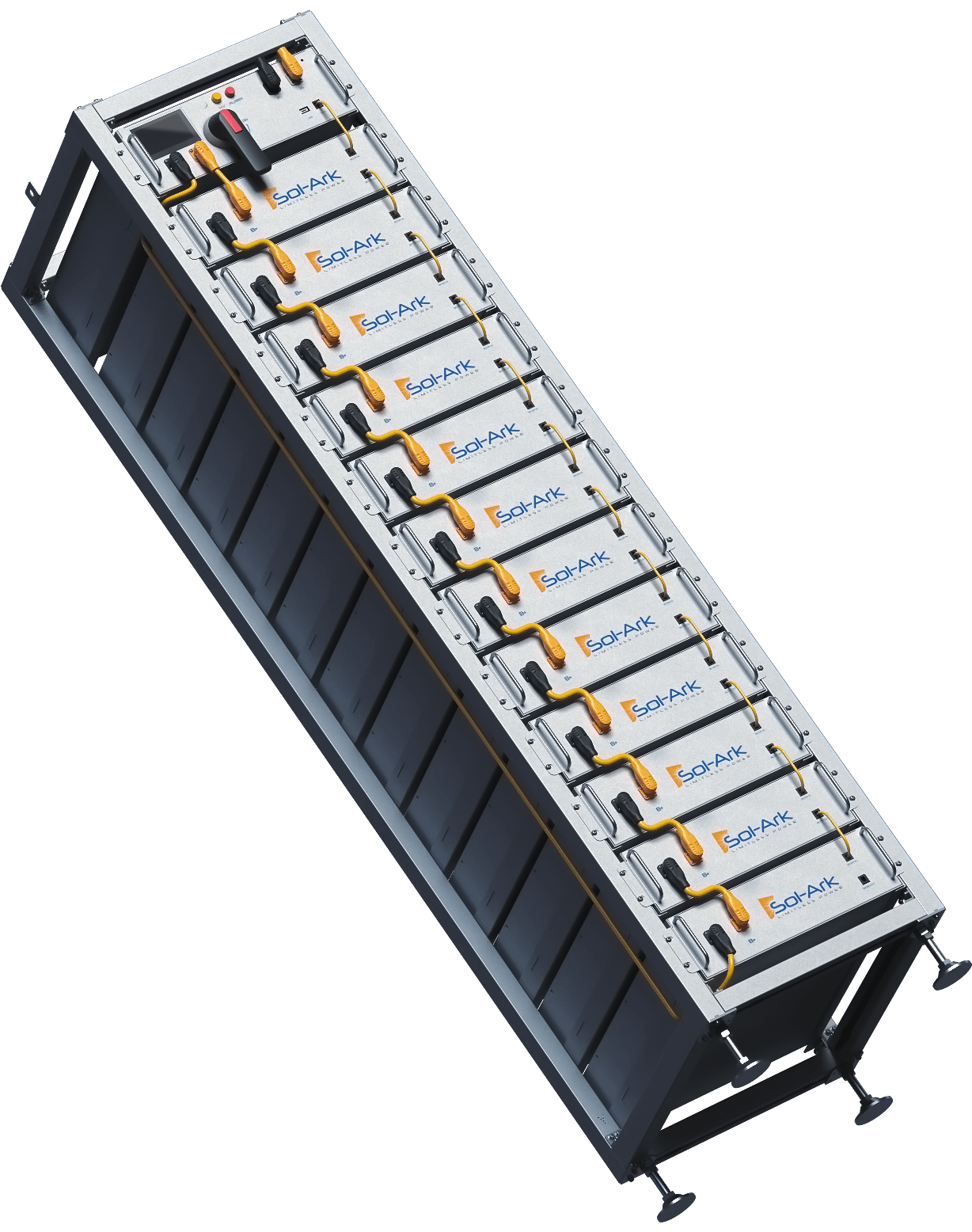

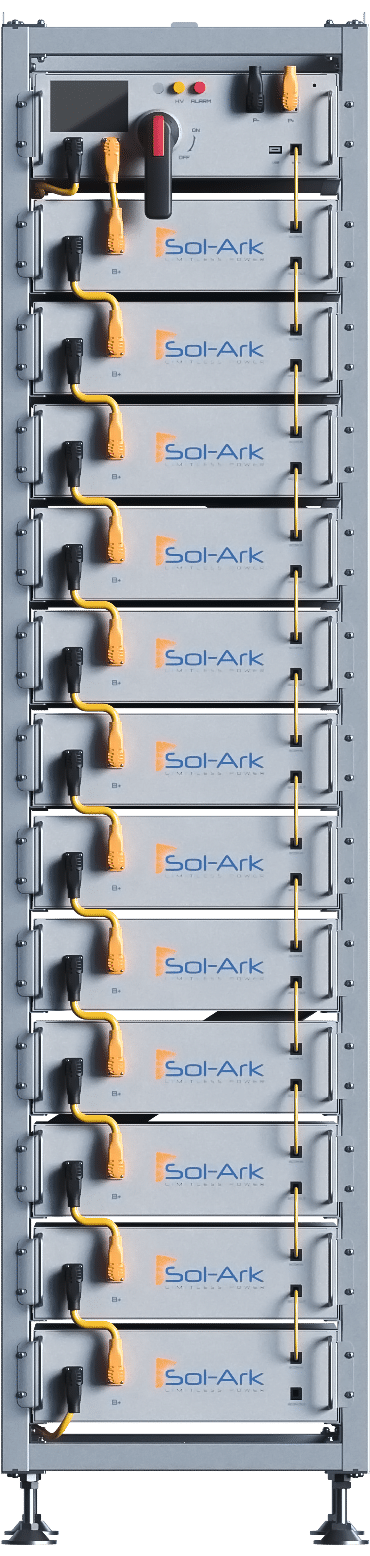

1x 60K Indoor IP20 Rated Lithium Battery Bank
1x Complete Set of Iron Ridge GROUND Mount Rails / Top Caps/ Rail Connectors / Fasteners and Bolts
1x Solar PV Combiner Box
1x 500' Spool 10AWG MC4 Solar Array Cabling
1x MC4 Crimper Tool Set
1x Spool 100' AC Output / Input / Generator Cabling - 4 AWG
1x 20' Spool 2/0 AC Main Line
1x Wire Gutter Boxes
1x AC Combiner Box Kit
These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty
NOTE: Installation option available at additional cost. Please contact us prior to ordering for custom pricing for your area.
Ground Mount System built based on 3" Pipe setup. Customer will source 3" sch 40 Pipe Locally, we supply everything else.

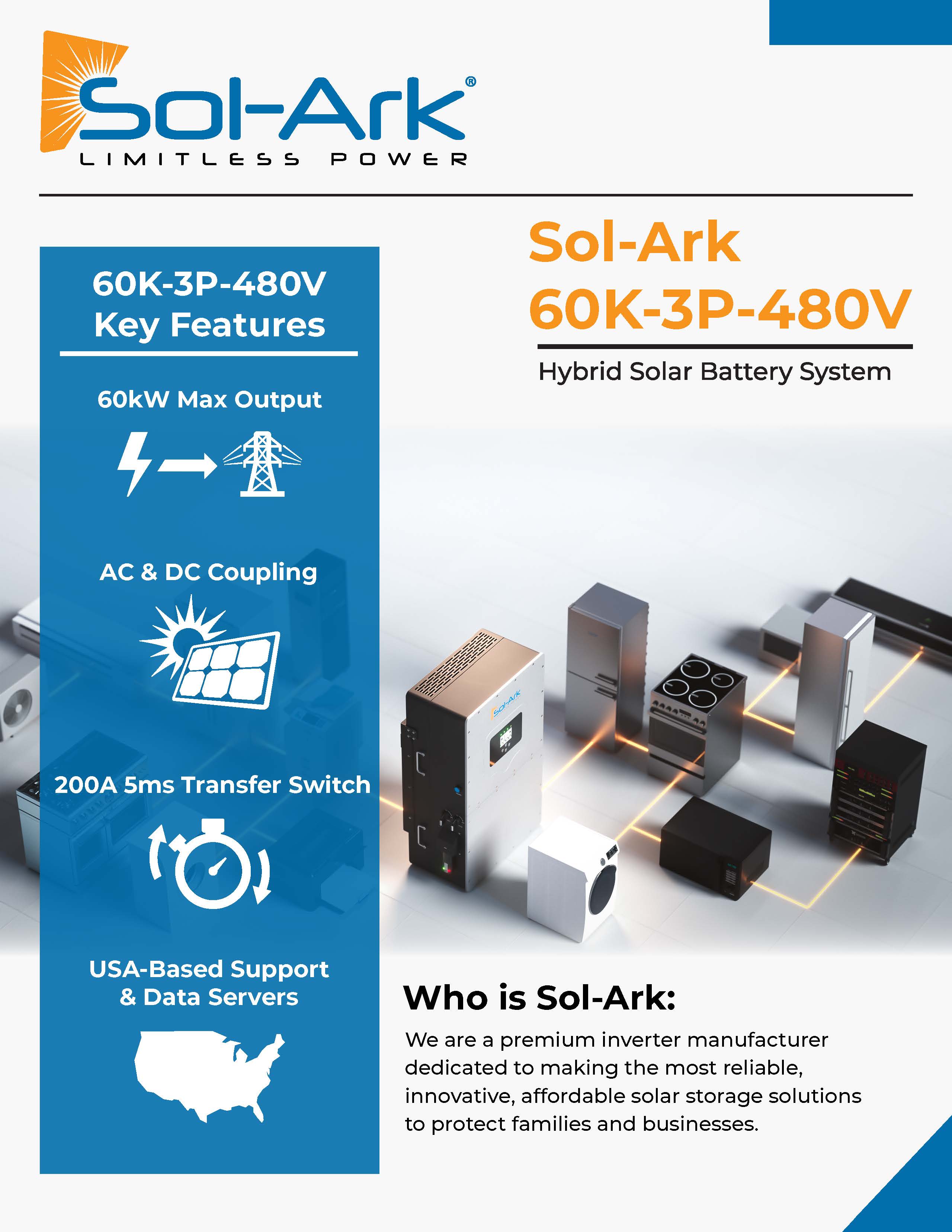

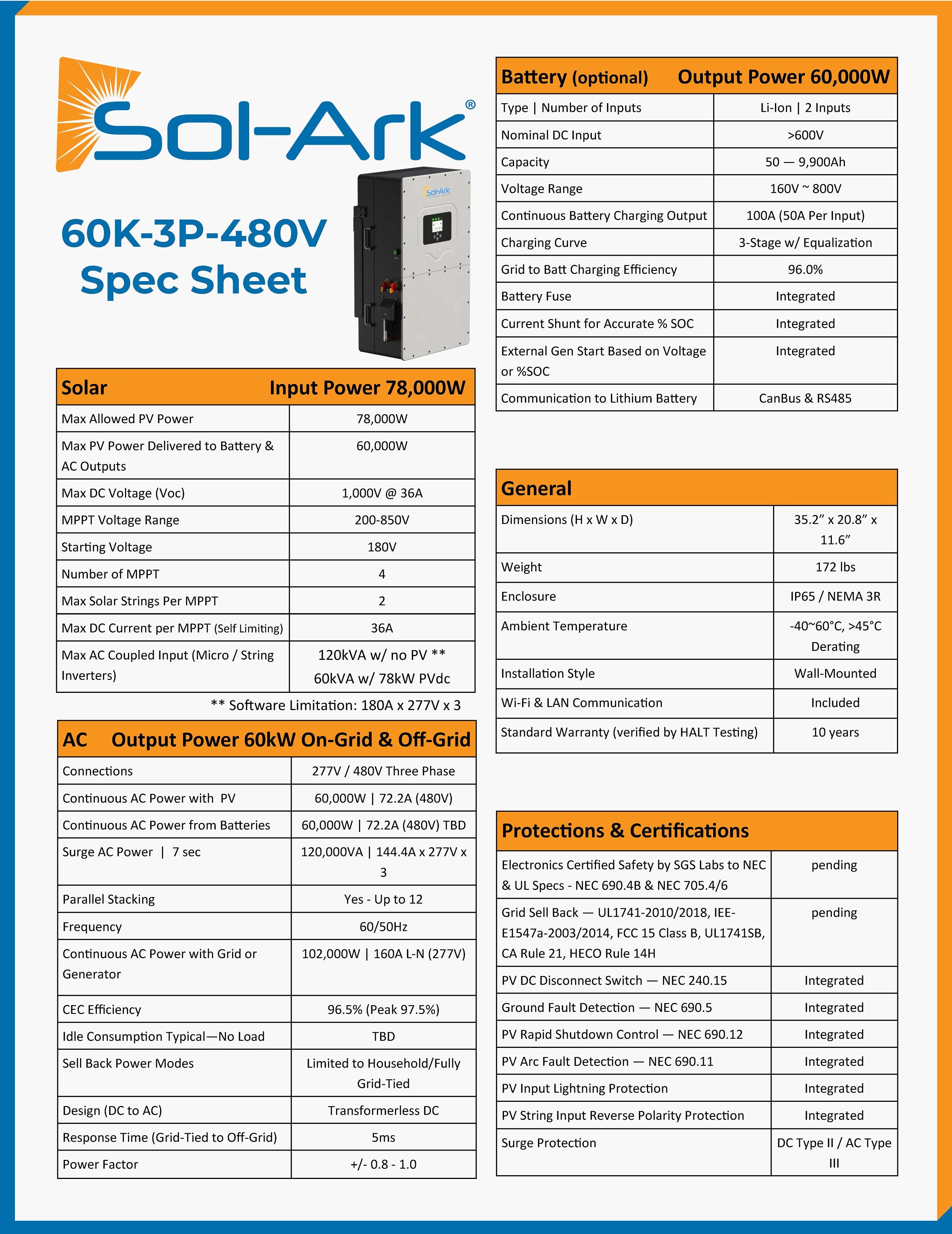

Sol-Ark 60K-3P-480V Specifications
|
Solar |
Input Power 78,000W |
|
Max Allowed PV Power |
78,000W |
|
Max PV Power Delivered to Battery & AC Outputs |
60,000W |
|
Max DC Voltage (Voc) |
1,000V @ 36A |
|
MPPT Voltage Range |
200-850V |
|
Starting Voltage |
180V |
|
Number of MPPT |
4 |
|
Max Solar Strings Per MPPT |
2 |
|
Max DC Current per MPPT (Self Limiting) |
36A |
|
Max AC Coupled Input (Micro / String Inverters |
120kVA w/ no PV ** 60kVA w/ 78kW PVdc |
** Software Limitation: 180A x 277V × 3
|
AC Output Power 60kW On-Grid & Off-Grid |
|
|
Connections |
277V / 480V Three Phase |
|
Continuous AC Power with PV |
60,000W | 72.2A (480V) |
|
Continuous AC Power from Batteries |
60,000W | 72.2A (480V) TBD |
|
Surge AC Power | 7 sec |
120,000VA | 144.4A x 277V x 3 |
|
Parallel Stacking |
Yes - Up to 12 |
|
Frequency |
60/50Hz |
|
Continuous AC Power with Grid or Generator |
102,000W | 160A L-N (277V) |
|
CEC Efficiency |
96.5% (Peak 97.5%) |
|
Idle Consumption Typical-No Load |
TBD |
|
Sell Back Power Modes |
Limited to Household/Fully Grid-Tied |
|
Design (DC to AC) |
Transformerless DC |
|
Response Time (Grid-Tied to Off-Grid) |
5ms |
|
Power Factor |
+/- 0.8 - 1.0 |
