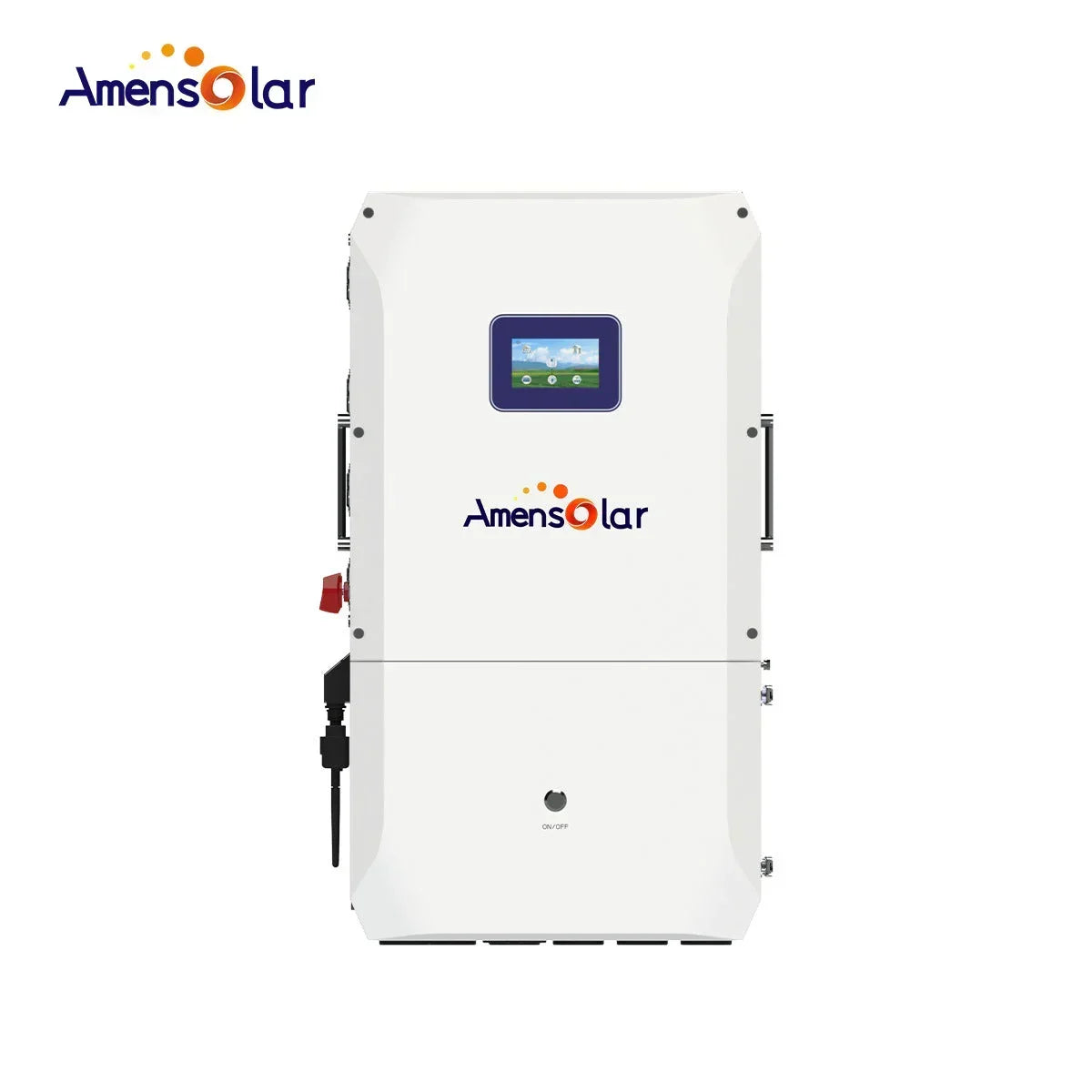

AmenSolar N3H-X10US 10KW Split Phase Hybrid Solar Inverter
AmenSolar N3H-X10US 10KW Split Phase Hybrid Solar Inverter
● Certificate: UL1741 UL1699B CSA IEEE Hawaii
● Inverter power: 10KW
● Maximum number of parallel inverters: 4
● Communication:Can,Rs485
● support split phase 110/220V ,208V and 230V voltage.
● support OEM for customers with their own brand.
● support customer to do UL multiple listing.
● support parallel and generator function.
● support peak shifting function for customer to use extral electricity to earn money .
● Max grid pass though current(A): 200
● Mainly recommended models: N3H-X10US
● Technical support: 24-hour professional technical online guidance service
● Shelf life: 10 years MOQ:5
● Partners: distributors, wholesalers, installation companies, not recommended for personal purchase and use
| Technical Data | N3H-X10US | ||||
| PV Input Data | |||||
| MAX.DC Input Power | 15KW | ||||

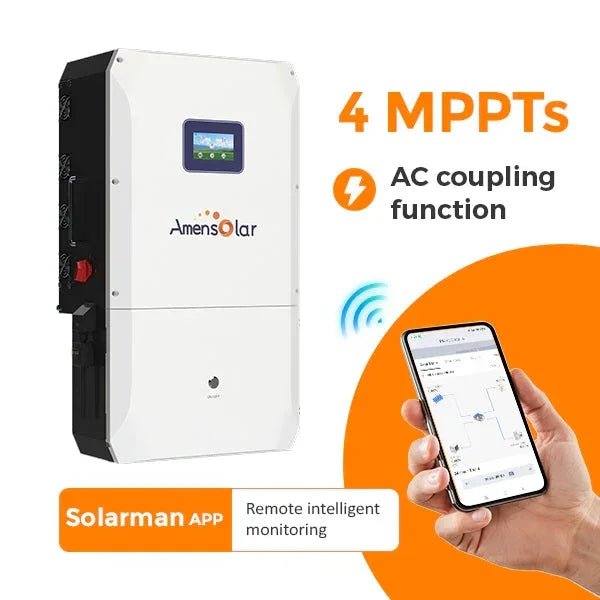

| No.of MPPT Trackers | 4 | ||||
| MPPT Range | 120 - 430V | ||||
| MAX.DC Input Voltage | 500V | ||||
| MAX.Input Current | 14A×4 | ||||
| Battery Input Data | |||||
| Nominal Voltage(Vdc) | 48V | ||||
| MAX.Charging/Discharging Current | 190A/210A | ||||
| Battery Voltage Range | 40-60V | ||||
| Battery Type | Lithium and Lead Acid Battery | ||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||
| AC Output Data(On-Grid) | |||||
| Nominal Output Power Output to Grid | 10KVA | ||||
| MAX. Apparent Power Output to Grid | 11KVA | ||||
| Output Voltage Range | 110-120V/220-240V split phase, 208V(2/3 phase), 230V(1 phase) | ||||
| Output Frequency | 50/60Hz (45 to 54.9Hz / 55 to 65Hz) | ||||
| Nominal AC Current Output to Grid | 41.7A | ||||
| Max.AC Current Output to Grid | 45.8A | ||||
| Output THDI | < 2% | ||||
| AC Output Data(Back-Up) | |||||
| Nominal. Apparent Power Output | 10KVA | ||||
| MAX. Apparent Power Output | 11KVA | ||||
| Nominal Output Voltage L-N/L1-L2 | 120/240V | ||||
| Nominal Output Frequency | 60Hz | ||||
| Output Power Factor | 0.8leading …0.8lagging | ||||
| Output THDU | < 2% | ||||
| Efficiency | |||||
| Europe Efficiency | >=97.8% | ||||
| MAX. Battery to Load Efficiency | >=97.2% | ||||
| Protection | |||||
| Grounding Detection | YES | ||||
| Arc Fault Protection | YES | ||||
| Island Protection | YES | ||||
| Battery Reverse Polarity | YES | ||||
| Insulation Resistor Detection | YES | ||||
| Residual Current Monitoring Unit | YES | ||||
| Output Over Current Protection | YES | ||||
| Back-up Output Short Protection | YES | ||||
| Terminal Temperature Detection | YES | ||||
| Output Over Voltage Protection | YES | ||||
| Output Under Voltage Protection | YES | ||||
| General Data | |||||
| Output Conduit | 25.4mm | ||||
| PV Input Conduit | 25.4mm | ||||
| BAT Input Conduit | 34.5mm | ||||
| Operating Temperature Range | -25 ~ +60°C | ||||
| Relative Humidity | 0-95% | ||||
| Operating Altitude | 0~4000m | ||||
| Ingress Protection | IP65/NEMA 3R | ||||
| Weight | 48kg | ||||
| Size (Width*Height*Depth) | 450mm x 820mm x 261mm | ||||
| Cooling | Air Cooling | ||||
| Noise Emission | <38dB | ||||
| Display | LCD | ||||
| Communication With BMS/Meter/EMS | CAN，RS485 | ||||
| Supported Communication Interface | RS485, WLAN, 4G (optional) | ||||
| Self-consumption at Night | < 25W | ||||
| Safety | UL1741SA all options , UL1699B, CSA 22.2 | ||||
| EMC | FCC Part 15 ClassB | ||||
| Grid Connection Standards | IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III | ||||
