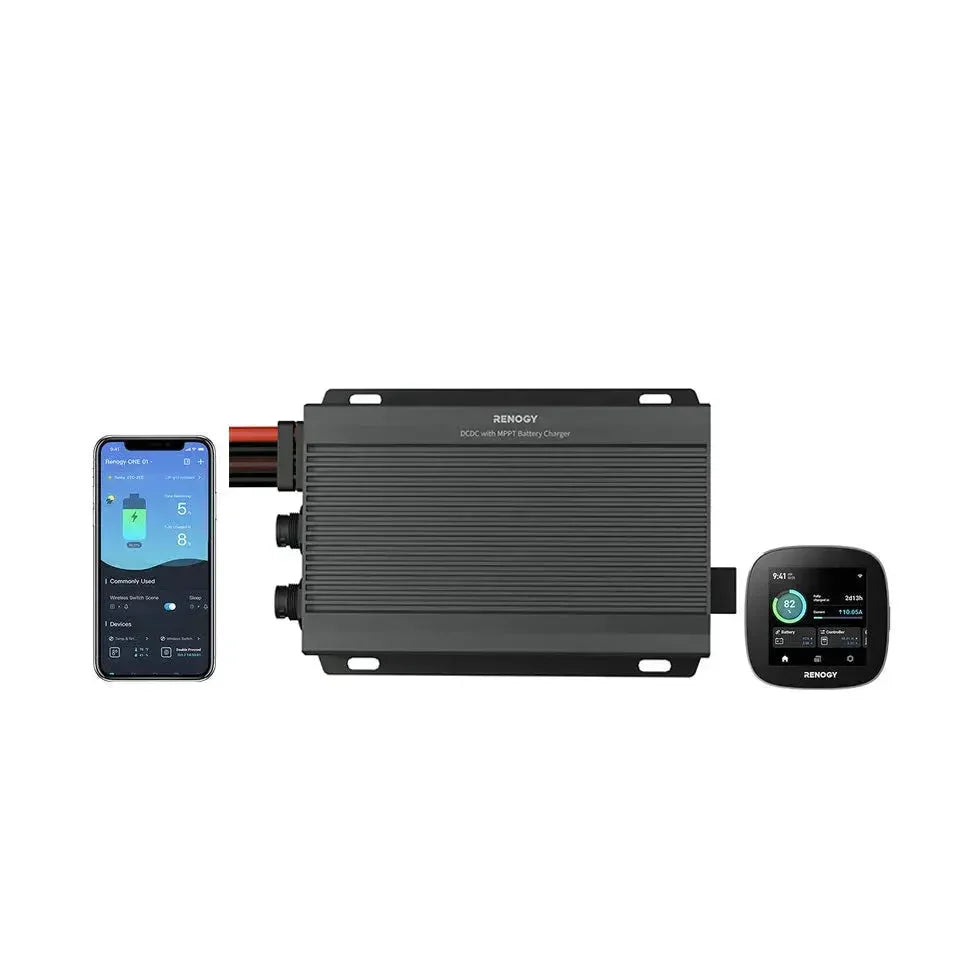

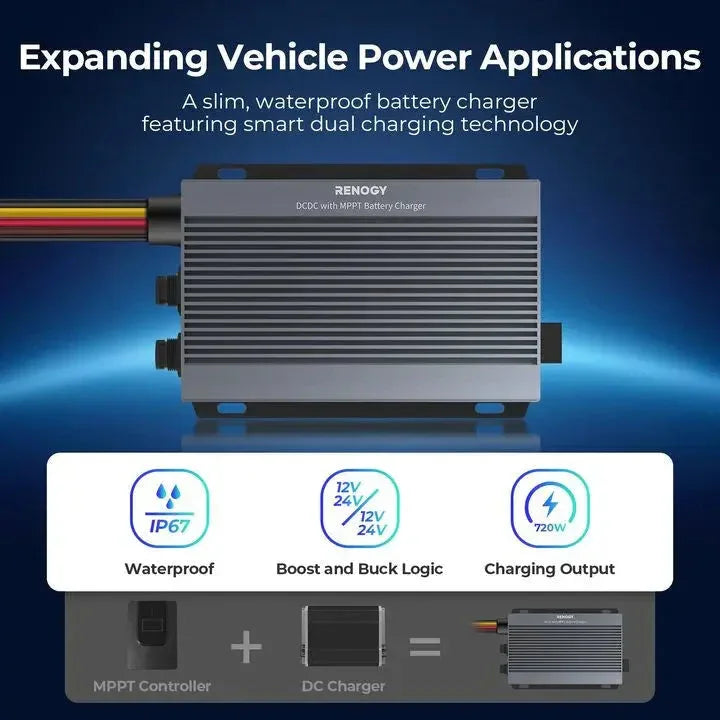

12V/24V IP67 50A DC-DC Battery Charger with MPPT with Renogy ONE Core
-A dual charging solution with 12V/24V boost and buck logic.
-Compact & lightweight with IP67 waterproof rating.
-Auto-switching charging mode while prioritizing green power.
-CE, FCC, RoHS certified with comprehensive test reports.

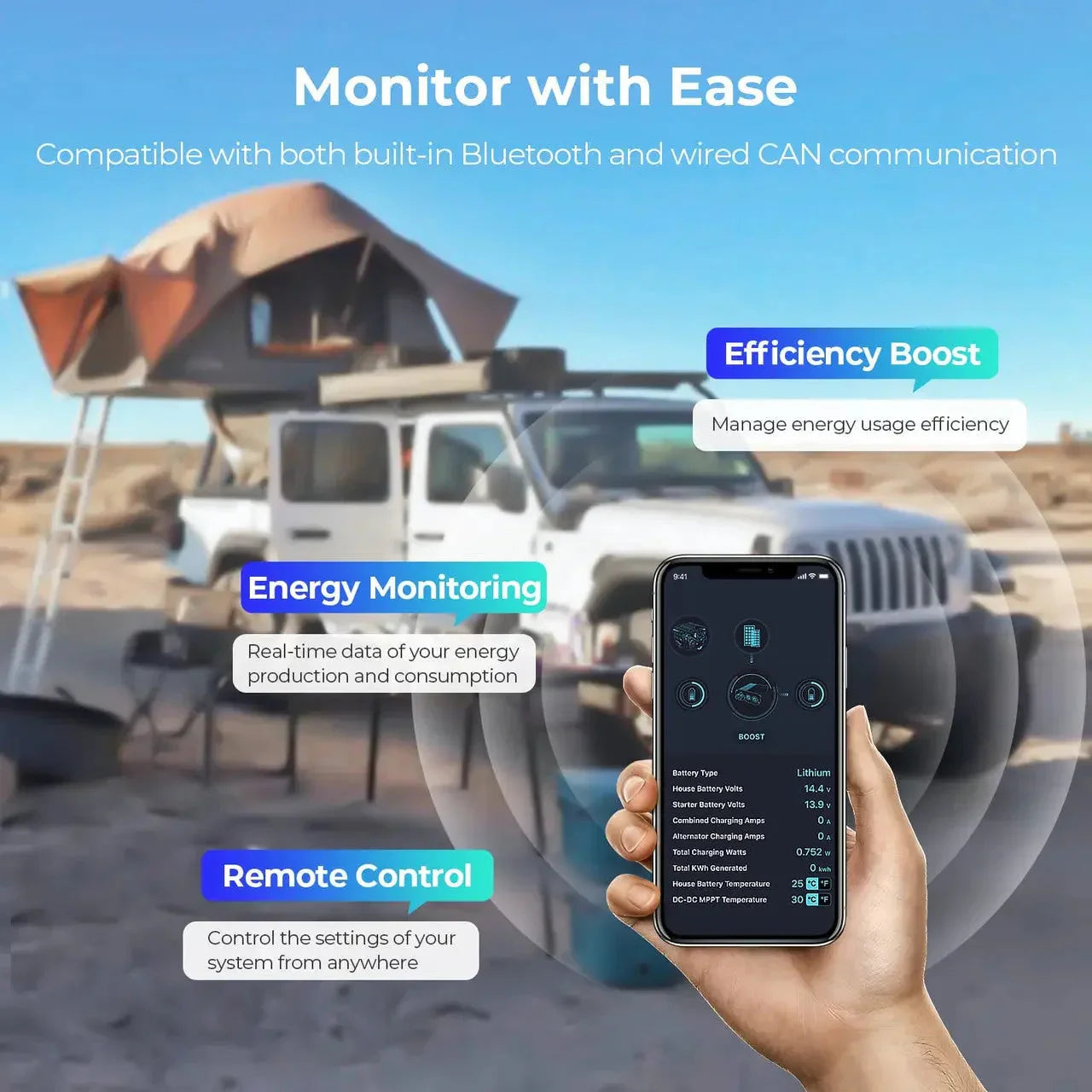

-Bluetooth Energy Monitoring with wired CAN communication.
RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT

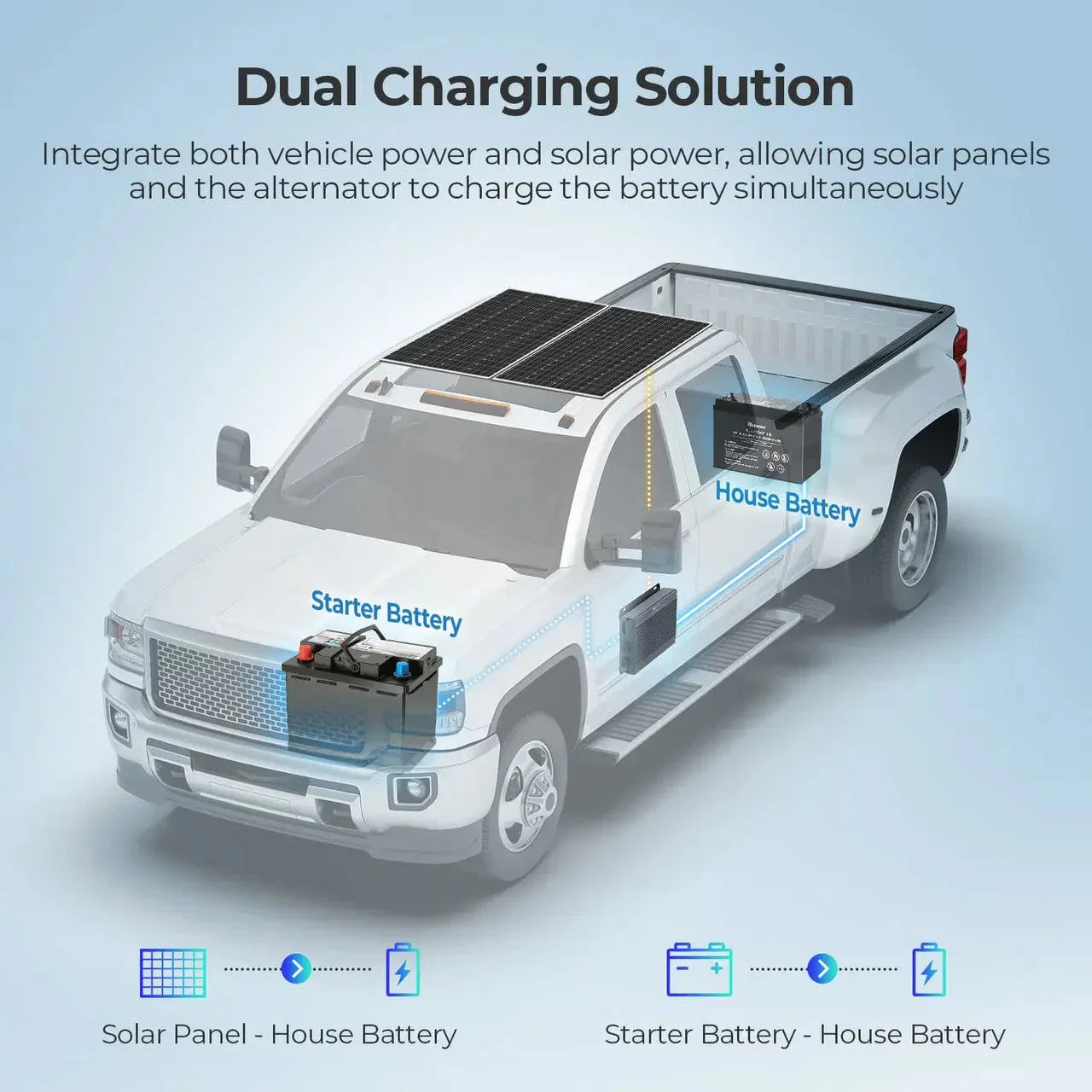

Intelligent Dual Charging Mode

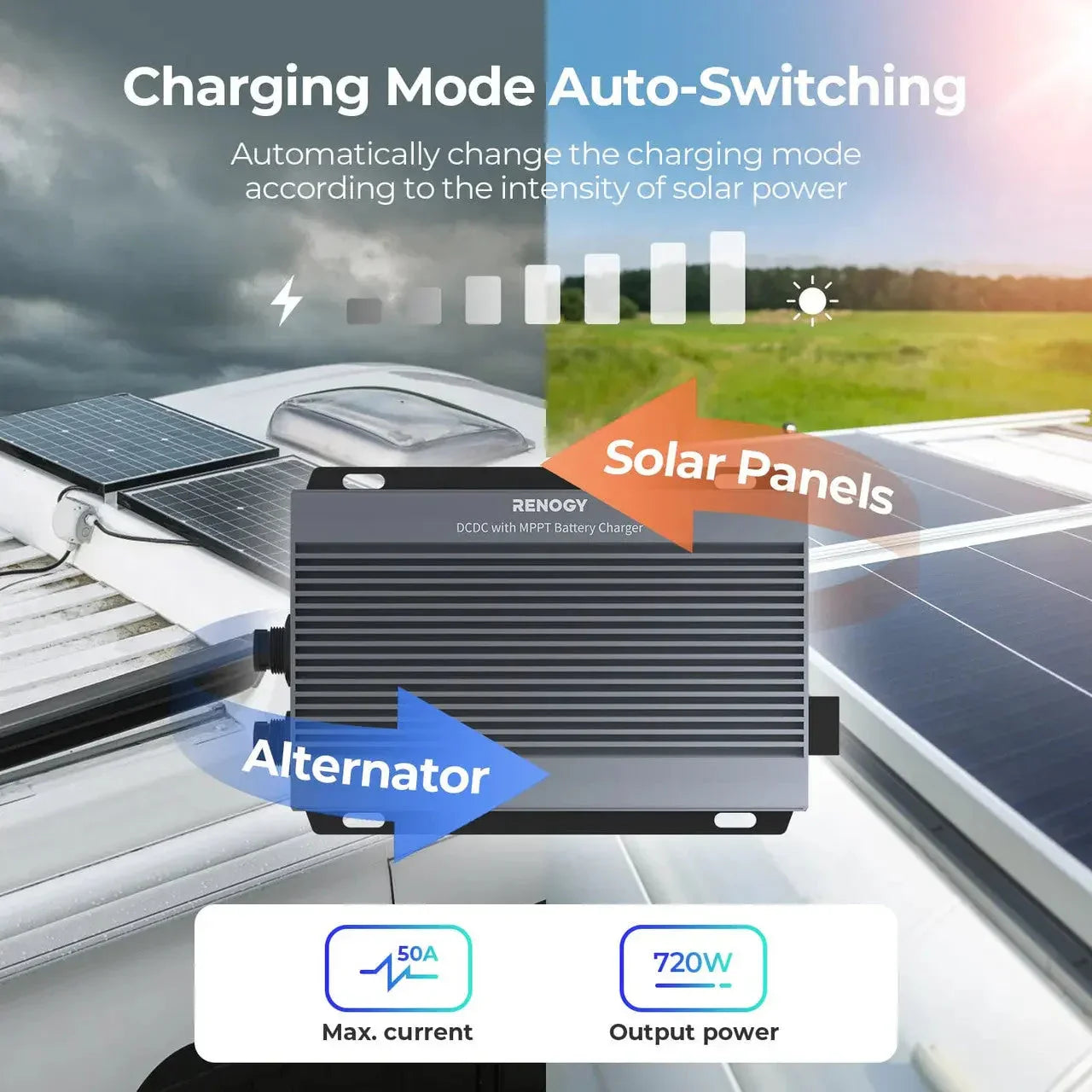

Intelligently combining vehicle and solar power, with automatic mode adjustments based on sunlight intensity.
Compatible with a Wider Range of Voltage
Expanding solar system DIY options for greater versatility.
Compact Design for Space Optimization
Mountable in the engine compartment and side storeroom, allowing for a more spacious and comfortable living space, facilitating easier movement.
Optimized Charging Efficiency
720W charging power allows a 1.2kWh battery to be fully charged within 1.8 Hrs.
Enhanced Charging Safety
Comprehensive electric protections safeguard the charging process.
Robust and Resilient Design
Drop-Resistant
Sheet metal casing gives the charger a robust shell that withstands drops and impacts.
Temperature-Resistant
Withstand extreme temperatures from -31°F to 176°F and maintain full-load operation even at 131°F.
Water-Resistant
The all-around glue filling design provides complete protection for the charger and ensures a high level of waterproofing.
Ultimate Reliability with Impeccable Efficiency
The battery charger efficiently meets the needs of the house battery while providing a trickle charge to the starter battery, ensuring that the vehicle can always start reliably.
| Basic Information | |
|---|---|
| System Voltage: 12V/24V - 12V/24V | Solar Input Voltage: 50 VDC |
| Output Voltage: 9-32 VDC | Alternator Input: 9-32 VDC |
| Maximum Output Current Rating: 50A | Output Power: 720W |
| Battery Types: AGM/SLD , GEL ,FLD ,LI,USER | Input Fuse Rating: 75A-100A |
| Output Fuse Rating: 75A-100A | Charging Efficiency: 94% |
| Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium) | Idle Power Consumption: ＜100mA |
| GENERAL DATA | |
| Model: RBC2125DS | Terminal Range: 8AWG-4AWG |
| Communication Protocol: Modbus ; RV-C | Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃ |
| Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃ | Humidity: 0%-95%, No Condensation |
| Maximum Operating Altitude: 3500m | Enclosure Rating: IP67 |
| Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm | Weight: 4.10 lb / 1.86 kg |
| Certification: UL1741;CE;RoHS;FCC Part 15 class B | Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection |
| WARRANTY INFORMATION | |
| Material and workmanship warranty: 3-year material warranty | Charge Controllers: DCCS Dual Input |
| Battery Chargers: DCCS Dual Input | |
Package Includes
NOTE:- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
|
IP67 50A DC-DC Battery Charger with MPPT
1 x
|
Battery Temperature Sensor
1 x
|
|
Terminal Rings
4 x
|
Install Screw(ST4*20mm)
1 x
|
1. What is the significance of the system voltage value of 12/24V-12/24V for IP67 chargers?

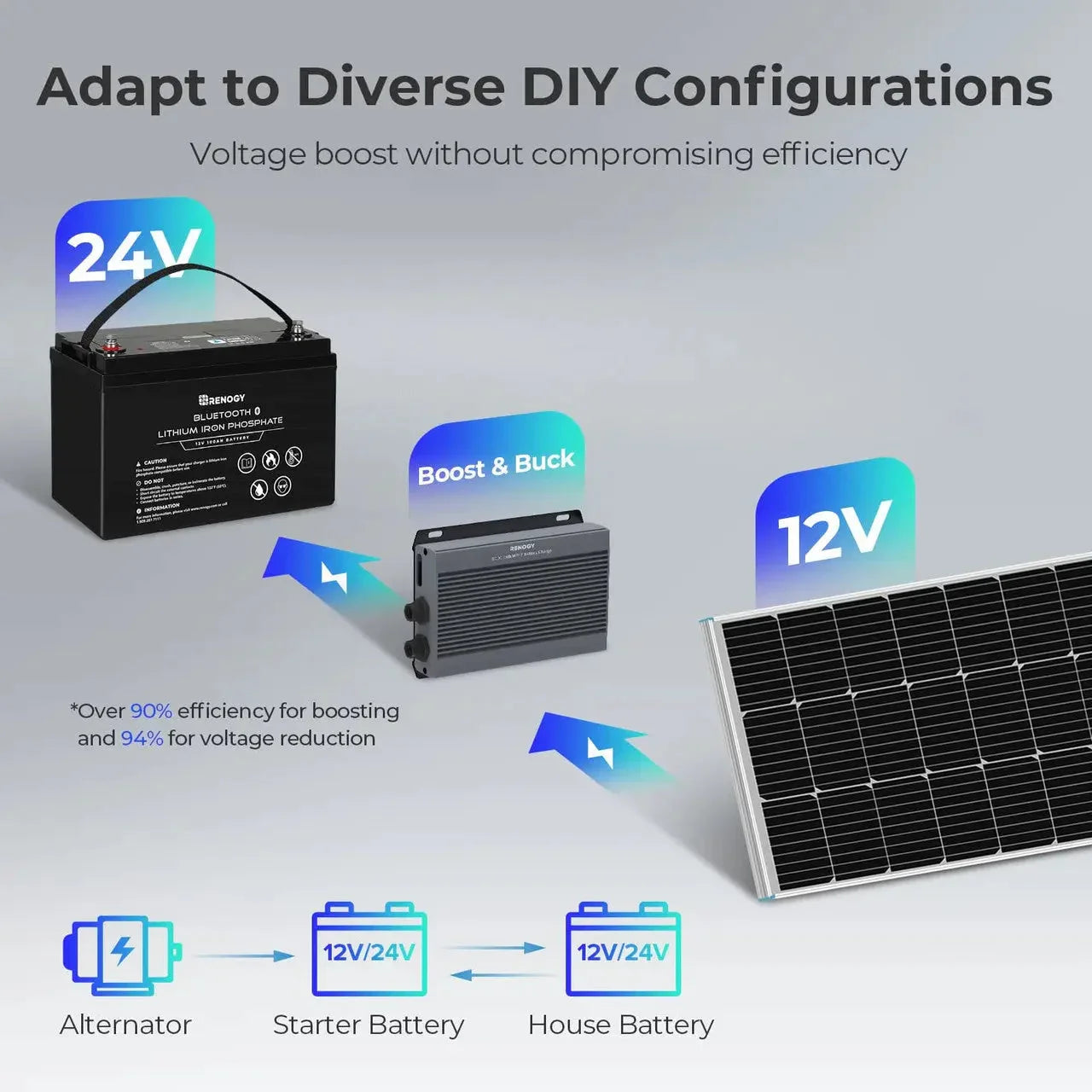

When the IP67 charger is connected to the solar panel, it can use the 12V solar panel to boost the voltage to charge the 24V Housing battery; it can use the 12V solar panel to buck the voltage to charge the 12V Housing battery. When the IP67 charger is connected to the starter battery, the 12V starter battery can be utilized to boost the voltage to charge the 24V Housing battery; the 12V starter battery can be utilized to charge the 12V Housing battery.
2. What are the solar input requirements for this charger?
(1) The charger is suitable for up to 720W solar panel.
(2) The charger is compatible with up to 50V solar panel input.
(3) The charger is compatible with both rigid and flexible modules.
(2) The charger is compatible with up to 50V solar panel input.
(3) The charger is compatible with both rigid and flexible modules.
3. What type of alternator is this charger compatible with?
The charger is compatible with smart alternators and traditional alternators, the working voltage of different alternators will be different. The product itself comes with Bluetooth communication function, you can connect to DC Home or Core via Bluetooth, and then adjust the appropriate input voltage value of the charger according to the characteristics of the working voltage of different types of alternators.
4. How do I set the battery type on this charger?
Way 1: The charger itself has a button to set the battery type, the button is next to the "Type" indicator, press it briefly to select a different battery type.
Way 2: The charger itself comes with Bluetooth communication, you can connect our Core, DC Home to change the battery type.
Way 2: The charger itself comes with Bluetooth communication, you can connect our Core, DC Home to change the battery type.
5. How to view data without a display?
The charger itself comes with Bluetooth communication, you can connect to our Core, DC Home to view the charger's data.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
